ANA10-AWXNK (2007)
Toyota Mark X Zio

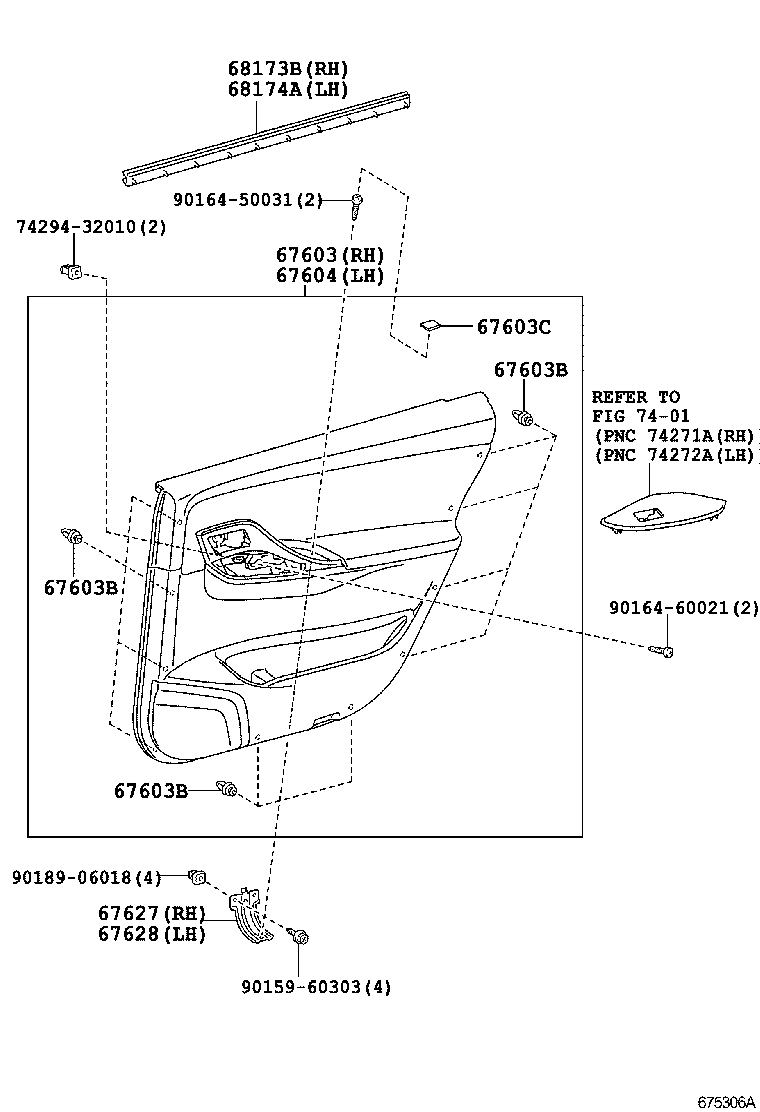

ILLUST NO. 2 OF 2(0709- )
ﾄﾞｱﾄﾘﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-72010C2 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU MD.GRAY,TRIM1# |
1 | ||
| 67630-72020C0 |
ANA1#..240 240“E−Selection” *(Z),BLACK/MD.GRAY,TRIM1#,2# |
1 | ||
| 67630-72010C1 |
ANA1#,GGA10..CBU PLUM BROWN,TRIM4# |
1 | ||
| 67630-72011C3 |
ANA1#..240 BLACK/MD.GRAY,TRIM1# |
1 | ||
| 67630-72011C4 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU BLACK/PLUM,TRIM4# |
1 | ||
| 67630-72011C3 |
ANA1#..240 BLACK/MD.GRAY,TRIM1#,2# |
1 | ||
| 67630-72020C0 |
ANA1#..240 240“E−Selection” *(Z),BLACK/MD.GRAY,TRIM2# |
1 | ||
| 67630-72010C0 |
ANA1#,GGA10..CBU GRAY,TRIM1# |
1 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-09206 |
ANA1#,GGA10..240,240G,350G,ARIAL |
20 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-09206 |
ANA1#,GGA10..240,240G,350G,ARIAL |
20 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-09206 |
ANA1#,GGA10..240,240G,350G,ARIAL |
20 | ||
| 67603C - CAP(FOR REAR DOOR TRIM BOARD) | ||||
| 74223-28070C0 |
ANA1#..240 BLACK,TRIM1#,4# |
2 | ||
| 74223-28070C0 |
ANA1#..240 BLACK,TRIM1#,2#,4# |
2 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-72010C2 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU MD.GRAY,TRIM1# |
1 | ||
| 67640-72010C0 |
ANA1#,GGA10..CBU GRAY,TRIM1# |
1 | ||
| 67640-72010C1 |
ANA1#,GGA10..CBU PLUM BROWN,TRIM4# |
1 | ||
| 67640-72011C3 |
ANA1#..240 BLACK/MD.GRAY,TRIM1# |
1 | ||
| 67640-72011C3 |
ANA1#..240 BLACK/MD.GRAY,TRIM1#,2# |
1 | ||
| 67640-72011C4 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU BLACK/PLUM,TRIM4# |
1 | ||
| 67640-72020C0 |
ANA1#..240 240“E−Selection” *(Z),BLACK/MD.GRAY,TRIM1#,2# |
1 | ||
| 67640-72020C0 |
ANA1#..240 240“E−Selection” *(Z),BLACK/MD.GRAY,TRIM2# |
1 | ||
| 67627 - BRACKET, REAR DOOR TRIM, RH | ||||
| 67627-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 67628 - BRACKET, REAR DOOR TRIM, LH | ||||
| 67627-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| Common parts | ||||
| 74294-32010 | ||||
| 90159-60303 | ||||
| 90164-50031 | ||||
| 90164-60021 | ||||
| 90189-06018 | ||||
| Linked diagrams | ||||
| 7401 | ||||

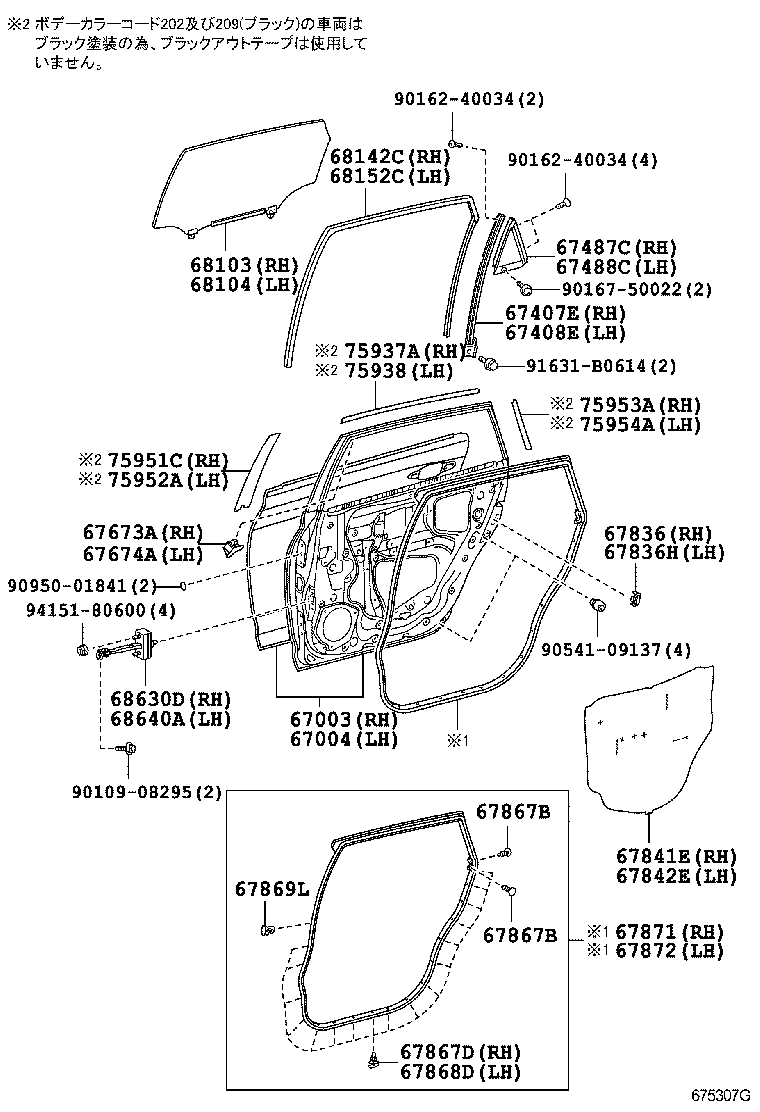

ILLUST NO. 1 OF 2(0709- )
ﾄﾞｱﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 67487C - SEAL, REAR DOOR REAR GUIDE, RH | ||||
| 67487-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 67488C - SEAL, REAR DOOR REAR GUIDE, LH | ||||
| 67488-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 67673A - GARNISH, REAR DOOR FRAME, RH | ||||
| 67673-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 67674A - GARNISH, REAR DOOR FRAME, LH | ||||
| 67674-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH | ||||
| 67836-14010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 67836H - COVER, REAR DOOR LOCK CHILD PROTECTION, LH | ||||
| 67836-14010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 67867B - CLIP, DOOR WEATHERSTRIP(FOR REAR DOOR) | ||||
| 67868-30030 |
ANA1#,GGA10..240,240G,350G,ARIAL |
4 | ||
| 67867B - CLIP, DOOR WEATHERSTRIP(FOR REAR DOOR) | ||||
| 67868-30030 |
ANA1#,GGA10..240,240G,350G,ARIAL |
4 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
ANA1#,GGA10..240,240G,350G,ARIAL |
18 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
ANA1#,GGA10..240,240G,350G,ARIAL |
18 | ||
| 67869L - CLIP, REAR DOOR WEATHERSTRIP | ||||
| 90467-04034 |
ANA1#,GGA10..240,240G,350G,ARIAL |
2 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 67871-72011 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 67872-72011 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68103-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL *TEM,厚さ=4.0,ﾀﾞｰｸｸﾞﾚｰ |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68104-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL *TEM,厚さ=4.0,ﾀﾞｰｸｸﾞﾚｰ |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 68630D - CHECK ASSY, REAR DOOR, RH | ||||
| 68630-72011 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 68630-72010 |
ANA1#,GGA10 |
1 | ||
| 68640A - CHECK ASSY, REAR DOOR, LH | ||||
| 68630-72010 |
ANA1#,GGA10 |
1 | ||
| 68630-72011 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 75937A - TAPE, BLACK OUT, INNER UPPER RH | ||||
| 75937-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 75938 - TAPE, BLACK OUT, INNER UPPER LH | ||||
| 75938-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 75951C - TAPE, BLACK OUT, INNER FRONT RH | ||||
| 75951-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 75952A - TAPE, BLACK OUT, INNER FRONT LH | ||||
| 75952-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 75953A - TAPE, BLACK OUT, INNER REAR RH | ||||
| 75953-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 75954A - TAPE, BLACK OUT, INNER REAR LH | ||||
| 75954-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90162-40034 | ||||
| 90167-50022 | ||||
| 90541-09137 | ||||
| 90950-01841 | ||||
| 91631-B0614 | ||||
| 94151-80600 | ||||
