ANA10-AWXNK (2007)
Toyota Mark X Zio
Production
Sep 2007
-
Feb 2011
Engine
2AZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0709- )

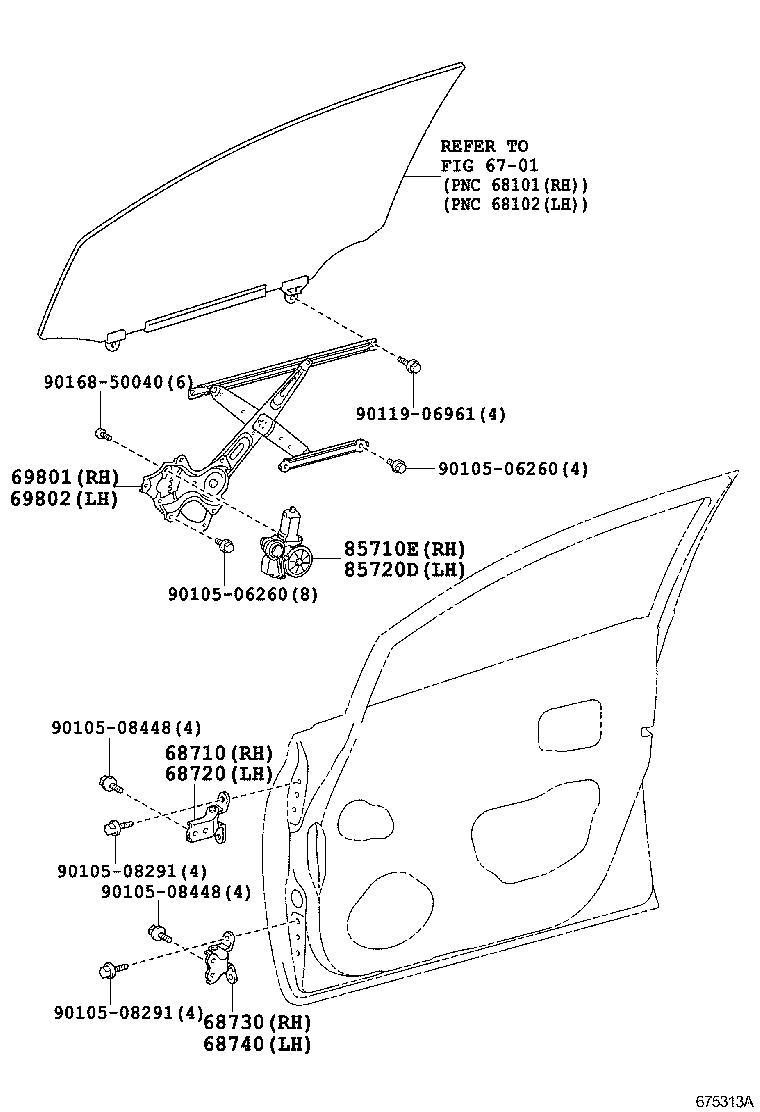

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68710 - HINGE ASSY, FRONT DOOR, UPPER RH | ||||
| 68710-12151 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 68720 - HINGE ASSY, FRONT DOOR, UPPER LH | ||||
| 68720-12151 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 68730 - HINGE ASSY, FRONT DOOR, LOWER RH | ||||
| 68730-12120 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 68740 - HINGE ASSY, FRONT DOOR, LOWER LH | ||||
| 68740-12120 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH | ||||
| 69801-30260 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH | ||||
| 69802-30260 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 85710E - MOTOR ASSY, POWER WINDOW REGULATOR, RH | ||||
| 85710-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 85710-72011 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 85720D - MOTOR ASSY, POWER WINDOW REGULATOR, LH | ||||
| 85720-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 85720-72011 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| Common parts | ||||
| 90105-06260 | ||||
| 90105-08291 | ||||
| 90105-08448 | ||||
| 90119-06961 | ||||
| 90168-50040 | ||||
| Linked diagrams | ||||
| 6701 | ||||
