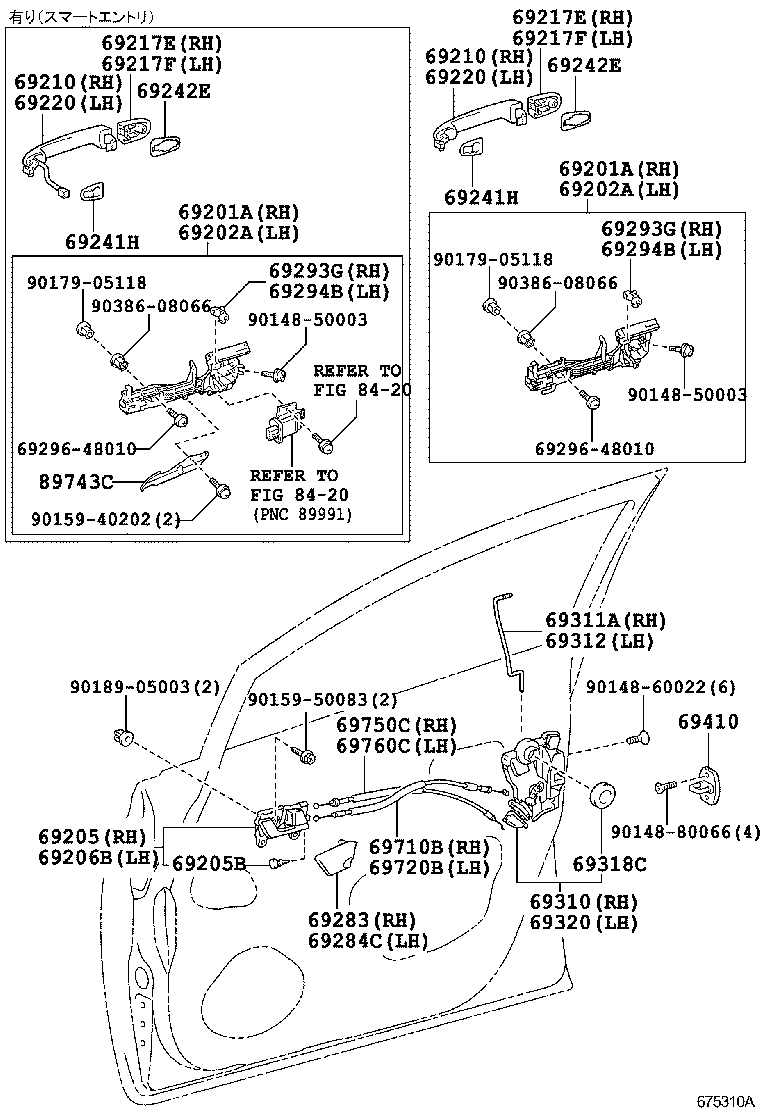

ANA10-AWXNK (2007)
Toyota Mark X Zio
(0709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69201-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69201-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69202-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69202-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69270-22010 |
ANA1#,GGA10..CBU |
1 | ||
| 69205-20210C0 |
ANA1#,GGA10..CBU BLACK |
1 | ||
| 69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE) | ||||
| 90541-04014 |
ANA1#,GGA10..240,240G,350G,ARIAL |
2 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69280-22020 |
ANA1#,GGA10..CBU |
1 | ||
| 69206-20210C0 |
ANA1#,GGA10..CBU BLACK |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-44030B7 |
ANA1#..240 DK.GRAY M.M.,1E9 |
1 | ||
| 69210-44030H2 |
ANA1#..240 FROSTY GREEN MC.,781 |
1 | ||
| 69210-44030A6 |
ANA1#..240 WHITE PEARL CS.,070 |
1 | ||
| 69210-44030D3 |
ANA1#..240 RED M.M.,3R3 |
1 | ||
| 69210-44030R3 |
ANA1#..240 LT.BLUE M.M.,8S7 |
1 | ||
| 69210-44030P3 |
ANA1#..240 SILVER ME.,1G7 |
1 | ||
| 69210-44030C2 |
ANA1#..240 BLACK MC.,209 |
1 | ||
| 69210-44030D6 |
ANA1#..240 BLACKISH RED MC.,3R0 |
1 | ||
| 69210-44030J2 |
ANA1#..240 DK.BLUE MC.,8S6 |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-44030B7 |
ANA1#..240 DK.GRAY M.M.,1E9 |
1 | ||
| 69210-44030H2 |
ANA1#..240 FROSTY GREEN MC.,781 |
1 | ||
| 69210-44030A6 |
ANA1#..240 WHITE PEARL CS.,070 |
1 | ||
| 69210-44030D3 |
ANA1#..240 RED M.M.,3R3 |
1 | ||
| 69210-44030R3 |
ANA1#..240 LT.BLUE M.M.,8S7 |
1 | ||
| 69210-44030P3 |
ANA1#..240 SILVER ME.,1G7 |
1 | ||
| 69210-44030C2 |
ANA1#..240 BLACK MC.,209 |
1 | ||
| 69210-44030D6 |
ANA1#..240 BLACKISH RED MC.,3R0 |
1 | ||
| 69210-44030J2 |
ANA1#..240 DK.BLUE MC.,8S6 |
1 | ||
| 69217E - COVER, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69217-28010A3 |
ANA1#..240 WHITE PEARL CS.,070 |
1 | ||
| 69217-28010B4 |
ANA1#..240 DK.GRAY M.M.,1E9 |
1 | ||
| 69217-28010C0 |
ANA1#..240 BLACK MC.,209 |
1 | ||
| 69217-28010R9 |
ANA1#..240 DK.BLUE MC.,8S6 |
1 | ||
| 69217-28010X2 |
ANA1#..240 RED M.M.,3R3 |
1 | ||
| 69217-28010H2 |
ANA1#..240 FROSTY GREEN MC.,781 |
1 | ||
| 69217-28010S1 |
ANA1#..240 SILVER ME.,1G7 |
1 | ||
| 69217-28010V4 |
ANA1#..240 LT.BLUE M.M.,8S7 |
1 | ||
| 69217-28010X3 |
ANA1#..240 BLACKISH RED MC.,3R0 |
1 | ||
| 69217E - COVER, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69217-28010A3 |
ANA1#..240 WHITE PEARL CS.,070 |
1 | ||
| 69217-28010B4 |
ANA1#..240 DK.GRAY M.M.,1E9 |
1 | ||
| 69217-28010C0 |
ANA1#..240 BLACK MC.,209 |
1 | ||
| 69217-28010R9 |
ANA1#..240 DK.BLUE MC.,8S6 |
1 | ||
| 69217-28010X2 |
ANA1#..240 RED M.M.,3R3 |
1 | ||
| 69217-28010H2 |
ANA1#..240 FROSTY GREEN MC.,781 |
1 | ||
| 69217-28010S1 |
ANA1#..240 SILVER ME.,1G7 |
1 | ||
| 69217-28010V4 |
ANA1#..240 LT.BLUE M.M.,8S7 |
1 | ||
| 69217-28010X3 |
ANA1#..240 BLACKISH RED MC.,3R0 |
1 | ||
| 69217F - COVER, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69217-60020C1 |
ANA1#..240 BLACK MC.,209 |
1 | ||
| 69217-60020H2 |
ANA1#..240 FROSTY GREEN MC.,781 |
1 | ||
| 69217-60020A1 |
ANA1#..240 WHITE PEARL CS.,070 |
1 | ||
| 69217-60020X0 |
ANA1#..240 RED M.M.,3R3 |
1 | ||
| 69217-60020P8 |
ANA1#..240 SILVER ME.,1G7 |
1 | ||
| 69217-60020R5 |
ANA1#..240 DK.BLUE MC.,8S6 |
1 | ||
| 69217-60020B1 |
ANA1#..240 DK.GRAY M.M.,1E9 |
1 | ||
| 69217-60020X1 |
ANA1#..240 BLACKISH RED MC.,3R0 |
1 | ||
| 69217-60020V0 |
ANA1#..240 LT.BLUE M.M.,8S7 |
1 | ||
| 69217F - COVER, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69217-60020C1 |
ANA1#..240 BLACK MC.,209 |
1 | ||
| 69217-60020H2 |
ANA1#..240 FROSTY GREEN MC.,781 |
1 | ||
| 69217-60020A1 |
ANA1#..240 WHITE PEARL CS.,070 |
1 | ||
| 69217-60020X0 |
ANA1#..240 RED M.M.,3R3 |
1 | ||
| 69217-60020P8 |
ANA1#..240 SILVER ME.,1G7 |
1 | ||
| 69217-60020R5 |
ANA1#..240 DK.BLUE MC.,8S6 |
1 | ||
| 69217-60020B1 |
ANA1#..240 DK.GRAY M.M.,1E9 |
1 | ||
| 69217-60020X1 |
ANA1#..240 BLACKISH RED MC.,3R0 |
1 | ||
| 69217-60020V0 |
ANA1#..240 LT.BLUE M.M.,8S7 |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69210-44030C2 |
ANA1#..240 BLACK MC.,209 |
1 | ||
| 69210-44030B7 |
ANA1#..240 DK.GRAY M.M.,1E9 |
1 | ||
| 69210-44030D3 |
ANA1#..240 RED M.M.,3R3 |
1 | ||
| 69210-44030H2 |
ANA1#..240 FROSTY GREEN MC.,781 |
1 | ||
| 69210-44030A6 |
ANA1#..240 WHITE PEARL CS.,070 |
1 | ||
| 69210-44030P3 |
ANA1#..240 SILVER ME.,1G7 |
1 | ||
| 69210-44030D6 |
ANA1#..240 BLACKISH RED MC.,3R0 |
1 | ||
| 69210-44030R3 |
ANA1#..240 LT.BLUE M.M.,8S7 |
1 | ||
| 69210-44030J2 |
ANA1#..240 DK.BLUE MC.,8S6 |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69210-44030C2 |
ANA1#..240 BLACK MC.,209 |
1 | ||
| 69210-44030B7 |
ANA1#..240 DK.GRAY M.M.,1E9 |
1 | ||
| 69210-44030D3 |
ANA1#..240 RED M.M.,3R3 |
1 | ||
| 69210-44030H2 |
ANA1#..240 FROSTY GREEN MC.,781 |
1 | ||
| 69210-44030A6 |
ANA1#..240 WHITE PEARL CS.,070 |
1 | ||
| 69210-44030P3 |
ANA1#..240 SILVER ME.,1G7 |
1 | ||
| 69210-44030D6 |
ANA1#..240 BLACKISH RED MC.,3R0 |
1 | ||
| 69210-44030R3 |
ANA1#..240 LT.BLUE M.M.,8S7 |
1 | ||
| 69210-44030J2 |
ANA1#..240 DK.BLUE MC.,8S6 |
1 | ||
| 69241H - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT | ||||
| 69241-28060 |
ANA1#,GGA10..240,240G,350G,ARIAL |
2 | ||
| 69241H - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT | ||||
| 69241-28060 |
ANA1#,GGA10..240,240G,350G,ARIAL |
2 | ||
| 69242E - PAD, FRONT DOOR OUTSIDE HANDLE, REAR | ||||
| 69242-60030 |
ANA1#,GGA10..240,240G,350G,ARIAL |
2 | ||
| 69242E - PAD, FRONT DOOR OUTSIDE HANDLE, REAR | ||||
| 69242-60030 |
ANA1#,GGA10..240,240G,350G,ARIAL |
2 | ||
| 69283 - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH | ||||
| 69283-22020 |
ANA1#,GGA10..CBU |
1 | ||
| 69283-20020C0 |
ANA1#,GGA10..CBU BLACK |
1 | ||
| 69284C - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH | ||||
| 69284-20010C0 |
ANA1#,GGA10..CBU BLACK |
1 | ||
| 69284-22020 |
ANA1#,GGA10..CBU |
1 | ||
| 69293G - SNAP, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69293-12030 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 69293G - SNAP, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69293-12030 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 69294B - SNAP, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69293-12040 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 69294B - SNAP, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69293-12040 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69030-42210 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 69311A - ROD, FRONT DOOR LOCK OPEN, RH | ||||
| 69311-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 69312 - ROD, FRONT DOOR LOCK OPEN, LH | ||||
| 69312-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 69318C - SEAL, DOOR LOCK WIRING HARNESS | ||||
| 69318-51010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
2 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69040-12560 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-33010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
2 | ||
| 69710B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH | ||||
| 69710-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 69720B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69710-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 69750C - CABLE ASSY, FRONT DOOR INSIDE LOCKING, RH | ||||
| 69750-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 69760C - CABLE ASSY, FRONT DOOR INSIDE LOCKING LH | ||||
| 69750-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 89743C - BRACKET, ELECTRICAL KEY WIRE HARNESS | ||||
| 89743-68010 |
ANA1#,GGA10..CBU 運転席側 |
1 | ||
| 89743-30130 |
ANA1#,GGA10..CBU 助手席側 |
1 | ||
| Common parts | ||||
| 69296-48010 | ||||
| 90148-50003 | ||||
| 90148-60022 | ||||
| 90148-80066 | ||||
| 90159-40202 | ||||
| 90159-50083 | ||||
| 90179-05118 | ||||
| 90189-05003 | ||||
| 90386-08066 | ||||
| Linked diagrams | ||||
| 8420 | ||||
