ANA10-AWXNK (2007)
Toyota Mark X Zio

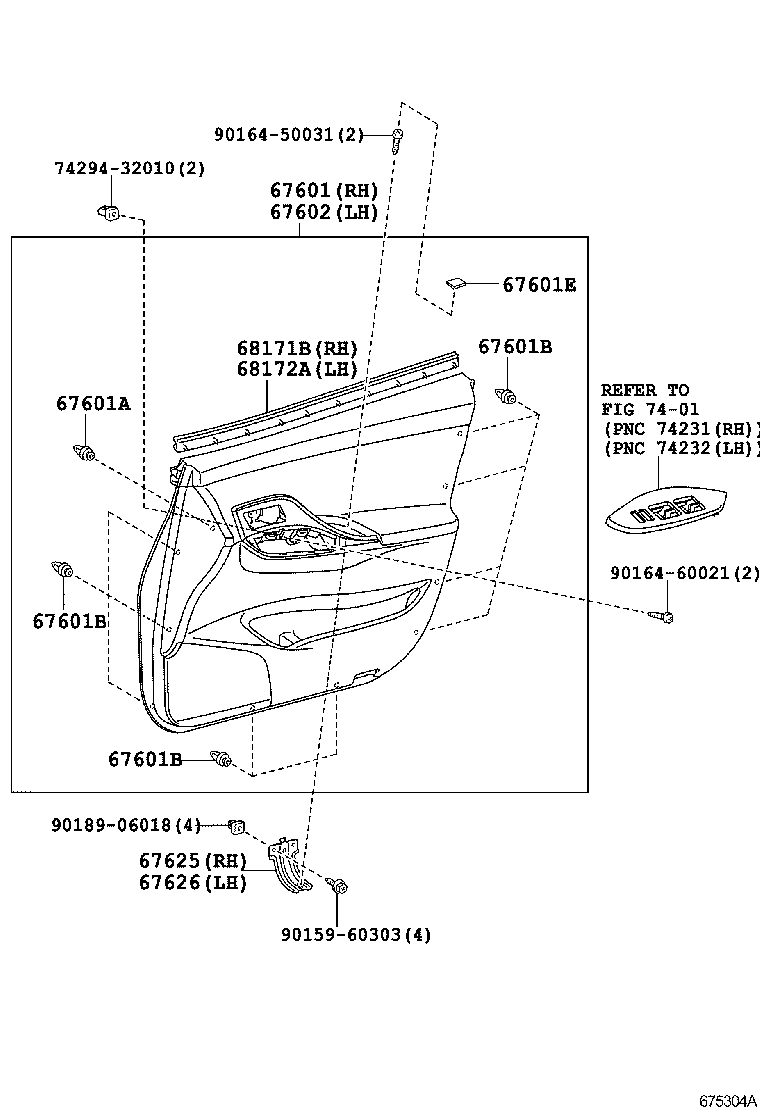

ILLUST NO. 2 OF 2(0709- )
ﾄﾞｱﾄﾘﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-72010C2 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU MD.GRAY,TRIM1# |
1 | ||
| 67610-72010C0 |
ANA1#,GGA10..CBU GRAY,TRIM1# |
1 | ||
| 67610-72011C4 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU BLACK/PLUM,TRIM4# |
1 | ||
| 67610-72012C3 |
ANA1#..240,ARIAL BLACK/MD.GRAY,TRIM1#,2# |
1 | ||
| 67610-72010C1 |
ANA1#,GGA10..CBU PLUM BROWN,TRIM4# |
1 | ||
| 67610-72011C3 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU BLACK/MD.GRAY,TRIM1# |
1 | ||
| 67610-72020C0 |
ANA1#..240 240“E−Selection” *(Z),BLACK/MD.GRAY,TRIM1#,2# |
1 | ||
| 67610-72021C0 |
ANA1#..240 240“E−Selection” *(Z),BLACK/MD.GRAY,TRIM2# |
1 | ||
| 67610-72012C4 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU BLACK/PLUM,TRIM4# |
1 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-26240 |
ANA1#,GGA10..CBU |
2 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09206 |
ANA1#,GGA10..CBU |
18 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09206 |
ANA1#,GGA10..CBU |
18 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09206 |
ANA1#,GGA10..CBU |
18 | ||
| 67601E - CAP(FOR FRONT DOOR TRIM BOARD) | ||||
| 74223-28070C0 |
ANA1#..240 BLACK,TRIM1#,2#,4# |
2 | ||
| 74223-28070C0 |
ANA1#..240 BLACK,TRIM1#,4# |
2 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-72010C2 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU MD.GRAY,TRIM1# |
1 | ||
| 67620-72011C3 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU BLACK/MD.GRAY,TRIM1# |
1 | ||
| 67620-72010C0 |
ANA1#,GGA10..CBU GRAY,TRIM1# |
1 | ||
| 67620-72020C0 |
ANA1#..240 240“E−Selection” *(Z),BLACK/MD.GRAY,TRIM1#,2# |
1 | ||
| 67620-72010C1 |
ANA1#,GGA10..CBU PLUM BROWN,TRIM4# |
1 | ||
| 67620-72012C3 |
ANA1#..240,ARIAL BLACK/MD.GRAY,TRIM1#,2# |
1 | ||
| 67620-72021C0 |
ANA1#..240 240“E−Selection” *(Z),BLACK/MD.GRAY,TRIM2# |
1 | ||
| 67620-72011C4 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU BLACK/PLUM,TRIM4# |
1 | ||
| 67620-72012C4 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU BLACK/PLUM,TRIM4# |
1 | ||
| 67625 - BRACKET, FRONT DOOR TRIM, RH | ||||
| 67625-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 67626 - BRACKET, FRONT DOOR TRIM, LH | ||||
| 67625-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-72010 |
ANA1#,GGA10..CBU |
1 | ||
| Common parts | ||||
| 74294-32010 | ||||
| 90159-60303 | ||||
| 90164-50031 | ||||
| 90164-60021 | ||||
| 90189-06018 | ||||
| Linked diagrams | ||||
| 7401 | ||||

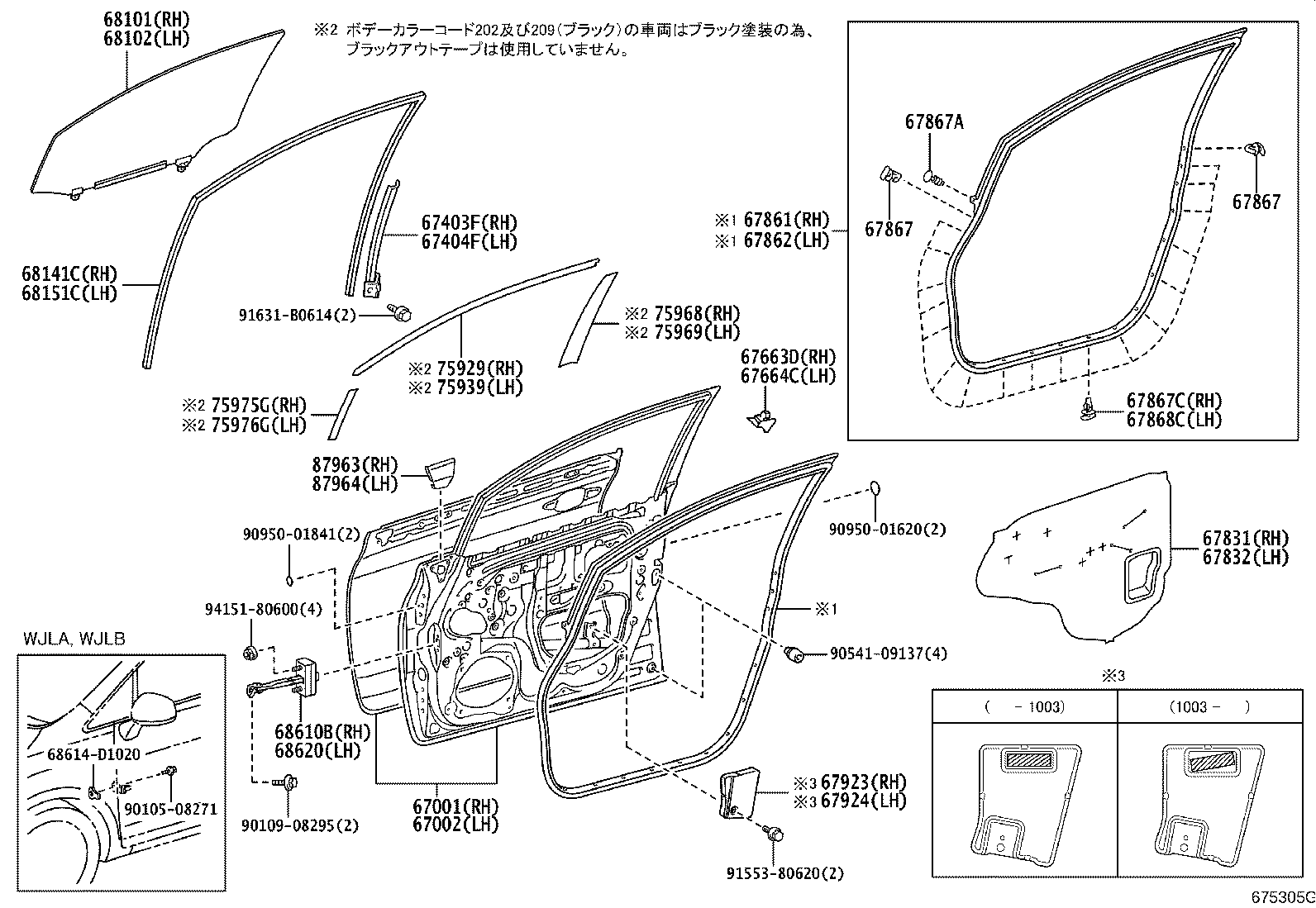

ILLUST NO. 1 OF 2(0709- )
ﾄﾞｱﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-72011 |
ANA1#,GGA10..CBU |
1 | ||
| 67001-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-72011 |
ANA1#,GGA10..CBU |
1 | ||
| 67002-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 67663D - GARNISH, DOOR FRAME, RH | ||||
| 67663-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 67664C - GARNISH, DOOR FRAME, LH | ||||
| 67664-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 67867 - CLIP, DOOR WEATHERSTRIP | ||||
| 90467-04034 |
ANA1#,GGA10..CBU |
4 | ||
| 67867 - CLIP, DOOR WEATHERSTRIP | ||||
| 90467-04034 |
ANA1#,GGA10..CBU |
4 | ||
| 67867A - CLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR) | ||||
| 67868-30030 |
ANA1#,GGA10..CBU |
2 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
ANA1#,GGA10..CBU |
18 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
ANA1#,GGA10..CBU |
18 | ||
| 67923 - CUSHION, FRONT DOOR STIFFENER, NO.1 | ||||
| 67923-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 67923-72011 |
ANA1#,GGA10..CBU |
1 | ||
| 67924 - CUSHION, FRONT DOOR STIFFENER, NO.2 | ||||
| 67924-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 67924-72011 |
ANA1#,GGA10..CBU |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-72010 |
ANA1#..240 *UVCT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 68101-72020 |
ANA1#..240 *UVCT,厚さ=5.0,ｸﾞﾘｰﾝ,寒冷地仕様 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-72010 |
ANA1#..240 *UVCT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 68102-72020 |
ANA1#..240 *UVCT,厚さ=5.0,ｸﾞﾘｰﾝ,寒冷地仕様 |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 68610B - CHECK ASSY, FRONT DOOR, RH | ||||
| 68610-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 68610-72011 |
ANA1#,GGA10..CBU |
1 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68610-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 68610-72011 |
ANA1#,GGA10..CBU |
1 | ||
| 75929 - TAPE, BLACK OUT FRONT DOOR, INNER UPPER RH | ||||
| 75929-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 75939 - TAPE, BLACK OUT FRONT DOOR, INNER UPPER LH | ||||
| 75939-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 75968 - TAPE, BLACK OUT FRONT DOOR, INNER REAR RH | ||||
| 75968-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 75969 - TAPE, BLACK OUT FRONT DOOR, INNER REAR LH | ||||
| 75969-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 75975G - STRIPE, FRONT DOOR, NO.2 RH | ||||
| 75975-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 75976G - STRIPE, FRONT DOOR, NO.2 LH | ||||
| 75976-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 87963 - COVER, OUTER MIRROR INSTALL HOLE, RH | ||||
| 87963-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 87964 - COVER, OUTER MIRROR INSTALL HOLE, LH | ||||
| 87964-72010 |
ANA1#,GGA10..CBU |
1 | ||
| Common parts | ||||
| 68614-D1020 | ||||
| 90105-08271 | ||||
| 90109-08295 | ||||
| 90541-09137 | ||||
| 90950-01620 | ||||
| 90950-01841 | ||||
| 91553-80620 | ||||
| 91631-B0614 | ||||
| 94151-80600 | ||||
