ANA10-AWXNK (2007)
Toyota Mark X Zio

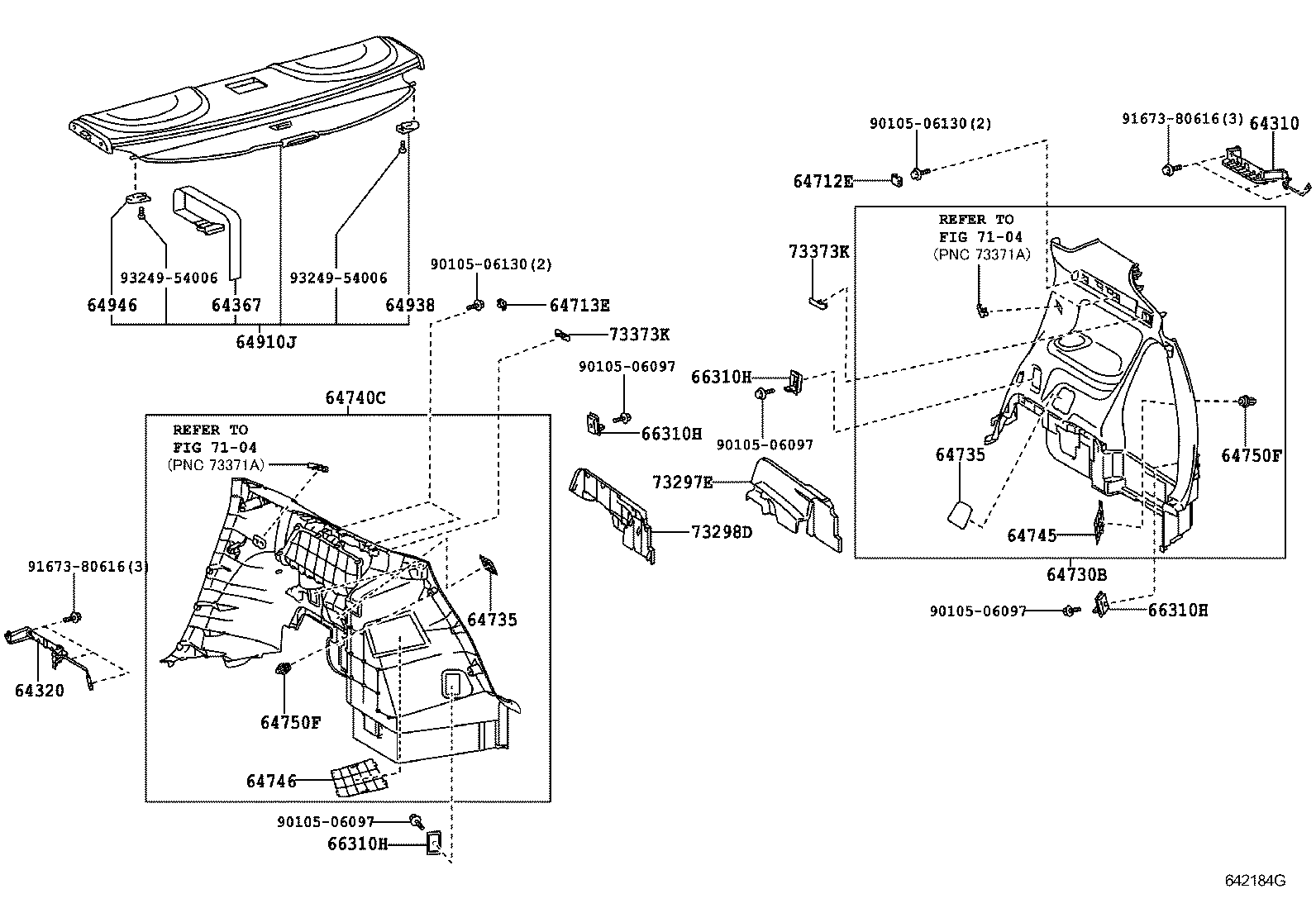

ILLUST NO. 2 OF 2(1008- )240
5ﾆﾝﾉﾘ ﾃﾞｯｷ ﾄﾘﾑｶﾊﾞｰ & ﾄﾉｶﾊﾞｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64310 - BRACKET, PACKAGE TRAY TRIM, RH | ||||
| 64310-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 64320 - BRACKET, PACKAGE TRAY TRIM, LH | ||||
| 64320-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 64367 - SUSPENDER, PACKAGE TRAY TRIM | ||||
| 64367-72010 |
ANA1#..240 5人乗り&ﾊﾟｯｹｰｼﾞ ﾄﾚｲ ﾄﾘﾑ & ﾄﾉｶﾊﾞｰ−無し |
1 | ||
| 64367-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 64712E - COVER, LUGGAGE COMPARTMENT TRIM, RH | ||||
| 64712-72010C0 |
ANA1#..240,ARIAL BLACK,TRIM1#,2#,4# |
2 | ||
| 64712-72010C0 |
ANA1#..240 5人乗り,BLACK,TRIM1#,2# |
2 | ||
| 64713E - COVER, LUGGAGE COMPARTMENT TRIM, LH | ||||
| 64712-72010C0 |
ANA1#..240,ARIAL BLACK,TRIM1#,2#,4# |
2 | ||
| 64712-72010C0 |
ANA1#..240 5人乗り,BLACK,TRIM1#,2# |
2 | ||
| 64730B - PANEL ASSY, DECK TRIM SIDE, RH | ||||
| 64730-72010C0 |
ANA1#..CBU BLACK,TRIM1# |
1 | ||
| 64730-72010C1 |
ANA1#..CBU BLACK,TRIM4# |
1 | ||
| 64730-72030C0 |
ANA1#..240,ARIAL BLACK/MD.GRAY,TRIM1#,2# |
1 | ||
| 64730-72030C1 |
ANA1#..240,240F,240G BLACK/PLUM,TRIM4# |
1 | ||
| 64730-72010C2 |
ANA1#..240,ARIAL MD.GRAY,TRIM1#,2# |
1 | ||
| 64735 - COVER, DECK TRIM SIDE SERVICE HOLE | ||||
| 64735-72010C0 |
ANA1#..240 BLACK,TRIM1#,2#,4#,右側 |
1 | ||
| 64735-72020C0 |
ANA1#..240 BLACK,TRIM1#,2#,4#,左側 |
1 | ||
| 64735 - COVER, DECK TRIM SIDE SERVICE HOLE | ||||
| 64735-72010C0 |
ANA1#..240 BLACK,TRIM1#,2#,4#,右側 |
1 | ||
| 64735-72020C0 |
ANA1#..240 BLACK,TRIM1#,2#,4#,左側 |
1 | ||
| 64740C - PANEL ASSY, DECK TRIM SIDE, LH | ||||
| 64740-72010C0 |
ANA1#..CBU BLACK,TRIM1# |
1 | ||
| 64740-72010C2 |
ANA1#..240,ARIAL MD.GRAY,TRIM1#,2# |
1 | ||
| 64740-72010C1 |
ANA1#..CBU BLACK,TRIM4# |
1 | ||
| 64740-72030C1 |
ANA1#..240,240F,240G BLACK/PLUM,TRIM4# |
1 | ||
| 64740-72030C0 |
ANA1#..240,ARIAL BLACK/MD.GRAY,TRIM1#,2# |
1 | ||
| 64745 - COVER, REAR COMBINATION LAMP SERVICE, RH | ||||
| 64745-72010C0 |
ANA1#..240 BLACK,TRIM1#,2#,4# |
1 | ||
| 64746 - COVER, REAR COMBINATION LAMP SERVICE, LH | ||||
| 64746-72010C0 |
ANA1#..240 BLACK,TRIM1#,2#,4# |
1 | ||
| 64750F - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 90467-10161 |
ANA1#,GGA10..240,240G,350G,ARIAL |
10 | ||
| 64750F - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 90467-10161 |
ANA1#,GGA10..240,240G,350G,ARIAL |
10 | ||
| 64910J - COVER ASSY, TONNEAU | ||||
| 64910-72010C0 |
ANA1#..240 5人乗り&ﾊﾟｯｹｰｼﾞ ﾄﾚｲ ﾄﾘﾑ & ﾄﾉｶﾊﾞｰ−無し,GRAY,TRIM1# |
1 | ||
| 64910-72010C3 |
ANA1#..240 BLACK,TRIM1#,2# |
1 | ||
| 64910-72010C1 |
ANA1#..240 5人乗り&ﾊﾟｯｹｰｼﾞ ﾄﾚｲ ﾄﾘﾑ & ﾄﾉｶﾊﾞｰ−無し,PLUM,TRIM4# |
1 | ||
| 64910-72010C1 |
ANA1#..240 ﾊﾟｯｹｰｼﾞ ﾄﾚｲ ﾄﾘﾑ & ﾄﾉｶﾊﾞｰ−有り(ﾄﾉｶﾊﾞｰ),PLUM,TRIM4# |
1 | ||
| 64910-72010C3 |
ANA1#..240 ﾊﾟｯｹｰｼﾞ ﾄﾚｲ ﾄﾘﾑ & ﾄﾉｶﾊﾞｰ−有り(ﾄﾉｶﾊﾞｰ),BLACK,TRIM1#,2# |
1 | ||
| 64910-72010C1 |
ANA1#..240 PLUM,TRIM4# |
1 | ||
| 64910-72010C3 |
ANA1#..240 5人乗り&ﾊﾟｯｹｰｼﾞ ﾄﾚｲ ﾄﾘﾑ & ﾄﾉｶﾊﾞｰ−無し,BLACK,TRIM1#,2# |
1 | ||
| 64910-72010C3 |
ANA1#..240 5人乗り&ﾊﾟｯｹｰｼﾞ ﾄﾚｲ ﾄﾘﾑ & ﾄﾉｶﾊﾞｰ−有り(ﾄﾉｶﾊﾞｰ(DOP)),BLACK,TRIM2# |
1 | ||
| 64910-72010C0 |
ANA1#,GGA10..CBU GRAY,TRIM1# |
1 | ||
| 64938 - HOOK, TONNEAU COVER, A | ||||
| 64938-72010 |
ANA1#..240 5人乗り&ﾊﾟｯｹｰｼﾞ ﾄﾚｲ ﾄﾘﾑ & ﾄﾉｶﾊﾞｰ−無し |
1 | ||
| 64938-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 64946 - HOOK, TONNEAU COVER, B | ||||
| 64946-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 64946-72010 |
ANA1#..240 5人乗り&ﾊﾟｯｹｰｼﾞ ﾄﾚｲ ﾄﾘﾑ & ﾄﾉｶﾊﾞｰ−無し |
1 | ||
| 66310H - HOOK ASSY, ROPE | ||||
| 66310-30011C0 |
ANA1#..240 5人乗り,BLACK,TRIM1#,2# |
4 | ||
| 66310-30011C0 |
ANA1#..240,ARIAL BLACK,TRIM1#,2#,4# |
4 | ||
| 66310H - HOOK ASSY, ROPE | ||||
| 66310-30011C0 |
ANA1#..240 5人乗り,BLACK,TRIM1#,2# |
4 | ||
| 66310-30011C0 |
ANA1#..240,ARIAL BLACK,TRIM1#,2#,4# |
4 | ||
| 66310H - HOOK ASSY, ROPE | ||||
| 66310-30011C0 |
ANA1#..240 5人乗り,BLACK,TRIM1#,2# |
4 | ||
| 66310-30011C0 |
ANA1#..240,ARIAL BLACK,TRIM1#,2#,4# |
4 | ||
| 66310H - HOOK ASSY, ROPE | ||||
| 66310-30011C0 |
ANA1#..240 5人乗り,BLACK,TRIM1#,2# |
4 | ||
| 66310-30011C0 |
ANA1#..240,ARIAL BLACK,TRIM1#,2#,4# |
4 | ||
| 73297E - COVER, DECK TRIM SIDE BELT HOLE, RH | ||||
| 73297-72030C0 |
ANA1#..240 5人乗り,BLACK,TRIM1#,2# |
1 | ||
| 73297-72010C0 |
ANA1#..240,ARIAL BLACK,TRIM1#,2#,4# |
1 | ||
| 73298D - COVER,DECK TRIM SIDE BELT HOLE, LH | ||||
| 73298-72030C0 |
ANA1#..240 5人乗り,BLACK,TRIM1#,2# |
1 | ||
| 73298-72010C0 |
ANA1#..240,ARIAL BLACK,TRIM1#,2#,4# |
1 | ||
| Common parts | ||||
| 90105-06097 | ||||
| 90105-06130 | ||||
| 91673-80616 | ||||
| 93249-54006 | ||||
| Linked diagrams | ||||
| 7104 | ||||

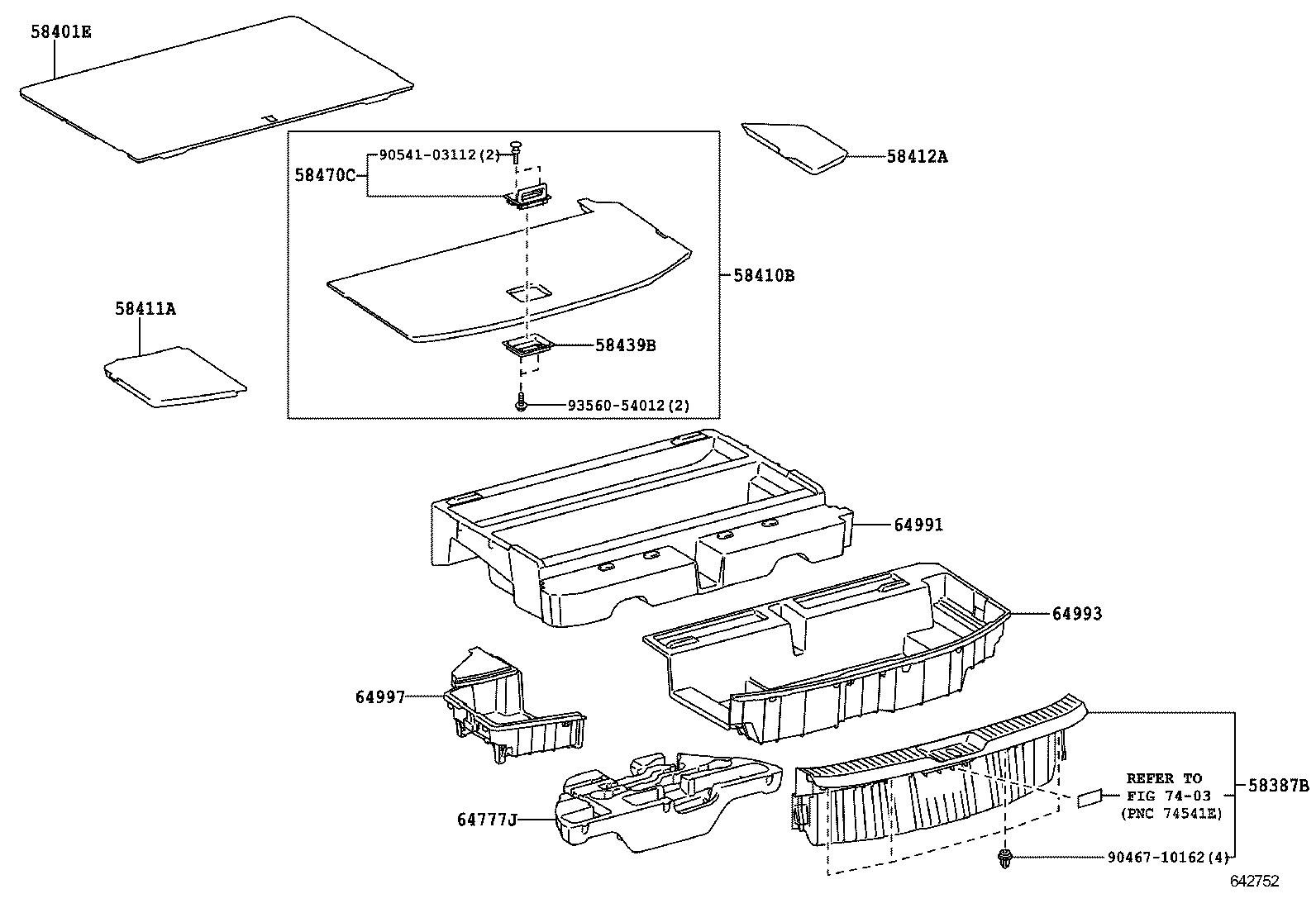

ILLUST NO. 1 OF 2(1008- )240
5ﾆﾝﾉﾘ ﾃﾞｯｷ ﾎﾞｰﾄﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58387B - PLATE, REAR FLOOR FINISH | ||||
| 58387-72010C0 |
ANA1#..240,ARIAL BLACK,TRIM1#,2#,4# |
1 | ||
| 58401E - BOARD SUB-ASSY, DECK | ||||
| 58401-72010C0 |
ANA1#..240 5人乗り,BLACK,TRIM1#,2# |
1 | ||
| 58410B - BOARD ASSY, DECK | ||||
| 58410-72010C0 |
ANA1#..240,ARIAL BLACK,TRIM1#,2#,4# |
1 | ||
| 58410-72020C0 |
ANA1#..240 5人乗り,BLACK,TRIM1#,2# |
1 | ||
| 58411A - BOARD, DECK, NO.1 | ||||
| 58411-72010C0 |
ANA1#..240,ARIAL BLACK,TRIM1#,2#,4# |
1 | ||
| 58411-72010C0 |
ANA1#..240 5人乗り,BLACK,TRIM1#,2# |
1 | ||
| 58412A - BOARD, DECK, NO.2 | ||||
| 58412-72010C0 |
ANA1#..240,ARIAL BLACK,TRIM1#,2#,4# |
1 | ||
| 58412-72010C0 |
ANA1#..240 5人乗り,BLACK,TRIM1#,2# |
1 | ||
| 58439B - PROTECTOR, DECK BOARD, NO.1 | ||||
| 58477-28020 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 58470C - HANDLE ASSY, DECK BOARD | ||||
| 58470-33010C0 |
ANA1#..240,ARIAL BLACK,TRIM1#,2#,4# |
1 | ||
| 58470-33010C0 |
ANA1#..240 5人乗り,BLACK,TRIM1#,2# |
1 | ||
| 64777J - CUSHION, SPARE WHEEL | ||||
| 64777-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 64991 - BOX, DECK FLOOR, FRONT | ||||
| 64991-72010 |
ANA1#..240 5人乗り,TRIM1#,2# |
1 | ||
| 64993 - BOX, DECK FLOOR, REAR | ||||
| 64993-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 64997 - BOX, DECK FLOOR, LH | ||||
| 64997-72010C0 |
ANA1#..240,ARIAL BLACK,TRIM1#,2#,4# |
1 | ||
| 64997-72010C0 |
ANA1#..240 5人乗り,BLACK,TRIM1#,2# |
1 | ||
| Common parts | ||||
| 90467-10162 | ||||
| 90541-03112 | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 7403 | ||||
ILLUST NO. 1 OF 2(0709- )ANA1#
ﾃﾞｯｷ ﾎﾞｰﾄﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58387B - PLATE, REAR FLOOR FINISH | ||||
| 58387-72010C0 |
ANA1#..240,ARIAL BLACK,TRIM1#,2#,4# |
1 | ||
| 58410B - BOARD ASSY, DECK | ||||
| 58410-72010C0 |
ANA1#..240,ARIAL BLACK,TRIM1#,2#,4# |
1 | ||
| 58410-72020C0 |
ANA1#..240 5人乗り,BLACK,TRIM1#,2# |
1 | ||
| 58411A - BOARD, DECK, NO.1 | ||||
| 58411-72010C0 |
ANA1#..240,ARIAL BLACK,TRIM1#,2#,4# |
1 | ||
| 58411-72010C0 |
ANA1#..240 5人乗り,BLACK,TRIM1#,2# |
1 | ||
| 58412A - BOARD, DECK, NO.2 | ||||
| 58412-72010C0 |
ANA1#..240,ARIAL BLACK,TRIM1#,2#,4# |
1 | ||
| 58412-72010C0 |
ANA1#..240 5人乗り,BLACK,TRIM1#,2# |
1 | ||
| 58439B - PROTECTOR, DECK BOARD, NO.1 | ||||
| 58477-28020 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 58470C - HANDLE ASSY, DECK BOARD | ||||
| 58470-33010C0 |
ANA1#..240,ARIAL BLACK,TRIM1#,2#,4# |
1 | ||
| 58470-33010C0 |
ANA1#..240 5人乗り,BLACK,TRIM1#,2# |
1 | ||
| 58492B - HOOK, DECK BOARD LOCK | ||||
| 58492-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 64777J - CUSHION, SPARE WHEEL | ||||
| 64777-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 64993 - BOX, DECK FLOOR, REAR | ||||
| 64993-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 64997 - BOX, DECK FLOOR, LH | ||||
| 64997-72010C0 |
ANA1#..240,ARIAL BLACK,TRIM1#,2#,4# |
1 | ||
| 64997-72010C0 |
ANA1#..240 5人乗り,BLACK,TRIM1#,2# |
1 | ||
| Common parts | ||||
| 90467-10162 | ||||
| 90541-03112 | ||||
| 93560-54012 | ||||
| 93560-56012 | ||||
| Linked diagrams | ||||
| 7403 | ||||

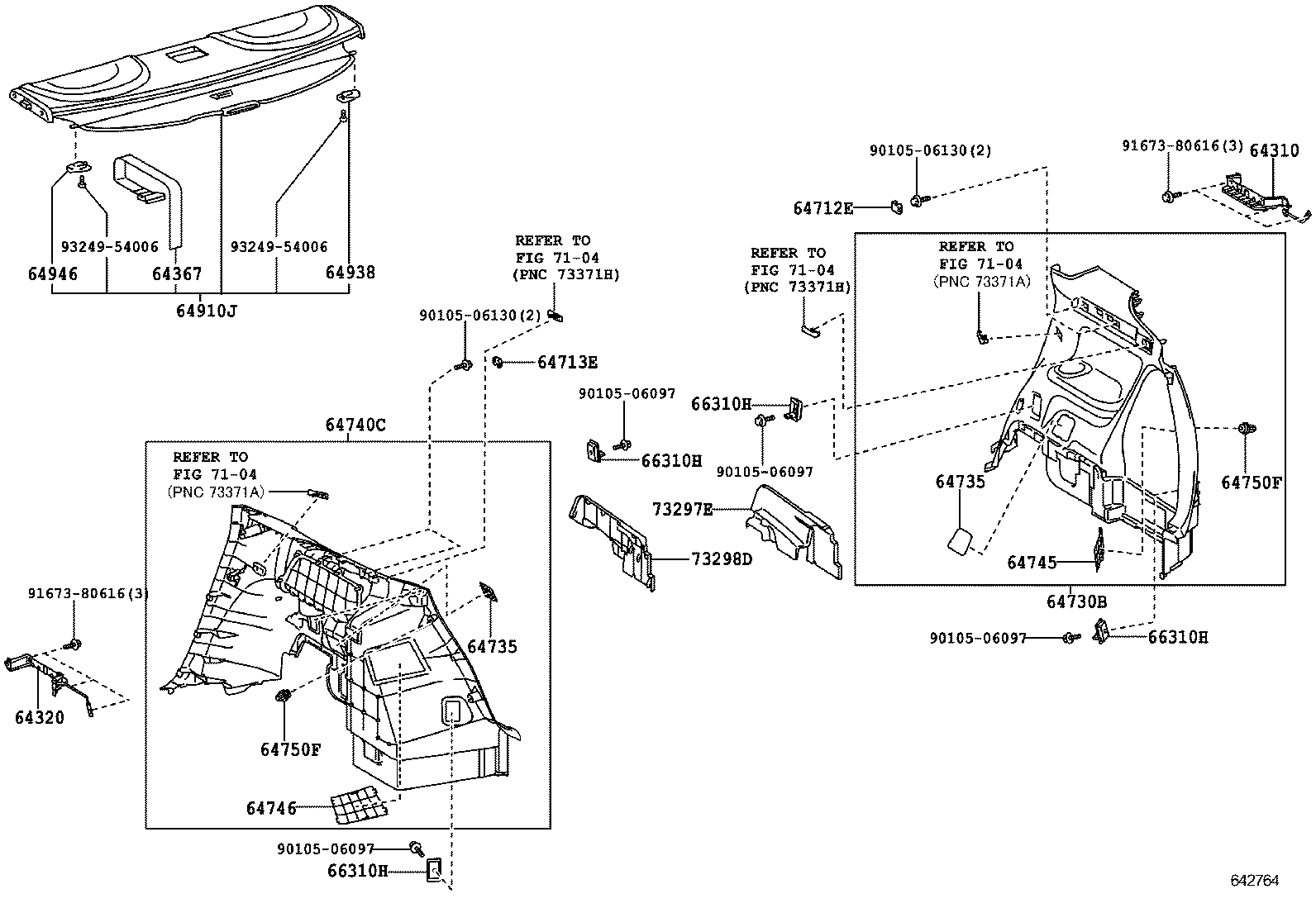

ILLUST NO. 2 OF 2(0709- )ANA1#
ﾃﾞｯｷ ﾄﾘﾑｶﾊﾞｰ & ﾃﾞｯｷ ﾎﾞｰﾄﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64310 - BRACKET, PACKAGE TRAY TRIM, RH | ||||
| 64310-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 64320 - BRACKET, PACKAGE TRAY TRIM, LH | ||||
| 64320-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 64367 - SUSPENDER, PACKAGE TRAY TRIM | ||||
| 64367-72010 |
ANA1#..240 5人乗り&ﾊﾟｯｹｰｼﾞ ﾄﾚｲ ﾄﾘﾑ & ﾄﾉｶﾊﾞｰ−無し |
1 | ||
| 64367-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 64712E - COVER, LUGGAGE COMPARTMENT TRIM, RH | ||||
| 64712-72010C0 |
ANA1#..240,ARIAL BLACK,TRIM1#,2#,4# |
2 | ||
| 64712-72010C0 |
ANA1#..240 5人乗り,BLACK,TRIM1#,2# |
2 | ||
| 64713E - COVER, LUGGAGE COMPARTMENT TRIM, LH | ||||
| 64712-72010C0 |
ANA1#..240,ARIAL BLACK,TRIM1#,2#,4# |
2 | ||
| 64712-72010C0 |
ANA1#..240 5人乗り,BLACK,TRIM1#,2# |
2 | ||
| 64730B - PANEL ASSY, DECK TRIM SIDE, RH | ||||
| 64730-72010C0 |
ANA1#..CBU BLACK,TRIM1# |
1 | ||
| 64730-72010C1 |
ANA1#..CBU BLACK,TRIM4# |
1 | ||
| 64730-72030C0 |
ANA1#..240,ARIAL BLACK/MD.GRAY,TRIM1#,2# |
1 | ||
| 64730-72030C1 |
ANA1#..240,240F,240G BLACK/PLUM,TRIM4# |
1 | ||
| 64730-72010C2 |
ANA1#..240,ARIAL MD.GRAY,TRIM1#,2# |
1 | ||
| 64735 - COVER, DECK TRIM SIDE SERVICE HOLE | ||||
| 64735-72010C0 |
ANA1#..240 BLACK,TRIM1#,2#,4#,右側 |
1 | ||
| 64735-72020C0 |
ANA1#..240 BLACK,TRIM1#,2#,4#,左側 |
1 | ||
| 64735 - COVER, DECK TRIM SIDE SERVICE HOLE | ||||
| 64735-72010C0 |
ANA1#..240 BLACK,TRIM1#,2#,4#,右側 |
1 | ||
| 64735-72020C0 |
ANA1#..240 BLACK,TRIM1#,2#,4#,左側 |
1 | ||
| 64740C - PANEL ASSY, DECK TRIM SIDE, LH | ||||
| 64740-72010C0 |
ANA1#..CBU BLACK,TRIM1# |
1 | ||
| 64740-72010C2 |
ANA1#..240,ARIAL MD.GRAY,TRIM1#,2# |
1 | ||
| 64740-72010C1 |
ANA1#..CBU BLACK,TRIM4# |
1 | ||
| 64740-72030C1 |
ANA1#..240,240F,240G BLACK/PLUM,TRIM4# |
1 | ||
| 64740-72030C0 |
ANA1#..240,ARIAL BLACK/MD.GRAY,TRIM1#,2# |
1 | ||
| 64745 - COVER, REAR COMBINATION LAMP SERVICE, RH | ||||
| 64745-72010C0 |
ANA1#..240 BLACK,TRIM1#,2#,4# |
1 | ||
| 64746 - COVER, REAR COMBINATION LAMP SERVICE, LH | ||||
| 64746-72010C0 |
ANA1#..240 BLACK,TRIM1#,2#,4# |
1 | ||
| 64750F - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 90467-10161 |
ANA1#,GGA10..240,240G,350G,ARIAL |
10 | ||
| 64750F - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 90467-10161 |
ANA1#,GGA10..240,240G,350G,ARIAL |
10 | ||
| 64910J - COVER ASSY, TONNEAU | ||||
| 64910-72010C0 |
ANA1#..240 5人乗り&ﾊﾟｯｹｰｼﾞ ﾄﾚｲ ﾄﾘﾑ & ﾄﾉｶﾊﾞｰ−無し,GRAY,TRIM1# |
1 | ||
| 64910-72010C3 |
ANA1#..240 BLACK,TRIM1#,2# |
1 | ||
| 64910-72010C1 |
ANA1#..240 5人乗り&ﾊﾟｯｹｰｼﾞ ﾄﾚｲ ﾄﾘﾑ & ﾄﾉｶﾊﾞｰ−無し,PLUM,TRIM4# |
1 | ||
| 64910-72010C1 |
ANA1#..240 ﾊﾟｯｹｰｼﾞ ﾄﾚｲ ﾄﾘﾑ & ﾄﾉｶﾊﾞｰ−有り(ﾄﾉｶﾊﾞｰ),PLUM,TRIM4# |
1 | ||
| 64910-72010C3 |
ANA1#..240 ﾊﾟｯｹｰｼﾞ ﾄﾚｲ ﾄﾘﾑ & ﾄﾉｶﾊﾞｰ−有り(ﾄﾉｶﾊﾞｰ),BLACK,TRIM1#,2# |
1 | ||
| 64910-72010C1 |
ANA1#..240 PLUM,TRIM4# |
1 | ||
| 64910-72010C3 |
ANA1#..240 5人乗り&ﾊﾟｯｹｰｼﾞ ﾄﾚｲ ﾄﾘﾑ & ﾄﾉｶﾊﾞｰ−無し,BLACK,TRIM1#,2# |
1 | ||
| 64910-72010C3 |
ANA1#..240 5人乗り&ﾊﾟｯｹｰｼﾞ ﾄﾚｲ ﾄﾘﾑ & ﾄﾉｶﾊﾞｰ−有り(ﾄﾉｶﾊﾞｰ(DOP)),BLACK,TRIM2# |
1 | ||
| 64910-72010C0 |
ANA1#,GGA10..CBU GRAY,TRIM1# |
1 | ||
| 64938 - HOOK, TONNEAU COVER, A | ||||
| 64938-72010 |
ANA1#..240 5人乗り&ﾊﾟｯｹｰｼﾞ ﾄﾚｲ ﾄﾘﾑ & ﾄﾉｶﾊﾞｰ−無し |
1 | ||
| 64938-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 64946 - HOOK, TONNEAU COVER, B | ||||
| 64946-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 64946-72010 |
ANA1#..240 5人乗り&ﾊﾟｯｹｰｼﾞ ﾄﾚｲ ﾄﾘﾑ & ﾄﾉｶﾊﾞｰ−無し |
1 | ||
| 66310H - HOOK ASSY, ROPE | ||||
| 66310-30011C0 |
ANA1#..240 5人乗り,BLACK,TRIM1#,2# |
4 | ||
| 66310-30011C0 |
ANA1#..240,ARIAL BLACK,TRIM1#,2#,4# |
4 | ||
| 66310H - HOOK ASSY, ROPE | ||||
| 66310-30011C0 |
ANA1#..240 5人乗り,BLACK,TRIM1#,2# |
4 | ||
| 66310-30011C0 |
ANA1#..240,ARIAL BLACK,TRIM1#,2#,4# |
4 | ||
| 66310H - HOOK ASSY, ROPE | ||||
| 66310-30011C0 |
ANA1#..240 5人乗り,BLACK,TRIM1#,2# |
4 | ||
| 66310-30011C0 |
ANA1#..240,ARIAL BLACK,TRIM1#,2#,4# |
4 | ||
| 66310H - HOOK ASSY, ROPE | ||||
| 66310-30011C0 |
ANA1#..240 5人乗り,BLACK,TRIM1#,2# |
4 | ||
| 66310-30011C0 |
ANA1#..240,ARIAL BLACK,TRIM1#,2#,4# |
4 | ||
| 73297E - COVER, DECK TRIM SIDE BELT HOLE, RH | ||||
| 73297-72030C0 |
ANA1#..240 5人乗り,BLACK,TRIM1#,2# |
1 | ||
| 73297-72010C0 |
ANA1#..240,ARIAL BLACK,TRIM1#,2#,4# |
1 | ||
| 73298D - COVER,DECK TRIM SIDE BELT HOLE, LH | ||||
| 73298-72030C0 |
ANA1#..240 5人乗り,BLACK,TRIM1#,2# |
1 | ||
| 73298-72010C0 |
ANA1#..240,ARIAL BLACK,TRIM1#,2#,4# |
1 | ||
| Common parts | ||||
| 90105-06097 | ||||
| 90105-06130 | ||||
| 91673-80616 | ||||
| 93249-54006 | ||||
| Linked diagrams | ||||
| 7104 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
