ANA10-AWXNK (2007)

Toyota Mark X Zio

Production Sep 2007 - Feb 2011
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0709- )240,240F,ARIAL ; (1102- )240G

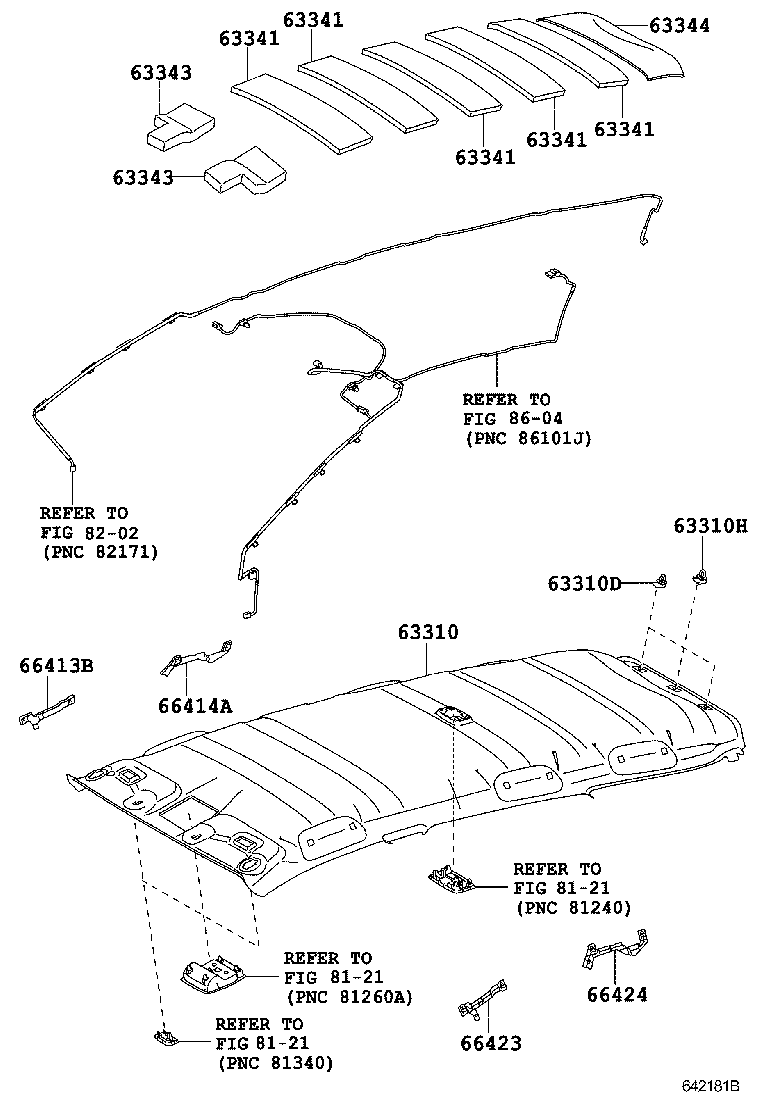

Click highlighted areas on diagram

diagram 63310 63310D 63310H 63341 63341 63341 63341 63341 63343 63343 63344 66413B 66414A 66423 66424 8121 8121 8121 8202 8604
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-72010B0

ANA1#..240,ARIAL

GRAY,TRIM1#,2#,4#

 1
63310D - CLIP, ROOF HEADLINING
90467-09126

ANA1#,GGA10..240,240G,350G,ARIAL

 2
63310H - CLIP(FOR ROOF HEADLINING)
90467-10181

ANA1#,GGA10..CBU

 1
63383-72010

ANA1#,GGA10..240,240G,350G,ARIAL

 1
63341 - PAD, ROOF SILENCER, NO.1
63341-72010

ANA1#..240,ARIAL

 5
63341 - PAD, ROOF SILENCER, NO.1
63341-72010

ANA1#..240,ARIAL

 5
63341 - PAD, ROOF SILENCER, NO.1
63341-72010

ANA1#..240,ARIAL

 5
63341 - PAD, ROOF SILENCER, NO.1
63341-72010

ANA1#..240,ARIAL

 5
63341 - PAD, ROOF SILENCER, NO.1
63341-72010

ANA1#..240,ARIAL

 5
63343 - PAD, ROOF SILENCER, NO.3
63343-72010

ANA1#,GGA10..240,240G,350G,ARIAL

 2
63343 - PAD, ROOF SILENCER, NO.3
63343-72010

ANA1#,GGA10..240,240G,350G,ARIAL

 2
63344 - PAD, ROOF SILENCER, NO.4
63344-72010

ANA1#,GGA10..240,240G,350G,ARIAL

 1
66413B - SPACER, SIDE RAIL, FRONT RH
66413-72010

ANA1#,GGA10..240,240G,350G,ARIAL

 1
66414A - SPACER, SIDE RAIL, REAR RH
66414-72010

ANA1#,GGA10..240,240G,350G,ARIAL

 1
66423 - SPACER, SIDE RAIL, FRONT LH
66423-72010

ANA1#,GGA10..240,240G,350G,ARIAL

 1
66424 - SPACER, SIDE RAIL, REAR LH
66424-72010

ANA1#,GGA10..240,240G,350G,ARIAL

 1
Linked diagrams
8121
8202
8604
