ANA10-AWXNK (2007)
Toyota Mark X Zio

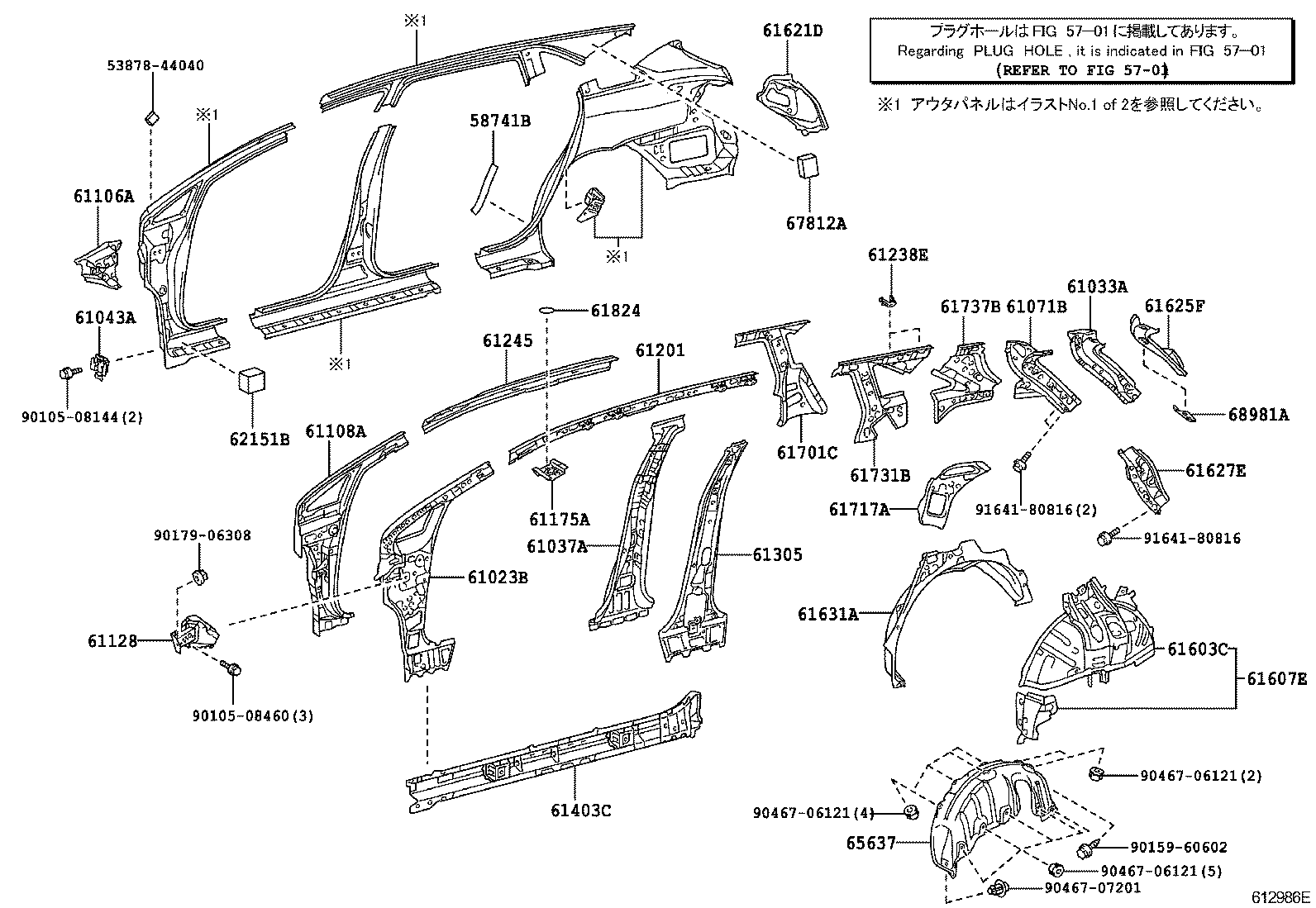

ILLUST NO. 2 OF 2(0709- )
ｲﾝﾅﾊﾟﾈﾙ,RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58741B - PROTECTOR, QUARTER PANEL, RH | ||||
| 58741-72010 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU 寒冷地仕様 |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 61033A - REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE | ||||
| 61033-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH | ||||
| 61037-72901 |
ANA1#,GGA10..CBU |
1 | ||
| 61043A - EXTENSION SUB-ASSY, FRONT BODY PILLAR, OUTER RH | ||||
| 61043-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 61071B - PANEL SUB-ASSY, ROOF SIDE, INNER REAR RH | ||||
| 61071-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 61106A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH | ||||
| 61106-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-72901 |
ANA1#,GGA10..CBU |
1 | ||
| 61128 - REINFORCEMENT, COWL SIDE PANEL, RH | ||||
| 61103-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 61175A - REINFORCEMENT, FRONT PILLAR, UPPER OUTER NO.2 RH | ||||
| 61175-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 61201 - RAIL SUB-ASSY, ROOF SIDE, RH | ||||
| 61201-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 61238E - BRACKET, ASSIST GRIP, NO.2 | ||||
| 61237-72010 |
ANA1#,GGA10..CBU |
2 | ||
| 61245 - REINFORCEMENT, ROOF SIDE RAIL, OUTER RH | ||||
| 61245-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 61305 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH | ||||
| 61305-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 61305-72011 |
ANA1#,GGA10..CBU |
1 | ||
| 61403C - REINFORCE SUB-ASSY, ROCKER, OUTER RH | ||||
| 61403-72901 |
ANA1#,GGA10..CBU |
1 | ||
| 61603C - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, RH | ||||
| 61603-12600 |
ANA1#,GGA10..CBU |
1 | ||
| 61607E - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 61621D - TROUGH, BACK DOOR OPENING, RH | ||||
| 61621-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 61625F - EXTENSION, QUARTER PANEL, UPPER RH | ||||
| 61625-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 61627E - EXTENSION, QUARTER PANEL, REAR LOWER RH | ||||
| 61627-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 61701C - PANEL SUB-ASSY, ROOF SIDE, OUTER RH | ||||
| 61701-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 61717A - REINFORCEMENT, QUARTER PANEL EXTENSION, RH | ||||
| 61717-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 61737B - PANEL, ROOF SIDE, INNER LOWER RH | ||||
| 61737-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-12050 |
ANA1#,GGA10..CBU |
2 | ||
| 62151B - PAD, COWL SIDE SILENCER | ||||
| 62151-12130 |
ANA1#,GGA10..CBU |
2 | ||
| 65637 - LINER, REAR WHEEL HOUSE, RH | ||||
| 65637-72020 |
ANA1#,GGA10..CBU 寒冷地仕様 |
1 | ||
| 65637-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 67812A - PAD, QUARTER PANEL SILENCER | ||||
| 67812-72010 |
ANA1#,GGA10..CBU |
2 | ||
| 68981A - RETAINER, BACK DOOR STAY, RH | ||||
| 68981-72011 |
ANA1#,GGA10..CBU |
1 | ||
| Common parts | ||||
| 53878-44040 | ||||
| 90105-08144 | ||||
| 90105-08460 | ||||
| 90159-60602 | ||||
| 90179-06308 | ||||
| 90467-06121 | ||||
| 90467-07201 | ||||
| 91641-80816 | ||||
| Linked diagrams | ||||
| 5701 | ||||

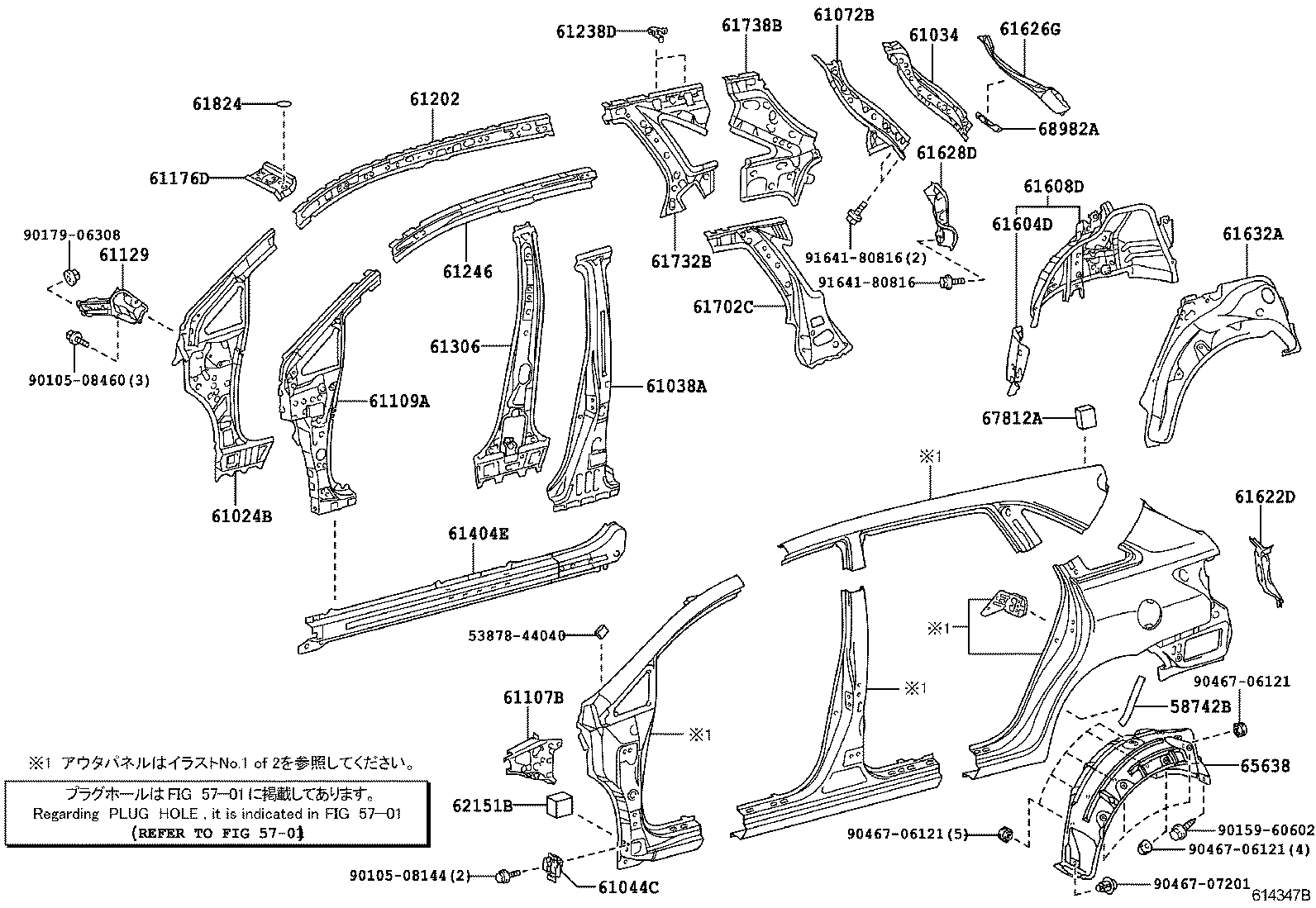

ILLUST NO. 2 OF 2(0709- )
ｲﾝﾅﾊﾟﾈﾙ,LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58742B - PROTECTOR, QUARTER PANEL, LH | ||||
| 58742-72010 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU 寒冷地仕様 |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 61034 - REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE, LH | ||||
| 61034-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61038-72901 |
ANA1#,GGA10..CBU |
1 | ||
| 61044C - EXTENSION SUB-ASSY, FRONT BODY PILLAR, OUTER LH | ||||
| 61043-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 61072B - PANEL SUB-ASSY, ROOF SIDE, INNER REAR LH | ||||
| 61072-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 61107B - REINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER LH | ||||
| 61107-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-72901 |
ANA1#,GGA10..CBU |
1 | ||
| 61129 - REINFORCEMENT, COWL SIDE PANEL, LH | ||||
| 61104-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 61176D - REINFORCE, FRONT BODY PILLAR, UPPER OUT NO.2 LH | ||||
| 61176-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 61202 - RAIL SUB-ASSY, ROOF SIDE, LH | ||||
| 61202-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 61238D - BRACKET, ASSIST GRIP, NO.2 LH | ||||
| 61237-72010 |
ANA1#,GGA10..CBU |
2 | ||
| 61246 - REINFORCEMENT, ROOF SIDE RAIL, OUTER LH | ||||
| 61246-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 61306 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER LH | ||||
| 61306-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 61306-72011 |
ANA1#,GGA10..CBU |
1 | ||
| 61404E - REINFORCE SUB-ASSY, ROCKER, OUTER LH | ||||
| 61404-72901 |
ANA1#,GGA10..CBU |
1 | ||
| 61604D - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, LH | ||||
| 61604-12610 |
ANA1#,GGA10..CBU |
1 | ||
| 61608D - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 61622D - TROUGH, BACK DOOR OPENING, LH | ||||
| 61622-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 61626G - EXTENSION, QUARTER PANEL, REAR LH | ||||
| 61626-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 61628D - EXTENSION, QUARTER PANEL, REAR LOWER LH | ||||
| 61628-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 61702C - PANEL SUB-ASSY, ROOF SIDE, OUTER LH | ||||
| 61702-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 61738B - PANEL, ROOF SIDE, INNER LOWER LH | ||||
| 61738-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-12050 |
ANA1#,GGA10..CBU |
2 | ||
| 62151B - PAD, COWL SIDE SILENCER | ||||
| 62151-12130 |
ANA1#,GGA10..CBU |
2 | ||
| 65638 - LINER, REAR WHEEL HOUSE, LH | ||||
| 65638-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 65638-72020 |
ANA1#,GGA10..CBU 寒冷地仕様 |
1 | ||
| 67812A - PAD, QUARTER PANEL SILENCER | ||||
| 67812-72010 |
ANA1#,GGA10..CBU |
2 | ||
| 68982A - RETAINER, BACK DOOR STAY, LH | ||||
| 68982-72011 |
ANA1#,GGA10..CBU |
1 | ||
| Common parts | ||||
| 53878-44040 | ||||
| 90105-08144 | ||||
| 90105-08460 | ||||
| 90159-60602 | ||||
| 90179-06308 | ||||
| 90467-06121 | ||||
| 90467-07201 | ||||
| 91641-80816 | ||||
| Linked diagrams | ||||
| 5701 | ||||

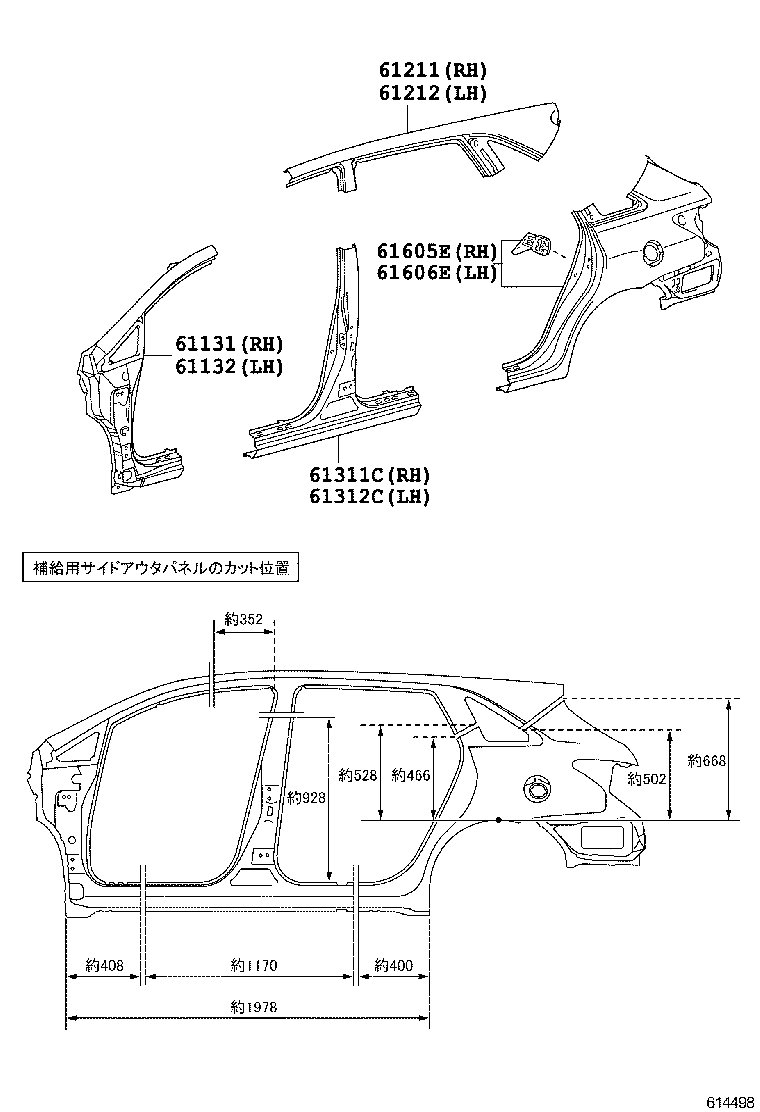

ILLUST NO. 1 OF 2(0709- )
ｱｳﾀﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-72011 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU |
1 | ||
| 61131-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61132-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 61132-72011 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 61311C - PANEL, REAR BODY FRONT OUTSIDE, RH | ||||
| 61311-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 61311-72011 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU |
1 | ||
| 61312C - PANEL, REAR BODY FRONT OUTSIDE, LH | ||||
| 61312-72011 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU |
1 | ||
| 61312-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 61605E - PANEL, QUARTER, RH | ||||
| 61605-72011 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU |
1 | ||
| 61606E - PANEL, QUARTER, LH | ||||
| 61606-72011 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU |
1 | ||
