ANA10-AWXNK (2007)

Toyota Mark X Zio

Production Sep 2007 - Feb 2011
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

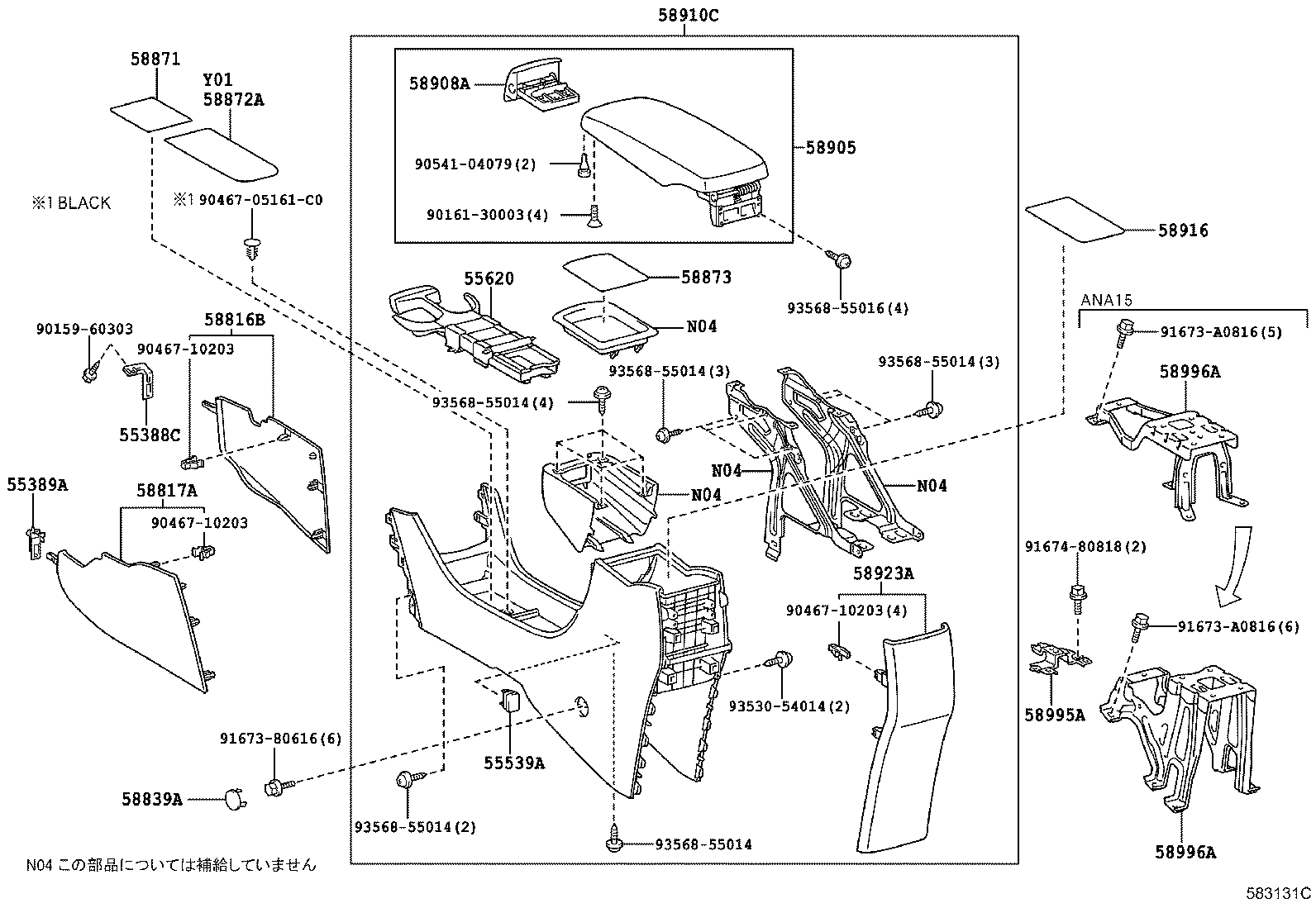

ILLUST NO. 1 OF 2(0709- )

Click highlighted areas on diagram

diagram 55388C 55389A 55539A 55620 58816B 58817A 58839A 58871 58872A 58873 58905 58908A 58910C 58916 58923A 58995A 58996A 58996A 9015960303 9016130003 9046705161C0 9046710203 9046710203 9046710203 9054104079 9167380616 91673A0816 91673A0816 9167480818 9353054014 9356855014 9356855014 9356855014 9356855014 9356855014 9356855016
Part # Description Qty Price
55388C - BRACKET, CONSOLE MOUNTING, RH
55389-42020

ANA1#,GGA10..240,240G,350G,ARIAL

 1
55389A - BRACKET, CONSOLE MOUNTING, LH
55388-42020

ANA1#,GGA10..240,240G,350G,ARIAL

 1
55539A - COVER, SPARE SWITCH HOLE
55539-52060C0

ANA1#..240

BLACK,TRIM1#,2#,4#

 1
55539-52060C0

ANA1#..240

BLACK,TRIM1#,4#

 1
55620 - HOLDER ASSY, INSTRUMENT PANEL CUP
55620-72010C0

ANA1#..240

BLACK,TRIM1#,2#,4#

 1
55620-72010C0

ANA1#..240

BLACK,TRIM1#,4#

 1
58816B - INSERT, CONSOLE BOX
58816-72010C0

ANA1#..240,ARIAL

BLACK,TRIM1#,2#,4#

 1
58817A - INSERT, CONSOLE BOX, FRONT NO.2
58817-72010C0

ANA1#..240,ARIAL

BLACK,TRIM1#,2#,4#

 1
58839A - COVER, CONSOLE BOX HOLE
55548-72010C0

ANA1#..240,ARIAL

BLACK,TRIM1#,2#,4#

 2
58871 - CUSHION, CONSOLE BOX
58871-72010

ANA1#,GGA10..240,240G,350G,ARIAL

 1
58872A - CUSHION, CONSOLE BOX, NO.2
58872-72010

ANA1#,GGA10..240,240G,350G,ARIAL

 1
58873 - CUSHION, CONSOLE BOX, NO.3
58873-72010

ANA1#,GGA10..240,240G,350G,ARIAL

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-72010B0

ANA1#,GGA10..CBU

GRAY,TRIM1#

 1
58905-72010B1

ANA1#,GGA10..(240,240F,240G,350G)..CBU

MD.GRAY,TRIM1#

 1
58905-72011B3

ANA1#..240,ARIAL

MD.GRAY/MD.SILVER,TRIM15,20

 1
58905-72010E0

ANA1#,GGA10..CBU

PLUM BROWN,TRIM4#

 1
58905-72011B2

ANA1#..240,ARIAL

MD.GRAY/BLACK MICA,TRIM15,20

 1
58905-72011E1

ANA1#,GGA10..(240,240F,240G,350G)..CBU

PLUM/BLACK MICA,TRIM4#

 1
58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908-72021B0

ANA1#..240

240“E−Selection” *(Z),MD.SILVER,TRIM15,20

 1
58908-72020

ANA1#,GGA10..CBU

 1
58908-72021C0

ANA1#..240

BLACK MICA,TRIM15,20,4#

 1
58910C - BOX ASSY, CONSOLE, REAR
58910-72010C0

ANA10,GGA10

BLACK,TRIM1#

 1
58910-72011C4

ANA10..240

240“E−Selection” *(Z),BLACK/MD.GRAY/MD.SILVER,TRIM20

 1
58910-72010C1

ANA10,GGA10..CBU

BLACK,TRIM4#

 1
58910-72011C4

ANA10..240,ARIAL

BLACK/MD.GRAY/MD.SILVER,TRIM15

 1
58910-72010C2

ANA10,GGA10..240,240F,240G,350G

MD.GRAY,TRIM1#

 1
58910-72011C3

ANA10..240,ARIAL

BLACK/MD.GRAY/BLACK MICA,TRIM15,20

 1
58910-72011C5

ANA10,GGA10..240,240F,240G,350G

BLACK/PLUM/BLACK MICA,TRIM4#

 1
58916 - MAT, BOX BOTTOM
58916-72010

ANA1#,GGA10..240,240G,350G,ARIAL

 1
58923A - PANEL, CONSOLE REAR END
58923-72010C0

ANA10..240

BLACK,TRIM1#,4#

 1
58923-72010C0

ANA10..240

BLACK,TRIM1#,2#,4#

 1
58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1
58995-72010

ANA1#,GGA10..240,240G,350G,ARIAL

 1
58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2
58996-72010

ANA10,GGA10..240,240G,350G,ARIAL

 1
58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2
58996-72010

ANA10,GGA10..240,240G,350G,ARIAL

 1
Common parts
90159-60303
90161-30003
90467-05161C0
90467-10203
90541-04079
91673-80616
91673-A0816
91674-80818
93530-54014
93568-55014
93568-55016

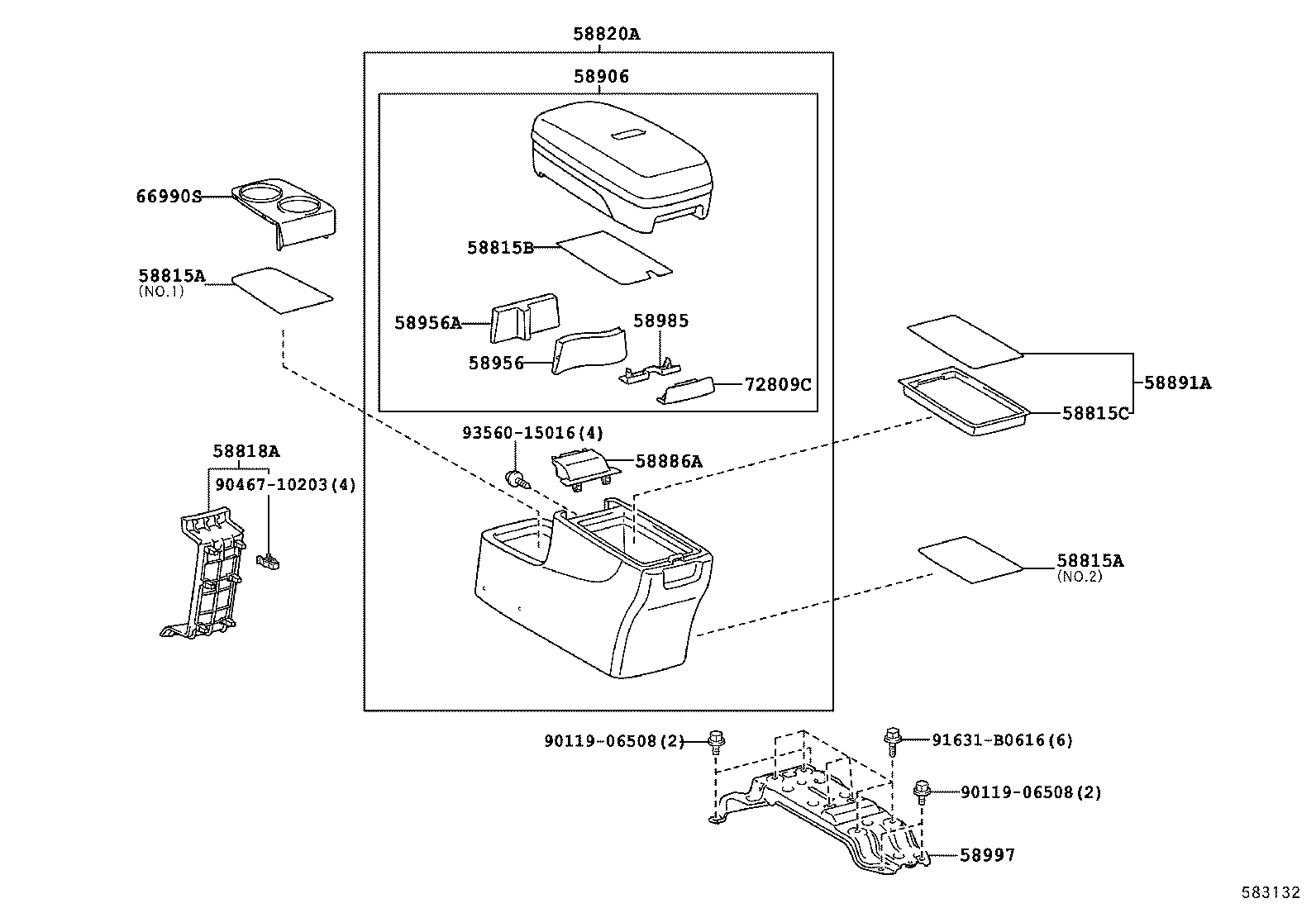

ILLUST NO. 2 OF 2(0709- )

Click highlighted areas on diagram

ﾘﾔｼｰﾄ ｺﾝｿｰﾙﾎﾞｯｸｽ

diagram 58815A 58815A 58815B 58815C 58818A 58820A 58886A 58891A 58906 58956 58956A 58985 58997 66990S 72809C 9011906508 9011906508 9046710203 91631B0616 9356015016
Part # Description Qty Price
Common parts
90119-06508
90467-10203
91631-B0616
93560-15016
