ANA10-AWXNK (2007)

Toyota Mark X Zio

Production Sep 2007 - Feb 2011
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0709- )

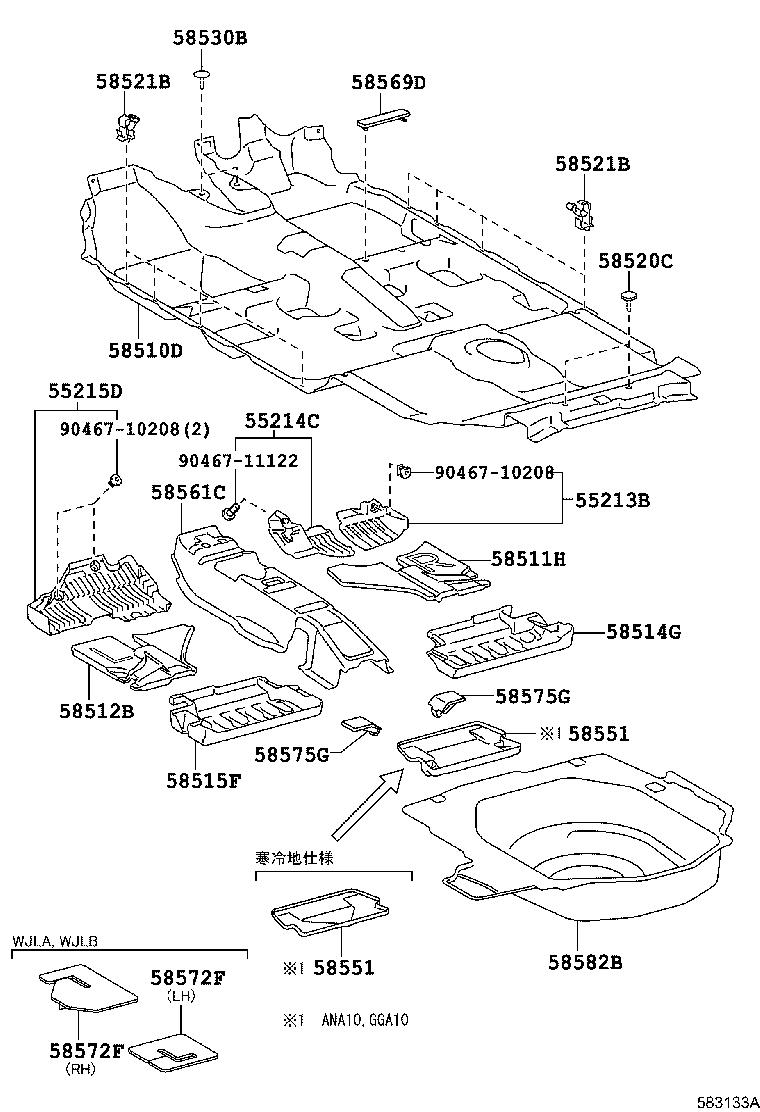

Click highlighted areas on diagram

diagram 55213B 55214C 55215D 58510D 58511H 58512B 58514G 58515F 58520C 58521B 58521B 58530B 58551 58551 58561C 58569D 58572F 58572F 58575G 58575G 58582B 9046710208 9046710208 9046711122
Part # Description Qty Price
55213B - PAD, DASH PANEL INSULATOR, NO.1
55213-72010

ANA1#,GGA10..CBU

 1
55214C - PAD, DASH PANEL INSULATOR, NO.2
55214-72010

ANA1#,GGA10..CBU

 1
55215D - PAD, DASH PANEL INSULATOR, NO.3
55215-12110

ANA1#,GGA10..CBU

 1
58510D - CARPET ASSY, FLOOR, FRONT
58510-72010C0

ANA10..(240,240F)..CBU

BLACK,TRIM1#,4#

 1
58510-72040C0

ANA10..(240,240F)..CBU

寒冷地仕様,BLACK,TRIM1#,4#

 1
58510-72041C0

ANA10..240

寒冷地仕様,BLACK,TRIM1#,2#,4#

 1
58510-72011C0

ANA10..240

BLACK,TRIM1#,2#,4#

 1
58511H - MAT, FLOOR, FRONT RH
58512-12200

ANA1#,GGA10..CBU

 1
58512B - MAT, FLOOR, FRONT LH
58511-12620

ANA1#,GGA10..CBU

 1
58514G - MAT, FLOOR, REAR RH
58514-72010

ANA1#,GGA10..CBU

 1
58515F - MAT, FLOOR, REAR LH
58515-72010

ANA1#,GGA10..CBU

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-07049C0

ANA1#..240,ARIAL

BLACK,TRIM1#,2#,4#

 2
58521B - HOOK, FLOOR CARPET
58521-12140

ANA1#,GGA10..CBU

 10
58521B - HOOK, FLOOR CARPET
58521-12140

ANA1#,GGA10..CBU

 10
58530B - CLIP(FOR FRONT FLOOR CARPET)
90467-05164C0

ANA1#..240,ARIAL

BLACK,TRIM1#,2#,4#

 2
58551 - MAT, FLOOR, REAR
58557-72010

ANA10,GGA10..CBU

 1
58557-72020

ANA10,GGA10..CBU

寒冷地仕様

 1
58551 - MAT, FLOOR, REAR
58557-72010

ANA10,GGA10..CBU

 1
58557-72020

ANA10,GGA10..CBU

寒冷地仕様

 1
58561C - SILENCER, FRONT FLOOR, NO.1
58561-72010

ANA10,GGA10..CBU

 1
58569D - COVER, FRONT FLOOR CAUTION PLATE
58569-12010C0

ANA1#..240,ARIAL

BLACK,TRIM1#,2#,4#

 1
58575G - TRIM, REAR FLOOR
58575-72010C0

ANA1#..240,ARIAL

BLACK,TRIM1#,2#,4#

 2
58575G - TRIM, REAR FLOOR
58575-72010C0

ANA1#..240,ARIAL

BLACK,TRIM1#,2#,4#

 2
58582B - CARPET, 3RD SEAT FLOOR, NO.1
58582-72020C0

ANA1#..240,ARIAL

BLACK,TRIM1#,2#,4#

 1
Common parts
90467-10208
90467-11122
