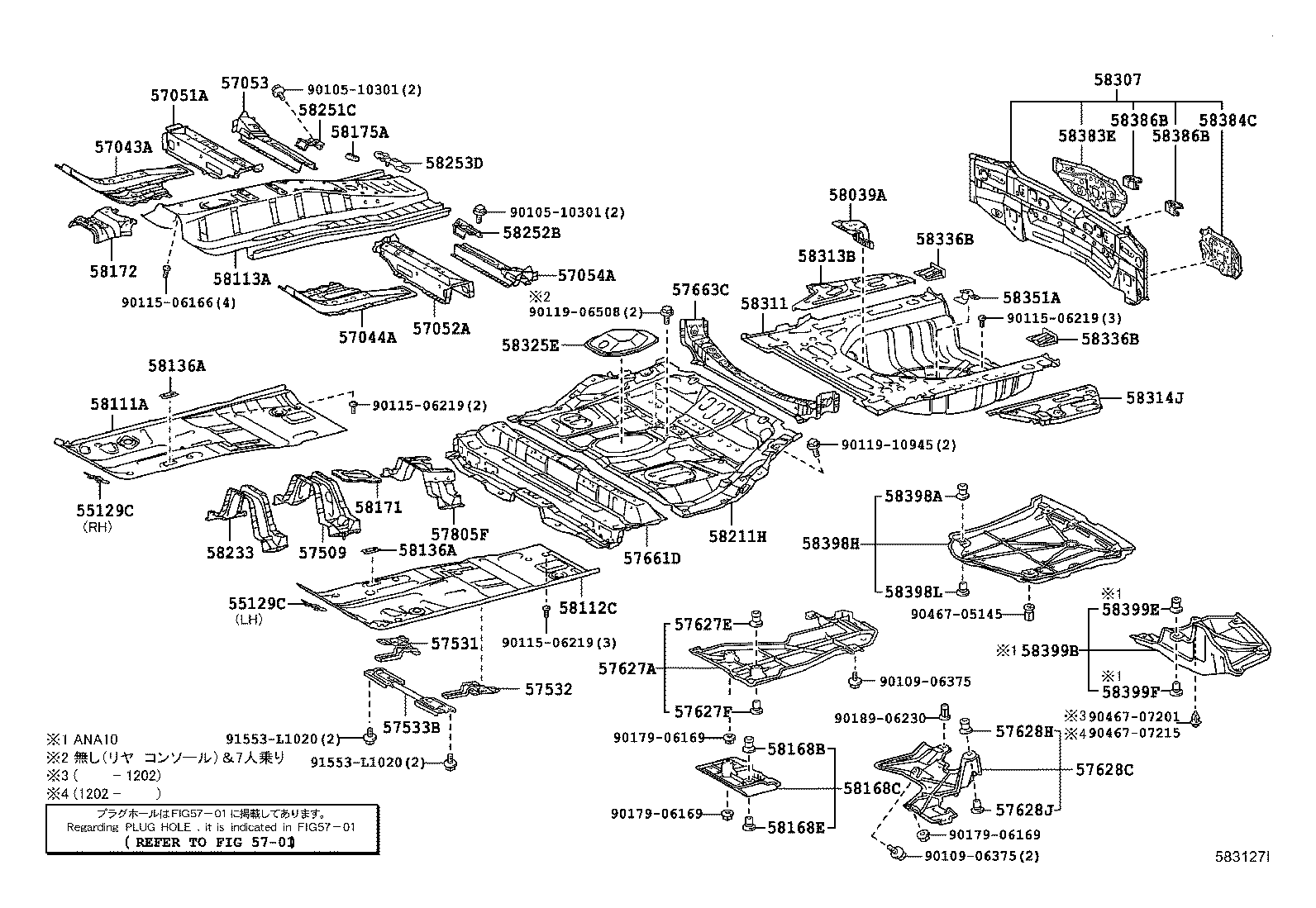

ANA10-AWXNK (2007)
Toyota Mark X Zio
(0709- )ANA10,GGA10
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55129C - COVER, DASH PANEL HOLE | ||||
| 55129-12040 |
ANA1#,GGA10..240,240G,350G,ARIAL 右側 |
1 | ||
| 55139-12050 |
ANA1#,GGA10..240,240G,350G,ARIAL 左側 |
1 | ||
| 55129C - COVER, DASH PANEL HOLE | ||||
| 55129-12040 |
ANA1#,GGA10..240,240G,350G,ARIAL 右側 |
1 | ||
| 55139-12050 |
ANA1#,GGA10..240,240G,350G,ARIAL 左側 |
1 | ||
| 57043A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH | ||||
| 57043-12020 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 57044A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH | ||||
| 57044-12020 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 57051A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH | ||||
| 57051-12060 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 57052A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH | ||||
| 57052-12010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 57053 - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, RH | ||||
| 57053-12010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 57054A - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, LH | ||||
| 57054-12010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 57509 - REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER | ||||
| 57509-12061 |
ANA10,GGA10..240,240G,350G,ARIAL |
1 | ||
| 57509-12060 |
ANA10,GGA10 |
1 | ||
| 57531 - BRACKET, FRONT FLOOR CENTER BRACE, RH | ||||
| 57531-12010 |
ANA10,GGA10..240,240G,350G,ARIAL |
1 | ||
| 57532 - BRACKET, FRONT FLOOR CENTER BRACE, LH | ||||
| 57532-12010 |
ANA10,GGA10..240,240G,350G,ARIAL |
1 | ||
| 57533B - BRACE, FRONT FLOOR, CENTER | ||||
| 57501-12020 |
ANA10,GGA10..240,240G,350G,ARIAL |
1 | ||
| 57627A - COVER, REAR FLOOR SIDE MEMBER, RH | ||||
| 57627-72010 |
ANA10,GGA10..240,240G,350G,ARIAL |
1 | ||
| 57627E - CLIP, REAR FLOOR SIDE MEMBER COVER, NO.1 | ||||
| 90467-17024A0 |
ANA10,GGA10..CBU SUPER WHITE 2 |
3 | ||
| 57627F - CLIP, REAR FLOOR SIDE MEMBER COVER, NO.2 | ||||
| 90467-17025C0 |
ANA10,GGA10..CBU BLACK |
3 | ||
| 57628C - COVER, REAR FLOOR SIDE MEMBER, LH | ||||
| 57628-72010 |
ANA10,GGA10 |
1 | ||
| 57628-72011 |
ANA10,GGA10..240,240G,350G,ARIAL |
1 | ||
| 57628H - CLIP, REAR FLOOR SIDE MEMBER COVER, NO.1 | ||||
| 90467-17024A0 |
ANA10,GGA10..CBU SUPER WHITE 2 |
2 | ||
| 57628J - CLIP, REAR FLOOR SIDE MEMBER COVER, NO.2 | ||||
| 90467-17025C0 |
ANA10,GGA10..CBU BLACK |
2 | ||
| 57661D - MEMBER, REAR FLOOR CROSS, FRONT | ||||
| 57407-72010 |
ANA10,GGA10..240,240G,350G,ARIAL |
1 | ||
| 57663C - MEMBER, REAR FLOOR CROSS, CENTER | ||||
| 58305-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 57805F - REINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1 | ||||
| 57805-12150 |
ANA10,GGA10..240,240G,350G,ARIAL |
1 | ||
| 58039A - REINFORCEMENT SUB-ASSY, REAR FLOOR PANEL | ||||
| 58039-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 58111A - PAN, FRONT FLOOR, RH | ||||
| 58111-72901 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 58112C - PAN, FRONT FLOOR, LH | ||||
| 58112-72901 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 58113A - PANEL, FRONT FLOOR, CENTER | ||||
| 58113-72901 |
ANA10,GGA10..240,240G,350G,ARIAL |
1 | ||
| 58136A - COVER, FRONT FLOOR SERVICE HOLE | ||||
| 58136-12040 |
ANA1#,GGA10..240,240G,350G,ARIAL |
2 | ||
| 58136A - COVER, FRONT FLOOR SERVICE HOLE | ||||
| 58136-12040 |
ANA1#,GGA10..240,240G,350G,ARIAL |
2 | ||
| 58168B - CLIP, NO.1(FOR FLOOR UNDER COVER) | ||||
| 90467-17024A0 |
ANA1#,GGA10..CBU SUPER WHITE 2 |
1 | ||
| 58168C - COVER, FRONT FLOOR, CENTER LH | ||||
| 58168-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 58168E - CLIP, NO.2(FOR FLOOR UNDER COVER) | ||||
| 90467-17025C0 |
ANA1#,GGA10..CBU BLACK |
1 | ||
| 58171 - REINFORCEMENT, PARKING BRAKE BASE | ||||
| 58171-12120 |
ANA10,GGA10..240,240G,350G,ARIAL |
1 | ||
| 58172 - BRACKET, COMPUTER MOUNTING, NO.3 | ||||
| 58173-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 58175A - REINFORCEMENT, PARKING BRAKE BASE, NO.1 | ||||
| 58176-12020 |
ANA10,GGA10..240,240G,350G,ARIAL |
1 | ||
| 58211H - PAN, CENTER FLOOR | ||||
| 58211-72010 |
ANA10,GGA10 |
1 | ||
| 58211-72011 |
ANA10,GGA10..240,240G,350G,ARIAL |
1 | ||
| 58233 - BRACKET, EXHAUST PIPE MOUNTING | ||||
| 58203-12070 |
ANA10,GGA10..240,240G,350G,ARIAL |
1 | ||
| 58251C - BRACE, FLOOR PANEL, FRONT RH | ||||
| 58251-12040 |
ANA10,GGA10..240,240G,350G,ARIAL |
1 | ||
| 58252B - BRACE, FLOOR PANEL, FRONT LH | ||||
| 58252-12040 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 58253D - BRACKET, PARKING BRAKE CABLE | ||||
| 58253-72010 |
ANA10,GGA10..240,240G,350G,ARIAL |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-72011 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-72901 |
ANA10,GGA10..240,240G,350G,ARIAL |
1 | ||
| 58313B - PANEL, REAR FLOOR SIDE, RH | ||||
| 58313-72010 |
ANA1#..240,240G,ARIAL |
1 | ||
| 58314J - PANEL, REAR FLOOR SIDE, LH | ||||
| 58314-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-72010 |
ANA10,GGA10..240,240G,350G,ARIAL |
1 | ||
| 58336B - REINFORCEMENT, REAR FLOOR PAN | ||||
| 58336-12090 |
ANA1#,GGA10..240,240G,350G,ARIAL |
2 | ||
| 58336B - REINFORCEMENT, REAR FLOOR PAN | ||||
| 58336-12090 |
ANA1#,GGA10..240,240G,350G,ARIAL |
2 | ||
| 58351A - BRACKET, SPARE WHEEL CARRIER | ||||
| 58351-12060 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 58383E - REINFORCEMENT, BODY LOWER BACK, NO.2 RH | ||||
| 58383-72011 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 58384C - REINFORCEMENT, BODY LOWER BACK, NO.2 LH | ||||
| 58384-72011 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 58386B - BRACKET, REAR BUMPER COVER, NO.2 | ||||
| 58386-12020 |
ANA1#,GGA10..240,240G,350G,ARIAL |
2 | ||
| 58386B - BRACKET, REAR BUMPER COVER, NO.2 | ||||
| 58386-12020 |
ANA1#,GGA10..240,240G,350G,ARIAL |
2 | ||
| 58398A - CLIP, NO.3(FOR FLOOR UNDER COVER) | ||||
| 90467-17024A0 |
ANA1#,GGA10..CBU SUPER WHITE 2 |
2 | ||
| 58398H - COVER, FLOOR UNDER, NO.1 | ||||
| 58398-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 58398L - CLIP, NO.4(FOR FLOOR UNDER COVER) | ||||
| 90467-17025C0 |
ANA1#,GGA10..CBU BLACK |
2 | ||
| 58399B - COVER, FLOOR UNDER, NO.2 | ||||
| 58399-72010 |
ANA1#..240,240G,ARIAL |
1 | ||
| 58399E - CLIP, NO.1(FOR FLOOR UNDER COVER) | ||||
| 90467-17024A0 |
ANA1#..CBU SUPER WHITE 2 |
1 | ||
| 58399F - CLIP, NO.2(FOR FLOOR UNDER COVER) | ||||
| 90467-17025C0 |
ANA1#..CBU BLACK |
1 | ||
| Common parts | ||||
| 90105-10301 | ||||
| 90109-06375 | ||||
| 90115-06166 | ||||
| 90115-06219 | ||||
| 90119-06508 | ||||
| 90119-10945 | ||||
| 90179-06169 | ||||
| 90189-06230 | ||||
| 90467-05145 | ||||
| 90467-07201 | ||||
| 90467-07215 | ||||
| 91553-L1020 | ||||
| Linked diagrams | ||||
| 5701 | ||||
