ANA10-AWXNK (2007)

Toyota Mark X Zio

Production Sep 2007 - Feb 2011
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0709- )

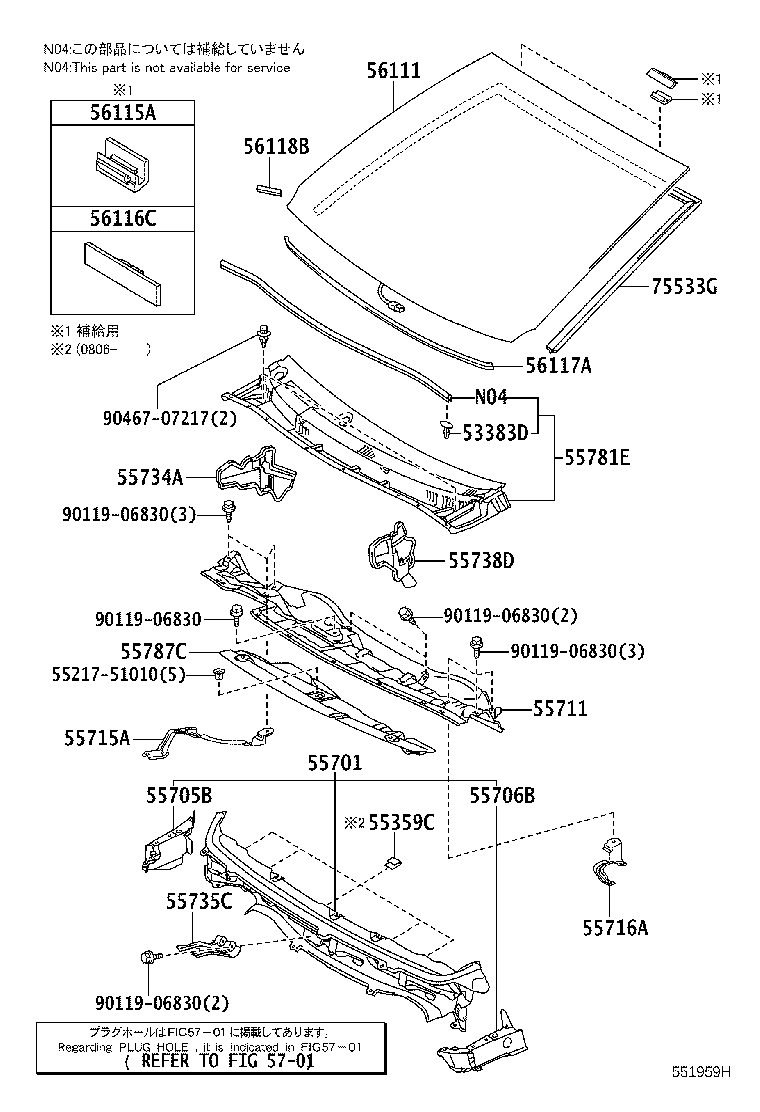

Click highlighted areas on diagram

diagram 53383D 5521751010 55359C 55701 55705B 55706B 55711 55715A 55716A 55734A 55735C 55738D 55781E 55787C 56111 56115A 56116C 56117A 56118B 5701 75533G 9011906830 9011906830 9011906830 9011906830 9011906830 9046707217
Part # Description Qty Price
53383D - CLIP(FOR HOOD TO COWL TOP SEAL)
67867-12150

ANA1#,GGA10..240,240G,350G,ARIAL

 7
55359C - COSHION, INSTRUMENT PANEL, NO.5
55359-52160

ANA1#,GGA10..240,240G,350G,ARIAL

 5
55701 - PANEL SUB-ASSY, COWL
55700-72901

ANA1#,GGA10..240,240G,350G,ARIAL

 1
55705B - PANEL SUB-ASSY, COWL TOP SIDE, RH
55705-72901

ANA1#,GGA10..240,240G,350G,ARIAL

 1
55706B - PANEL SUB-ASSY, COWL TOP SIDE, LH
55706-72901

ANA1#,GGA10..240,240G,350G,ARIAL

 1
55711 - PANEL, COWL TOP, OUTER
55701-72010

ANA1#,GGA10..240,240G,350G,ARIAL

 1
55715A - BRACE, COWL TOP TO APRON, RH
53715-72010

ANA1#,GGA10..240,240G,350G,ARIAL

 1
55716A - BRACE, COWL TOP TO APRON, LH
53716-72010

ANA1#,GGA10..240,240G,350G,ARIAL

 1
55734A - PLATE, WATER GUARD, RH
55734-72010

ANA1#,GGA10..240,240G,350G,ARIAL

 1
55735C - REINFORCEMENT, COWL BODY MOUNTING, RH
55735-72010

ANA1#,GGA10..240,240G,350G,ARIAL

 1
55738D - SEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2
55738-72010

ANA1#,GGA10..240,240G,350G,ARIAL

 1
55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR
55708-72010

ANA1#,GGA10..240,240G,350G,ARIAL

 1
55708-72020

ANA1#,GGA10..240,240G,350G,ARIAL

寒冷地仕様

 1
55787C - INSULATOR, COWL TOP PANEL, NO.1
55787-72010

ANA1#,GGA10..240,240G,350G,ARIAL

 1
56111 - GLASS, WINDSHIELD
56111-72902

ANA1#..240,ARIAL

*EHL,T=4.76,ｸﾞﾘｰﾝ,寒冷地仕様

 1
56111-72901

ANA1#..240,ARIAL

*LAM,T=4.76,ｸﾞﾘｰﾝ

 1
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-30120

ANA1#,GGA10..240,240G,350G,ARIAL

 1
56116C - STOPPER, WINDSHIELD GLASS, NO.2
56116-22050

ANA1#,GGA10..240,240G,350G,ARIAL

 1
56117A - DAM, WINDOW GLASS ADHESIVE
56117-72010

ANA1#,GGA10..240,240G,350G,ARIAL

長さ=1328,寒冷地仕様

 1
56117-72010

ANA1#,GGA10..240,240G,350G,ARIAL

長さ=1328

 1
56118B - DAM, WINDOW GLASS ADHESIVE, NO.2
56118-72010

ANA1#,GGA10..240,240G,350G,ARIAL

長さ=32

 1
56118-72010

ANA1#,GGA10..240,240G,350G,ARIAL

長さ=32,寒冷地仕様

 1
75533G - MOULDING, WINDSHIELD, OUTSIDE
75533-72010

ANA1#,GGA10..240,240G,350G,ARIAL

 1
Common parts
55217-51010
90119-06830
90467-07217
Linked diagrams
5701
