ANA10-AWXNK (2007)
Toyota Mark X Zio

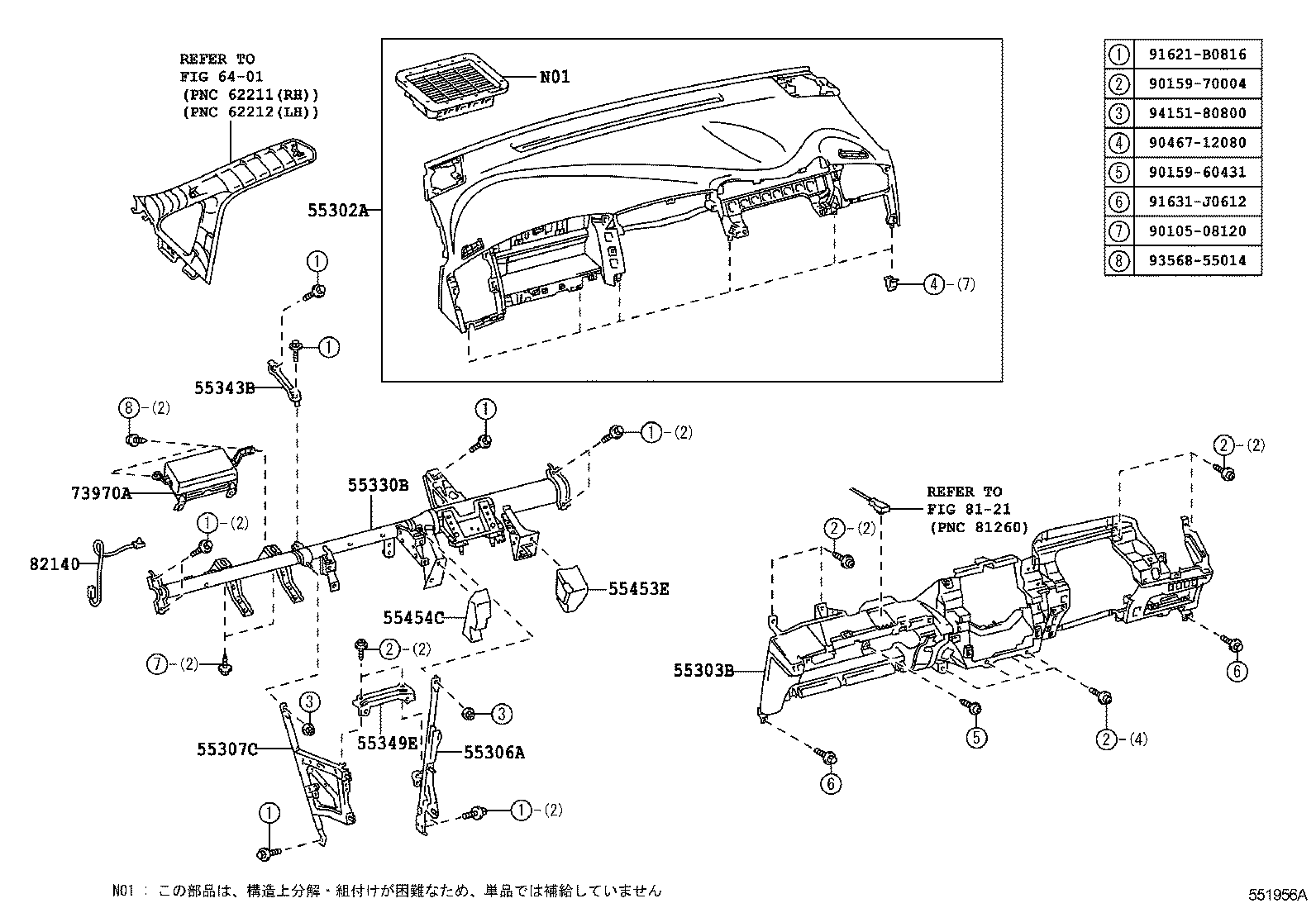

ILLUST NO. 1 OF 2(0709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER | ||||
| 55302-72010C0 |
ANA1#,GGA10..CBU BLACK,TRIM1#,4# |
1 | ||
| 55302-72011C0 |
ANA1#..240,ARIAL BLACK,TRIM1#,2#,4# |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-72010C0 |
ANA1#,GGA10..CBU BLACK,TRIM1#,4# |
1 | ||
| 55303-72011C0 |
ANA1#..240,ARIAL BLACK,TRIM1#,2#,4# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 55343B - BRACE, INSTRUMENT PANEL TO COWL, CENTER | ||||
| 55343-12070 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 55349E - BRACKET, INSTRUMENT PANEL BRACE MOUNTING, LOWER | ||||
| 55349-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 55453E - PAD, INSTRUMENT, LOWER RH | ||||
| 55453-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 55454C - PAD, INSTRUMENT, LOWER LH | ||||
| 55454-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER | ||||
| 73970-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 82140 - WIRE ASSY, INSTRUMENT PANEL | ||||
| 82140-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| Common parts | ||||
| 90105-08120 | ||||
| 90159-60431 | ||||
| 90159-70004 | ||||
| 90467-12080 | ||||
| 91621-B0816 | ||||
| 91631-J0612 | ||||
| 93568-55014 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 6401 | ||||
| 8121 | ||||

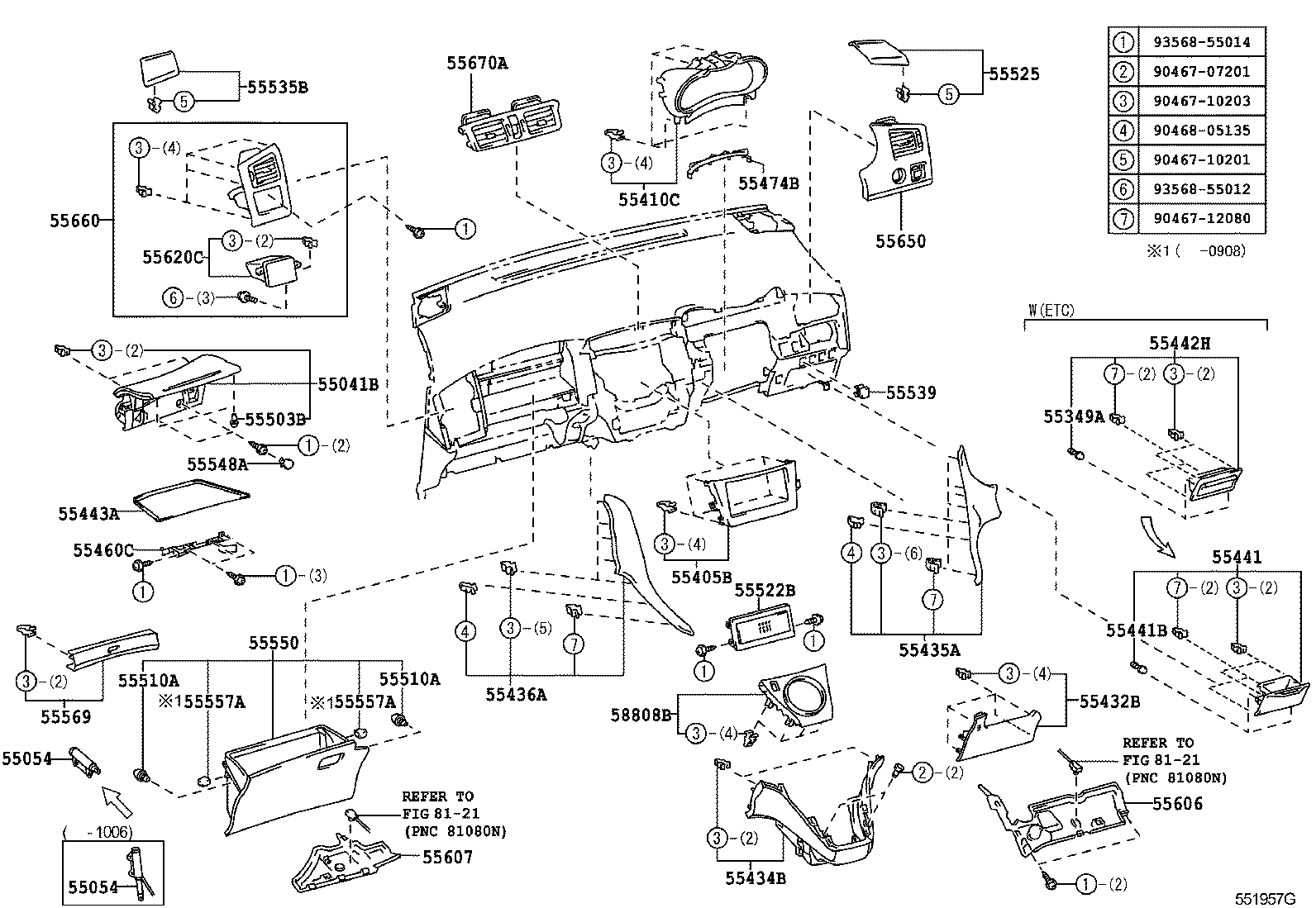

ILLUST NO. 2 OF 2(0709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55041B - DOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.1 | ||||
| 55041-72010C2 |
ANA1#..240,240F,240G MD.GRAY,TRIM1# |
1 | ||
| 55041-72010C1 |
ANA1#..CBU PLUM BROWN,TRIM4# |
1 | ||
| 55041-72011C5 |
ANA1#..240,240F,240G BLACK/PLUM/BLACK MICA,TRIM4# |
1 | ||
| 55041-72011C4 |
ANA1#..240 240“E−Selection” *(Z),BLACK/MD.GRAY/MD.SILVER,TRIM20 |
1 | ||
| 55041-72010C0 |
ANA1#..CBU GRAY,TRIM1# |
1 | ||
| 55041-72011C3 |
ANA1#..240,ARIAL BLACK/MD.SILVER/BLACKMICA,TRIM15,20 |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-72010 |
ANA1#,GGA10 |
1 | ||
| 55054-33060 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-72010 |
ANA1#,GGA10 |
1 | ||
| 55054-33060 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 58959-60060 |
ANA1#,GGA10..240,240G,350G,ARIAL ｵｰﾃﾞｨｵ−ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ内蔵HDDﾅﾋﾞｹﾞｰｼｮﾝ |
2 | ||
| 58959-60060 |
ANA1#,GGA10 ETC−有り |
2 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-72011B0 |
ANA1#..240,ARIAL MD.SILVER,TRIM15,20 |
1 | ||
| 55405-72010 |
ANA1#,GGA10..CBU ｵｰﾃﾞｨｵ−HDD AVN 6ｽﾋﾟｰｶ |
1 | ||
| 55405-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 55405-72011B0 |
ANA1#..240,ARIAL ｵｰﾃﾞｨｵ−ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ内蔵HDDﾅﾋﾞｹﾞｰｼｮﾝ,MD.SILVER,TRIM15,20 |
1 | ||
| 55405-72011C0 |
ANA1#..240 BLACK MICA,TRIM15,20,4# |
1 | ||
| 55405-72010 |
ANA1#,GGA10..CBU ｵｰﾃﾞｨｵ−ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ内蔵HDDﾅﾋﾞｹﾞｰｼｮﾝ |
1 | ||
| 55405-72011B0 |
ANA1#..240,ARIAL ｵｰﾃﾞｨｵ−HDD AVN 6ｽﾋﾟｰｶ,MD.SILVER,TRIM15,20 |
1 | ||
| 55405-72011C0 |
ANA1#..240 ｵｰﾃﾞｨｵ−ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ内蔵HDDﾅﾋﾞｹﾞｰｼｮﾝ,BLACK MICA,TRIM15,20,4# |
1 | ||
| 55405-72011C0 |
ANA1#..240 ｵｰﾃﾞｨｵ−HDD AVN 6ｽﾋﾟｰｶ,BLACK MICA,TRIM15,20,4# |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-72010C0 |
ANA1#..240,ARIAL BLACK,TRIM1#,2#,4# |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-72010C0 |
ANA1#..240,ARIAL BLACK,TRIM1#,2#,4# |
1 | ||
| 55435A - PANEL, INSTRUMENT PANEL FINISH, END RH | ||||
| 55435-72010E0 |
ANA1#,GGA10..CBU PLUM BROWN,TRIM4# |
1 | ||
| 55435-72010B0 |
ANA1#,GGA10..CBU GRAY,TRIM1# |
1 | ||
| 55435-72010B1 |
ANA1#..240,ARIAL MD.GRAY,TRIM1#,2# |
1 | ||
| 55436A - PANEL, INSTRUMENT PANEL FINISH, END LH | ||||
| 55436-72010B1 |
ANA1#..240,ARIAL MD.GRAY,TRIM1#,2# |
1 | ||
| 55436-72010B0 |
ANA1#,GGA10..CBU GRAY,TRIM1# |
1 | ||
| 55436-72010E0 |
ANA1#,GGA10..CBU PLUM BROWN,TRIM4# |
1 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55441-72010C0 |
ANA1#..240,ARIAL BLACK,TRIM1#,2#,4# |
1 | ||
| 55441B - CUSHION, INSTRUMENT PANEL BOX | ||||
| 58959-60060 |
ANA1#,GGA10..240,240G,350G,ARIAL |
2 | ||
| 55442H - DOOR, INSTRUMENT PANEL | ||||
| 55442-72010C0 |
ANA1#..240,ARIAL ETC−有り,BLACK,TRIM1#,2#,4# |
1 | ||
| 55442-72010C0 |
ANA1#..240,ARIAL ｵｰﾃﾞｨｵ−ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ内蔵HDDﾅﾋﾞｹﾞｰｼｮﾝ,BLACK,TRIM1#,2#,4# |
1 | ||
| 55443A - COVER, INSTRUMENT PANEL BOX DOOR | ||||
| 55443-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 55460C - LOCK ASSY, INSTRUMENT PANEL BOX | ||||
| 55460-72010C0 |
ANA1#..240,ARIAL BLACK,TRIM1#,2#,4# |
1 | ||
| 55474B - GARNISH, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55474-72010C0 |
ANA1#..240,ARIAL BLACK,TRIM1#,2#,4# |
1 | ||
| 55503B - CUSHION(FOR GLOVE COMPARTMENT) | ||||
| 58959-60060 |
ANA1#,GGA10..240,240G,350G,ARIAL |
2 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 55557-53030 |
ANA1#,GGA10..240,240G,350G,ARIAL |
2 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 55557-53030 |
ANA1#,GGA10..240,240G,350G,ARIAL |
2 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-52020 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 55522-52020 |
ANA1#,GGA10..240,240G,350G,ARIAL ｵｰﾃﾞｨｵ−HDD AVN 6ｽﾋﾟｰｶ |
1 | ||
| 55525 - COVER, SPEAKER HOLE, NO.1 | ||||
| 55525-72010C0 |
ANA1#..240,ARIAL BLACK,TRIM1#,2#,4# |
1 | ||
| 55535B - COVER, SPEAKER HOLE, NO.2 | ||||
| 55535-72010C0 |
ANA1#..240,ARIAL BLACK,TRIM1#,2#,4# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-52060C0 |
ANA1#..240,ARIAL BLACK,TRIM1#,2#,4# |
1 | ||
| 55539-52060C0 |
ANA1#..240,ARIAL 寒冷地仕様,BLACK,TRIM1#,2#,4# |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-47010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
2 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-72010C0 |
ANA1#..240,ARIAL BLACK,TRIM1#,2#,4# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-72010 |
ANA1#,GGA10 |
2 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-72010 |
ANA1#,GGA10 |
2 | ||
| 55569 - COVER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55569-72010C0 |
ANA1#..240,ARIAL BLACK,TRIM1#,2#,4# |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 55620C - HOLDER, INSTRUMENT PANEL CUP | ||||
| 55618-72010E0 |
ANA1#,GGA10..CBU PLUM BROWN,TRIM4# |
1 | ||
| 55618-72010B1 |
ANA1#..240,ARIAL MD.GRAY,TRIM1#,2# |
1 | ||
| 55618-72010B0 |
ANA1#,GGA10..CBU GRAY,TRIM1# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-72010B0 |
ANA1#,GGA10..CBU GRAY,TRIM1# |
1 | ||
| 55650-72010B1 |
ANA1#..240,ARIAL MD.GRAY,TRIM1#,2# |
1 | ||
| 55650-72010E0 |
ANA1#,GGA10..CBU PLUM BROWN,TRIM4# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-72010E0 |
ANA1#,GGA10..CBU PLUM BROWN,TRIM4# |
1 | ||
| 55660-72010B0 |
ANA1#,GGA10..CBU GRAY,TRIM1# |
1 | ||
| 55660-72010B1 |
ANA1#..240,ARIAL MD.GRAY,TRIM1#,2# |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-72011B0 |
ANA1#..240,ARIAL 240“E−Selection” *(Z),ｴｱﾘｱﾙ“V−Selection”*(Z),MD.SILVER,TRIM15,20 |
1 | ||
| 55670-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 55670-72011C0 |
ANA1#..240 BLACK MICA,TRIM15,20,4# |
1 | ||
| 58808B - COVER, SHIFTING HOLE | ||||
| 58808-72010 |
ANA1#..CBU |
1 | ||
| 58808-72012C0 |
ANA1#..240 BLACK MICA,TRIM15,20,4# |
1 | ||
| 58808-72011 |
ANA1#..CBU |
1 | ||
| 58808-72012B0 |
ANA1#..240 MD.SILVER,TRIM15,20 |
1 | ||
| Common parts | ||||
| 90467-07201 | ||||
| 90467-10201 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 90468-05135 | ||||
| 93568-55012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8121 | ||||
