ANA10-AWXNK (2007)
Toyota Mark X Zio
(0709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51401B - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING | ||||
| 51401-12020 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH | ||||
| 51402-12020 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 51681B - PLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, RH | ||||
| 51681-12080 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 51682D - PLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, LH | ||||
| 51682-12080 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 51963F - HOOK, TRANSPORT | ||||
| 51963-12250 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 51964F - HOOK, TRANSPORT, LH | ||||
| 51964-12040 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 57016 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 57016-12110 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 57017 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 57017-12070 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 57027B - MEMBER SUB-ASSY, FRONT SIDE, INNER RH | ||||
| 57027-12010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 57028B - MEMBER SUB-ASSY, FRONT SIDE, INNER LH | ||||
| 57028-12020 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 57031A - REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH | ||||
| 57031-12010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 57032B - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH | ||||
| 57032-12010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 57033C - REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.3 RH | ||||
| 57033-12010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 57034D - REINFORCE SUB-ASSY, FRONT SIDE MENBER, NO.3 LH | ||||
| 57034-12010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 57105 - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRO | ||||
| 57105-12160 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 57106E - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRO | ||||
| 57106-12150 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 57107A - PLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH | ||||
| 57107-12120 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 57108A - PLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH | ||||
| 57108-12140 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 57111 - MEMBER, FRONT SIDE, RH | ||||
| 57111-12230 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 57112 - MEMBER, FRONT SIDE, LH | ||||
| 57112-12190 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 57113 - EXTENSION, FRONT SIDE MEMBER, RH | ||||
| 57113-12220 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 57114 - EXTENSION, FRONT SIDE MEMBER, LH | ||||
| 57114-12190 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 57115A - PLATE, FRONT SIDE MEMBER, OUTER RH | ||||
| 57115-12090 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 57116A - PLATE, FRONT SIDE MEMBER, OUTER LH | ||||
| 57116-12090 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 57188B - GUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, RH | ||||
| 57188-12030 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 57189A - GUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, LH | ||||
| 57189-12010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 57191A - MEMBER, FRONT SIDE, INNER REAR RH | ||||
| 57191-12070 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 57192A - MEMBER, FRONT SIDE, INNER REAR LH | ||||
| 57192-12060 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 57197 - BOX, TORQUE, FRONT RH | ||||
| 57197-12040 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 57198 - BOX, TORQUE, FRONT LH | ||||
| 57198-12040 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 57405C - MEMBER SUB-ASSY, CENTER FLOOR CROSS, REAR | ||||
| 57405-72010 |
ANA1#,GGA10 |
1 | ||
| 57405-72011 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 57411A - MEMBER, FLOOR SIDE, INNER RH | ||||
| 57401-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 57412A - MEMBER, FLOOR SIDE, INNER LH | ||||
| 57402-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-72010 |
ANA10,GGA10 |
1 | ||
| 57601-72011 |
ANA10,GGA10..240,240G,350G,ARIAL |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-72010 |
ANA10,GGA10 |
1 | ||
| 57602-72011 |
ANA10,GGA10..240,240G,350G,ARIAL |
1 | ||
| 57603A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH | ||||
| 57603-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 57604A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH | ||||
| 57604-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 | ||||
| 57605-72010 |
ANA10,GGA10 |
1 | ||
| 57605-72011 |
ANA10,GGA10..240,240G,350G,ARIAL |
1 | ||
| 57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 | ||||
| 57606-72010 |
ANA10,GGA10 |
1 | ||
| 57606-72011 |
ANA10,GGA10..240,240G,350G,ARIAL |
1 | ||
| 57654C - MEMBER, REAR FLOOR CROSS, NO.3 | ||||
| 57654-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| Common parts | ||||
| 90467-06082 | ||||
| 91553-L1025 | ||||
| 91631-B0614 | ||||

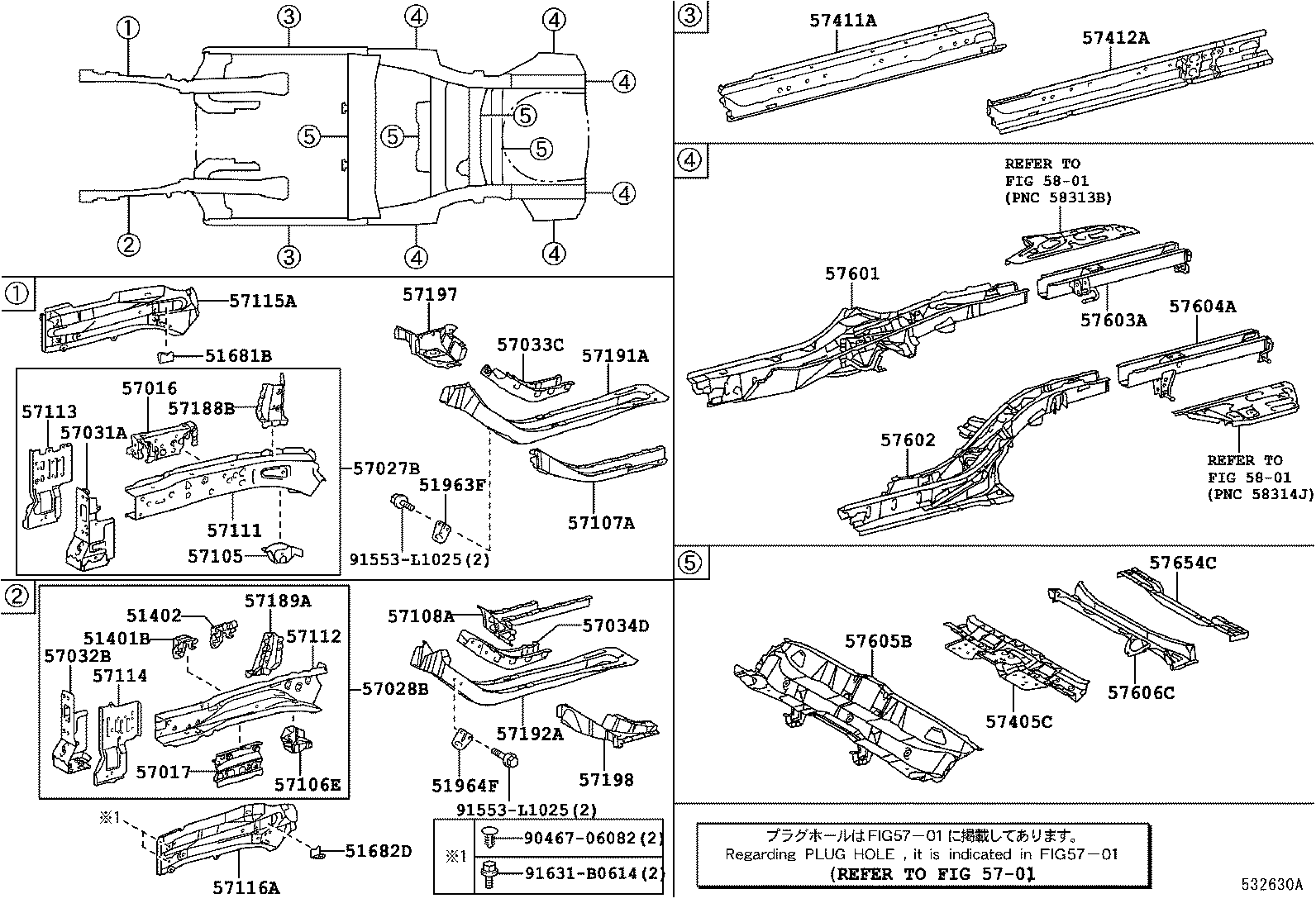

| Linked diagrams | ||||
| 5701 | ||||
| 5801 | ||||
