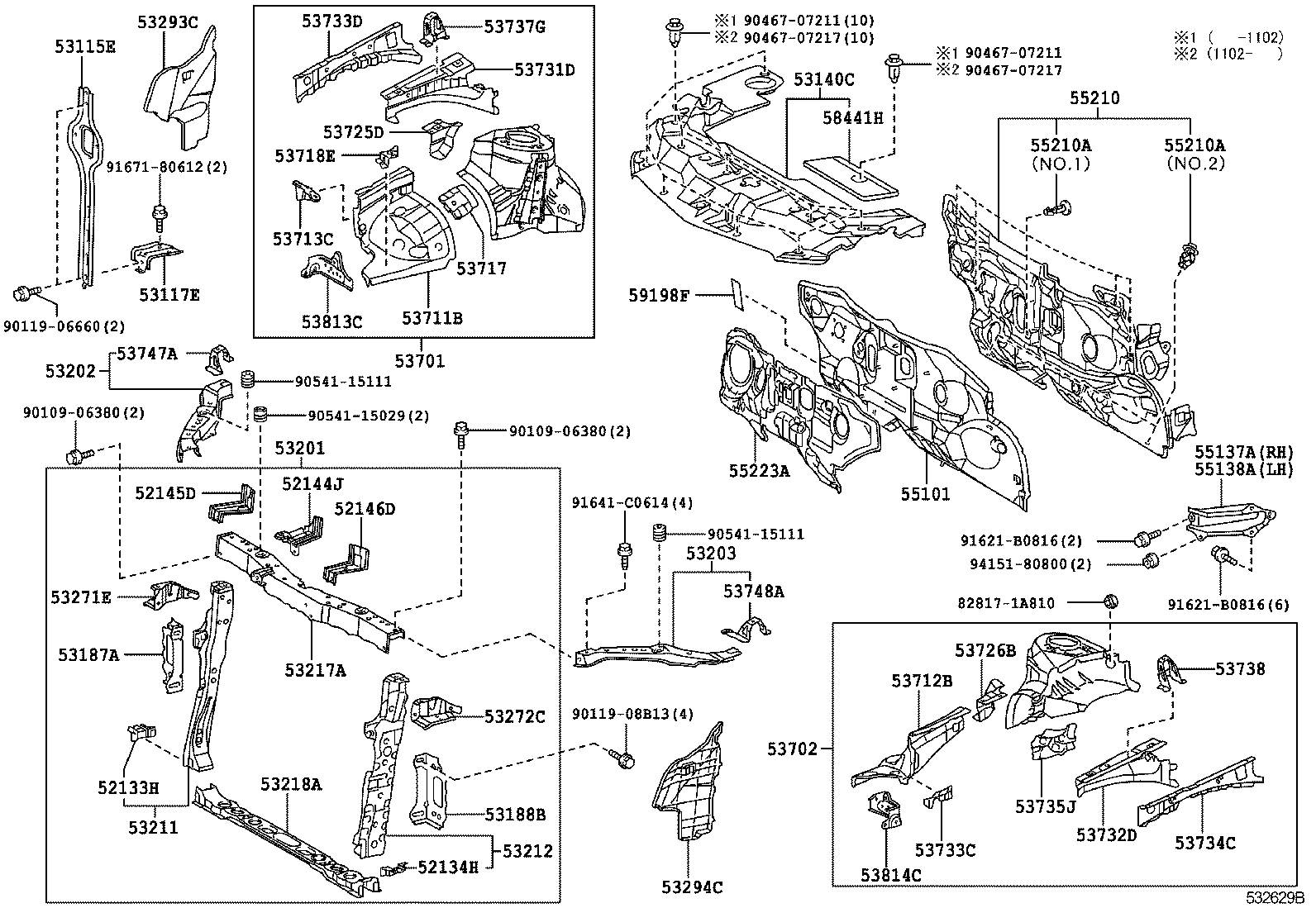

ANA10-AWXNK (2007)
Toyota Mark X Zio
(0709- )240,240F,240G,350G
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52133H - BRACKET, FRONT BUMPER, RH | ||||
| 52133-12150 |
ANA1#,GGA10..CBU |
1 | ||
| 52133-12150 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 52134H - BRACKET, FRONT BUMPER, LH | ||||
| 52134-12090 |
ANA1#,GGA10..CBU |
1 | ||
| 52134-12090 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 52144J - STAY, FRONT BUMPER, CENTER | ||||
| 52085-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 52145D - BRACKET, FRONT BUMPER SIDE MOUNTING, RH | ||||
| 52145-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 52146D - BRACKET, FRONT BUMPER SIDE MOUNTING, LH | ||||
| 52146-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 53115E - BRACKET, RADIATOR GRILLE | ||||
| 53115-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 53117E - BRACKET, RADIATOR GRILLE, LOWER | ||||
| 53117-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 53140C - COVER ASSY, RADIATOR | ||||
| 53140-72010 |
ANA1#,GGA10..240,240G,350G |
1 | ||
| 53187A - STAY, RADIATOR SUPPORT, RH | ||||
| 53187-12030 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 53188B - STAY, RADIATOR SUPPORT, LH | ||||
| 53188-12030 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 53201 - SUPPORT SUB-ASSY, RADIATOR | ||||
| 53201-72901 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 53211 - SUPPORT, RADIATOR, RH | ||||
| 53209-12140 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 53209-12140 |
ANA1#,GGA10..CBU |
1 | ||
| 53212 - SUPPORT, RADIATOR, LH | ||||
| 53204-12060 |
ANA1#,GGA10..CBU |
1 | ||
| 53204-12060 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 53217A - BRACE, HOOD LOCK SUPPORT | ||||
| 53208-12560 |
ANA1#,GGA10 |
1 | ||
| 53208-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 53208-12560 |
ANA1#,GGA10..CBU |
1 | ||
| 53218A - SUPPORT, RADIATOR, LOWER | ||||
| 53218-12901 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 53271E - BRACKET, HEADLAMP MOUNTING, RH | ||||
| 53271-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 53272C - BRACKET, HEADLAMP MOUNTING, LH | ||||
| 53272-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 53293C - DEFLECTOR, RADIATOR SIDE, RH | ||||
| 53293-72010 |
ANA1#,GGA10..240,240G,350G |
1 | ||
| 53294C - DEFLECTOR, RADIATOR SIDE, LH | ||||
| 53294-72010 |
ANA1#,GGA10..240,240G,350G |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 53711B - APRON, FRONT FENDER, FRONT RH | ||||
| 53711-12270 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 53712B - APRON, FRONT FENDER, FRONT LH | ||||
| 53712-12220 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 53713C - EXTENSION, FRONT FENDER APRON, FRONT RH | ||||
| 53713-12160 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 53717 - PLATE, FENDER APRON, RH | ||||
| 53717-12070 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 53718E - STAY, FRONT FENDER APRON, FRONT | ||||
| 53718-12060 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 53725D - REINFORCEMENT, FRONT SPRING SUPPORT, NO.2 RH | ||||
| 53725-12040 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 53726B - REINFORCEMENT, FRONT SPRING SUPPORT, NO.2 LH | ||||
| 53726-12040 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH | ||||
| 53731-12170 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH | ||||
| 53732-12150 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 53733C - PATCH, FRONT FENDER APRON | ||||
| 53736-12070 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 53733D - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH | ||||
| 53733-12070 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 53734C - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH | ||||
| 53734-12070 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 53735J - PATCH, FRONT FENDER APRON, NO.5 | ||||
| 53735-12070 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 53737G - PLATE, FRONT APRON TO COWL SIDE MEMBER, RH | ||||
| 53737-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 53738 - PLATE, FRONT APRON TO COWL SIDE MEMBER, LH | ||||
| 53738-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 53747A - EXTENSION, APRON FENDER SIDE, RH | ||||
| 53747-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 53748A - EXTENSION, APRON FENDER SIDE, LH | ||||
| 53748-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 53813C - EXTENSION, FRONT FENDER, RH | ||||
| 53813-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 53814C - EXTENSION, FRONT FENDER, LH | ||||
| 53814-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 55137A - BRACE, DASH TO FRAME, RH | ||||
| 55137-12030 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 55138A - BRACE, DASH TO FRAME, LH | ||||
| 55138-12010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 55210-72011 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 55210A - CLIP | ||||
| 90467-11127 |
ANA1#,GGA10..240,240G,350G,ARIAL NO.2 |
3 | ||
| 90467-11122 |
ANA1#,GGA10..240,240G,350G,ARIAL NO.1 |
5 | ||
| 55210A - CLIP | ||||
| 90467-11127 |
ANA1#,GGA10..240,240G,350G,ARIAL NO.2 |
3 | ||
| 90467-11122 |
ANA1#,GGA10..240,240G,350G,ARIAL NO.1 |
5 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-12170 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 58441H - COVER, BATTERY SERVICE HOLE | ||||
| 58441-12010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 59198F - SEAL, NOISE SHUTTER | ||||
| 59198-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| Common parts | ||||
| 82817-1A810 | ||||
| 90109-06380 | ||||
| 90119-06660 | ||||
| 90119-08B13 | ||||
| 90467-07211 | ||||
| 90467-07217 | ||||
| 90541-15029 | ||||
| 90541-15111 | ||||
| 91621-B0816 | ||||
| 91641-C0614 | ||||
| 91671-80612 | ||||
| 94151-80800 | ||||
