ANA10-AWXNK (2007)

Toyota Mark X Zio

Production Sep 2007 - Feb 2011
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0709- )

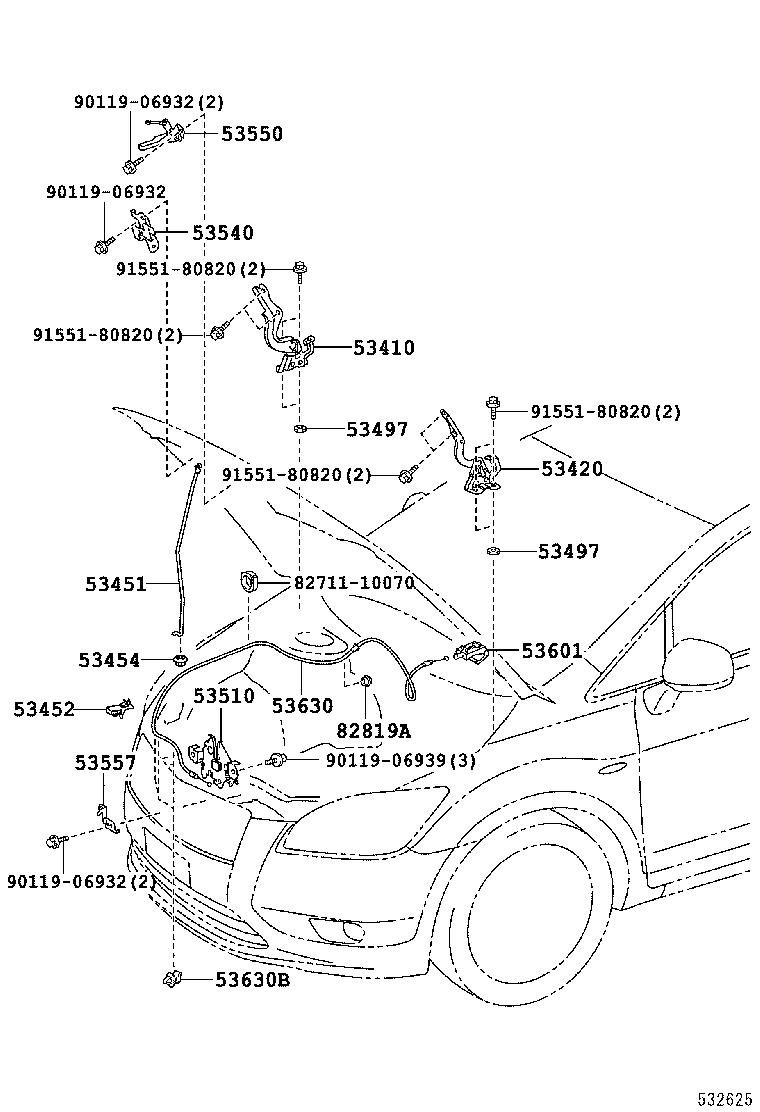

Click highlighted areas on diagram

diagram 53410 53420 53451 53452 53454 53497 53497 53510 53540 53550 53557 53601 53630 53630B 8271110070 82819A 9011906932 9011906932 9011906932 9011906939 9155180820 9155180820 9155180820 9155180820
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-72010

ANA1#,GGA10..240,240G,350G,ARIAL

 1
53420 - HINGE ASSY, HOOD, LH
53420-72010

ANA1#,GGA10..240,240G,350G,ARIAL

 1
53451 - ROD, HOOD SUPPORT
53440-72011

ANA1#,GGA10..240,240G,350G,ARIAL

 1
53440-72010

ANA1#,GGA10

 1
53452 - HOLDER, HOOD STAY
53452-72010

ANA1#,GGA10..240,240G,350G,ARIAL

 1
53454 - CLIP, HOOD SUPPORT ROD
53454-42010

ANA1#,GGA10..240,240G,350G,ARIAL

 1
53497 - PAD, HOOD HINGE, NO.1
53497-42010

ANA1#,GGA10..240,240G,350G,ARIAL

厚さ=0.5

 4
53497 - PAD, HOOD HINGE, NO.1
53497-42010

ANA1#,GGA10..240,240G,350G,ARIAL

厚さ=0.5

 4
53510 - LOCK ASSY, HOOD
53510-72010

ANA1#,GGA10..CBU

 1
53510-42090

ANA1#,GGA10..240,240G,350G,ARIAL

 1
53540 - LEVER ASSY, AUXILIARY CATCH RELEASE
53540-72010

ANA1#,GGA10..CBU

 1
53540-72011

ANA1#,GGA10..240,240G,350G,ARIAL

 1
53550 - HOOK ASSY, HOOD AUXILIARY CATCH
53550-72010

ANA1#,GGA10..240,240G,350G,ARIAL

 1
53557 - CATCH, HOOD AUXILIARY HOOK
53557-72010

ANA1#,GGA10..240,240G,350G,ARIAL

 1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-52010C0

ANA1#..240,ARIAL

BLACK,TRIM1#,2#,4#

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-72010

ANA1#,GGA10..240,240G,350G,ARIAL

 1
53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE)
90469-06005

ANA1#,GGA10..240,240G,350G,ARIAL

 3
82819A - GROMMET, WIRE
82817-1A810

ANA1#,GGA10..240,240G,350G,ARIAL

 1
Common parts
82711-10070
90119-06932
90119-06939
91551-80820
