ANA10-AWXNK (2007)

Toyota Mark X Zio

Production Sep 2007 - Feb 2011
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

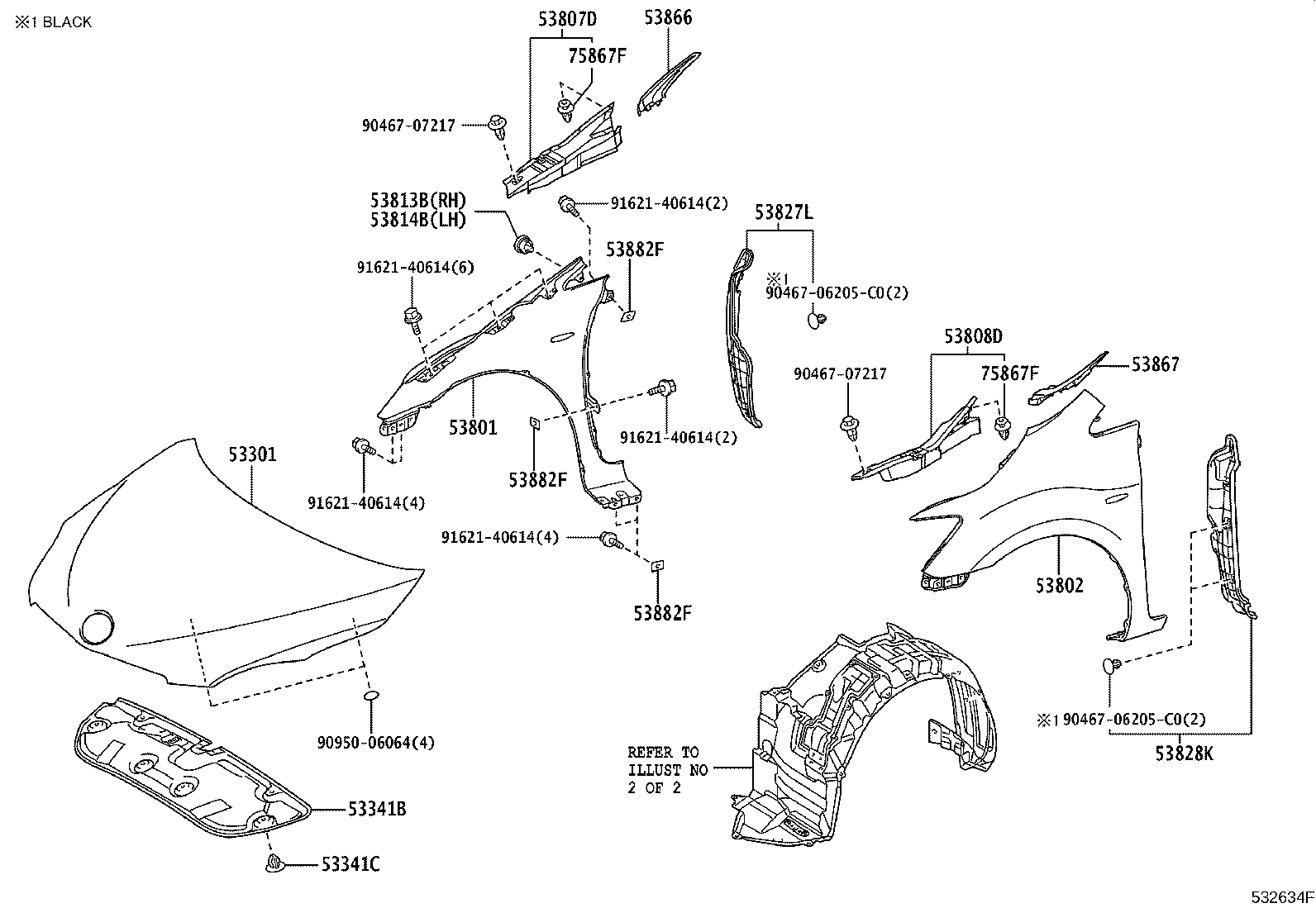

ILLUST NO. 1 OF 2(0709- )

Click highlighted areas on diagram

diagram 53301 53341B 53341C 53801 53802 53807D 53808D 53813B 53814B 53827L 53828K 53866 53867 53882F 53882F 53882F 75867F 75867F 9046706205C0 9046706205C0 9046707217 9046707217 9095006064 9162140614 9162140614 9162140614 9162140614 9162140614
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-72010

ANA1#,GGA10..240,240G,350G

 1
53341B - INSULATOR, HOOD
53341-72010

ANA1#,GGA10..240,240G,350G,ARIAL

 1
53341C - CLIP(FOR HOOD INSULATOR)
90467-09050

ANA1#,GGA10..240,240G,350G,ARIAL

 6
53801 - FENDER SUB-ASSY, FRONT RH
53811-72010

ANA1#,GGA10..CBU

 1
53811-72020

ANA1#,GGA10..240,240G,350G,ARIAL

 1
53802 - FENDER SUB-ASSY, FRONT LH
53812-72010

ANA1#,GGA10..CBU

 1
53812-72020

ANA1#,GGA10..240,240G,350G,ARIAL

 1
53807D - REINFORCEMENT SUB-ASSY, FRONT FENDER, TOP RH
53807-72010

ANA1#,GGA10..240,240G,350G,ARIAL

 1
53808D - REINFORCEMENT SUB-ASSY, FRONT FENDER, TOP LH
53808-72010

ANA1#,GGA10..240,240G,350G,ARIAL

 1
53813B - EXTENSION, FRONT FENDER, RH
53813-52020

ANA1#,GGA10..CBU

 1
53814B - EXTENSION, FRONT FENDER, LH
53813-52020

ANA1#,GGA10..CBU

 1
53827L - PROTECTOR, FRONT FENDER SIDE PANEL, RH
53827-72010

ANA1#,GGA10..240,240G,350G,ARIAL

 1
53828K - PROTECTOR, FRONT FENDER SIDE PANEL, LH
53828-72010

ANA1#,GGA10..240,240G,350G,ARIAL

 1
53866 - SEAL, FRONT FENDER TO COWL SIDE, RH
53866-72010

ANA1#,GGA10..CBU

 1
53866-72011

ANA1#,GGA10..240,240G,350G,ARIAL

 1
53867 - SEAL, FRONT FENDER TO COWL SIDE, LH
53867-72011

ANA1#,GGA10..240,240G,350G,ARIAL

 1
53867-72010

ANA1#,GGA10..CBU

 1
53882F - SEAL, FRONT FENDER
53882-16030

ANA1#,GGA10..240,240G,350G,ARIAL

 8
53882F - SEAL, FRONT FENDER
53882-16030

ANA1#,GGA10..240,240G,350G,ARIAL

 8
53882F - SEAL, FRONT FENDER
53882-16030

ANA1#,GGA10..240,240G,350G,ARIAL

 8
75867F - CLIP, ROCKER PANEL MOULDING
75867-33030

ANA1#,GGA10..240,240G,350G,ARIAL

 2
75867F - CLIP, ROCKER PANEL MOULDING
75867-33030

ANA1#,GGA10..240,240G,350G,ARIAL

 2
Common parts
90467-06205C0
90467-07217
90950-06064
91621-40614

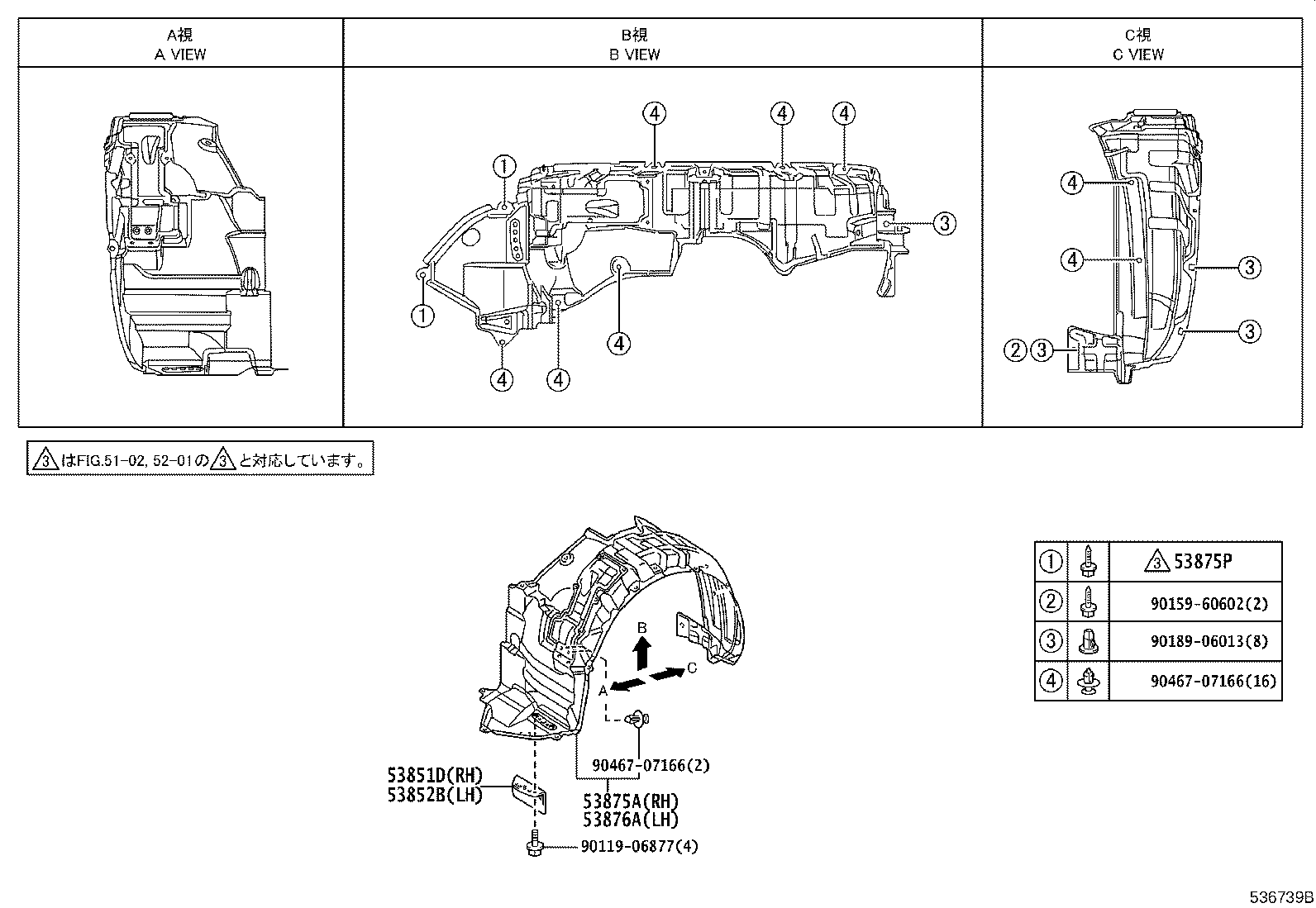

ILLUST NO. 2 OF 2(0709- )

Click highlighted areas on diagram

diagram 53851D 53852B 53875A 53875P 53876A 9011906877 9015960602 9018906013 9046707166 9046707166
Part # Description Qty Price
53851D - PAD, FRONT WHEEL OPENING EXTENSION, RH
53851-12080

ANA1#,GGA10..240,240G,350G,ARIAL

 1
53852B - PAD, FRONT WHEEL OPENING EXTENSION, LH
53852-12070

ANA1#,GGA10..240,240G,350G,ARIAL

 1
53875A - LINER, FRONT FENDER, RH
53805-72011

ANA1#,GGA10..240,240G,350G,ARIAL

 1
53805-72010

ANA1#,GGA10..CBU

 1
53875P - SCREW, NO.1
90159-60498

ANA1#,GGA10..CBU

 4
53876A - LINER, FRONT FENDER, LH
53806-72011

ANA1#,GGA10..240,240G,350G,ARIAL

 1
53806-72010

ANA1#,GGA10..CBU

 1
Common parts
90119-06877
90159-60602
90189-06013
90467-07166
