ANA10-AWXNK (2007)
Toyota Mark X Zio
Production
Sep 2007
-
Feb 2011
Engine
2AZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0709-1102)240,240G,350G ; (0709- )240F

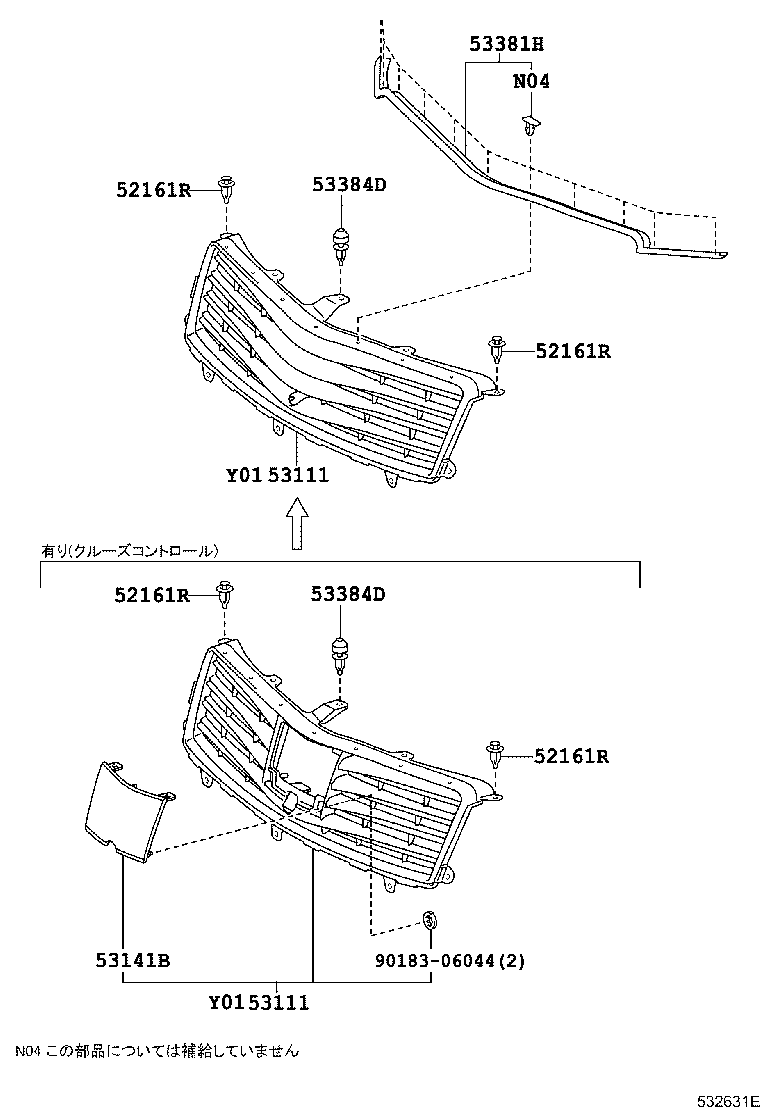

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52161R - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ANA1#,GGA10..240,240G,350G |
2 | ||
| 52161R - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ANA1#,GGA10..240,240G,350G |
2 | ||
| 52161R - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ANA1#,GGA10..240,240G,350G |
2 | ||
| 52161R - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ANA1#,GGA10..240,240G,350G |
2 | ||
| 53111 - GRILLE, RADIATOR | ||||
| 53111-72020 |
ANA1#..CBU ﾒｯｷ,ｵｰﾃﾞｨｵ−HDD AVN 6ｽﾋﾟｰｶ |
1 | ||
| 53111-72010 |
ANA1#..(240,240F,240G)..CBU ﾒｯｷ |
1 | ||
| 53111-72020 |
ANA1#..(240,240F,240G)..CBU ﾒｯｷ,ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*WVFM) |
1 | ||
| 53111 - GRILLE, RADIATOR | ||||
| 53111-72020 |
ANA1#..CBU ﾒｯｷ,ｵｰﾃﾞｨｵ−HDD AVN 6ｽﾋﾟｰｶ |
1 | ||
| 53111-72010 |
ANA1#..(240,240F,240G)..CBU ﾒｯｷ |
1 | ||
| 53111-72020 |
ANA1#..(240,240F,240G)..CBU ﾒｯｷ,ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*WVFM) |
1 | ||
| 53381H - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-72010 |
ANA1#,GGA10..240,240G,350G |
1 | ||
| 53384D - CUSHION, HOOD, CENTER | ||||
| 53384-68010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 53384D - CUSHION, HOOD, CENTER | ||||
| 53384-68010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| Common parts | ||||
| 90183-06044 | ||||
