ANA10-AWXNK (2007)
Toyota Mark X Zio

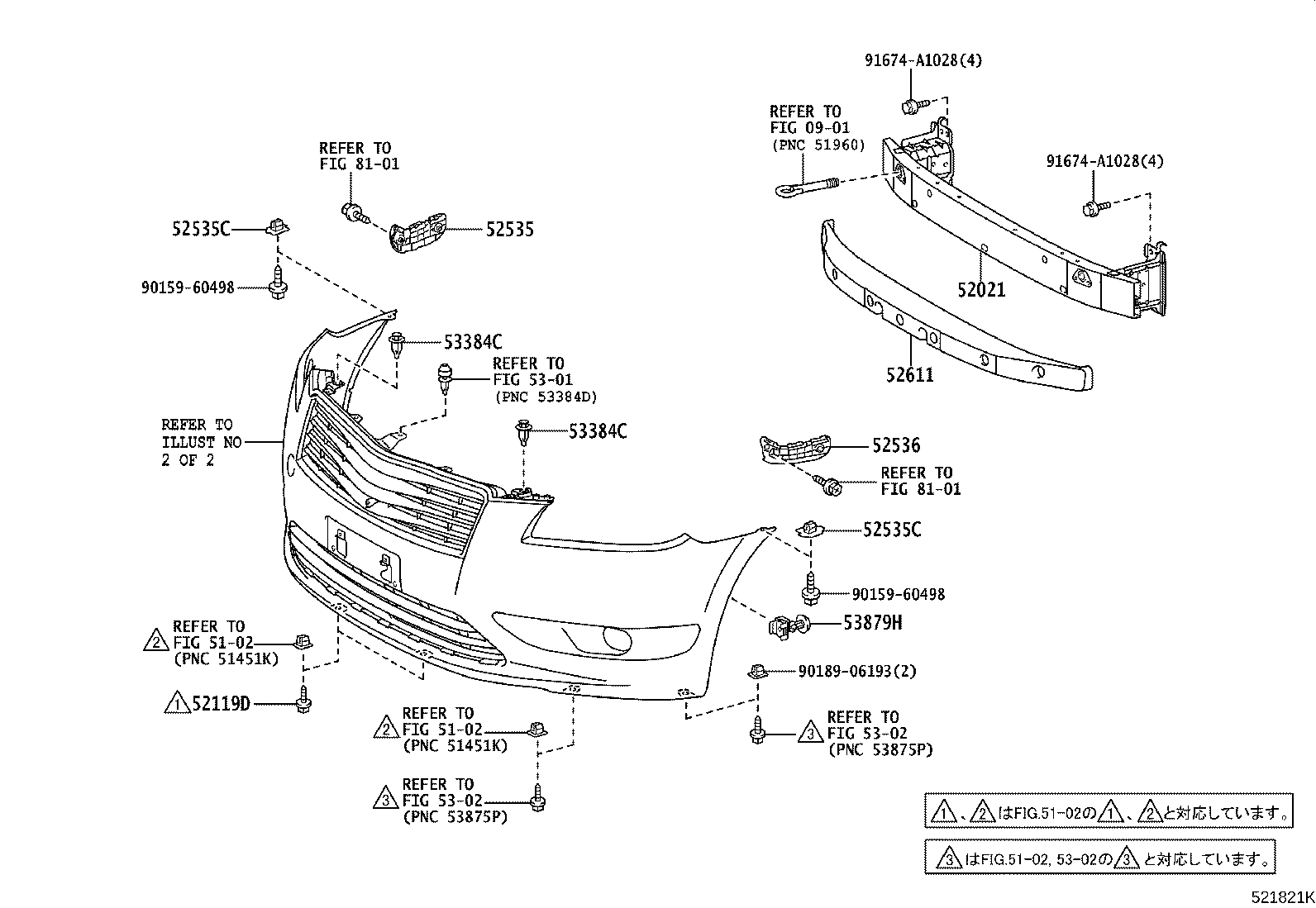

ILLUST NO. 1 OF 2(0709-1102)240,240G,350G ; (0709- )240F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 52119D - SCREW, NO.1 | ||||
| 90159-60498 |
ANA1#,GGA10..CBU |
2 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 52535C - RETAINER, FRONT BUMPER SIDE | ||||
| 52535-50060 |
ANA1#,GGA10..240,240G,350G,ARIAL |
2 | ||
| 52535C - RETAINER, FRONT BUMPER SIDE | ||||
| 52535-50060 |
ANA1#,GGA10..240,240G,350G,ARIAL |
2 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 52611-72011 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 53384C - CUSHION, HOOD, CENTER | ||||
| 53384-68010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
2 | ||
| 53384C - CUSHION, HOOD, CENTER | ||||
| 53384-68010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
2 | ||
| 53879H - RETAINER, FRONT FENDER LINER | ||||
| 53879-28010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
2 | ||
| Common parts | ||||
| 90159-60498 | ||||
| 90189-06193 | ||||
| 91674-A1028 | ||||
| Linked diagrams | ||||
| 0901 | ||||
| 5102 | ||||
| 5301 | ||||
| 5302 | ||||
| 8101 | ||||

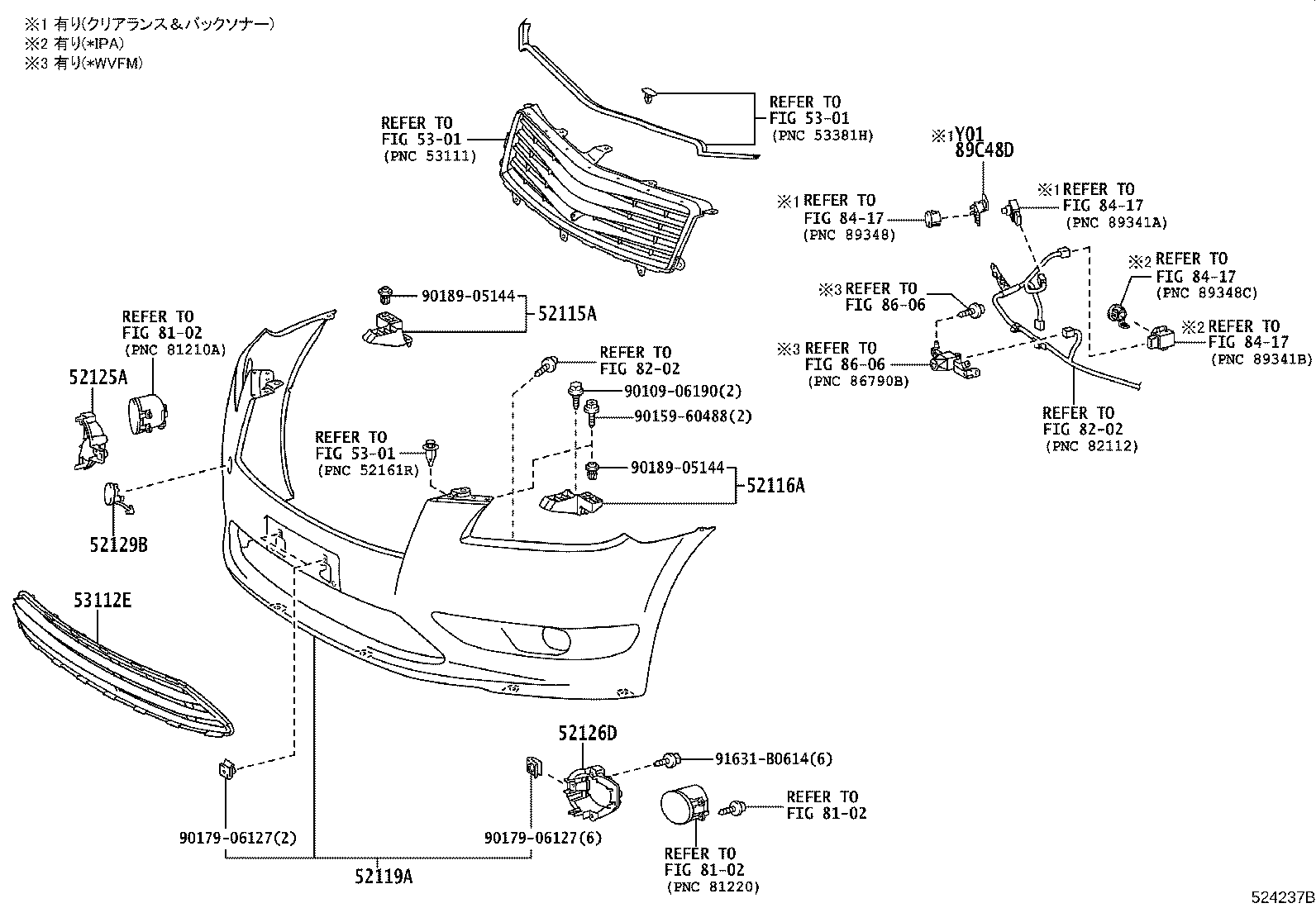

ILLUST NO. 2 OF 2(0709-1102)240,240G,350G ; (0709- )240F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-72011 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU |
1 | ||
| 52115-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-72011 |
ANA1#,GGA10..240,240G,350G |
1 | ||
| 52116-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-72010B0 |
ANA1#,GGA10..CBU DK.GRAY M.M.,1E9 |
1 | ||
| 52119-72010J0 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU DK.BLUE MC.,8S6 |
1 | ||
| 52119-72010C0 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU BLACK MC.,209 |
1 | ||
| 52119-72010A0 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU WHITE PEARL CS.,070 |
1 | ||
| 52119-72010D0 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU BLACKISH RED MC.,3R0 |
1 | ||
| 52119-72010H0 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU FROSTY GREEN MC.,781 |
1 | ||
| 52119-72010B1 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU SILVER ME.,1G7 |
1 | ||
| 52119-72010D1 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU RED M.M.,3R3 |
1 | ||
| 52119-72010J1 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU LT.BLUE M.M.,8S7 |
1 | ||
| 52125A - BRACKET, FOG LAMP MOUNTING, RH | ||||
| 52125-72010 |
ANA1#,GGA10..240,240G,350G |
1 | ||
| 52126D - BRACKET, FOG LAMP MOUNTING, LH | ||||
| 52126-72010 |
ANA1#,GGA10..240,240G,350G |
1 | ||
| 52129B - COVER, FRONT BUMPER, LOWER | ||||
| 52129-72010B0 |
ANA1#,GGA10..CBU DK.GRAY M.M.,1E9 |
1 | ||
| 52129-72010J1 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU LT.BLUE M.M.,8S7 |
1 | ||
| 52129-72010A0 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU WHITE PEARL CS.,070 |
1 | ||
| 52129-72010H0 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU FROSTY GREEN MC.,781 |
1 | ||
| 52129-72010D0 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU BLACKISH RED MC.,3R0 |
1 | ||
| 52129-72010C0 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU BLACK MC.,209 |
1 | ||
| 52129-72010B1 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU SILVER ME.,1G7 |
1 | ||
| 52129-72010D1 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU RED M.M.,3R3 |
1 | ||
| 52129-72010J0 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU DK.BLUE MC.,8S6 |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-72010 |
ANA1#,GGA10..240,240G,350G 塗装不要 |
1 | ||
| Common parts | ||||
| 90109-06190 | ||||
| 90159-60488 | ||||
| 90179-06127 | ||||
| 90189-05144 | ||||
| 91631-B0614 | ||||
| Linked diagrams | ||||
| 5301 | ||||
| 8102 | ||||
| 8202 | ||||
| 8417 | ||||
| 8606 | ||||
