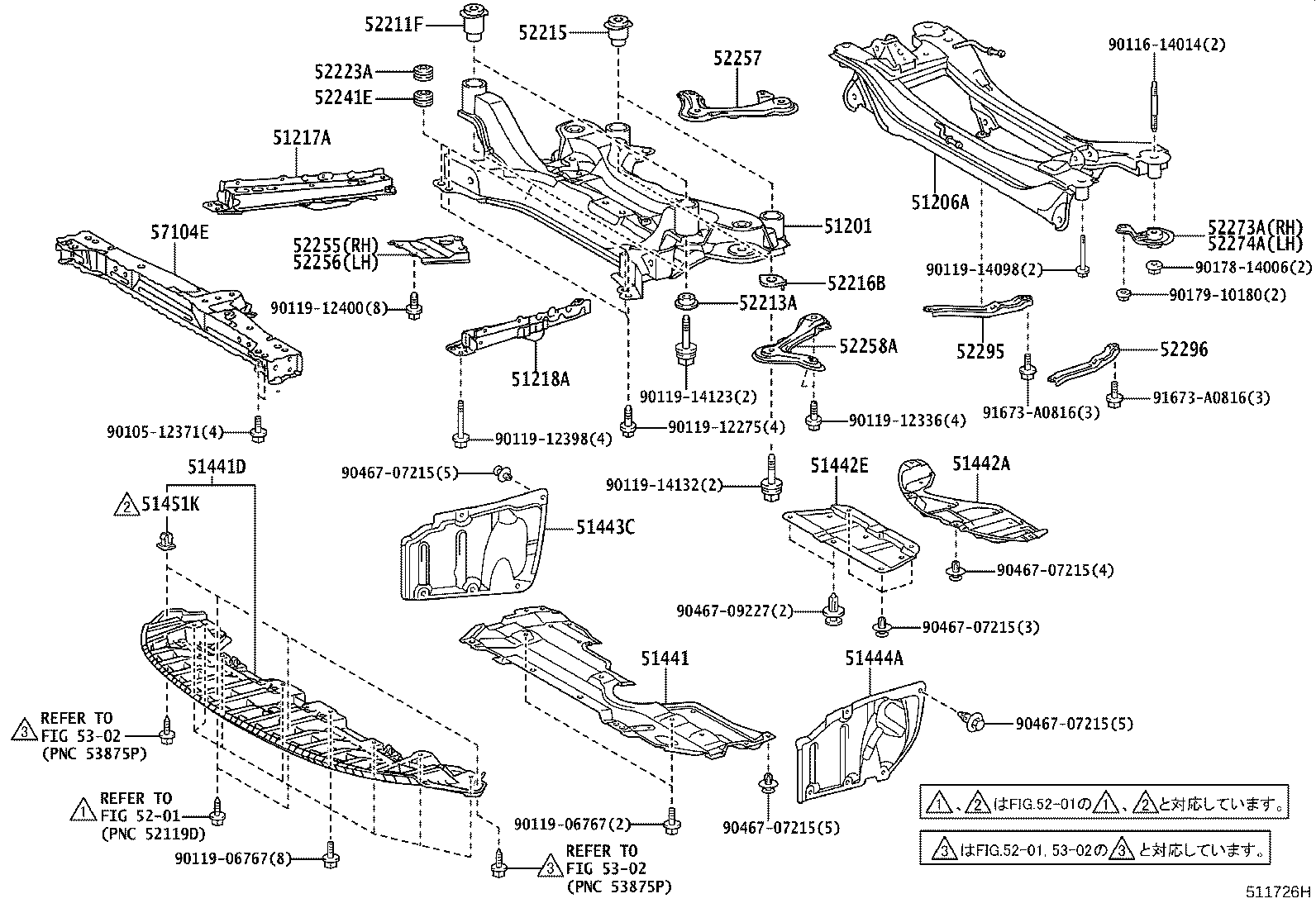

Toyota Mark x zio ANA10 SUSPENSION CROSSMEMBER & UNDER COVER

Part #	Description	Period	Qty
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-72011	ANA1#,GGA10..240,240G,350G,ARIAL	12/2009 - 02/2011	1
51201-72010	ANA1#,GGA10	09/2007 - 11/2009	1
51206A - MEMBER SUB-ASSY, REAR SUSPENSION
51206-12110	ANA10,GGA10	09/2007 - 01/2009	1
51206-12111	ANA10,GGA10	02/2009 - 08/2010	1
51206-12160	ANA10,GGA10	08/2010 - 02/2011	1
51217A - REINFORCEMENT, FRONT SUSPENSION MEMBER, RH
51107-28020	ANA10,GGA10..CBU	09/2007 - 02/2011	1
51218A - REINFORCEMENT, FRONT SUSPENSION MEMBER, LH
51108-28040	ANA10,GGA10..240,240G,350G,ARIAL	09/2007 - 02/2011	1
51441 - COVER, ENGINE UNDER, NO.1
51441-12270	ANA1#,GGA10..240,240G,350G,ARIAL	09/2007 - 02/2011	1
51441D - COVER, ENGINE UNDER
51451-72010	ANA1#,GGA10..240,240G,350G,ARIAL	09/2007 - 02/2011	1
51442A - COVER, ENGINE UNDER, FRONT NO.3
51442-12210	ANA1#,GGA10..240,240G,350G,ARIAL	09/2007 - 02/2011	1
51442E - COVER, ENGINE UNDER, NO.2
51442-12270	ANA1#,GGA10..240,240G,350G,ARIAL	09/2007 - 02/2011	1
51443C - COVER, ENGINE UNDER, REAR RH
51443-12080	ANA1#,GGA10..240,240G,350G,ARIAL	09/2007 - 02/2011	1
51444A - COVER, ENGINE UNDER, REAR LH
51444-12050	ANA1#,GGA10..240,240G,350G,ARIAL	09/2007 - 02/2011	1
51451K - GROMMET, SCREW, NO.1
90189-06193	ANA1#,GGA10..CBU	09/2007 - 02/2011	4
52211F - CUSHION, BODY MOUNTING, FRONT UPPER
52211-28040	ANA10,GGA10..240,240G,350G,ARIAL	09/2007 - 02/2011	2
52213A - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT
52213-28040	ANA1#,GGA10..240,240G,350G,ARIAL	09/2007 - 02/2011	2
52215 - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR
52215-28030	ANA10,GGA10..240,240G,350G,ARIAL	09/2007 - 02/2011	2
52216B - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR
52216-28030	ANA1#,GGA10..240,240G,350G,ARIAL	09/2007 - 02/2011	2
52223A - SPACER, CAB REAR MOUNTING, LOWER
52223-28010	ANA1#,GGA10..240,240G,350G,ARIAL	09/2007 - 02/2011	4
52241E - CUSHION, CAB REAR MOUNTING
52241-28010	ANA1#,GGA10..240,240G,350G,ARIAL	09/2007 - 02/2011	4
52255 - BRACE, FRONT SUSPENSION MEMBER, FRONT RH
52255-12010	ANA1#,GGA10..240,240G,350G,ARIAL	09/2007 - 02/2011	1
52256 - BRACE, FRONT SUSPENSION MEMBER, FRONT LH
52256-12010	ANA1#,GGA10..240,240G,350G,ARIAL	09/2007 - 02/2011	1
52257 - BRACE, FRONT SUSPENSION MEMBER, REAR RH
52257-72011	ANA10,GGA10..240,240G,350G,ARIAL	09/2007 - 02/2011	1
52258A - BRACE, FRONT SUSPENSION MEMBER, REAR LH
52258-72011	ANA10,GGA10..240,240G,350G,ARIAL	09/2007 - 02/2011	1
52273A - STOPPER, REAR SUSPENSION MEMBER, LOWER RH
52203-12010	ANA10,GGA10..240,240G,350G,ARIAL	09/2007 - 02/2011	1
52274A - STOPPER, REAR SUSPENSION MEMBER, LOWER LH
52203-12010	ANA10,GGA10..240,240G,350G,ARIAL	09/2007 - 02/2011	1
52295 - BRACE, REAR SUSPENSION MEMBER, RH
52295-12051	ANA10,GGA10..240,240G,350G,ARIAL	06/2009 - 02/2011	1
52295-12050	ANA10,GGA10	09/2007 - 05/2009	1
52296 - BRACE, REAR SUSPENSION MEMBER, LH
52295-12050	ANA10,GGA10	09/2007 - 05/2009	1
52295-12051	ANA10,GGA10..240,240G,350G,ARIAL	06/2009 - 02/2011	1
57104E - MEMBER SUB-ASSY, FRONT CROSS
57104-12270	ANA1#,GGA10..240,240G,350G,ARIAL	09/2007 - 02/2011	1
Common parts
90105-12371
90116-14014
90119-06767
90119-12275
90119-12336
90119-12398
90119-12400
90119-14098
90119-14123
90119-14132
90178-14006
90179-10180
90467-07215
90467-09227
91673-A0816
Linked diagrams
5201
5302

ANA10-AWXNK (2007)

(0709- )ANA10,GGA10
