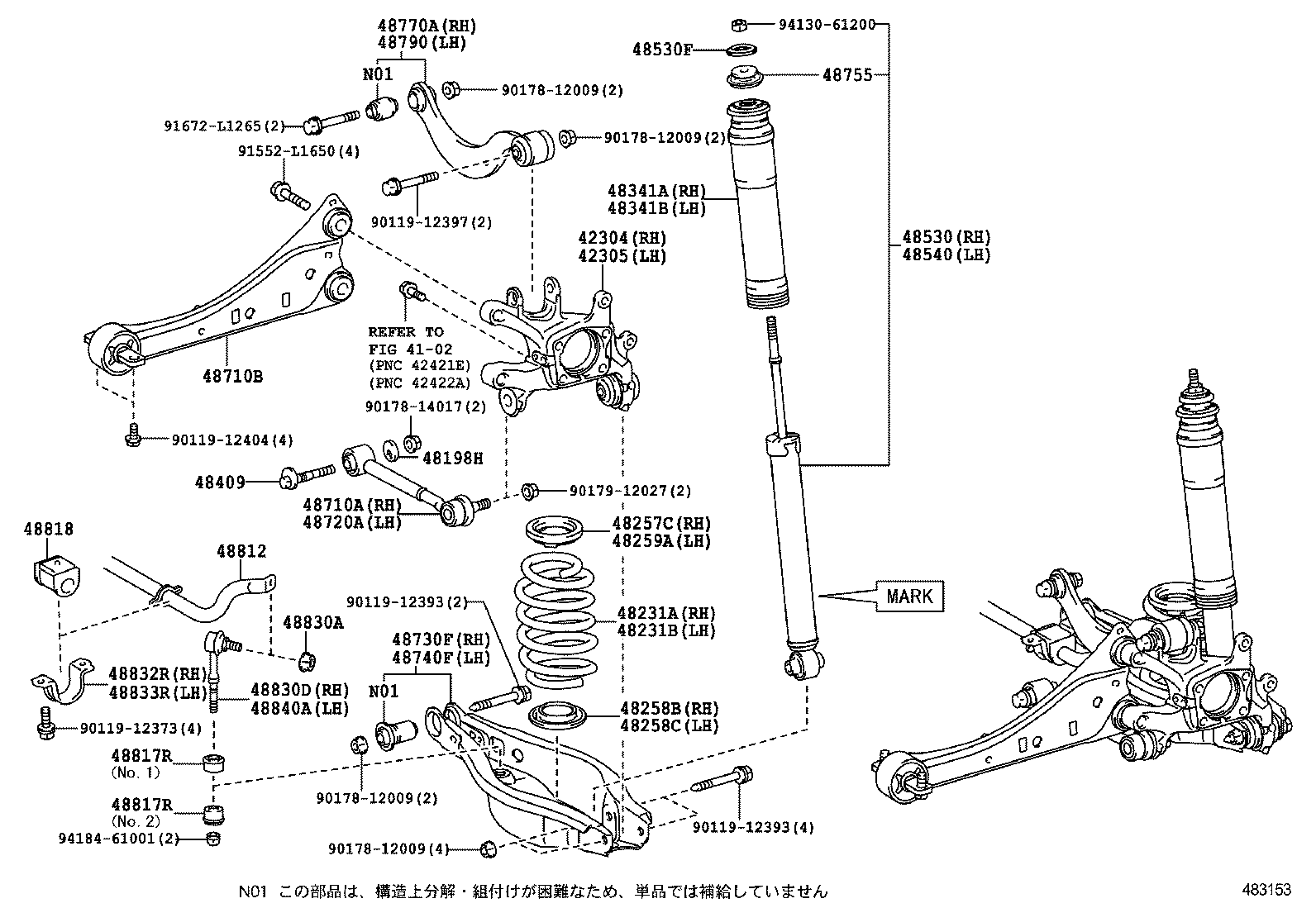

ANA10-AWXNK (2007)
Toyota Mark X Zio
(0709-1008)ANA10,GGA10
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42304 - CARRIER SUB-ASSY, REAR AXLE, RH | ||||
| 42304-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 42305 - CARRIER SUB-ASSY, REAR AXLE, LH | ||||
| 42305-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-72010 |
ANA10,GGA10..240,240G,350G,ARIAL |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-72010 |
ANA10,GGA10..240,240G,350G,ARIAL |
1 | ||
| 48257C - INSULATOR, REAR COIL SPRING, UPPER RH | ||||
| 48257-42030 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 48257-52010 |
ANA1#,GGA10..CBU |
1 | ||
| 48258B - INSULATOR, REAR COIL SPRING, LOWER RH | ||||
| 48258-42020 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 48258C - INSULATOR, REAR COIL SPRING, LOWER LH | ||||
| 48258-42020 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 48259A - INSULATOR, REAR COIL SPRING, UPPER LH | ||||
| 48257-42030 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 48257-52010 |
ANA1#,GGA10..CBU |
1 | ||
| 48341A - BUMPER, REAR SPRING, NO.1 RH | ||||
| 48341-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 48341B - BUMPER, REAR SPRING, NO.1 LH | ||||
| 48341-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-79015 |
ANA10..240 ﾏｰｸ 48530−72010 |
1 | ||
| 48530F - RETAINER, SHOCK ABSORBER CUSHION(FOR REAR) | ||||
| 90948-02159 |
ANA1#,GGA10..240,240G,350G,ARIAL |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48530-79015 |
ANA10..240 ﾏｰｸ 48530−72010 |
1 | ||
| 48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH | ||||
| 48710-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 48710-12270 |
ANA1#,GGA10 |
1 | ||
| 48710B - ARM ASSY, TRAILING, REAR | ||||
| 48780-12140 |
ANA1#,GGA10..240,240G,350G,ARIAL 左側 |
1 | ||
| 48760-12010 |
ANA1#,GGA10..240,240G,350G,ARIAL 右側 |
1 | ||
| 48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH | ||||
| 48710-12270 |
ANA1#,GGA10 |
1 | ||
| 48710-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 48730F - ARM ASSY, REAR SUSPENSION, NO.2 RH | ||||
| 48730-12240 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 48740F - ARM ASSY, REAR SUSPENSION, NO.2 LH | ||||
| 48730-12240 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 48755 - SUPPORT, REAR SUSPENSION | ||||
| 48755-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
2 | ||
| 48770A - ARM ASSY, UPPER CONTROL, REAR RH | ||||
| 48770-12010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 48790 - ARM ASSY, UPPER CONTROL, REAR LH | ||||
| 48770-12010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 48812 - BAR, STABILIZER, REAR | ||||
| 48812-72010 |
ANA10,GGA10..240,240G,350G,ARIAL |
1 | ||
| 48817R - CUSHION, STABILIZER(FOR REAR) | ||||
| 48817-12020 |
ANA1#,GGA10..240,240G,350G,ARIAL NO.1 |
2 | ||
| 48817-12030 |
ANA1#,GGA10..240,240G,350G,ARIAL NO.2 |
2 | ||
| 48817R - CUSHION, STABILIZER(FOR REAR) | ||||
| 48817-12020 |
ANA1#,GGA10..240,240G,350G,ARIAL NO.1 |
2 | ||
| 48817-12030 |
ANA1#,GGA10..240,240G,350G,ARIAL NO.2 |
2 | ||
| 48818 - BUSH, STABILIZER, REAR | ||||
| 48818-72010 |
ANA10,GGA10..240,240G,350G,ARIAL |
2 | ||
| 48830A - NUT(FOR REAR STABILIZER LINK) | ||||
| 94151-21241 |
ANA1#,GGA10..240,240G,350G,ARIAL |
2 | ||
| 48830D - LINK ASSY, REAR STABILIZER, RH | ||||
| 48830-12070 |
ANA10,GGA10..240,240G,350G,ARIAL |
1 | ||
| 48832R - BRACKET, REAR STABILIZER BAR, NO.1 RH | ||||
| 48832-12050 |
ANA10,GGA10..240,240G,350G,ARIAL |
1 | ||
| 48833R - BRACKET, REAR STABILIZER BAR, NO.1 LH | ||||
| 48832-12050 |
ANA10,GGA10..240,240G,350G,ARIAL |
1 | ||
| 48840A - LINK ASSY, REAR STABILIZER, LH | ||||
| 48830-12070 |
ANA10,GGA10..240,240G,350G,ARIAL |
1 | ||
| Common parts | ||||
| 90119-12373 | ||||
| 90119-12393 | ||||
| 90119-12397 | ||||
| 90119-12404 | ||||
| 90178-12009 | ||||
| 90179-12027 | ||||
| 91552-L1650 | ||||
| 91672-L1265 | ||||
| 94130-61200 | ||||
| 94184-61001 | ||||
| Linked diagrams | ||||
| 4102 | ||||
(1008- )ANA10,GGA10
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42304 - CARRIER SUB-ASSY, REAR AXLE, RH | ||||
| 42304-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 42305 - CARRIER SUB-ASSY, REAR AXLE, LH | ||||
| 42305-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 48198H - CAM, CAMBER ADJUST, NO.2 | ||||
| 48198-42010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
2 | ||
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-72010 |
ANA10,GGA10..240,240G,350G,ARIAL |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-72010 |
ANA10,GGA10..240,240G,350G,ARIAL |
1 | ||
| 48257C - INSULATOR, REAR COIL SPRING, UPPER RH | ||||
| 48257-42030 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 48257-52010 |
ANA1#,GGA10..CBU |
1 | ||
| 48258B - INSULATOR, REAR COIL SPRING, LOWER RH | ||||
| 48258-42020 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 48258C - INSULATOR, REAR COIL SPRING, LOWER LH | ||||
| 48258-42020 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 48259A - INSULATOR, REAR COIL SPRING, UPPER LH | ||||
| 48257-42030 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 48257-52010 |
ANA1#,GGA10..CBU |
1 | ||
| 48341A - BUMPER, REAR SPRING, NO.1 RH | ||||
| 48341-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 48341B - BUMPER, REAR SPRING, NO.1 LH | ||||
| 48341-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 48409 - CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST | ||||
| 48409-42030 |
ANA1#,GGA10..240,240G,350G,ARIAL |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-79015 |
ANA10..240 ﾏｰｸ 48530−72010 |
1 | ||
| 48530F - RETAINER, SHOCK ABSORBER CUSHION(FOR REAR) | ||||
| 90948-02159 |
ANA1#,GGA10..240,240G,350G,ARIAL |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48530-79015 |
ANA10..240 ﾏｰｸ 48530−72010 |
1 | ||
| 48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH | ||||
| 48710-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 48710-12270 |
ANA1#,GGA10 |
1 | ||
| 48710B - ARM ASSY, TRAILING, REAR | ||||
| 48780-12140 |
ANA1#,GGA10..240,240G,350G,ARIAL 左側 |
1 | ||
| 48760-12010 |
ANA1#,GGA10..240,240G,350G,ARIAL 右側 |
1 | ||
| 48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH | ||||
| 48710-12270 |
ANA1#,GGA10 |
1 | ||
| 48710-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 48730F - ARM ASSY, REAR SUSPENSION, NO.2 RH | ||||
| 48730-12240 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 48740F - ARM ASSY, REAR SUSPENSION, NO.2 LH | ||||
| 48730-12240 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 48755 - SUPPORT, REAR SUSPENSION | ||||
| 48755-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
2 | ||
| 48770A - ARM ASSY, UPPER CONTROL, REAR RH | ||||
| 48770-12010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 48790 - ARM ASSY, UPPER CONTROL, REAR LH | ||||
| 48770-12010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 48812 - BAR, STABILIZER, REAR | ||||
| 48812-72010 |
ANA10,GGA10..240,240G,350G,ARIAL |
1 | ||
| 48817R - CUSHION, STABILIZER(FOR REAR) | ||||
| 48817-12020 |
ANA1#,GGA10..240,240G,350G,ARIAL NO.1 |
2 | ||
| 48817-12030 |
ANA1#,GGA10..240,240G,350G,ARIAL NO.2 |
2 | ||
| 48817R - CUSHION, STABILIZER(FOR REAR) | ||||
| 48817-12020 |
ANA1#,GGA10..240,240G,350G,ARIAL NO.1 |
2 | ||
| 48817-12030 |
ANA1#,GGA10..240,240G,350G,ARIAL NO.2 |
2 | ||
| 48818 - BUSH, STABILIZER, REAR | ||||
| 48818-72010 |
ANA10,GGA10..240,240G,350G,ARIAL |
2 | ||
| 48830A - NUT(FOR REAR STABILIZER LINK) | ||||
| 94151-21241 |
ANA1#,GGA10..240,240G,350G,ARIAL |
2 | ||
| 48830D - LINK ASSY, REAR STABILIZER, RH | ||||
| 48830-12070 |
ANA10,GGA10..240,240G,350G,ARIAL |
1 | ||
| 48832R - BRACKET, REAR STABILIZER BAR, NO.1 RH | ||||
| 48832-12050 |
ANA10,GGA10..240,240G,350G,ARIAL |
1 | ||
| 48833R - BRACKET, REAR STABILIZER BAR, NO.1 LH | ||||
| 48832-12050 |
ANA10,GGA10..240,240G,350G,ARIAL |
1 | ||
| 48840A - LINK ASSY, REAR STABILIZER, LH | ||||
| 48830-12070 |
ANA10,GGA10..240,240G,350G,ARIAL |
1 | ||
| Common parts | ||||
| 90119-12373 | ||||
| 90119-12393 | ||||
| 90119-12397 | ||||
| 90119-12404 | ||||
| 90178-12009 | ||||
| 90178-14017 | ||||
| 90179-12027 | ||||
| 91552-L1650 | ||||
| 91672-L1265 | ||||
| 94130-61200 | ||||
| 94184-61001 | ||||
| Linked diagrams | ||||
| 4102 | ||||
