ANA10-AWXNK (2007)

Toyota Mark X Zio

Production Sep 2007 - Feb 2011
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0709- )

Click highlighted areas on diagram

diagram 44510 4452112050 4452112050 44546A 44546A 44590 9011906844 9011906844 9017908200
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-72010

ANA10,GGA10

 1
44050-72011

ANA10,GGA10..240,240G,350G,ARIAL

 1
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110

ANA1#,GGA10..240,240G,350G,ARIAL

 4
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110

ANA1#,GGA10..240,240G,350G,ARIAL

 4
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-12090

ANA1#,GGA10..240,240G,350G,ARIAL

 1
Common parts
44521-12050
90119-06844
90179-08200

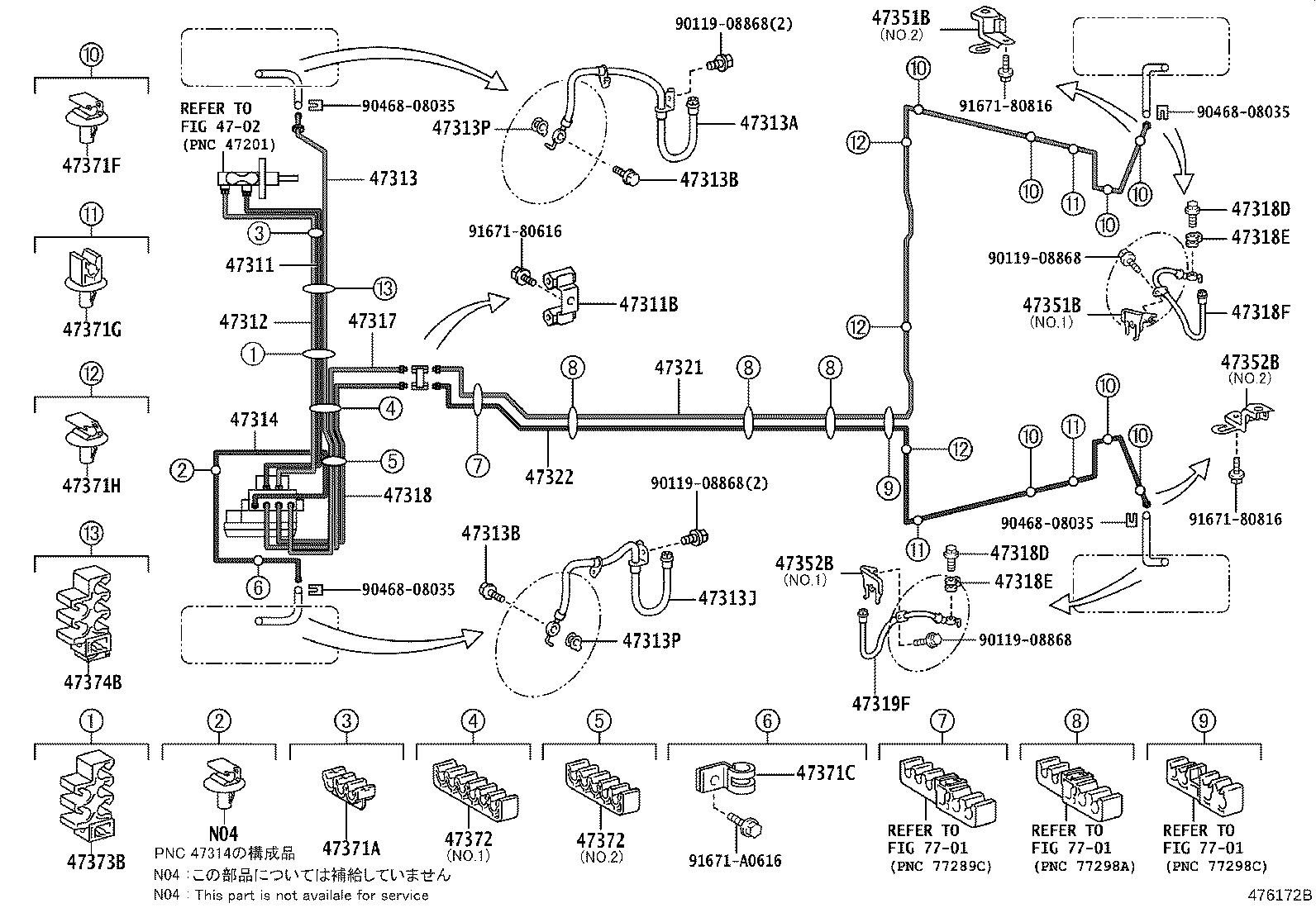

ILLUST NO. 1 OF 2(0709- )ANA10,GGA10

Click highlighted areas on diagram

diagram 4702 47311 47311B 47312 47313 47313A 47313B 47313B 47313J 47313P 47313P 47314 47317 47318 47318D 47318D 47318E 47318E 47318F 47319F 47321 47322 47351B 47351B 47352B 47352B 47371A 47371C 47371F 47371G 47371H 47372 47372 47373B 47374B 7701 7701 7701 9011908868 9011908868 9011908868 9011908868 9046808035 9046808035 9046808035 9046808035 9167180616 9167180816 9167180816 91671A0616
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-12A40

ANA1#,GGA10..240,240G,350G,ARIAL

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10260

ANA1#,GGA10..240,240G,350G,ARIAL

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-12570

ANA1#,GGA10..240,240G,350G,ARIAL

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-12740

ANA1#,GGA10..240,240G,350G,ARIAL

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02E33

ANA10,GGA10..240,240G,350G,ARIAL

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

ANA1#,GGA10..240,240G,350G,ARIAL

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

ANA1#,GGA10..240,240G,350G,ARIAL

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-02E34

ANA10,GGA10..240,240G,350G,ARIAL

 1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

ANA1#,GGA10..240,240G,350G,ARIAL

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

ANA1#,GGA10..240,240G,350G,ARIAL

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-12620

ANA1#,GGA10..240,240G,350G,ARIAL

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-12470

ANA1#,GGA10..240,240G,350G,ARIAL

 1
47317-12380

ANA1#,GGA10..CBU

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-12610

ANA1#,GGA10..240,240G,350G,ARIAL

 1
47318-12520

ANA1#,GGA10..CBU

 1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

ANA1#,GGA10..240,240G,350G,ARIAL

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

ANA1#,GGA10..240,240G,350G,ARIAL

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

ANA1#,GGA10..240,240G,350G,ARIAL

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

ANA1#,GGA10..240,240G,350G,ARIAL

 2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02F11

ANA1#,GGA10..240,240G,350G,ARIAL

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02F12

ANA1#,GGA10..240,240G,350G,ARIAL

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-72010

ANA10,GGA10..CBU

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-72010

ANA10,GGA10..CBU

 1
47351B - BRACKET, FLEXIBLE HOSE, NO.1
47351-12210

ANA1#,GGA10..240,240G,350G,ARIAL

NO.1

 1
47351-12220

ANA1#,GGA10..240,240G,350G,ARIAL

NO.2

 1
47351B - BRACKET, FLEXIBLE HOSE, NO.1
47351-12210

ANA1#,GGA10..240,240G,350G,ARIAL

NO.1

 1
47351-12220

ANA1#,GGA10..240,240G,350G,ARIAL

NO.2

 1
47352B - BRACKET, FLEXIBLE HOSE, NO.2
47352-12180

ANA1#,GGA10..240,240G,350G,ARIAL

NO.1

 1
47352-12190

ANA1#,GGA10..240,240G,350G,ARIAL

NO.2

 1
47352B - BRACKET, FLEXIBLE HOSE, NO.2
47352-12180

ANA1#,GGA10..240,240G,350G,ARIAL

NO.1

 1
47352-12190

ANA1#,GGA10..240,240G,350G,ARIAL

NO.2

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90464-00868

ANA1#,GGA10..240,240G,350G,ARIAL

 1
47371C - CLAMP, BRAKE TUBE, NO.7
90461-10781

ANA1#,GGA10..240,240G,350G,ARIAL

 1
47371F - CLAMP, BRAKE TUBE, NO.10
90949-01D17

ANA1#,GGA10..CBU

 7
47371G - CLAMP, BRAKE TUBE, NO.11
90949-01D29

ANA10,GGA10..CBU

 3
47371H - CLAMP, BRAKE TUBE, NO.12
90949-01D46

ANA1#,GGA10..CBU

 3
47372 - CLAMP, BRAKE TUBE, NO.2
90464-00900

ANA1#,GGA10..240,240G,350G,ARIAL

NO.2

 1
90464-00890

ANA1#,GGA10..240,240G,350G,ARIAL

NO.1

 1
47372 - CLAMP, BRAKE TUBE, NO.2
90464-00900

ANA1#,GGA10..240,240G,350G,ARIAL

NO.2

 1
90464-00890

ANA1#,GGA10..240,240G,350G,ARIAL

NO.1

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90949-01D45

ANA1#,GGA10..240,240G,350G,ARIAL

 1
47374B - CLAMP, BRAKE TUBE, NO.4
90949-01D68

ANA1#,GGA10..240,240G,350G,ARIAL

 1
90949-01D45

ANA1#,GGA10..CBU

 1
Common parts
90119-08868
90468-08035
91671-80616
91671-80816
91671-A0616
Linked diagrams
4702
7701
