ANA10-AWXNK (2007)

Toyota Mark X Zio

Production Sep 2007 - Feb 2011
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0709- )

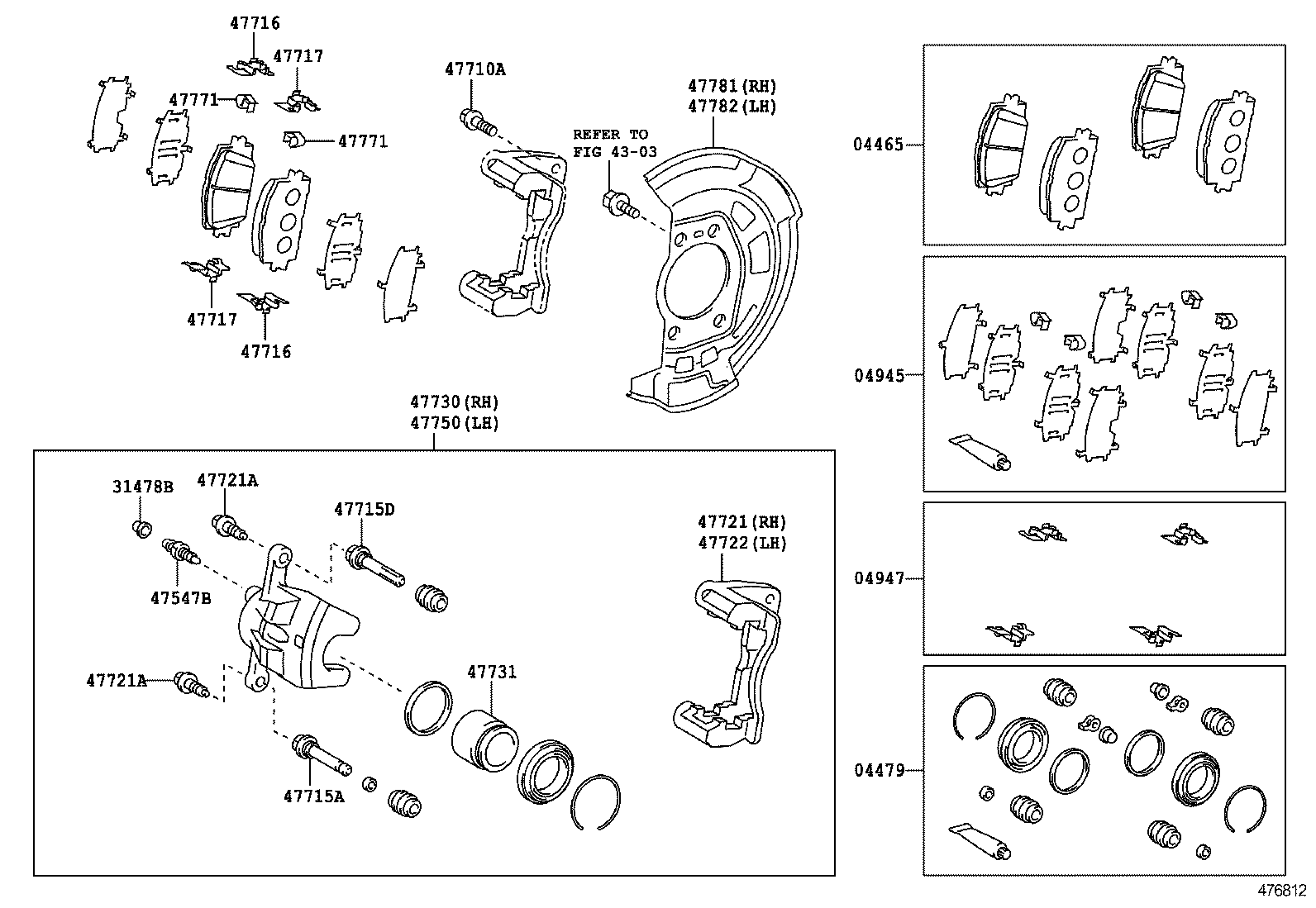

Click highlighted areas on diagram

diagram 04465 04479 04945 04947 31478B 4303 47547B 47710A 47715A 47715D 47716 47716 47717 47717 47721 47721A 47721A 47722 47730 47731 47750 47771 47771 47781 47782
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-42150

ANA1#,GGA10..CBU

ﾏｰｸ ADVICS PV565H

 1
04465-42180

ANA1#,GGA10..240,240G,350G,ARIAL

ﾏｰｸ ADVICS PV565H

 1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04478-42020

ANA1#,GGA10..240,240G,350G,ARIAL

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-42060

ANA1#,GGA10..240,240G,350G,ARIAL

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-42050

ANA1#,GGA10..240,240G,350G,ARIAL

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

ANA1#,GGA10..240,240G,350G,ARIAL

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-35020

ANA1#,GGA10..240,240G,350G,ARIAL

 2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90105-12208

ANA1#,GGA10..CBU

*12−1.25PX29.5−23

 4
47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE
47714-42080

ANA1#,GGA10..240,240G,350G,ARIAL

 2
47715D - PIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2
47715-42080

ANA1#,GGA10..240,240G,350G,ARIAL

 2
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-52191

ANA1#,GGA10..240,240G,350G,ARIAL

 4
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-52191

ANA1#,GGA10..240,240G,350G,ARIAL

 4
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47717-52191

ANA1#,GGA10..240,240G,350G,ARIAL

 4
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47717-52191

ANA1#,GGA10..240,240G,350G,ARIAL

 4
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-42090

ANA1#,GGA10..240,240G,350G,ARIAL

 1
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90105-08304

ANA1#,GGA10..240,240G,350G,ARIAL

*8−1.00PX20−9

 4
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90105-08304

ANA1#,GGA10..240,240G,350G,ARIAL

*8−1.00PX20−9

 4
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47722-42090

ANA1#,GGA10..240,240G,350G,ARIAL

 1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-42090

ANA1#,GGA10..240,240G,350G,ARIAL

 1
47731 - PISTON, FRONT DISC BRAKE
47731-42080

ANA1#,GGA10..240,240G,350G,ARIAL

 2
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-42090

ANA1#,GGA10..240,240G,350G,ARIAL

 1
47771 - PLATE, PAD WEAR INDICATOR, NO.1
47771-52191

ANA1#,GGA10..240,240G,350G,ARIAL

 4
47771 - PLATE, PAD WEAR INDICATOR, NO.1
47771-52191

ANA1#,GGA10..240,240G,350G,ARIAL

 4
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-42040

ANA1#,GGA10..CBU

 1
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-42040

ANA1#,GGA10..CBU

 1
Linked diagrams
4303
