ANA10-AWXNK (2007)

Toyota Mark X Zio

Production Sep 2007 - Feb 2011
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0709- )ANA1#

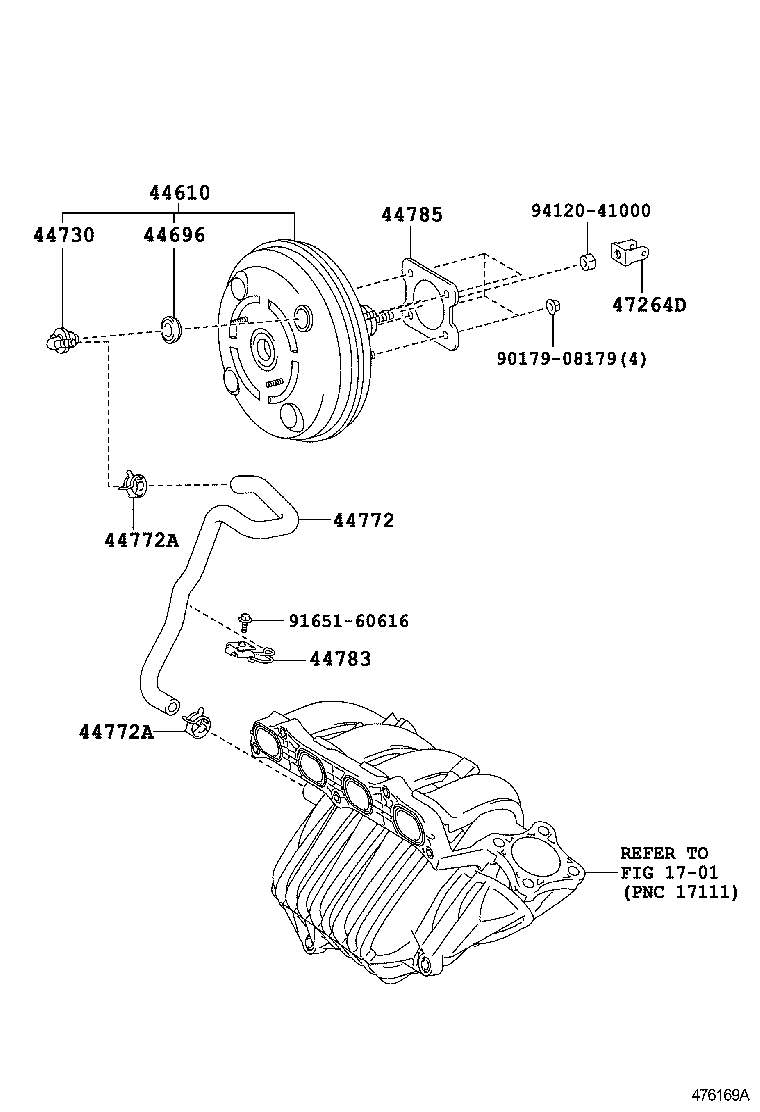

Click highlighted areas on diagram

diagram 1701 44610 44696 44730 44772 44772A 44772A 44783 44785 47264D 9017908179 9165160616 9412041000
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-72011

ANA1#,GGA10..240,240G,350G,ARIAL

 1
44610-72010

ANA1#,GGA10..CBU

 1
44696 - GROMMET, CHECK VALVE
90480-24439

ANA1#,GGA10..240,240G,350G,ARIAL

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-12070

ANA1#,GGA10..240,240G,350G,ARIAL

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-12650

ANA1#..240,240G,ARIAL

 1
44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
96133-41500

ANA1#,GGA10..240,240G,350G,ARIAL

 2
44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
96133-41500

ANA1#,GGA10..240,240G,350G,ARIAL

 2
44783 - CLAMP, VACUUM HOSE
44783-44010

ANA1#..240,240G,ARIAL

 1
44785 - GASKET, BRAKE BOOSTER
44785-12040

ANA1#,GGA10..240,240G,350G,ARIAL

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-68010

ANA1#,GGA10

 1
47264-63020

ANA1#,GGA10

 1
Common parts
90179-08179
91651-60616
94120-41000
Linked diagrams
1701
