ANA10-AWXNK (2007)

Toyota Mark X Zio

Production Sep 2007 - Feb 2011
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

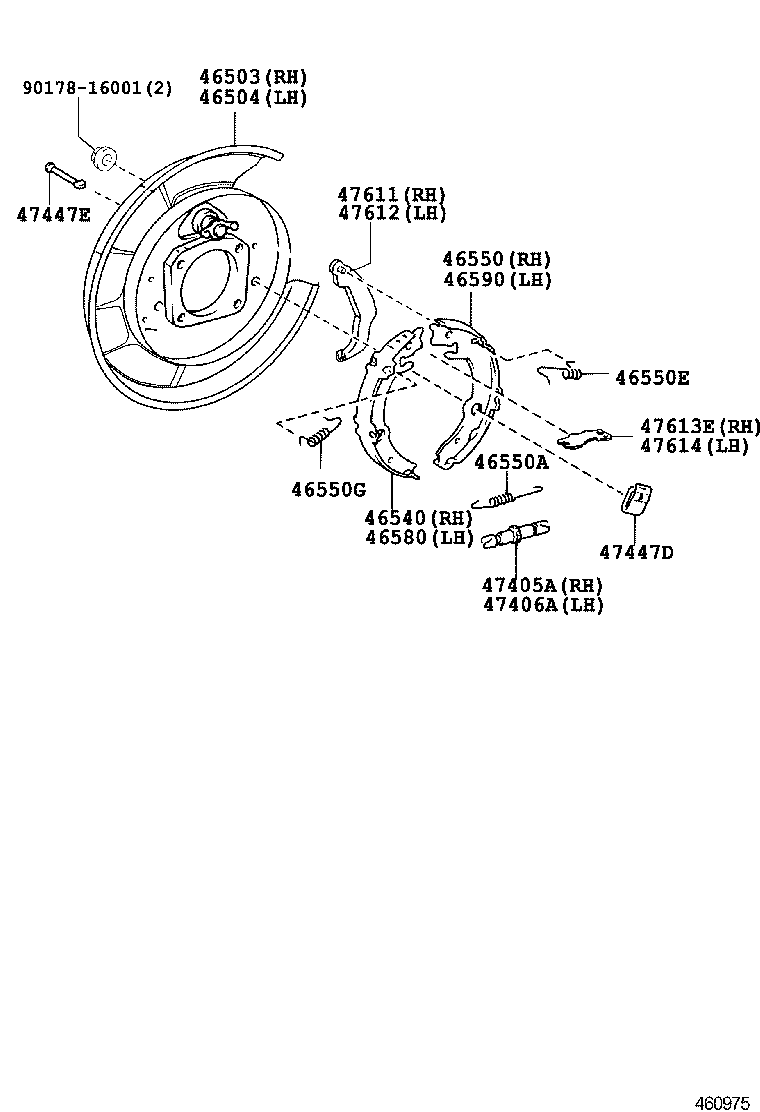

ILLUST NO. 2 OF 2(0709- )

Click highlighted areas on diagram

diagram 46503 46504 46540 46550 46550A 46550E 46550G 46580 46590 47405A 47406A 47447D 47447E 47611 47612 47613E 47614 9017816001
Part # Description Qty Price
46503 - PLATE SUB-ASSY, PARKING BRAKE, RH
46503-42040

ANA1#,GGA10..240,240G,350G,ARIAL

 1
46504 - PLATE SUB-ASSY, PARKING BRAKE, LH
46504-42040

ANA1#,GGA10..240,240G,350G,ARIAL

 1
46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1
46540-42010

ANA1#,GGA10..240,240G,350G,ARIAL

 1
46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2
46540-42010

ANA1#,GGA10..240,240G,350G,ARIAL

 1
46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN)
90905-06046

ANA1#,GGA10..240,240G,350G,ARIAL

 2
46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN)
90015-DY005

ANA1#,GGA10..240,240G,350G,ARIAL

右側

 1
90015-DY006

ANA1#,GGA10..240,240G,350G,ARIAL

左側

 1
46550G - SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN)
90905-06043

ANA1#,GGA10..240,240G,350G,ARIAL

 2
46580 - SHOE ASSY, PARKING BRAKE, LH NO.1
46540-42010

ANA1#,GGA10..240,240G,350G,ARIAL

 1
46590 - SHOE ASSY, PARKING BRAKE, LH NO.2
46540-42010

ANA1#,GGA10..240,240G,350G,ARIAL

 1
47405A - SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE)
47405-32010

ANA1#,GGA10..240,240G,350G,ARIAL

 1
47406A - SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE)
47406-32010

ANA1#,GGA10..240,240G,350G,ARIAL

 1
47447D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN)
47446-32010

ANA1#,GGA10..240,240G,350G,ARIAL

 4
47447E - PIN, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE)
47447-11010

ANA1#,GGA10..240,240G,350G,ARIAL

 4
47611 - LEVER, PARKING BRAKE SHOE, RH
46601-42040

ANA1#,GGA10..240,240G,350G,ARIAL

 1
47612 - LEVER, PARKING BRAKE SHOE, LH
46602-42040

ANA1#,GGA10..240,240G,350G,ARIAL

 1
47613E - STRUT, PARKING BRAKE SHOE, RH
46612-42040

ANA1#,GGA10..240,240G,350G,ARIAL

 1
47614 - STRUT, PARKING BRAKE SHOE, LH
46622-42040

ANA1#,GGA10..240,240G,350G,ARIAL

 1
Common parts
90178-16001

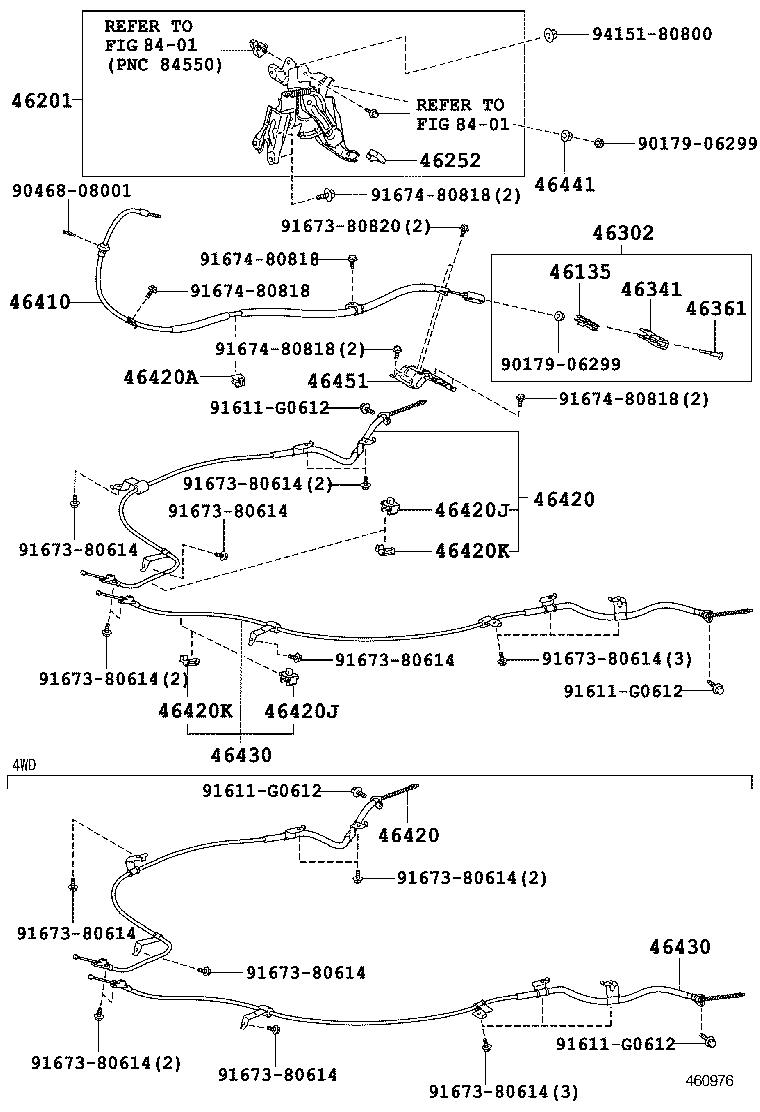

ILLUST NO. 1 OF 2(0709- )

Click highlighted areas on diagram

diagram 46135 46201 46252 46302 46341 46361 46410 46420 46420 46420A 46420J 46420J 46420K 46420K 46430 46430 46441 46451 8401 8401 9017906299 9017906299 9046808001 91611G0612 91611G0612 91611G0612 91611G0612 9167380614 9167380614 9167380614 9167380614 9167380614 9167380614 9167380614 9167380614 9167380614 9167380614 9167380614 9167380614 9167380820 9167480818 9167480818 9167480818 9167480818 9167480818 9415180800
Part # Description Qty Price
46135 - STOPPER, PARKING BRAKE CABLE END
46135-12010

ANA1#,GGA10..240,240G,350G,ARIAL

 1
46201 - PEDAL SUB-ASSY, PARKING BRAKE
46210-72010

ANA1#,GGA10..240,240G,350G,ARIAL

 1
46252 - PAD, PARKING PEDAL
46252-22010

ANA1#,GGA10..240,240G,350G,ARIAL

 1
46302 - ROD SUB-ASSY, PARKING BRAKE PULL, NO.1
46302-75010

ANA1#,GGA10..240,240G,350G,ARIAL

 1
46302-72010

ANA1#,GGA10

 1
46341 - EQUALIZER, PARKING BRAKE
46341-12040

ANA1#,GGA10..240,240G,350G,ARIAL

 1
46361 - ROD, PARKING BRAKE PULL
46326-47020

ANA1#,GGA10..240,240G,350G,ARIAL

 1
46326-72010

ANA1#,GGA10

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-72011

ANA10,GGA10..240,240G,350G,ARIAL

 1
46410-72010

ANA10,GGA10

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-72010

ANA10,GGA10..CBU

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-72010

ANA10,GGA10..CBU

 1
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
46411-72010

ANA1#,GGA10..240,240G,350G,ARIAL

 1
46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE)
46411-12030

ANA10,GGA10..240,240G,350G,ARIAL

 2
46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE)
46411-12030

ANA10,GGA10..240,240G,350G,ARIAL

 2
46420K - CLAMP, NO.4(FOR PARKING BRAKE CABLE)
46411-12040

ANA10,GGA10..240,240G,350G,ARIAL

 2
46420K - CLAMP, NO.4(FOR PARKING BRAKE CABLE)
46411-12040

ANA10,GGA10..240,240G,350G,ARIAL

 2
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-72010

ANA10,GGA10..CBU

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-72010

ANA10,GGA10..CBU

 1
46441 - NUT, WIRE ADJUSTING, NO.1
46441-12010

ANA1#,GGA10..240,240G,350G,ARIAL

 1
46451 - BRACKET, CABLE SUPPORT
46451-72010

ANA10,GGA10..240,240G,350G,ARIAL

 1
Common parts
90179-06299
90468-08001
91611-G0612
91673-80614
91673-80820
91674-80818
94151-80800
