ANA10-AWXNK (2007)

Toyota Mark X Zio

Production Sep 2007 - Feb 2011
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0709- )

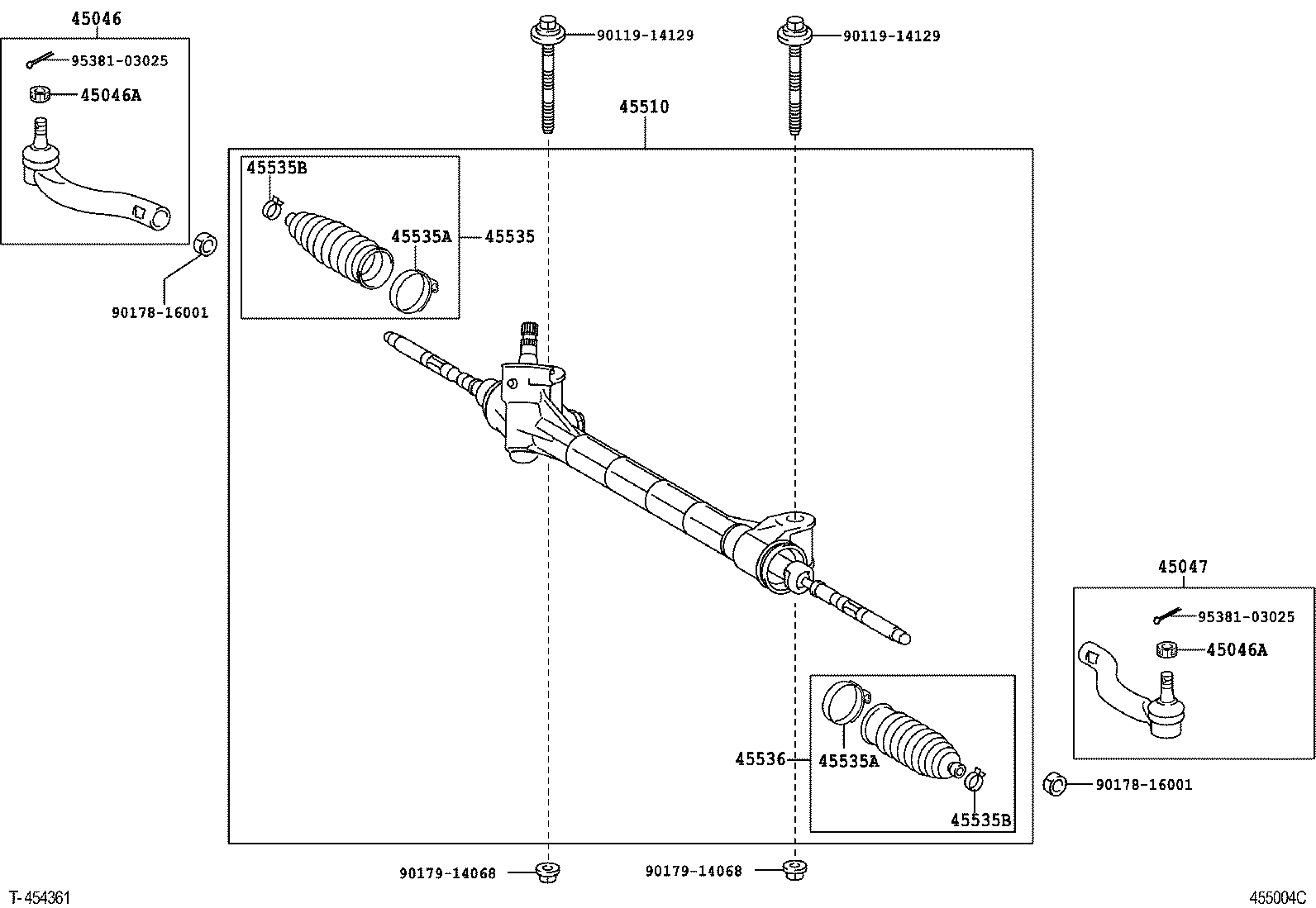

Click highlighted areas on diagram

diagram 45046 45046A 45046A 45047 45510 45535 45535A 45535A 45535B 45535B 45536 9011914129 9011914129 9017816001 9017816001 9017914068 9017914068 9538103025 9538103025
Part # Description Qty Price
45046 - END SUB-ASSY, TIE ROD, RH
45046-49195

ANA1#,GGA10..240,240G,350G,ARIAL

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

ANA1#,GGA10..240,240G,350G,ARIAL

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

ANA1#,GGA10..240,240G,350G,ARIAL

 2
45047 - END SUB-ASSY, TIE ROD, LH
45047-49135

ANA1#,GGA10..240,240G,350G,ARIAL

 1
45510 - GEAR ASSY, STEERING
45510-72010

ANA10..240;ANA15..240,240G,ARIAL

 1
45535 - BOOT, STEERING RACK, NO.1
45535-49015

ANA1#,GGA10..240,240G,350G,ARIAL

 1
45535A - CLAMP(FOR STEERING RACK BOOT)
45538-47010

ANA1#,GGA10..240,240G,350G,ARIAL

 1
45535A - CLAMP(FOR STEERING RACK BOOT)
45538-47010

ANA1#,GGA10..240,240G,350G,ARIAL

 1
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19021

ANA1#,GGA10..240,240G,350G,ARIAL

 1
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19021

ANA1#,GGA10..240,240G,350G,ARIAL

 1
45536 - BOOT, STEERING RACK, NO.2
45535-49015

ANA1#,GGA10..240,240G,350G,ARIAL

 1
Common parts
90119-14129
90178-16001
90179-14068
95381-03025
