ANA10-AWXNK (2007)

Toyota Mark X Zio

Production Sep 2007 - Feb 2011
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0709- )

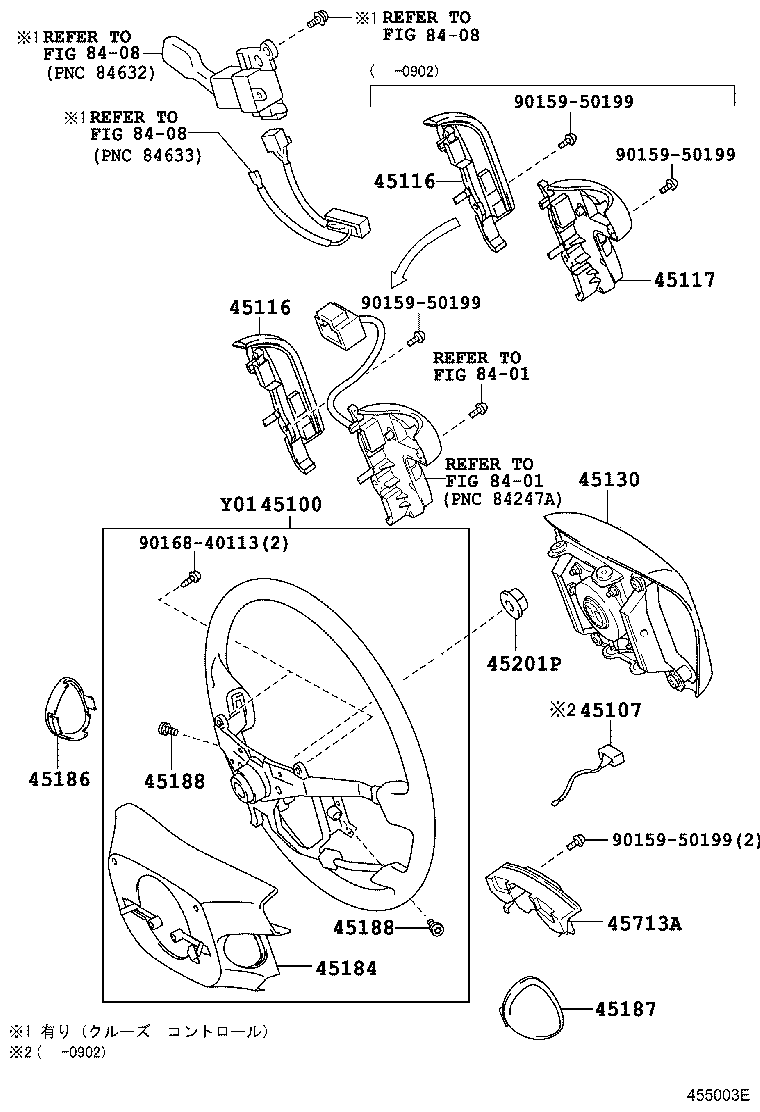

Click highlighted areas on diagram

4-SPOKE

diagram 45100 45107 45116 45116 45117 45130 45184 45186 45187 45188 45188 45201P 45713A 8401 8401 8408 8408 8408 9015950199 9015950199 9015950199 9015950199 9016840113
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-12D00C0

ANA1#..240

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,240“E−Selection” *(Z),BLACK,TRIM1#,2#

 1
45100-12D40C0

ANA1#..240

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLACK,TRIM1#,2#,4#

 1
45107 - WIRE SUB-ASSY, HORN BUTTON
45107-28030

ANA1#,GGA10..CBU

 1
45116 - ORNAMENT, STEERING WHEEL, NO.1
45116-72010

ANA1#,GGA10..240,240G,350G,ARIAL

 1
45116-72020

ANA1#..240

240“E−Selection” *(Z)

 1
45116 - ORNAMENT, STEERING WHEEL, NO.1
45116-72010

ANA1#,GGA10..240,240G,350G,ARIAL

 1
45116-72020

ANA1#..240

240“E−Selection” *(Z)

 1
45117 - ORNAMENT, STEERING WHEEL, NO.2
45117-72010

ANA1#,GGA10..CBU

 1
45130 - BUTTON ASSY, HORN
45130-72010C0

ANA1#..240,ARIAL

BLACK,TRIM1#,2#,4#

 1
45184 - COVER, STEERING WHEEL BOSS, LOWER
45184-33100C0

ANA1#..240

240“E−Selection” *(Z),BLACK,TRIM1#,2#

 1
45184-33100C0

ANA1#..240,ARIAL

BLACK,TRIM1#,2#,4#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-33080C0

ANA1#..240,ARIAL

BLACK,TRIM1#,2#,4#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-33050C0

ANA1#..240,ARIAL

BLACK,TRIM1#,2#,4#

 1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-60010

ANA1#,GGA10..240,240G,350G,ARIAL

長さ=18

 2
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-60010

ANA1#,GGA10..240,240G,350G,ARIAL

長さ=18

 2
45201P - NUT, STEERING WHEEL SET
90179-12071

ANA1#,GGA10..240,240G,350G,ARIAL

 1
45713A - DAMPER, STEERING SHAKE
45713-72010

ANA1#,GGA10..240,240G,350G,ARIAL

 1
Common parts
90159-50199
90168-40113
Linked diagrams
8401
8408
