ANA10-AWXNK (2007)
Toyota Mark X Zio
Production
Sep 2007
-
Feb 2011
Engine
2AZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0709- )

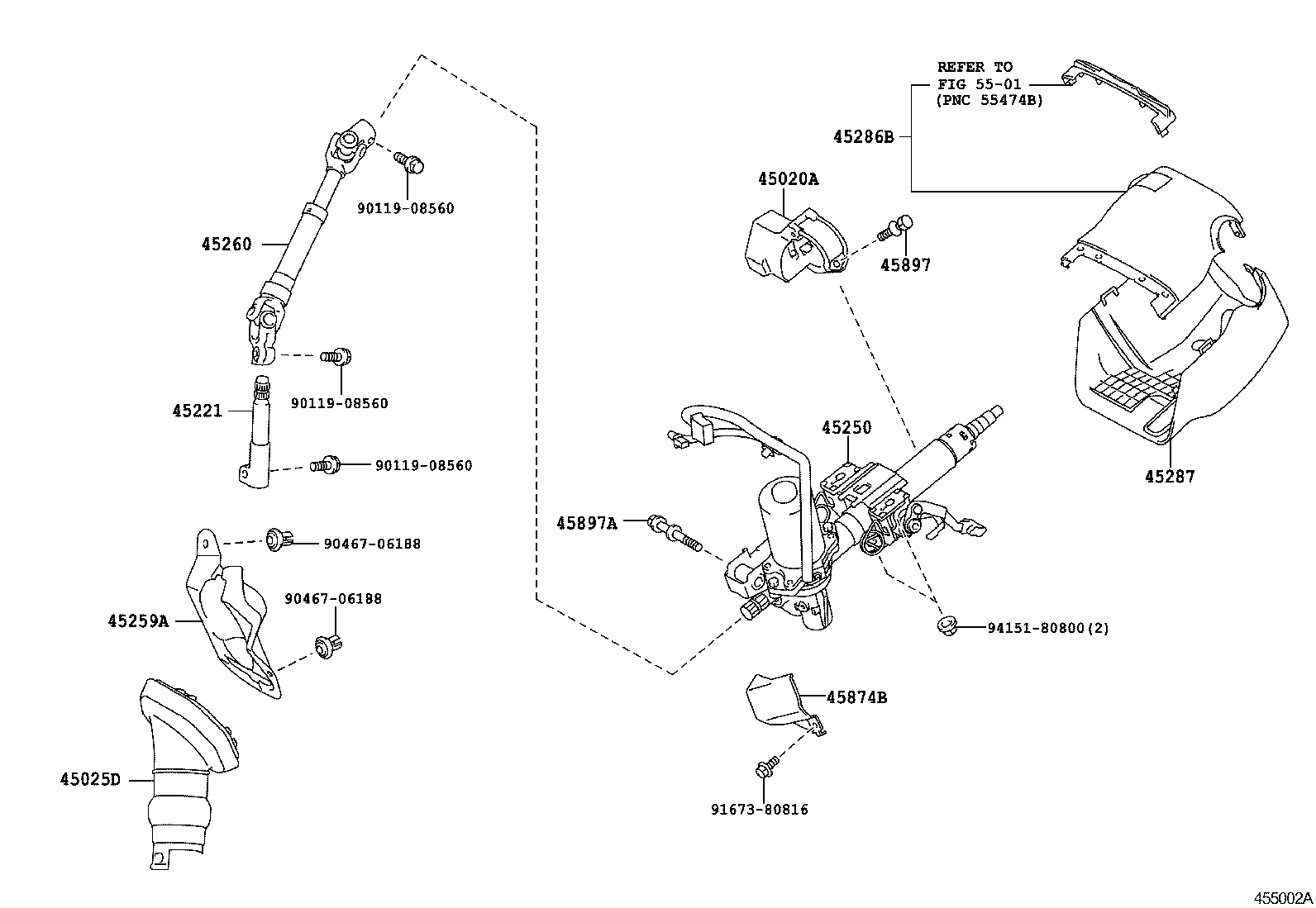

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45020A - ACTUATOR ASSY, STEERING LOCK | ||||
| 45020-42150 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-12330 |
ANA10,GGA10..240,240G,350G,ARIAL |
1 | ||
| 45221 - SHAFT, STEERING INTERMEDIATE | ||||
| 45221-12360 |
ANA10,GGA10..240,240G,350G,ARIAL |
1 | ||
| 45250 - COLUMN ASSY, STEERING | ||||
| 45250-72020 |
ANA1#,GGA10 |
1 | ||
| 45250-72021 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 45259A - SHEET, COLUMN HOLE COVER SILENCER | ||||
| 45259-12130 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 45259-12060 |
ANA1#,GGA10 |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-12610 |
ANA10,GGA10..240,240G,350G,ARIAL |
1 | ||
| 45286B - COVER, STEERING COLUMN, UPR | ||||
| 45023-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 45023-72011 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 45287 - COVER, STEERING COLUMN, LWR | ||||
| 45287-28440C0 |
ANA1#,GGA10..CBU BLACK,TRIM1#,4# |
1 | ||
| 45287-28441C0 |
ANA1#..240,ARIAL BLACK,TRIM1#,2#,4# |
1 | ||
| 45874B - PROTECTOR, STEERING COLUMN, NO.1 | ||||
| 45874-12090 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 45897A - BOLT, TILT STEERING PAWL SET | ||||
| 45897-42010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| Common parts | ||||
| 90119-08560 | ||||
| 90467-06188 | ||||
| 91673-80816 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 5501 | ||||
