ANA10-AWXNK (2007)
Toyota Mark X Zio
(0709- )ANA10,GGA10
ﾗｲﾄ

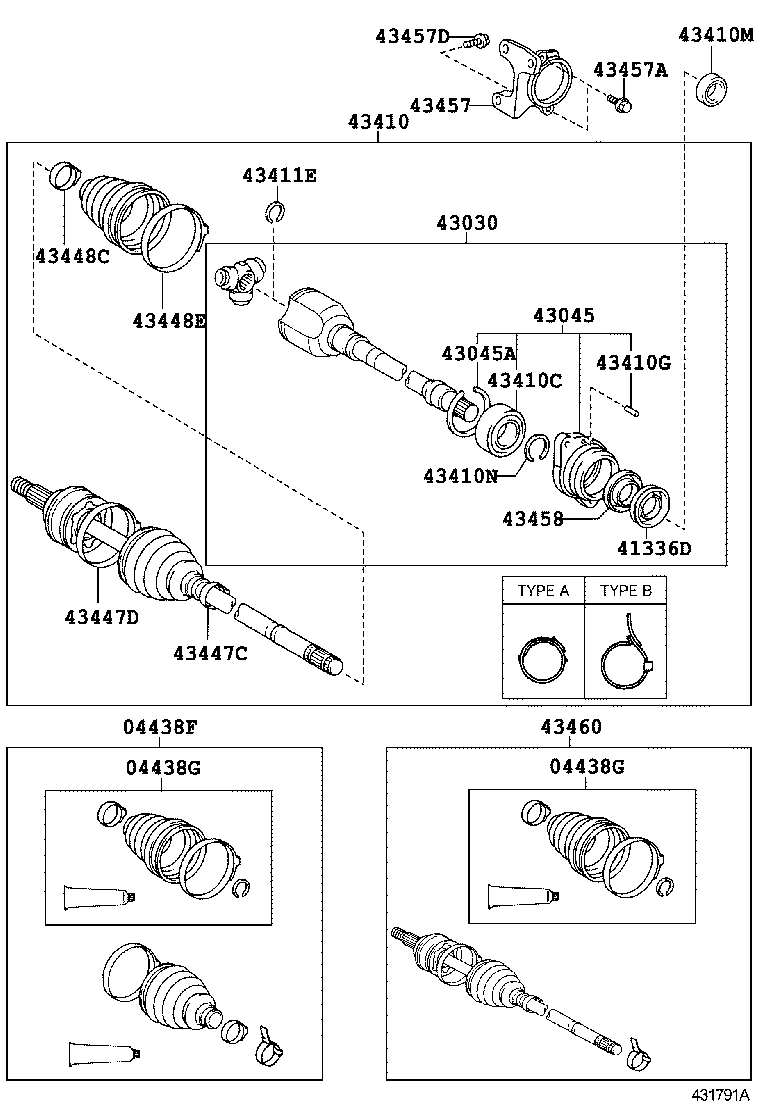

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH | ||||
| 04427-44050 |
ANA10..240,240G,ARIAL |
1 | ||
| 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04438-42180 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04438-42180 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 41336D - COVER, FRONT DRIVE SHAFT DUST, RH | ||||
| 41336-12020 |
ANA10,GGA10..240,240G,350G,ARIAL |
1 | ||
| 43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH | ||||
| 43030-44021 |
ANA10..240,240G,ARIAL |
1 | ||
| 43045 - CASE SUB ASSY, DRIVE SHAFT BEARING | ||||
| 43045-64020 |
ANA10,GGA10..240,240G,350G,ARIAL |
1 | ||
| 43045A - RING, SNAP (FOR CASE SUB ASSY, DRIVE SHAFT BEARING) | ||||
| 90520-69002 |
ANA10,GGA10..240,240G,350G,ARIAL |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-12820 |
ANA10..240,240G,ARIAL |
1 | ||
| 43410C - BEARING (FOR FRONT DRIVE SHAFT) | ||||
| 90363-41003 |
ANA10,GGA10..240,240G,350G,ARIAL |
1 | ||
| 43410G - PIN, STRAIGHT (FOR FRONT DRIVE SHAFT) | ||||
| 90250-06003 |
ANA10,GGA10..240,240G,350G,ARIAL |
1 | ||
| 43410M - OIL SEAL, FRONT DRIVE SHAFT, RH | ||||
| 90311-40026 |
ANA10..CBU |
1 | ||
| 43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) | ||||
| 90520-38015 |
ANA10,GGA10..240,240G,350G,ARIAL |
1 | ||
| 43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) | ||||
| 43425-28010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-42100 |
ANA1#..240,240G,ARIAL |
1 | ||
| 43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-42090 |
ANA1#..240,240G,ARIAL |
1 | ||
| 43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42345-42010 |
ANA1#,GGA10..240,240G,350G,ARIAL TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 90949-01559 |
ANA1#,GGA10..240,240G,350G,ARIAL TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42345-12160 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 43457 - BRACKET, DRIVE SHAFT BEARING | ||||
| 43457-42090 |
ANA10..240,240G,ARIAL |
1 | ||
| 43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) | ||||
| 90105-10361 |
ANA10,GGA10..240,240G,350G,ARIAL *10−1.25PX22−19.5 |
2 | ||
| 43457D - BOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2) | ||||
| 90105-10381 |
ANA1#,GGA10..240,240G,350G,ARIAL |
3 | ||
| 43458 - COVER, FRONT DRIVE SHAFT DUST | ||||
| 43458-12010 |
ANA10,GGA10..240,240G,350G,ARIAL |
1 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43470-49645 |
ANA1#..240,240G,ARIAL |
1 | ||
(0709- )
ﾚﾌﾄ

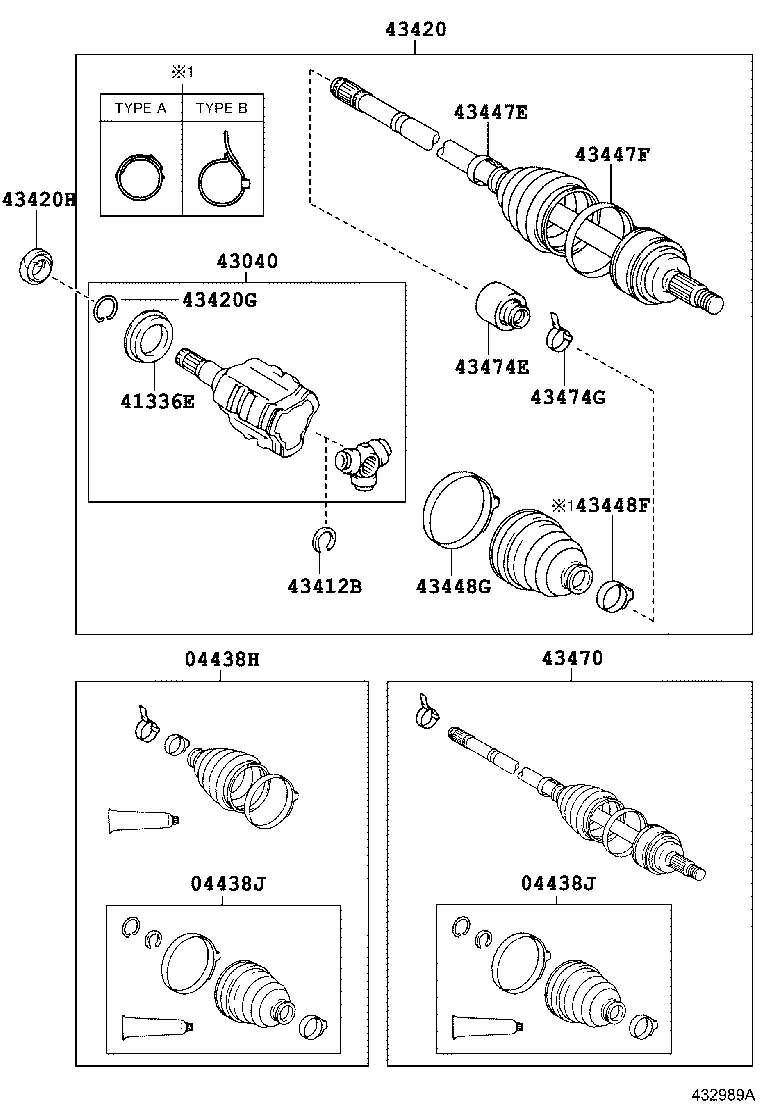

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH | ||||
| 04428-42110 |
ANA1#..240,240G,ARIAL |
1 | ||
| 04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04438-42180 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04438-42180 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 41336E - COVER, FRONT DRIVE SHAFT DUST, LH | ||||
| 41336-28020 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH | ||||
| 43040-28011 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) | ||||
| 43425-28010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-12760 |
ANA1#..240,240G,ARIAL |
1 | ||
| 43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) | ||||
| 90521-33002 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 43420H - OIL SEAL, FRONT DRIVE SHAFT, LH | ||||
| 90311-50026 |
ANA1#..CBU |
1 | ||
| 43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-42100 |
ANA1#..240,240G,ARIAL |
1 | ||
| 43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-42090 |
ANA1#..240,240G,ARIAL |
1 | ||
| 43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 42345-42010 |
ANA1#,GGA10..240,240G,350G,ARIAL TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 90949-01559 |
ANA1#,GGA10..240,240G,350G,ARIAL TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 42345-12160 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH | ||||
| 43470-80166 |
ANA1#..240,240G,ARIAL |
1 | ||
| 43474E - DAMPER, FRONT DRIVE SHAFT, LH | ||||
| 43474-42020 |
ANA1#..240,240G,ARIAL |
1 | ||
| 43474G - CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH) | ||||
| 42345-14010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
