ANA10-AWXNK (2007)
Toyota Mark X Zio
Production
Sep 2007
-
Feb 2011
Engine
2AZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0709- )ANA1#

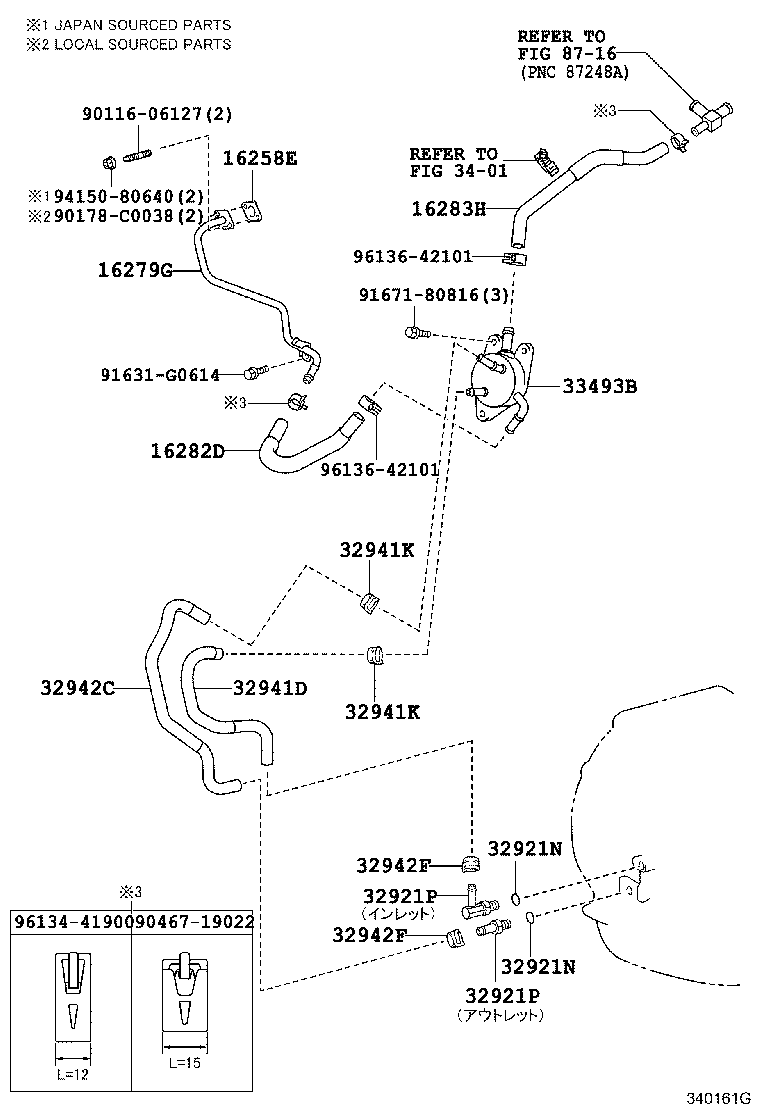

Click highlighted areas on diagram
K112,K112F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16258E - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 16258-0H050 |
2AZFE..ANA1#..CBU (L) |
1 | ||
| 16258-28040 |
2AZFE..ANA1#..CBU |
1 | ||
| 16258-0H050 |
2AZFE..ANA1#..CBU (L) |
1 | ||
| 16258-28040 |
2AZFE..ANA1#..CBU |
1 | ||
| 16258-28040 |
2AZFE..ANA1#..CBU (J) |
1 | ||
| 16279G - PIPE, WATER BY-PASS, NO.3 | ||||
| 16279-28060 |
2AZFE..ANA1# |
1 | ||
| 16279-28060 |
2AZFE..ANA1# |
1 | ||
| 16282D - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-28150 |
2AZFE..ANA1#..CBU |
1 | ||
| 16283H - HOSE, WATER BY-PASS, NO.6 | ||||
| 16283-28150 |
2AZFE..ANA1#..CBU |
1 | ||
| 32921N - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
ANA1#..240,240G,ARIAL |
2 | ||
| 32921N - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
ANA1#..240,240G,ARIAL |
2 | ||
| 32921P - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-13004 |
ANA1#..240,240G,ARIAL ｱｳﾄﾚｯﾄ |
1 | ||
| 90407-13009 |
ANA1#..240,240G,ARIAL ｲﾝﾚｯﾄ |
1 | ||
| 32921P - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-13004 |
ANA1#..240,240G,ARIAL ｱｳﾄﾚｯﾄ |
1 | ||
| 90407-13009 |
ANA1#..240,240G,ARIAL ｲﾝﾚｯﾄ |
1 | ||
| 32941D - HOSE, OIL COOLER INLET | ||||
| 32941-12390 |
ANA1#..240,240G,ARIAL |
1 | ||
| 32941K - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
ANA1#..240,240G,ARIAL |
2 | ||
| 32941K - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
ANA1#..240,240G,ARIAL |
2 | ||
| 32942C - HOSE, OIL COOLER OUTLET, NO.1 | ||||
| 32942-12180 |
ANA1#..240,240G,ARIAL |
1 | ||
| 32942F - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
ANA1#..CBU |
2 | ||
| 90466-16004 |
ANA1#..240,240G,ARIAL |
2 | ||
| 32942F - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
ANA1#..CBU |
2 | ||
| 90466-16004 |
ANA1#..240,240G,ARIAL |
2 | ||
| 33493B - COOLER, OIL | ||||
| 33493-12060 |
ANA1#..240,240G,ARIAL |
1 | ||
| Common parts | ||||
| 90116-06127 | ||||
| 90178-C0038 | ||||
| 90467-19022 | ||||
| 91631-G0614 | ||||
| 91671-80816 | ||||
| 94150-80640 | ||||
| 96134-41900 | ||||
| 96136-42101 | ||||
| Linked diagrams | ||||
| 3401 | ||||
| 8716 | ||||
