ANA10-AWXNK (2007)
Toyota Mark X Zio
Production
Sep 2007
-
Feb 2011
Engine
2AZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

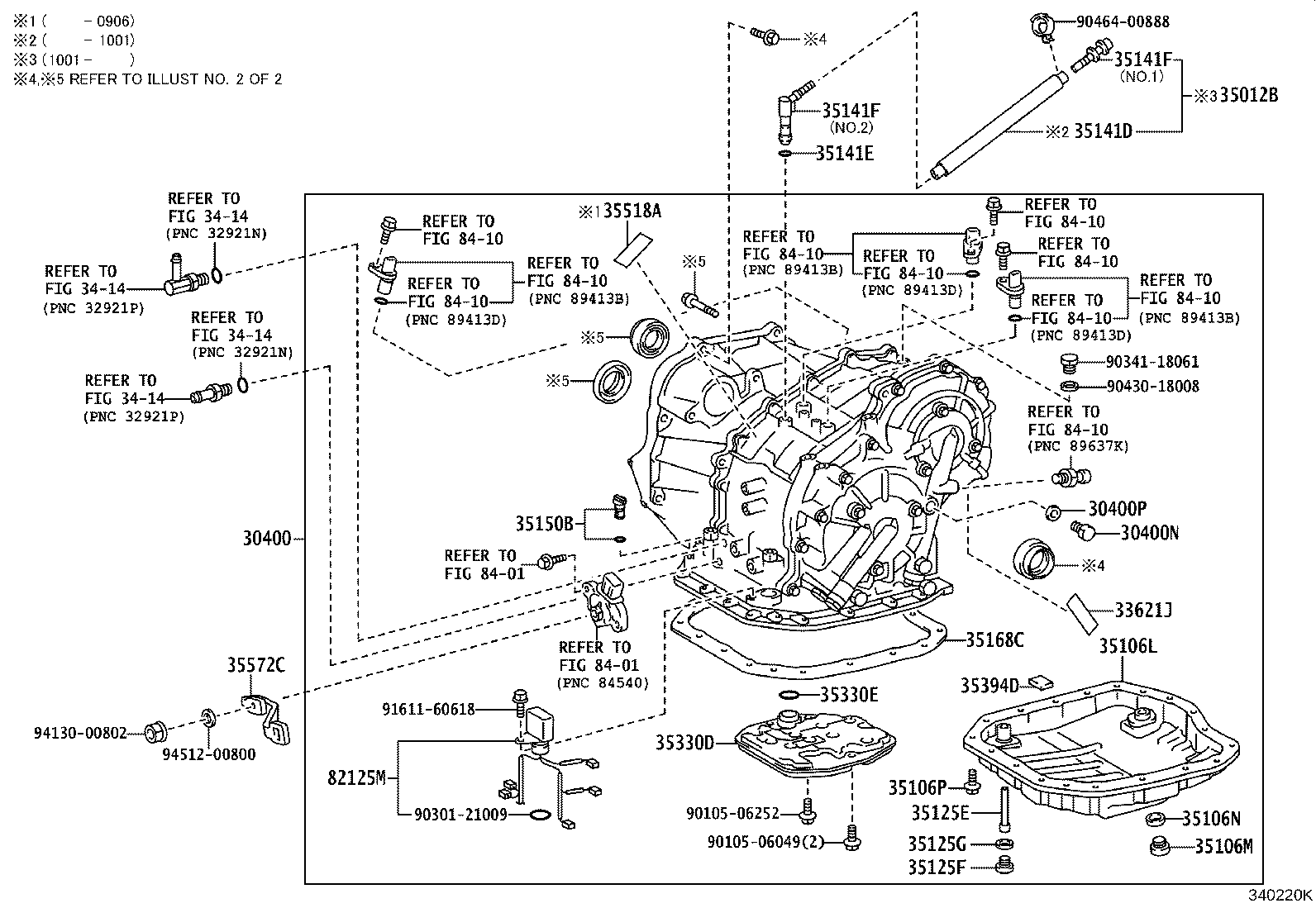

ILLUST NO. 2 OF 3(0709-1103)ANA1#
Click highlighted areas on diagram
K112,K112F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30400 - TRANSAXLE ASSY, CONTINUOUSLY VARIABLE | ||||
| 30400-42011 |
ANA10..240,240G,ARIAL K112 |
1 | ||
| 30400-42010 |
ANA10 K112 |
1 | ||
| 30400N - PLUG, REFILL(CVT) | ||||
| 90341-18061 |
ANA1#..CBU |
1 | ||
| 30400P - GASKET, REFILL PLUG(CVT) | ||||
| 90430-18008 |
ANA1#..CBU |
1 | ||
| 35012B - HOSE SUB-ASSY, TRANSMISSION BREATHER | ||||
| 3510A-44010 |
ANA1#..240,240G,ARIAL |
1 | ||
| 35106L - PAN SUB-ASSY, TRANSAXLE OIL(CVT) | ||||
| 35106-44020 |
ANA1#..CBU |
1 | ||
| 35106-44021 |
ANA1#..CBU |
1 | ||
| 35106M - PLUG SUB-ASSY, DRAIN(CVT) | ||||
| 90341-18016 |
ANA1#..CBU |
1 | ||
| 35106N - GASKET, DRAIN PLUG(CVT) | ||||
| 90430-18008 |
ANA1#..CBU |
1 | ||
| 35106P - BOLT(FOR TRANSAXLE OIL PAN) | ||||
| 90119-06173 |
ANA1#..240,240G,ARIAL |
19 | ||
| 35125E - TUBE, OVERFLOW(CVT) | ||||
| 35125-44070 |
ANA1#..CBU |
1 | ||
| 35125F - PLUG, OVERFLOW(CVT) | ||||
| 90341-12034 |
ANA1#..CBU |
1 | ||
| 35125G - GASKET, OVERFLOW PLUG(CVT) | ||||
| 90430-12008 |
ANA1#..CBU |
1 | ||
| 35141D - HOSE(FOR BREATHER PLUG) | ||||
| 35121-63010 |
ANA1# |
1 | ||
| 35141E - RING, O(FOR BREATHER PLUG) | ||||
| 90301-06005 |
ANA1#..240,240G,ARIAL |
1 | ||
| 35141F - PLUG, BREATHER, NO.1(CVT) | ||||
| 90930-03164 |
ANA1#..240,240G,ARIAL NO.2 |
1 | ||
| 90930-03149 |
ANA1#..240,240G,ARIAL NO.1 |
1 | ||
| 35141F - PLUG, BREATHER, NO.1(CVT) | ||||
| 90930-03164 |
ANA1#..240,240G,ARIAL NO.2 |
1 | ||
| 90930-03149 |
ANA1#..240,240G,ARIAL NO.1 |
1 | ||
| 35150B - PLUG ASSY, TRANSMISSION CASE | ||||
| 35150-44010 |
ANA1#..240,240G,ARIAL |
1 | ||
| 35168C - GASKET, TRANSAXLE OIL PAN(CVT) | ||||
| 35168-20010 |
ANA1#..240,240G,ARIAL |
1 | ||
| 35168-63010 |
ANA1#..CBU |
1 | ||
| 35330D - STRAINER ASSY, OIL | ||||
| 35330-0W040 |
ANA1#..CBU |
1 | ||
| 35330E - RING, O (FOR OIL STRAINER) | ||||
| 90301-24013 |
ANA1#..CBU |
1 | ||
| 35394D - MAGNET, OIL CLEANER(CVT) | ||||
| 35394-30011 |
ANA1#..240,240G,ARIAL |
3 | ||
| 35518A - LABEL, AUTOMATIC TRANSAXLE INFORMATION, NO.2 | ||||
| 35518-63010 |
ANA1# |
1 | ||
| 35572C - LEVER, TRANSMISSION CONTROL SHAFT | ||||
| 35572-42030 |
ANA1#..CBU |
1 | ||
| 82125M - WIRE, TRANSMISSION | ||||
| 82125-44020 |
ANA1#..CBU |
1 | ||
| Common parts | ||||
| 90105-06049 | ||||
| 90105-06252 | ||||
| 90301-21009 | ||||
| 90341-18061 | ||||
| 90430-18008 | ||||
| 90464-00888 | ||||
| 91611-60618 | ||||
| 94130-00802 | ||||
| 94512-00800 | ||||
| Linked diagrams | ||||
| 3414 | ||||
| 8401 | ||||
| 8410 | ||||

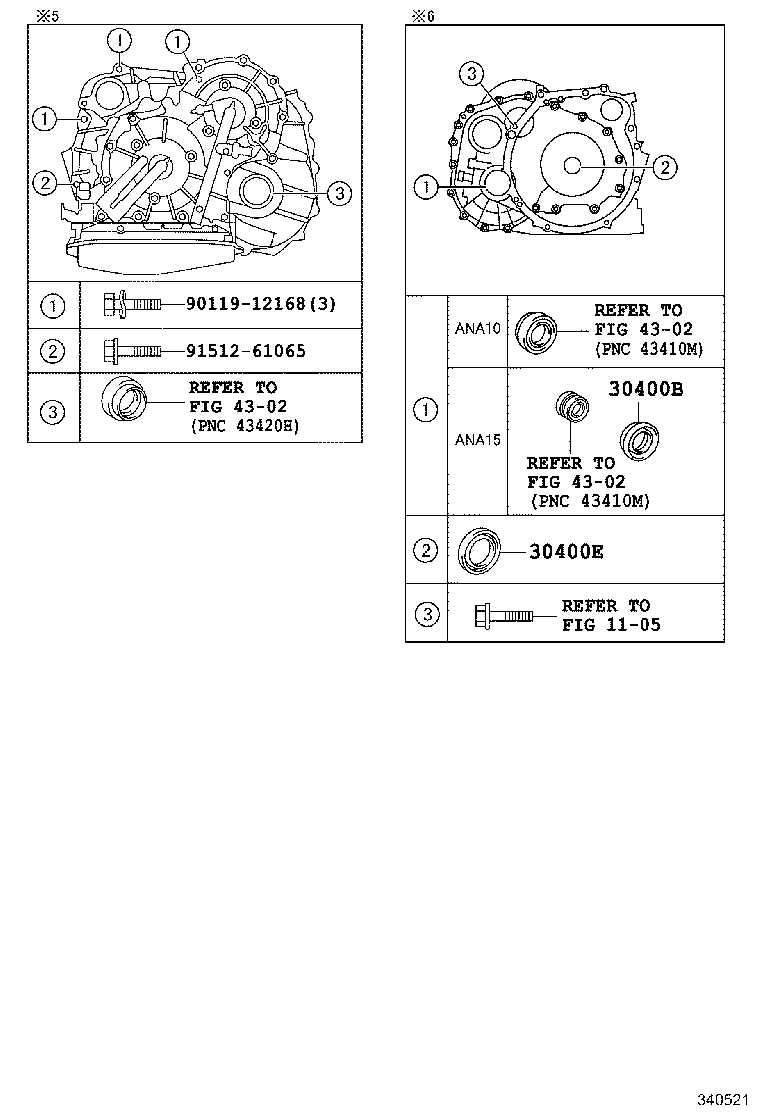

ILLUST NO. 3 OF 3(0709-1103)ANA1#
Click highlighted areas on diagram
K112,K112F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30400E - SEAL, TYPE T OIL(FOR CVT OIL PUMP) | ||||
| 90311-45025 |
ANA1#..240,240G,ARIAL |
1 | ||
| Common parts | ||||
| 90119-12168 | ||||
| 91512-61065 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 4302 | ||||
ILLUST NO. 1 OF 3(0709- )ANA1#
Click highlighted areas on diagram
K112,K112F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30140 - TRANSAXLE ASSY, CVT, REBUILT(W/O TORQUE CONVERTER) | ||||
| 30140-42011 |
ANA10..CBU K112 |
1 | ||
| 30140-42010 |
ANA10..CBU K112 |
1 | ||
