ANA10-AWXNK (2007)
Toyota Mark X Zio
Production
Sep 2007
-
Feb 2011
Engine
2AZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

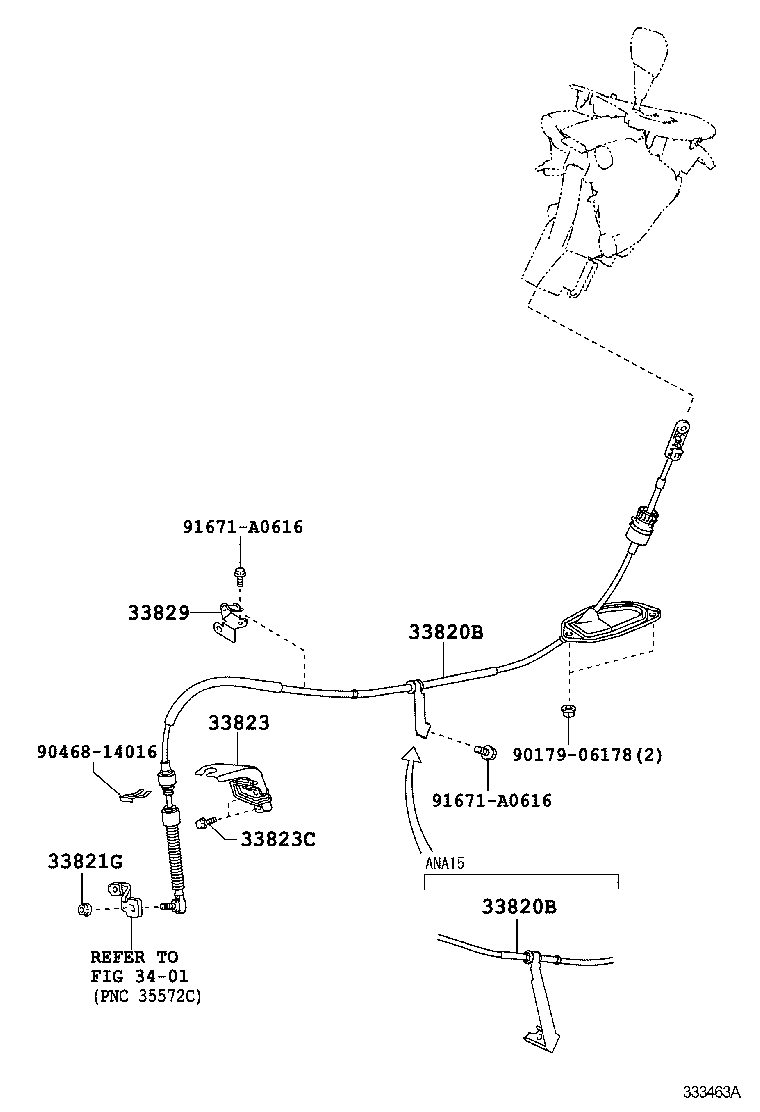

ILLUST NO. 2 OF 2(0709- )ANA1#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-12C60 |
ANA10..240,240G,ARIAL |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-12C60 |
ANA10..240,240G,ARIAL |
1 | ||
| 33821G - NUT (FOR TRANSMISSION CONTROL CABLE) | ||||
| 94151-80800 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-12290 |
ANA1#..240,240G,ARIAL |
1 | ||
| 33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET) | ||||
| 91611-B0816 |
ANA1#..240,240G,ARIAL |
2 | ||
| 33829 - SUPPORT, TRANSMISSION CONTROL CABLE | ||||
| 33829-42050 |
ANA1#..240,240G,ARIAL |
1 | ||
| Common parts | ||||
| 90179-06178 | ||||
| 90468-14016 | ||||
| 91671-A0616 | ||||
| Linked diagrams | ||||
| 3401 | ||||

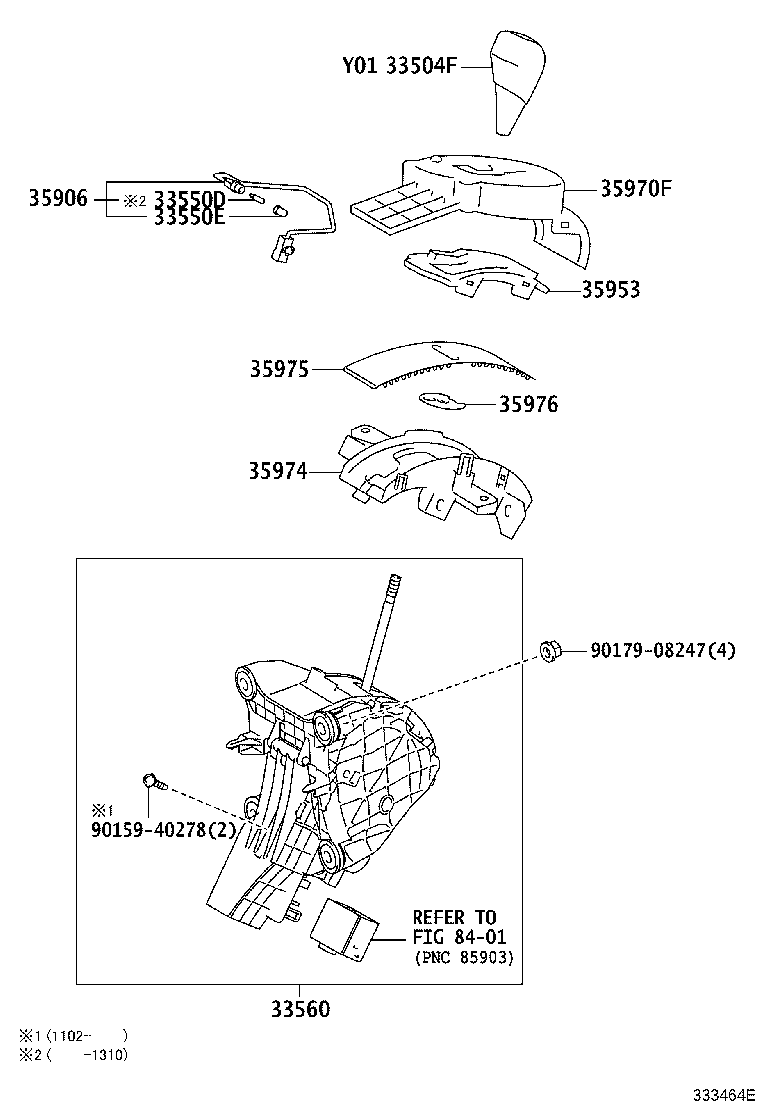

ILLUST NO. 1 OF 2(0709- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-28020C0 |
ANA1#..240 BLACK,TRIM1#,4# |
1 | ||
| 33504-58030C0 |
ANA1#..240 BLACK,TRIM1#,2#,4# |
1 | ||
| 33504-72030C0 |
ANA1#..240 240“E−Selection” *(Z),BLACK,TRIM1#,2# |
1 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 90981-11018 |
ANA1#,GGA10..CBU 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 33550E - CAP, POSITION INDICATOR LAMP | ||||
| 35956-58010 |
ANA1#,GGA10..CBU |
1 | ||
| 33560 - UNIT ASSY, SHIFT LOCK CONTROL | ||||
| 33560-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 35953 - GUIDE, POSITION INDICATOR LIGHT | ||||
| 35953-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 35970F - HOUSING ASSY, POSITION INDICATOR | ||||
| 35970-72011 |
ANA1#..240,240G,ARIAL |
1 | ||
| 35970-72010 |
ANA1#..CBU |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR) | ||||
| 35976-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| Common parts | ||||
| 90159-40278 | ||||
| 90179-08247 | ||||
| Linked diagrams | ||||
| 8401 | ||||
