Toyota Mark x zio ANA10 STARTER - JDM Part Detective

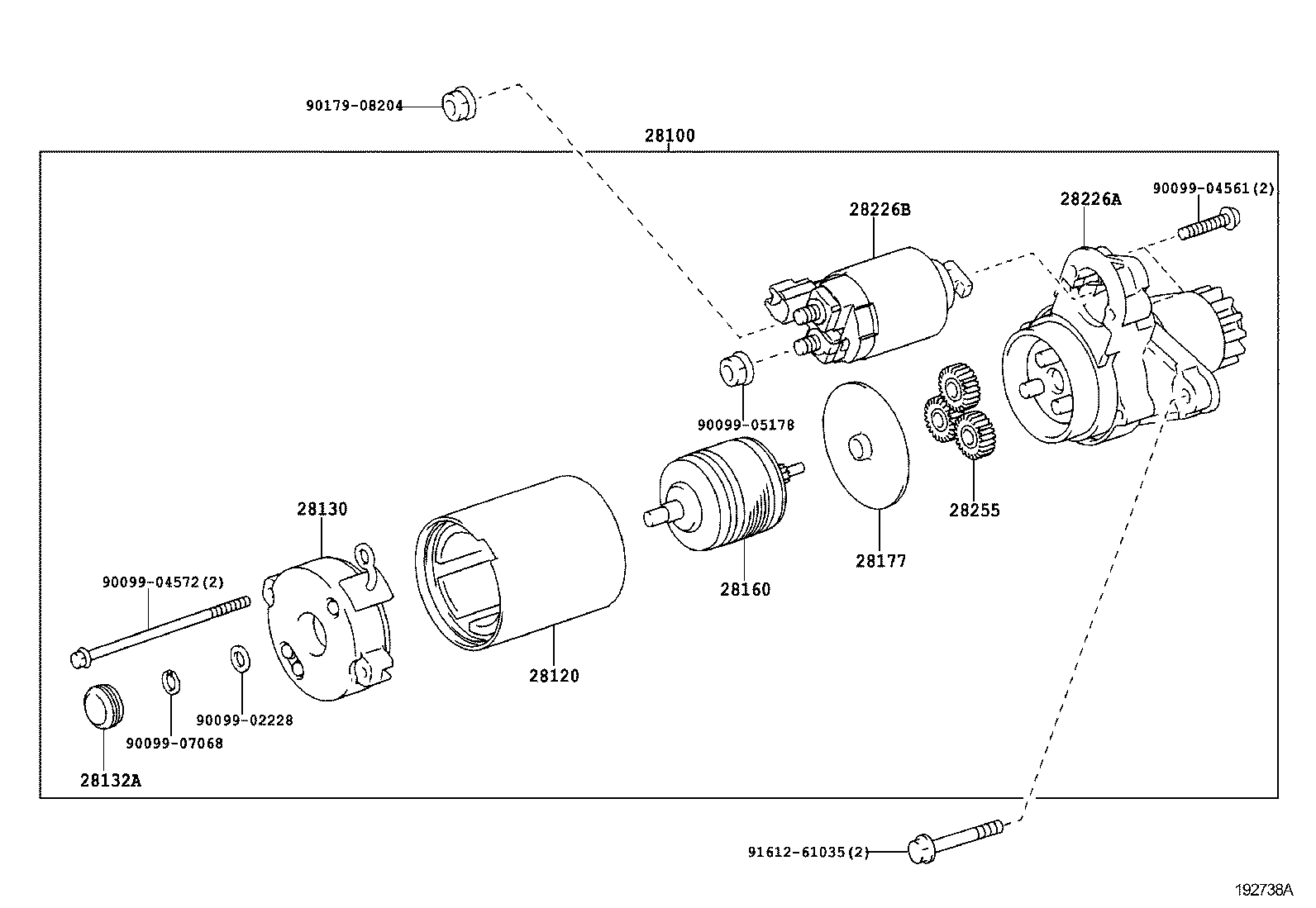

Part #	Description	Period	Qty
28100 - STARTER ASSY
28100-28041	2AZFE..ANA1# 12V 1.6KW	09/2007 - 11/2009	1
28100-28042	2AZFE..ANA1#..240,240G,ARIAL 12V 1.6KW	12/2009 - 02/2011	1
28120 - YOKE ASSY, STARTER
28120-28040	2AZFE,2GRFE..ANA1#,GGA10..CBU	09/2007 - 08/2008	1
28120-28060	2AZFE,2GRFE..ANA1#,GGA10..240,240G,350G,ARIAL	08/2008 - 02/2011	1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-28040	2AZFE..ANA1#..240,240G,ARIAL	09/2007 - 02/2011	1
28132A - COVER, STARTER COMMUTATOR END FRAME
28132-28040	2AZFE,2GRFE..ANA1#,GGA10..240,240G,350G,ARIAL	09/2007 - 02/2011	1
28160 - ARMATURE ASSY, STARTER
28160-28040	2AZFE,2GRFE..ANA1#,GGA10..240,240G,350G,ARIAL	09/2007 - 02/2011	1
28177 - PLATE(FOR STARTER ARMATURE)
28177-28040	2AZFE,2GRFE..ANA1#,GGA10..240,240G,350G,ARIAL	09/2007 - 02/2011	1
28226A - STARTER KIT, MOTOR TERMINAL
28226-28041	2AZFE,2GRFE..ANA1#,GGA10..240,240G,350G,ARIAL	09/2007 - 02/2011	1
28226B - STARTER KIT, REPAIR SERVICE
28226-28051	2AZFE,2GRFE..ANA1#,GGA10..240,240G,350G,ARIAL	09/2007 - 02/2011	1
28255 - GEAR, PLANET
28255-28040	2AZFE..ANA1#..240,240G,ARIAL	09/2007 - 02/2011	3
Common parts
90099-02228
90099-04561
90099-04572
90099-05178
90099-07068
90179-08204
91612-61035

ANA10-AWXNK (2007)
