ANA10-AWXNK (2007)

Toyota Mark X Zio

Production Sep 2007 - Feb 2011
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0709- )2AZFE

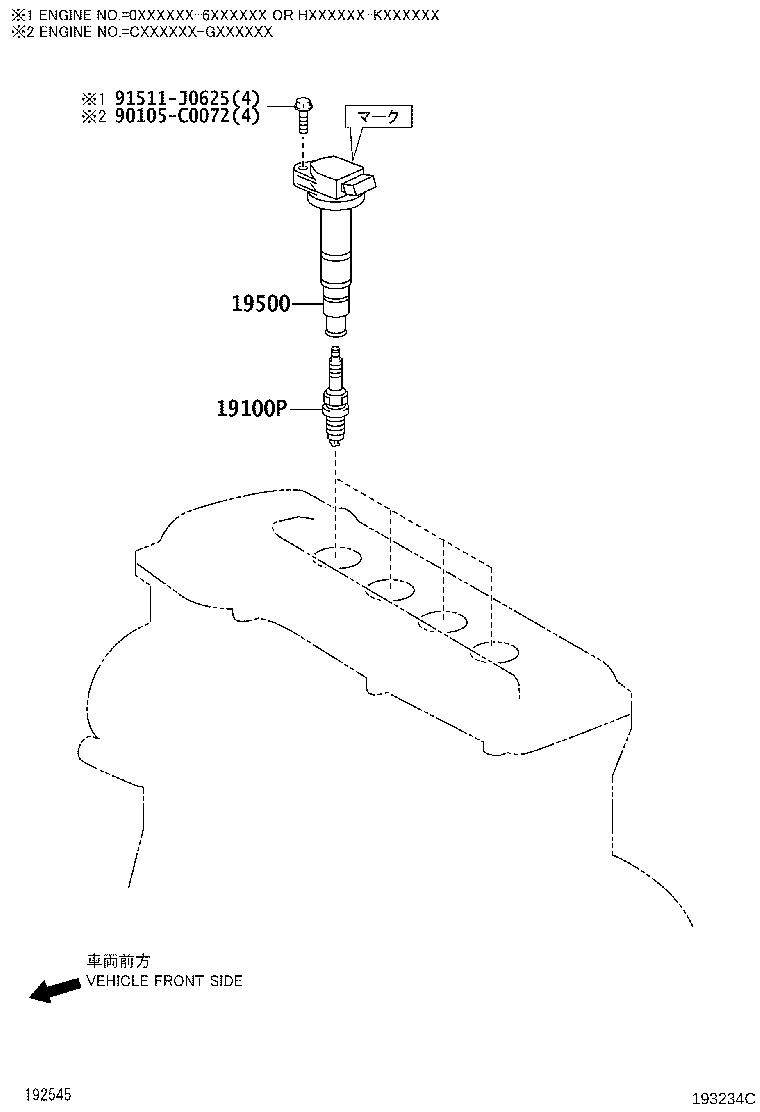

Click highlighted areas on diagram

diagram 19100P 19500 90105C0072 91511J0625
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01237

2AZFE..ANA1#

SK20R11,*195

 4
90919-T1007

2AZFE..ANA1#

SK20R11,(L),*194

 4
90919-01237

2AZFE..ANA1#

SK20R11,(J),*194

 4
90919-01237

2AZFE..ANA1#

SK20R11,(J),*194

 4
19500 - COIL ASSY, IGNITION
90919-02260

2AZFE..ANA1#..CBU

*194,ﾏｰｸ 02260

 4
90919-C2002

2AZFE..ANA1#..CBU

*194,ﾏｰｸ −C2 OR −T2

 4
90919-02260

2AZFE..ANA1#..CBU

*194,ﾏｰｸ 02260

 4
90919-C2006

2AZFE..ANA1#..CBU

*194,ﾏｰｸ C2002

 4
90919-C2006

2AZFE..ANA1#..CBU

*194,ﾏｰｸ −C2 OR −T2

 4
90919-02244

2AZFE..ANA1#..CBU

*195,ﾏｰｸ 90919−02244

 4
90919-C2006

2AZFE..ANA1#..CBU

*194,ﾏｰｸ −C2 OR −T2

 4
90919-C2006

2AZFE..ANA1#..CBU

*194,ﾏｰｸ C2002

 4
90919-C2006

2AZFE..ANA1#..CBU

*194,ﾏｰｸ C2002

 4
90919-C2002

2AZFE..ANA1#..CBU

*194,ﾏｰｸ −C2 OR −T2

 4
90919-T2005

2AZFE..ANA1#..CBU

*194,ﾏｰｸ T2005

 4
90919-02266

2AZFE..ANA1#..CBU

*195,ﾏｰｸ 90919−02266

 4
Common parts
90105-C0072
91511-J0625
