ANA10-AWXNK (2007)

Toyota Mark X Zio

Production Sep 2007 - Feb 2011
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0709- )2AZFE

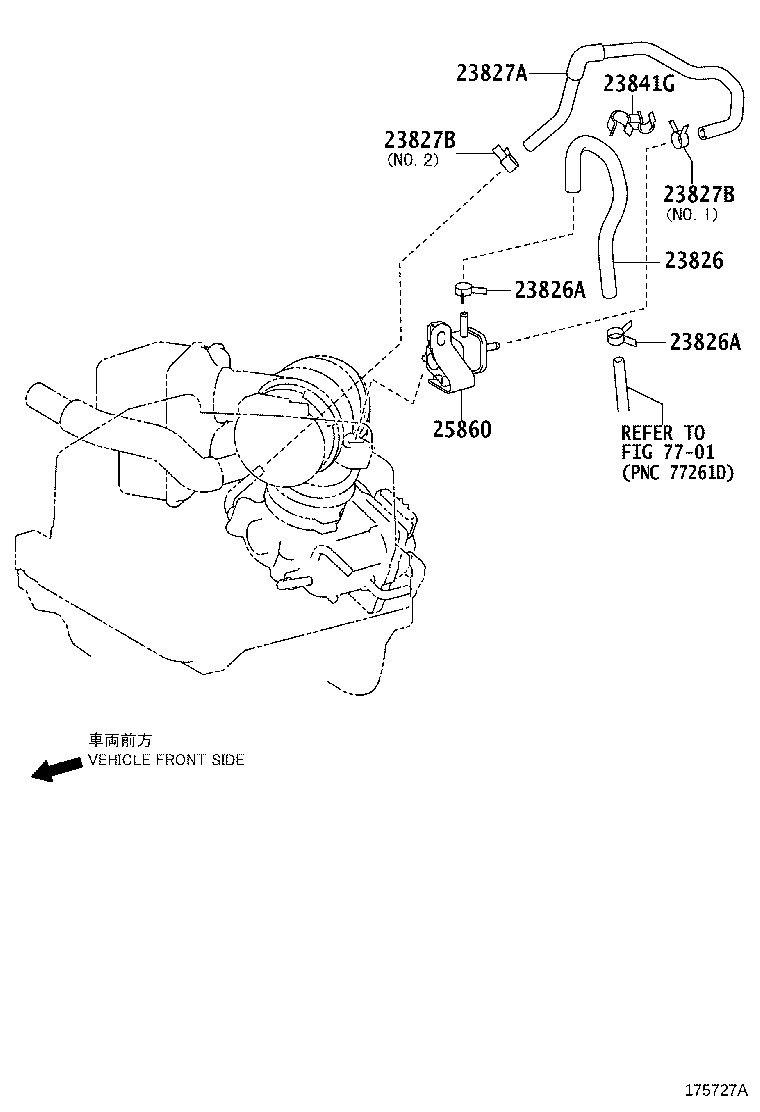

Click highlighted areas on diagram

diagram 23826 23826A 23826A 23827A 23827B 23827B 23841G 25860 7701
Part # Description Qty Price
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-28380

2AZFE..ANA1#..240,240G,ARIAL

 1
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
96132-51300

2AZFE..ANA1#..240,240G,ARIAL

 2
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
96132-51300

2AZFE..ANA1#..240,240G,ARIAL

 2
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-28320

2AZFE..ANA1#..240,240G,ARIAL

 1
23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
96132-51100

2AZFE..ANA1#..240,240G,ARIAL

NO.1

 1
96132-51000

2AZFE..ANA1#..240,240G,ARIAL

NO.2

 1
23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
96132-51100

2AZFE..ANA1#..240,240G,ARIAL

NO.1

 1
96132-51000

2AZFE..ANA1#..240,240G,ARIAL

NO.2

 1
23841G - CLAMP, FUEL HOSE
23841-28050

2AZFE..ANA1#..240,240G,ARIAL

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-28170

2AZFE..ANA1#..240,240G,ARIAL

 1
Linked diagrams
7701
