ANA10-AWXNK (2007)
Toyota Mark X Zio
Production
Sep 2007
-
Feb 2011
Engine
2AZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0709- )2AZFE

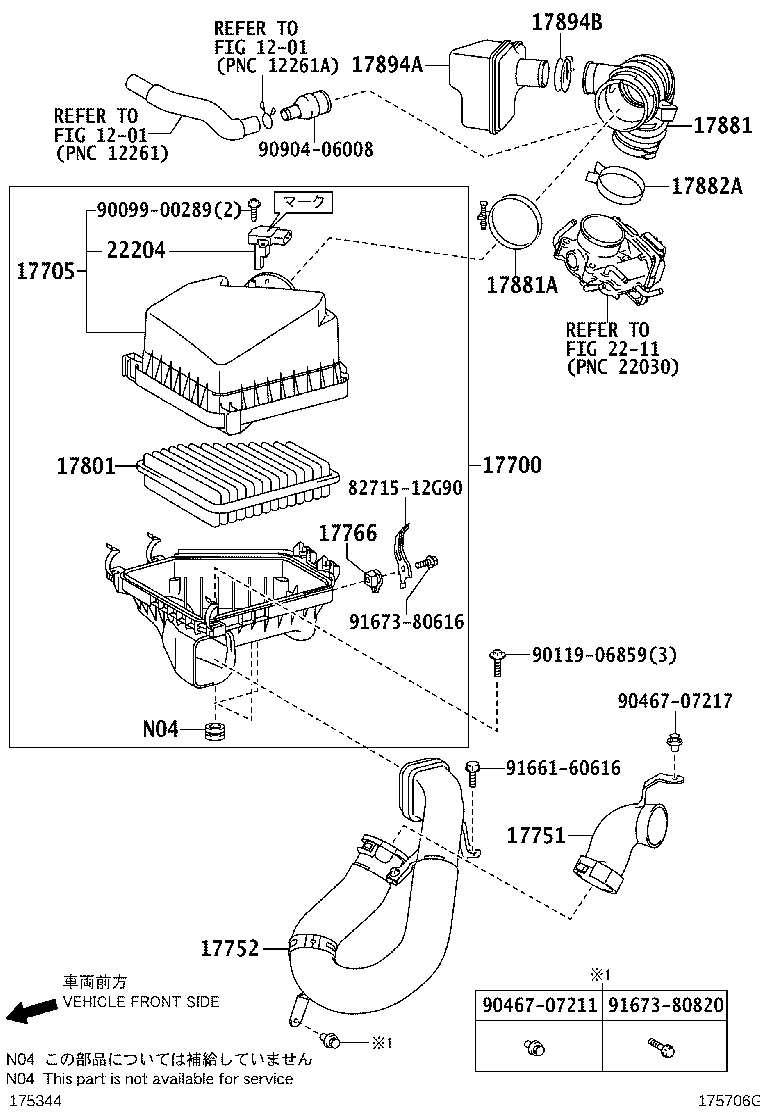

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-28341 |
2AZFE..ANA1#..240,240G,ARIAL |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-28291 |
2AZFE..ANA1#..240,240G,ARIAL |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 17751-21170 |
2AZFE..ANA1#..240,240G,ARIAL |
1 | ||
| 17752 - INLET, AIR CLEANER, NO.2 | ||||
| 17752-28030 |
2AZFE..ANA1#..240,240G,ARIAL |
1 | ||
| 17766 - STAY, AIR CLEANER, NO.2 | ||||
| 17706-22010 |
2AZFE..ANA1# |
1 | ||
| 17706-21010 |
2AZFE..ANA1#..240,240G,ARIAL |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-31120 |
2AZFE..ANA1#..240,240G,ARIAL |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-28300 |
2AZFE..ANA1#..240,240G,ARIAL |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10850 |
2AZFE..ANA1#..240,240G,ARIAL |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90466-62002 |
2AZFE..ANA1#..240,240G,ARIAL |
1 | ||
| 17894A - RESONATOR, INTAKE AIR, NO.2 | ||||
| 17894-28130 |
2AZFE..ANA1#..240,240G,ARIAL |
1 | ||
| 17894B - CLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2) | ||||
| 96111-10480 |
2AZFE..ANA1#..240,240G,ARIAL |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-31020 |
2AZFE..ANA1#..240,240G,ARIAL |
1 | ||
| Common parts | ||||
| 82715-12G90 | ||||
| 90099-00289 | ||||
| 90119-06859 | ||||
| 90467-07211 | ||||
| 90467-07217 | ||||
| 90904-06008 | ||||
| 91661-60616 | ||||
| 91673-80616 | ||||
| 91673-80820 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 2211 | ||||
