ANA10-AWXNK (2007)

Toyota Mark X Zio

Production Sep 2007 - Feb 2011
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0709- )2AZFE

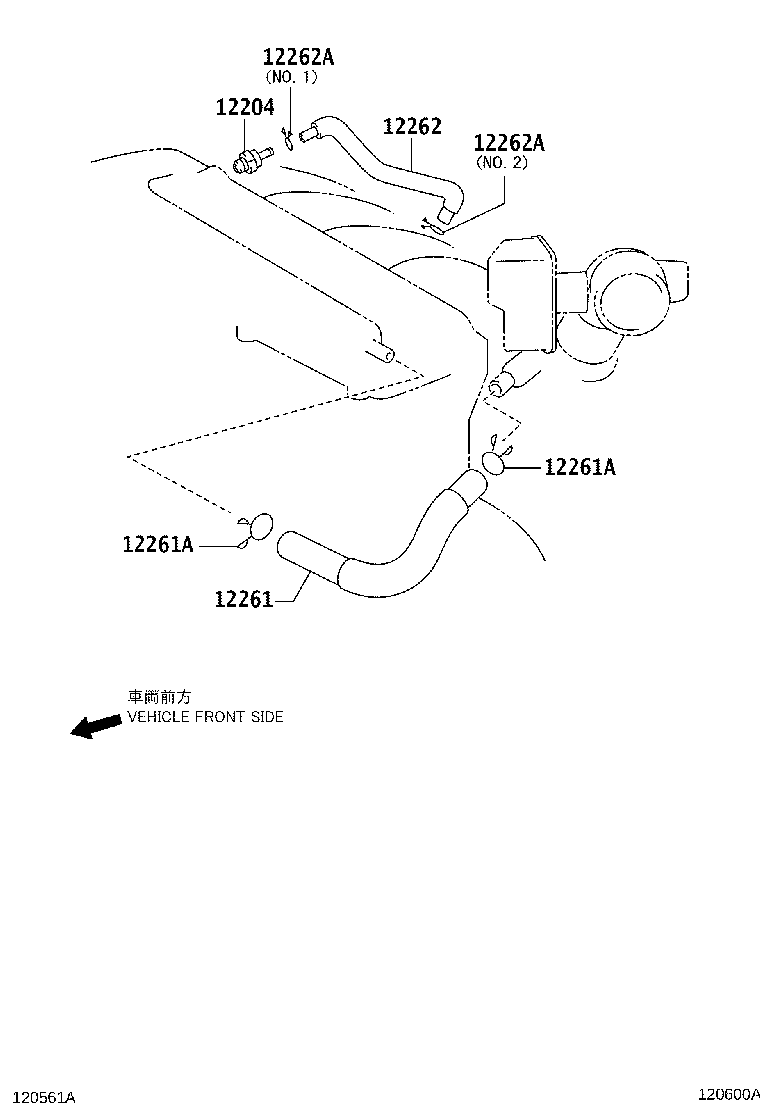

Click highlighted areas on diagram

diagram 12204 12261 12261A 12261A 12262 12262A 12262A
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-0H020

2AZFE..ANA1#

(L),*194

 1
12204-28030

2AZFE..ANA1#

(J),*194

 1
12204-28030

2AZFE..ANA1#

*195

 1
12204-0H020

2AZFE..ANA1#

(L),*194

 1
12261 - HOSE, VENTILATION
12261-28180

2AZFE..ANA1#..240,240G,ARIAL

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-19003

2AZFE..ANA1#..240,240G,ARIAL

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-19003

2AZFE..ANA1#..240,240G,ARIAL

 2
12262 - HOSE, VENTILATION, NO.2
12262-28021

2AZFE..ANA1#..240,240G,ARIAL

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-16035

2AZFE..ANA1#..240,240G,ARIAL

NO.2

 1
90467-13103

2AZFE..ANA1#..240,240G,ARIAL

NO.1

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-16035

2AZFE..ANA1#..240,240G,ARIAL

NO.2

 1
90467-13103

2AZFE..ANA1#..240,240G,ARIAL

NO.1

 1
