ANA10-AWXNK (2007)
Toyota Mark X Zio
Production
Sep 2007
-
Feb 2011
Engine
2AZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0709- )2AZFE

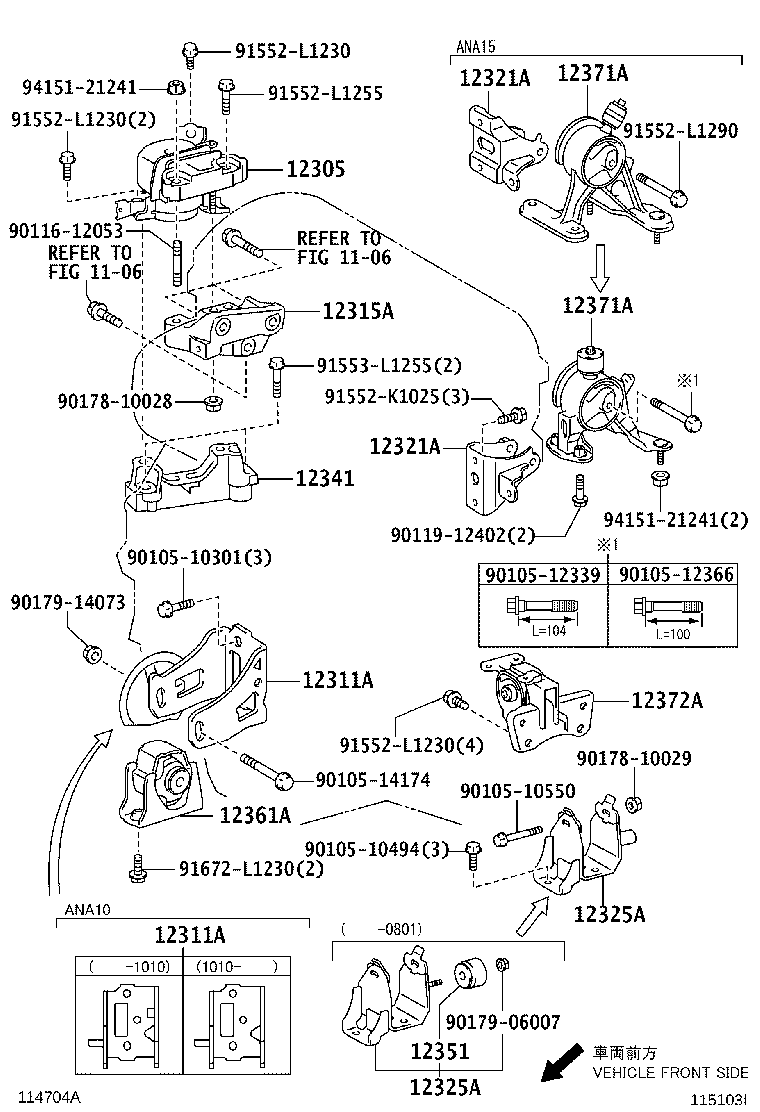

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH | ||||
| 12305-28260 |
2AZFE..ANA10..240,240G,ARIAL |
1 | ||
| 12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | ||||
| 12311-28241 |
2AZFE..ANA10 |
1 | ||
| 12311-28240 |
2AZFE..ANA10 |
1 | ||
| 12311-28330 |
2AZFE..ANA10..240,240G,ARIAL |
1 | ||
| 12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | ||||
| 12311-28241 |
2AZFE..ANA10 |
1 | ||
| 12311-28240 |
2AZFE..ANA10 |
1 | ||
| 12311-28330 |
2AZFE..ANA10..240,240G,ARIAL |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-28090 |
2AZFE..ANA1# *194 |
1 | ||
| 12315-28090 |
2AZFE..ANA1# *195 |
1 | ||
| 12315-28090 |
2AZFE..ANA1# *194 |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-28240 |
2AZFE..ANA10..240,240G,ARIAL |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-28240 |
2AZFE..ANA10..240,240G,ARIAL |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-28350 |
2AZFE..ANA1#..240,240G,ARIAL |
1 | ||
| 12304-28170 |
2AZFE..ANA1#..CBU |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-28350 |
2AZFE..ANA1#..240,240G,ARIAL |
1 | ||
| 12304-28170 |
2AZFE..ANA1#..CBU |
1 | ||
| 12341 - SPACER, ENGINE MOUNTING | ||||
| 12341-26010 |
2AZFE..ANA1#..CBU |
1 | ||
| 12341-26011 |
2AZFE..ANA1#..240,240G,ARIAL |
1 | ||
| 12351 - DAMPER, ENGINE MOUNTING | ||||
| 12351-28120 |
2AZFE..ANA1#..CBU |
1 | ||
| 12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE | ||||
| 12361-28280 |
2AZFE..ANA1#..240,240G,ARIAL |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-22230 |
2AZFE..ANA10..240,240G,ARIAL |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-22230 |
2AZFE..ANA10..240,240G,ARIAL |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-28350 |
2AZFE..ANA10..240,240G,ARIAL |
1 | ||
| Common parts | ||||
| 90105-10301 | ||||
| 90105-10494 | ||||
| 90105-10550 | ||||
| 90105-12339 | ||||
| 90105-12366 | ||||
| 90105-14174 | ||||
| 90116-12053 | ||||
| 90119-12402 | ||||
| 90178-10028 | ||||
| 90178-10029 | ||||
| 90179-06007 | ||||
| 90179-14073 | ||||
| 91552-K1025 | ||||
| 91552-L1230 | ||||
| 91552-L1255 | ||||
| 91552-L1290 | ||||
| 91553-L1255 | ||||
| 91672-L1230 | ||||
| 94151-21241 | ||||
| Linked diagrams | ||||
| 1106 | ||||
