ANA10-AWXNK (2007)

Toyota Mark X Zio

Production Sep 2007 - Feb 2011
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0709- )2AZFE

Click highlighted areas on diagram

*194

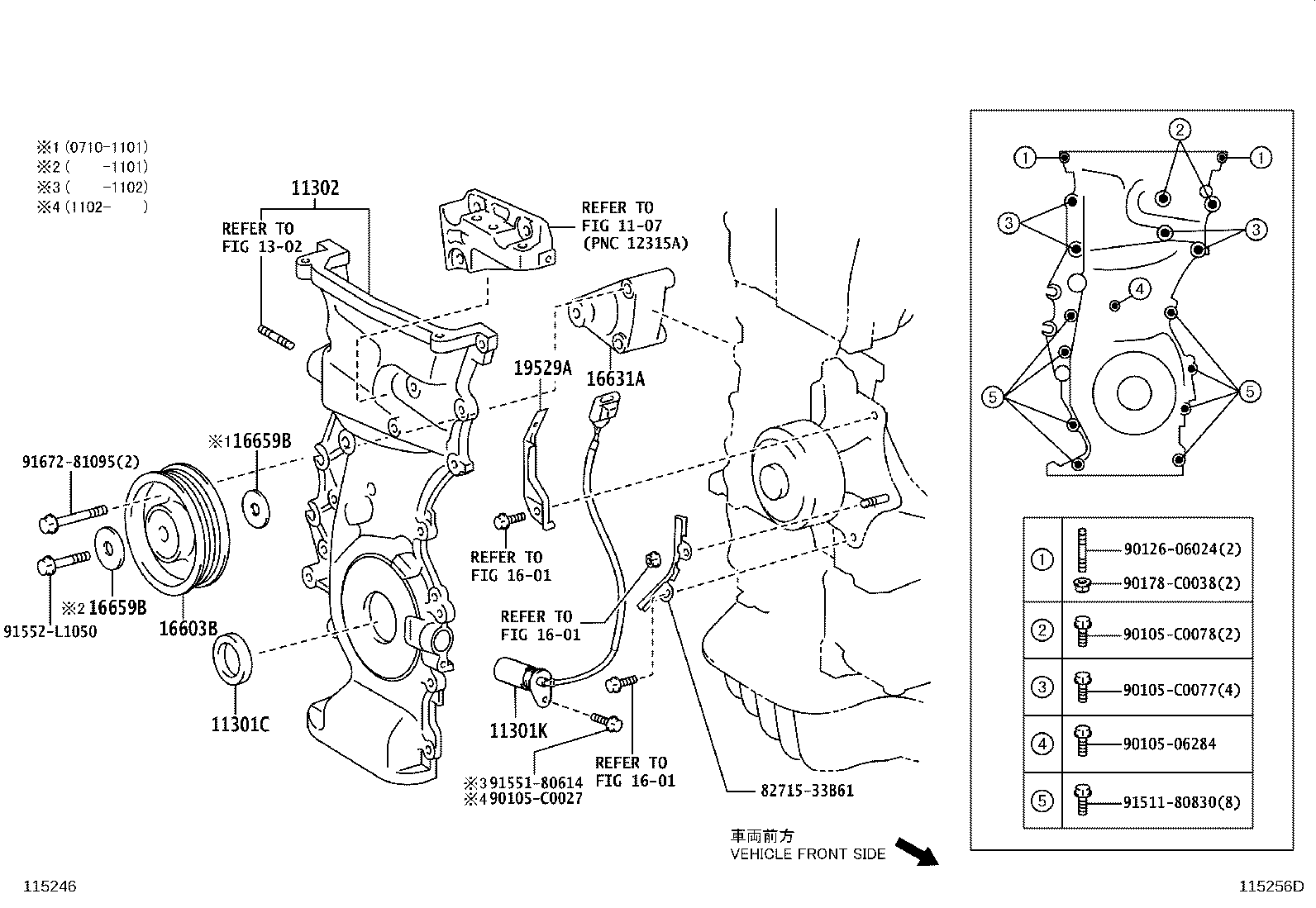

diagram 1107 11301C 11301K 11302 1302 1601 1601 1601 16603B 16631A 16659B 16659B 19529A 8271533B61 9010506284 90105C0027 90105C0077 90105C0078 9012606024 90178C0038 9151180830 9155180614 91552L1050 9167281095
Part # Description Qty Price
11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
90311-T0024

2AZFE..ANA1#..CBU

*194

 1
90311-T0024

2AZFE..ANA1#..CBU

*194

 1
90311-38089

2AZFE..ANA1#..CBU

*195

 1
11301K - SENSOR, CRANK POSITION
90919-05047

2AZFE..ANA1#

 1
90919-05067

2AZFE..ANA1#

*194

 1
90919-05067

2AZFE..ANA1#

*194

 1
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11310-0H070

2AZFE..ANA1#

(L),*194

 1
11310-0H070

2AZFE..ANA1#

(L),*194

 1
11310-28090

2AZFE..ANA1#

(J),*194

 1
11310-28090

2AZFE..ANA1#

*195

 1
16603B - PULLEY SUB-ASSY, IDLER
16603-28050

2AZFE..ANA1#

 1
16603-28020

2AZFE..ANA1#

 1
16631A - BRACKET, IDLER PULLEY
16631-28030

2AZFE..ANA1#..CBU

 1
16631-28031

2AZFE..ANA1#

 1
16659B - PLATE, IDLER PULLEY COVER, NO.2
16659-31011

2AZFE..ANA1#

 2
16659-31011

2AZFE..ANA1#..CBU

 1
16659B - PLATE, IDLER PULLEY COVER, NO.2
16659-31011

2AZFE..ANA1#

 2
16659-31011

2AZFE..ANA1#..CBU

 1
19529A - CLAMP
19529-28050

2AZFE..ANA1#

*194

 1
19529-28050

2AZFE..ANA1#

*194

 1
19529-28030

2AZFE..ANA1#

*195

 1
Common parts
82715-33B61
90105-06284
90105-C0027
90105-C0077
90105-C0078
90126-06024
90178-C0038
91511-80830
91551-80614
91552-L1050
91672-81095
Linked diagrams
1107
1302
1601

(1101- )2AZFE

Click highlighted areas on diagram

*195

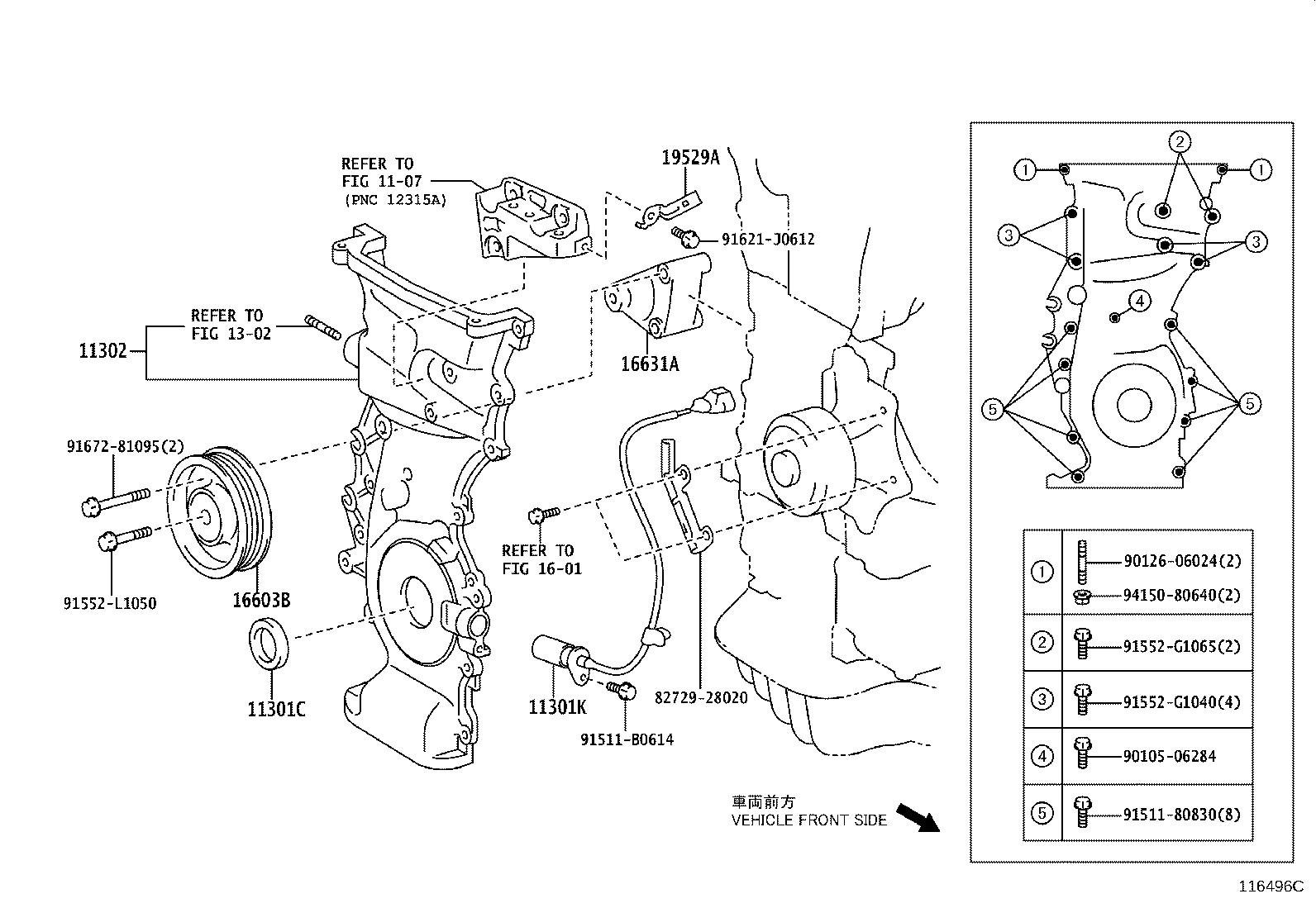

diagram 1107 11301C 11301K 11302 1302 1601 16603B 16631A 19529A 8272928020 9010506284 9012606024 9151180830 91511B0614 91552G1040 91552G1065 91552L1050 91621J0612 9167281095 9415080640
Part # Description Qty Price
11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
90311-T0024

2AZFE..ANA1#..CBU

*194

 1
90311-T0024

2AZFE..ANA1#..CBU

*194

 1
90311-38089

2AZFE..ANA1#..CBU

*195

 1
11301K - SENSOR, CRANK POSITION
90919-05047

2AZFE..ANA1#

 1
90919-05067

2AZFE..ANA1#

*194

 1
90919-05067

2AZFE..ANA1#

*194

 1
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11310-0H070

2AZFE..ANA1#

(L),*194

 1
11310-0H070

2AZFE..ANA1#

(L),*194

 1
11310-28090

2AZFE..ANA1#

(J),*194

 1
11310-28090

2AZFE..ANA1#

*195

 1
16603B - PULLEY SUB-ASSY, IDLER
16603-28050

2AZFE..ANA1#

 1
16603-28020

2AZFE..ANA1#

 1
16631A - BRACKET, IDLER PULLEY
16631-28030

2AZFE..ANA1#..CBU

 1
16631-28031

2AZFE..ANA1#

 1
19529A - CLAMP
19529-28050

2AZFE..ANA1#

*194

 1
19529-28050

2AZFE..ANA1#

*194

 1
19529-28030

2AZFE..ANA1#

*195

 1
Common parts
82729-28020
90105-06284
90126-06024
91511-80830
91511-B0614
91552-G1040
91552-G1065
91552-L1050
91621-J0612
91672-81095
94150-80640
Linked diagrams
1107
1302
1601
