ANA10-AWXNK (2007)

Toyota Mark X Zio

Production Sep 2007 - Feb 2011
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0709- )2AZFE

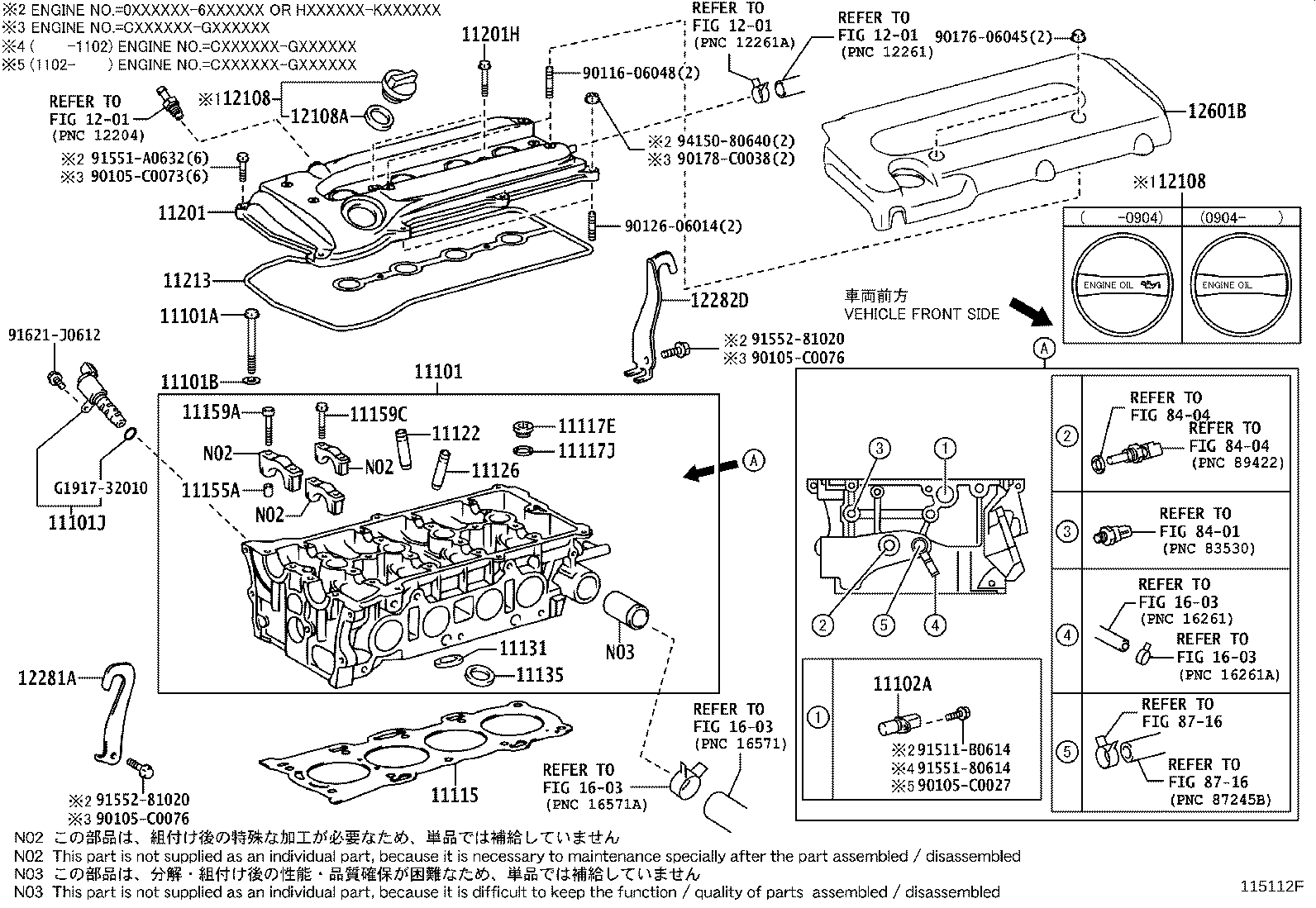

Click highlighted areas on diagram

diagram 11101 11101A 11101B 11101J 11102A 11115 11117E 11117J 11122 11126 11131 11135 11155A 11159A 11159C 11201 11201H 11213 1201 1201 1201 12108 12108 12108A 12281A 12282D 12601B 1603 1603 1603 1603 8401 8404 8404 8716 8716 90105C0027 90105C0073 90105C0076 90105C0076 9011606048 9012606014 9017606045 90178C0038 91511B0614 9155180614 91551A0632 9155281020 9155281020 91621J0612 9415080640 G191732010
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-0H011

2AZFE..ANA1#

(L),*195

 1
11101-0H040

2AZFE..ANA1#

*194

 1
11101-28012

2AZFE..ANA1#

(J),*195

 1
11101-0H040

2AZFE..ANA1#

*194

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02162

2AZFE..ANA1#

*194

 10
90910-02162

2AZFE..ANA1#

*194

 10
90910-02162

2AZFE..ANA1#

*195

 10
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-11034

2AZFE..ANA1#

*195

 10
90201-11034

2AZFE..ANA1#

*194

 10
90201-11034

2AZFE..ANA1#

*194

 10
11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL
15330-28020

2AZFE..ANA1#

*194

 1
15330-28020

2AZFE..ANA1#

*194

 1
15330-28020

2AZFE..ANA1#

*195

 1
11102A - SENSOR, CAMSHAFT POSITION
90919-05026

2AZFE..ANA1#

*194

 1
90919-05026

2AZFE..ANA1#

*195

 1
90919-05026

2AZFE..ANA1#

*194

 1
11115 - GASKET, CYLINDER HEAD
11115-28040

2AZFE..ANA1#

*195

 1
11115-28040

2AZFE..ANA1#

*194

 1
11115-28040

2AZFE..ANA1#

*194

 1
11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1
90341-27006

2AZFE..ANA1#

*194

 2
90341-27006

2AZFE..ANA1#

*195

 2
90341-27006

2AZFE..ANA1#

*194

 2
11117J - GASKET(FOR CYLINDER HEAD SCREW PLUG)
90430-27005

2AZFE..ANA1#

*194

 2
90430-27005

2AZFE..ANA1#

*194

 2
90430-27005

2AZFE..ANA1#

*195

 2
11122 - BUSH, INTAKE VALVE GUIDE
11122-28010

2AZFE..ANA1#..CBU

STD

 8
11123-28010

2AZFE..ANA1#..CBU

O/S 0.05

 8
11122-28010

2AZFE..ANA1#

STD,*194

 8
11122-28010

2AZFE..ANA1#

STD,*194

 8
11123-28010

2AZFE..ANA1#

O/S 0.05,*194

 8
11123-28010

2AZFE..ANA1#

O/S 0.05,*195

 8
11122-28010

2AZFE..ANA1#

STD,*195

 8
11126 - BUSH, EXHAUST VALVE GUIDE
11127-20020

2AZFE..ANA1#

O/S 0.05,*194

 8
11126-20020

2AZFE..ANA1#

STD,*194

 8
11126-20020

2AZFE..ANA1#

STD,*195

 8
11127-20020

2AZFE..ANA1#

O/S 0.05,*195

 8
11127-20020

2AZFE..ANA1#..CBU

O/S 0.05

 8
11126-20020

2AZFE..ANA1#

STD,*194

 8
11126-20020

2AZFE..ANA1#..CBU

STD

 8
11131 - SEAT, INTAKE VALVE
11131-0H010

2AZFE..ANA1#

STD,(L),*194

 8
11131-28021

2AZFE..ANA1#

STD,(J),*195

 8
11131-0H020

2AZFE..ANA1#

STD,(L),*195

 8
11132-0H020

2AZFE..ANA1#

O/S 0.03,(L),*195

 8
11132-28030

2AZFE..ANA1#..CBU

O/S 0.03

 8
11131-28030

2AZFE..ANA1#

STD,(J),*194

 8
11131-0H010

2AZFE..ANA1#

STD,(L),*194

 8
11132-28021

2AZFE..ANA1#

O/S 0.03,(J),*195

 8
11132-28030

2AZFE..ANA1#

O/S 0.03,*194

 8
11132-28030

2AZFE..ANA1#..240,240F,240G

O/S 0.03,*194

 8
11135 - SEAT, EXHAUST VALVE
11135-0H020

2AZFE..ANA1#

STD,(L),*195

 8
11135-0H010

2AZFE..ANA1#

STD,(L),*194

 8
11135-28040

2AZFE..ANA1#

STD,(J),*195

 8
11136-28050

2AZFE..ANA1#..CBU

O/S 0.03

 8
11136-28050

2AZFE..ANA1#

O/S 0.03,*194

 8
11136-28040

2AZFE..ANA1#

O/S 0.03,(J),*195

 8
11136-0H020

2AZFE..ANA1#

O/S 0.03,(L),*195

 8
11136-28050

2AZFE..ANA1#..240,240F,240G

O/S 0.03,*194

 8
11135-0H010

2AZFE..ANA1#

STD,(L),*194

 8
11135-28050

2AZFE..ANA1#

STD,(J),*194

 8
11155A - PIN, RING W/HEAD
90253-11021

2AZFE..ANA1#

*194

 4
90253-11021

2AZFE..ANA1#

*194

 4
90253-11021

2AZFE..ANA1#

*195

 4
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90080-10210

2AZFE..ANA1#

(L),*195

 4
90105-C0069

2AZFE..ANA1#

*194

 4
90105-08353

2AZFE..ANA1#

(J),*195

 4
90105-C0069

2AZFE..ANA1#

*194

 4
11159C - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90119-06902

2AZFE..ANA1#

(J),*195

 16
90119-C0121

2AZFE..ANA1#

*194

 16
90119-C0121

2AZFE..ANA1#

*194

 16
90080-11292

2AZFE..ANA1#

(L),*195

 16
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-0H060

2AZFE..ANA1#..CBU

*194

 1
11201-0H060

2AZFE..ANA1#..CBU

*194

 1
11201-28031

2AZFE..ANA1#..CBU

*195

 1
11201H - BOLT(FOR CYLINDER HEAD COVER)
90119-06903

2AZFE..ANA1#

*195

 2
90119-C0122

2AZFE..ANA1#

*194

 2
90119-C0122

2AZFE..ANA1#

*194

 2
11213 - GASKET, CYLINDER HEAD COVER
11213-0H040

2AZFE..ANA1#

(L),*194

 1
11213-28021

2AZFE..ANA1#

*195

 1
11213-0H040

2AZFE..ANA1#

(L),*194

 1
11213-28021

2AZFE..ANA1#

(J),*194

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-28010

2AZFE..ANA1#

 1
12180-28010

2AZFE..ANA1#

 1
12180-38010

2AZFE..ANA1#

*195

 1
12180-38010

2AZFE..ANA1#

*194

 1
12180-38010

2AZFE..ANA1#

*194

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-28010

2AZFE..ANA1#

 1
12180-28010

2AZFE..ANA1#

 1
12180-38010

2AZFE..ANA1#

*195

 1
12180-38010

2AZFE..ANA1#

*194

 1
12180-38010

2AZFE..ANA1#

*194

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37004

2AZFE..ANA1#

 1
90430-35001

2AZFE..ANA1#

*195

 1
90430-35001

2AZFE..ANA1#

*194

 1
90430-37004

2AZFE..ANA1#

 1
90430-35001

2AZFE..ANA1#

*194

 1
12281A - HANGER, ENGINE, NO.1
12281-0H010

2AZFE..ANA1#

(L),*194

 1
12281-28010

2AZFE..ANA1#

(J),*194

 1
12281-0H010

2AZFE..ANA1#

(L),*194

 1
12281-28010

2AZFE..ANA1#

(J),*195

 1
12281-0H010

2AZFE..ANA1#

(L),*195

 1
12282D - HANGER, ENGINE, NO.2
12282-0H010

2AZFE..ANA1#

(L),*195

 1
12282-0H010

2AZFE..ANA1#

(L),*194

 1
12282-28010

2AZFE..ANA1#

(J),*195

 1
12282-28010

2AZFE..ANA1#

(J),*194

 1
12282-0H010

2AZFE..ANA1#

(L),*194

 1
12601B - COVER SUB-ASSY, ENGINE, NO.1
12601-28190

2AZFE..ANA1#..240,240G,ARIAL

 1
Common parts
90105-C0027
90105-C0073
90105-C0076
90116-06048
90126-06014
90176-06045
90178-C0038
91511-B0614
91551-80614
91551-A0632
91552-81020
91621-J0612
94150-80640
G1917-32010
