ANA10-AWXGK (2007)

Toyota Mark X Zio

Production Sep 2007 - Feb 2011
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0709- )240F,240G,350G

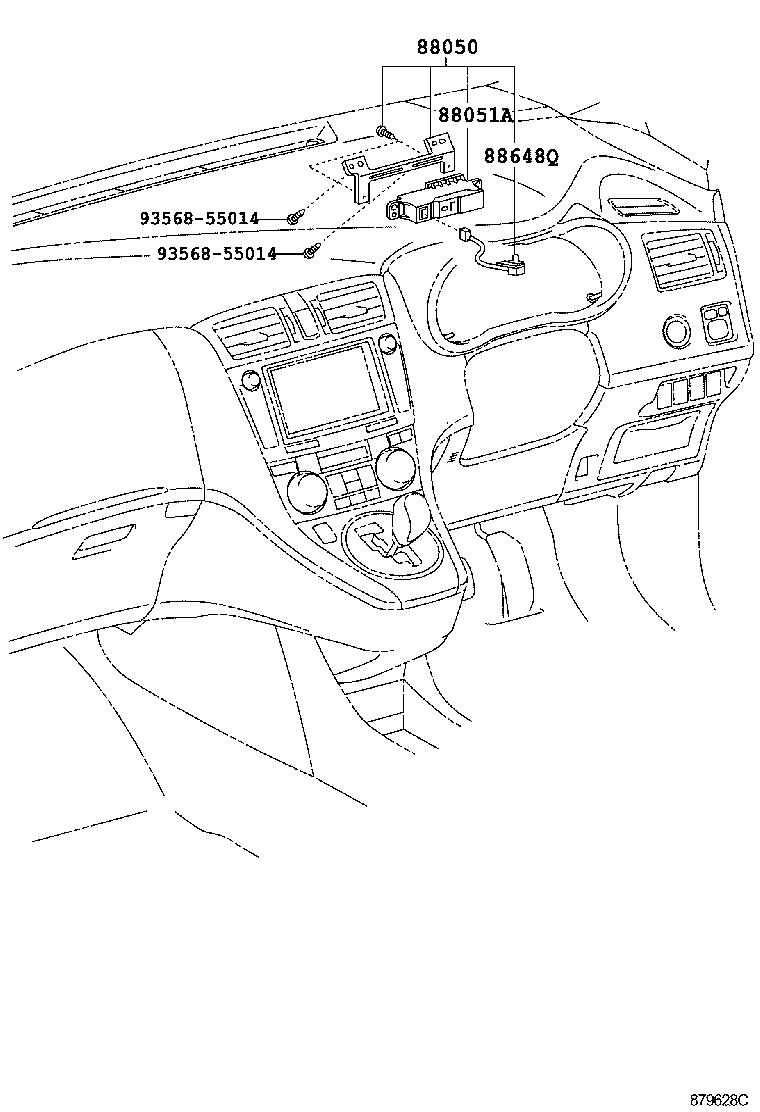

Click highlighted areas on diagram

diagram 88050 88051A 88648Q 9356855014 9356855014
Part # Description Qty Price
88050 - GENERATOR ASSY, ION
88050-72010

ANA1#..240F

 1
88051A - GENERATOR SUB-ASSY,ION
88051-12010

ANA1#..240F

 1
88648Q - WIRE, AIR CONDITIONER NO.1
88648-72010

ANA1#..240F

 1
Common parts
93568-55014
