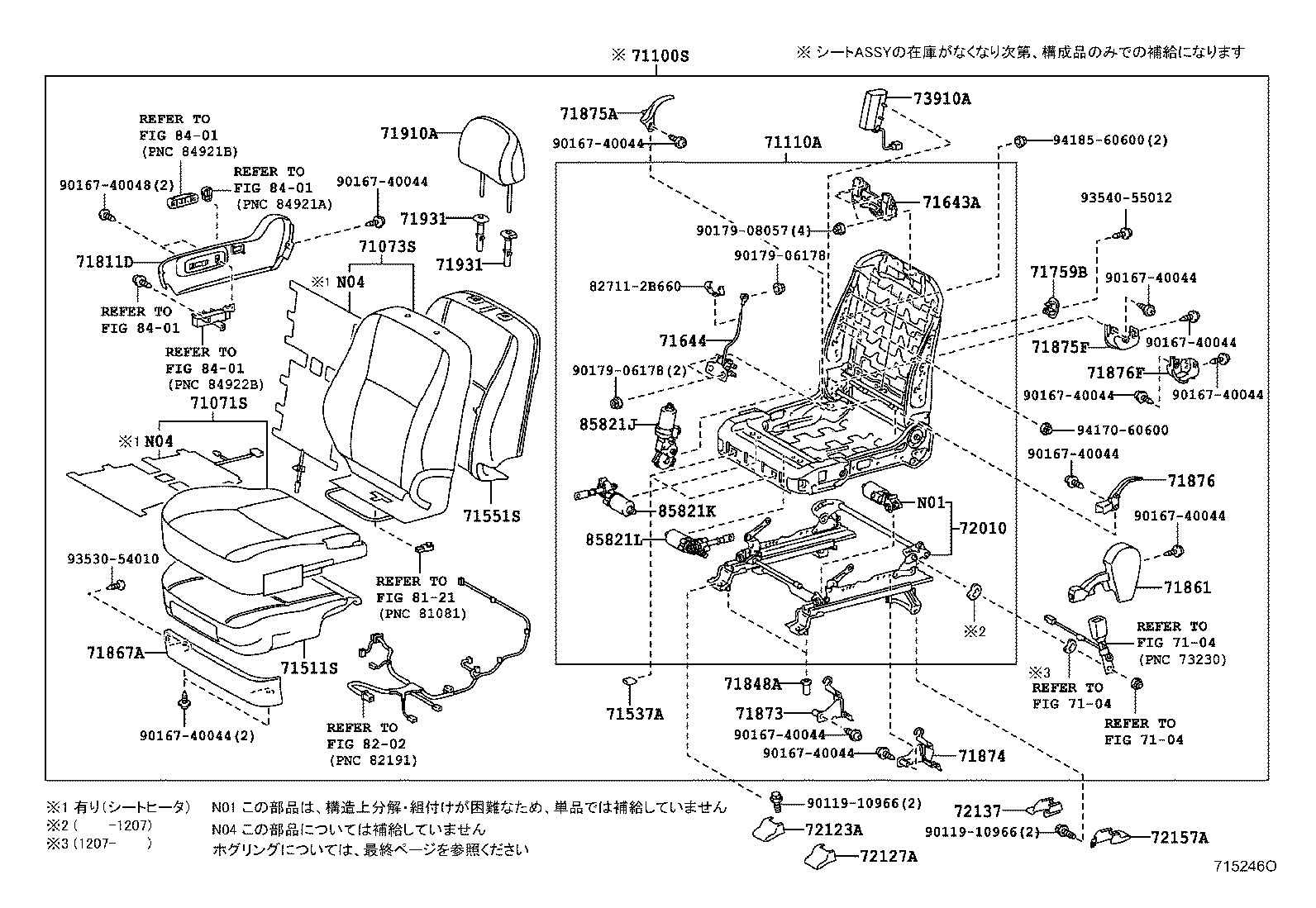

ANA10-AWXGK (2007)
Toyota Mark X Zio
(0709- )240,240F,ARIAL
ｳﾝﾃﾝｾｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-72020B0 |
ANA1#..240F..CBU GRAY,TRIM1# |
1 | ||
| 71071-72030B1 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,GRAY,TRIM1# |
1 | ||
| 71071-72020E0 |
ANA1#..240F..CBU PLUM BROWN,TRIM4# |
1 | ||
| 71071-72020B1 |
ANA1#..240F..CBU MD.GRAY,TRIM1# |
1 | ||
| 71071-72010E0 |
ANA1#..240 PLUM BROWN,TRIM4# |
1 | ||
| 71071-72030B2 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,MD.GRAY,TRIM1# |
1 | ||
| 71071-72010B2 |
ANA1#..240 MD.GRAY,TRIM1# |
1 | ||
| 71071-72030E1 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71071-72010B1 |
ANA1#..240 GRAY,TRIM1# |
1 | ||
| 71071-72030B2 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71071-72030B2 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71071-72030E1 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71071-72030E1 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,PLUMBROWN,TRIM4# |
1 | ||
| 71071-72011B2 |
ANA1#..240 MD.GRAY,TRIM1# |
1 | ||
| 71071-72021E0 |
ANA1#..240F..CBU PLUM,TRIM4# |
1 | ||
| 71071-72031B2 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71071-72031B2 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,MD.GRAY,TRIM1# |
1 | ||
| 71071-72021B1 |
ANA1#..240F..CBU MD.GRAY,TRIM1# |
1 | ||
| 71071-72011E0 |
ANA1#..240 PLUM,TRIM4# |
1 | ||
| 71071-72031E1 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 71071-72031B2 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71071-72031E1 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 71071-72070B0 |
ANA1#..240 5人乗り,DK.GREY,TRIM1#,2# |
1 | ||
| 71071-72070B0 |
ANA1#..240 240“E−Selection” *(Z),DK.GREY,TRIM1#,2# |
1 | ||
| 71071-72031E1 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,PLUM,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-72041B1 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,MD.GRAY,TRIM1# |
1 | ||
| 71073-72010B2 |
ANA1#..240 GRAY,TRIM1# |
1 | ||
| 71073-72040E0 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,PLUMBROWN,TRIM4# |
1 | ||
| 71073-72010E1 |
ANA1#..240 PLUM BROWN,TRIM4# |
1 | ||
| 71073-72040B0 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,GRAY,TRIM1# |
1 | ||
| 71073-72010B3 |
ANA1#..240 MD.GRAY,TRIM1# |
1 | ||
| 71073-72020B1 |
ANA1#..240F..CBU GRAY,TRIM1# |
1 | ||
| 71073-72040B1 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71073-72020B2 |
ANA1#..240F..CBU MD.GRAY,TRIM1# |
1 | ||
| 71073-72020E1 |
ANA1#..240F..CBU PLUM BROWN,TRIM4# |
1 | ||
| 71073-72040E0 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71073-72040E0 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71073-72070B0 |
ANA1#..240 240“E−Selection” *(Z),DK.GREY,TRIM1#,2# |
1 | ||
| 71073-72040B1 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,MD.GRAY,TRIM1# |
1 | ||
| 71073-72040B1 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71073-72011E1 |
ANA1#..240 PLUM,TRIM4# |
1 | ||
| 71073-72041B1 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71073-72021E1 |
ANA1#..240F..CBU PLUM,TRIM4# |
1 | ||
| 71073-72041E0 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 71073-72011B3 |
ANA1#..240 MD.GRAY,TRIM1# |
1 | ||
| 71073-72041E0 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 71073-72041E0 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,PLUM,TRIM4# |
1 | ||
| 71073-72070B0 |
ANA1#..240 5人乗り,DK.GREY,TRIM1#,2# |
1 | ||
| 71073-72021B2 |
ANA1#..240F..CBU MD.GRAY,TRIM1# |
1 | ||
| 71073-72041B1 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71100S - SEAT ASSY, FRONT RH | ||||
| 71100-72020B2 |
ANA1#..240F..CBU GRAY,TRIM1# |
1 | ||
| 71100-72030E2 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,PLUMBROWN,TRIM4# |
1 | ||
| 71100-72020E2 |
ANA1#..240F..CBU PLUM BROWN,TRIM4# |
1 | ||
| 71100-72010E2 |
ANA1#..240 PLUM BROWN,TRIM4# |
1 | ||
| 71100-72010B3 |
ANA1#..240 GRAY,TRIM1# |
1 | ||
| 71100-72030B2 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,GRAY,TRIM1# |
1 | ||
| 71100-72010E3 |
ANA1#..240 PLUM BROWN,TRIM4# |
1 | ||
| 71100-72030E4 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71100-72030B7 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,MD.GRAY,TRIM1# |
1 | ||
| 71100-72020E5 |
ANA1#..240F..CBU PLUM BROWN,TRIM4# |
1 | ||
| 71100-72030B7 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71100-72030E4 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,PLUMBROWN,TRIM4# |
1 | ||
| 71100-72020B8 |
ANA1#..240F..CBU MD.GRAY,TRIM1# |
1 | ||
| 71100-72030E4 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71100-72030B7 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71100-72011B0 |
ANA1#..240 MD.GRAY,TRIM1# |
1 | ||
| 71100-72010B7 |
ANA1#..240 MD.GRAY,TRIM1# |
1 | ||
| 71100-72011E0 |
ANA1#..240 PLUM,TRIM4# |
1 | ||
| 71100-72090C0 |
ANA1#..240 240“E−Selection” *(Z),BLACK,TRIM2# |
1 | ||
| 71100-72031B0 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71100-72031E0 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,PLUM,TRIM4# |
1 | ||
| 71100-72021B0 |
ANA1#..240F..CBU MD.GRAY,TRIM1# |
1 | ||
| 71100-72021E0 |
ANA1#..240F..CBU PLUM,TRIM4# |
1 | ||
| 71100-72031E0 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 71100-72031B0 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71100-72090C0 |
ANA1#..240 5人乗り,BLACK,TRIM2# |
1 | ||
| 71100-72031E0 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 71100-72031B0 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,MD.GRAY,TRIM1# |
1 | ||
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-72020 |
ANA1#..(240F,ARIAL)..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ |
1 | ||
| 71110-72020 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ |
1 | ||
| 71110-72010 |
ANA1#..(240,240F,ARIAL)..CBU |
1 | ||
| 71110-72020 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-72010 |
ANA1#..(240,240F,ARIAL)..CBU |
1 | ||
| 71511-72020 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ |
1 | ||
| 71511-72020 |
ANA1#..(240F,ARIAL)..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ |
1 | ||
| 71511-72020 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ |
2 | ||
| 71537-26010 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ |
2 | ||
| 71537-26010 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ |
2 | ||
| 71537-26010 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ |
2 | ||
| 71537-26010 |
ANA1#..(240,240F,ARIAL)..CBU |
4 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 71643A - UNIT, ACTIVE HEADREST, UPR | ||||
| 71643-12011 |
ANA1#,GGA10..CBU |
2 | ||
| 71643-12011 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ |
1 | ||
| 71643-12011 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ |
1 | ||
| 71643-12011 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ |
1 | ||
| 71643-12011 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ |
1 | ||
| 71644 - UNIT, ACTIVE HEADREST, LWR | ||||
| 71644-12030 |
ANA1#,GGA10..CBU |
2 | ||
| 71644-12030 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ |
1 | ||
| 71644-12030 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ |
1 | ||
| 71644-12030 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ |
1 | ||
| 71644-12030 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ |
1 | ||
| 71759B - HOOK, FRONT SEAT BACK | ||||
| 71759-28050E1 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU PLUM BROWN,TRIM4# |
1 | ||
| 71759-28050B2 |
ANA1#..240 MD.GRAY,TRIM1# |
1 | ||
| 71759-28050B1 |
ANA1#,GGA10..CBU GRAY,TRIM1# |
1 | ||
| 71759-28050B2 |
ANA1#,GGA10..(240F,240G,350G)..CBU MD.GRAY,TRIM1# |
1 | ||
| 71759-28050B0 |
ANA1#..240 DK.GRAY,TRIM15,2# |
1 | ||
| 71759-28050B2 |
ANA1#..240 MD.GRAY,TRIM15 |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-28360B2 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,DK.GRAY,TRIM1# |
1 | ||
| 71811-28360B2 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71811-28360E1 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,PLUMBROWN,TRIM4# |
1 | ||
| 71811-28360B2 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71811-42090E2 |
ANA1#..(240,240F)..CBU PLUM BROWN,TRIM4# |
1 | ||
| 71811-28360B0 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,GRAY,TRIM1# |
1 | ||
| 71811-42090B0 |
ANA1#..240,ARIAL DK.GRAY,TRIM1#,2# |
1 | ||
| 71811-42090B1 |
ANA1#..(240,240F)..CBU GRAY,TRIM1# |
1 | ||
| 71811-42090B0 |
ANA1#..240F..CBU DK.GRAY,TRIM1# |
1 | ||
| 71811-28360E1 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71811-28360E1 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-26010 |
ANA1#,GGA10..CBU |
2 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-12280B1 |
ANA1#..(240,240F)..CBU GRAY,TRIM1# |
1 | ||
| 71861-12280E2 |
ANA1#..(240,240F)..CBU PLUM BROWN,TRIM4# |
1 | ||
| 71861-33070E2 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,PLUMBROWN,TRIM4# |
1 | ||
| 71861-33070B0 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71861-12280B0 |
ANA1#..240F..CBU DK.GRAY,TRIM1# |
1 | ||
| 71861-33070B1 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,GRAY,TRIM1# |
1 | ||
| 71861-12280B0 |
ANA1#..240,ARIAL DK.GRAY,TRIM1#,2# |
1 | ||
| 71861-33070B0 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,DK.GRAY,TRIM1# |
1 | ||
| 71861-33070E2 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71861-33070E2 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71861-33070B0 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71861B - CLIP(FOR FRONT SEAT SHIELD, RH) | ||||
| 71769-33020 |
ANA1#..(240,240F,ARIAL)..CBU |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-12040 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ |
1 | ||
| 71873-12040 |
ANA1#..(240F,ARIAL)..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ |
1 | ||
| 71873-12040 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ |
1 | ||
| 71873-42030 |
ANA1#..(240,240F,ARIAL)..CBU |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-12040 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ |
1 | ||
| 71874-42020 |
ANA1#..(240,240F,ARIAL)..CBU |
1 | ||
| 71874-12040 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ |
1 | ||
| 71874-12040 |
ANA1#..(240F,ARIAL)..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-42050B0 |
ANA1#..240F..CBU DK.GRAY,TRIM1# |
1 | ||
| 71875-42050B1 |
ANA1#..(240,240F)..CBU GRAY,TRIM1# |
1 | ||
| 71875-58030B2 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71875-58030B5 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,GRAY,TRIM1# |
1 | ||
| 71875-58030B2 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71875-58030B2 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,DK.GRAY,TRIM1# |
1 | ||
| 71875-58030E3 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,PLUMBROWN,TRIM4# |
1 | ||
| 71875-58030E3 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71875-42050E1 |
ANA1#..(240,240F)..CBU PLUM BROWN,TRIM4# |
1 | ||
| 71875-58030E3 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71875-42050B0 |
ANA1#..240,ARIAL DK.GRAY,TRIM1#,2# |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-58060 |
ANA1#..(240,240F,ARIAL)..CBU |
1 | ||
| 71875-58050 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ |
1 | ||
| 71875-58050 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ |
1 | ||
| 71875-58050 |
ANA1#..(240F,ARIAL)..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-42050B1 |
ANA1#..(240,240F)..CBU GRAY,TRIM1# |
1 | ||
| 71875-60150B5 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,GRAY,TRIM1# |
1 | ||
| 71875-60150B0 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71875-60150E5 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71875-60150B0 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,DK.GRAY,TRIM1# |
1 | ||
| 71875-60150B0 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71876-42050E1 |
ANA1#..(240,240F)..CBU PLUM BROWN,TRIM4# |
1 | ||
| 71875-60150E5 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71875-60150E5 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,PLUMBROWN,TRIM4# |
1 | ||
| 71876-42050B0 |
ANA1#..240,ARIAL DK.GRAY,TRIM1#,2# |
1 | ||
| 71876-42050B0 |
ANA1#..240F..CBU DK.GRAY,TRIM1# |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71876-58050 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ |
1 | ||
| 71876-58050 |
ANA1#..(240F,ARIAL)..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ |
1 | ||
| 71876-58060 |
ANA1#..(240,240F,ARIAL)..CBU |
1 | ||
| 71876-58050 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-72020B1 |
ANA1#,GGA10..(240F,240G,350G)..CBU GRAY,TRIM1# |
2 | ||
| 71910-72020B1 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,GRAY,TRIM1# |
1 | ||
| 71910-72020B3 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,MEDIUM GRAY,TRIM1# |
1 | ||
| 71910-72020B3 |
ANA1#,GGA10..(240F,240G,350G)..CBU MEDIUM GRAY,TRIM1# |
2 | ||
| 71910-72010B2 |
ANA1#..240 GRAY,TRIM1# |
2 | ||
| 71910-72020E1 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71910-72020E1 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71910-72020E1 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71910-72020B3 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,MEDIUM GRAY,TRIM1# |
1 | ||
| 71910-72010E1 |
ANA1#..240 PLUM BROWN,TRIM4# |
2 | ||
| 71910-72020E1 |
ANA1#,GGA10..(240F,240G,350G)..CBU PLUM BROWN,TRIM4# |
2 | ||
| 71910-72020B3 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,MEDIUM GRAY,TRIM1# |
1 | ||
| 71910-72020B3 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,MEDIUM GRAY,TRIM1# |
1 | ||
| 71910-72060B0 |
ANA1#..240 240“E−Selection” *(Z),DK.GRAY,TRIM1#,2# |
2 | ||
| 71910-72010B3 |
ANA1#..240 MEDIUM GRAY,TRIM1# |
2 | ||
| 71910-72021B3 |
ANA1#,GGA10..(240F,240G,350G)..CBU MD.GRAY,TRIM1# |
2 | ||
| 71910-72021B3 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71910-72020E1 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71910-72021B3 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71910-72021E1 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 71910-72021E1 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 71910-72021E1 |
ANA1#,GGA10..(240F,240G,350G)..CBU PLUM,TRIM4# |
2 | ||
| 71910-72021E1 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 71910-72021E1 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 71910-72021B3 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71910-72060B0 |
ANA1#..240 5人乗り,DK.GRAY,TRIM1#,2# |
2 | ||
| 71910-72021B3 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-42020B7 |
ANA1#,GGA10..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),GRAY,TRIM1# |
2 | ||
| 71930-52030B1 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,GRAY,TRIM1# |
1 | ||
| 71930-52030B1 |
ANA1#,GGA10..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1# |
2 | ||
| 71931-42020B7 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,GRAY,TRIM1# |
1 | ||
| 71931-42020E8 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),PLUM BROWN,TRIM4# |
2 | ||
| 71930-52030E2 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),PLUM,TRIM4# |
2 | ||
| 71930-52030E2 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 71930-52030E2 |
ANA10..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)父tﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 71930-52030E2 |
ANA10..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)父tﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 71930-52030B7 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71930-52030E2 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 71930-52030B7 |
ANA10..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)父tﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71931-42020E8 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71931-42020B6 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),MD.GRAY,TRIM1# |
2 | ||
| 71930-52030B7 |
ANA10..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)父tﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71930-52030B7 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),MD.GRAY,TRIM1# |
2 | ||
| 71930-52030B7 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71931-42020B6 |
ANA10..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)父tﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71930-52030B0 |
ANA1#..240 ﾛｯｸ付(ﾎﾞﾀﾝ有り),240“E−Selection” *(Z),DK.GRAY,TRIM1#,2# |
2 | ||
| 71931-42020B6 |
ANA10..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)父tﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71931-42020B6 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71931-42020B4 |
ANA1#..240 ﾛｯｸ付(ﾎﾞﾀﾝ無し),240“E−Selection” *(Z),DK.GRAY,TRIM1#,2# |
2 | ||
| 71931-42020E8 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71931-42020E8 |
ANA10..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)父tﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71931-42020B4 |
ANA1#..240 ﾛｯｸ付(ﾎﾞﾀﾝ無し),5人乗り,DK.GRAY,TRIM1#,2# |
2 | ||
| 71931-42020E8 |
ANA10..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)父tﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71930-52030B0 |
ANA1#..240 ﾛｯｸ付(ﾎﾞﾀﾝ有り),5人乗り,DK.GRAY,TRIM1#,2# |
2 | ||
| 71931-42020B6 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-42020B7 |
ANA1#,GGA10..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),GRAY,TRIM1# |
2 | ||
| 71930-52030B1 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,GRAY,TRIM1# |
1 | ||
| 71930-52030B1 |
ANA1#,GGA10..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1# |
2 | ||
| 71931-42020B7 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,GRAY,TRIM1# |
1 | ||
| 71931-42020E8 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),PLUM BROWN,TRIM4# |
2 | ||
| 71930-52030E2 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),PLUM,TRIM4# |
2 | ||
| 71930-52030E2 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 71930-52030E2 |
ANA10..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)父tﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 71930-52030E2 |
ANA10..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)父tﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 71930-52030B7 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71930-52030E2 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 71930-52030B7 |
ANA10..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)父tﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71931-42020E8 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71931-42020B6 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),MD.GRAY,TRIM1# |
2 | ||
| 71930-52030B7 |
ANA10..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)父tﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71930-52030B7 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),MD.GRAY,TRIM1# |
2 | ||
| 71930-52030B7 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71931-42020B6 |
ANA10..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)父tﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71930-52030B0 |
ANA1#..240 ﾛｯｸ付(ﾎﾞﾀﾝ有り),240“E−Selection” *(Z),DK.GRAY,TRIM1#,2# |
2 | ||
| 71931-42020B6 |
ANA10..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)父tﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71931-42020B6 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71931-42020B4 |
ANA1#..240 ﾛｯｸ付(ﾎﾞﾀﾝ無し),240“E−Selection” *(Z),DK.GRAY,TRIM1#,2# |
2 | ||
| 71931-42020E8 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71931-42020E8 |
ANA10..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)父tﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71931-42020B4 |
ANA1#..240 ﾛｯｸ付(ﾎﾞﾀﾝ無し),5人乗り,DK.GRAY,TRIM1#,2# |
2 | ||
| 71931-42020E8 |
ANA10..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)父tﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71930-52030B0 |
ANA1#..240 ﾛｯｸ付(ﾎﾞﾀﾝ有り),5人乗り,DK.GRAY,TRIM1#,2# |
2 | ||
| 71931-42020B6 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-72010C0 |
ANA1#..240F..CBU BLACK,TRIM1#,4# |
1 | ||
| 72123-72010C0 |
ANA1#..240,ARIAL BLACK,TRIM1#,2#,4# |
1 | ||
| 72123-72020C0 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,BLACK,TRIM1#,4# |
1 | ||
| 72123-72020C0 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,BLACK,TRIM1#,4# |
1 | ||
| 72123-72020C0 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,BLACK,TRIM1#,4# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-72020C0 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,BLACK,TRIM1#,4# |
1 | ||
| 72127-72020C0 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,BLACK,TRIM1#,4# |
1 | ||
| 72127-72010C0 |
ANA1#..240,ARIAL BLACK,TRIM1#,2#,4# |
1 | ||
| 72127-72010C0 |
ANA1#..240F..CBU BLACK,TRIM1#,4# |
1 | ||
| 72127-72020C0 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,BLACK,TRIM1#,4# |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-72020C0 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,BLACK,TRIM1#,4# |
1 | ||
| 72137-72020C0 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,BLACK,TRIM1#,4# |
1 | ||
| 72137-72010C0 |
ANA1#..240,ARIAL BLACK,TRIM1#,2#,4# |
1 | ||
| 72137-72010C0 |
ANA1#..240F..CBU BLACK,TRIM1#,4# |
1 | ||
| 72137-72020C0 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,BLACK,TRIM1#,4# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-72020C0 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,BLACK,TRIM1#,4# |
1 | ||
| 72157-72010C0 |
ANA1#..240F..CBU BLACK,TRIM1#,4# |
1 | ||
| 72157-72010C0 |
ANA1#..240,ARIAL BLACK,TRIM1#,2#,4# |
1 | ||
| 72157-72020C0 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,BLACK,TRIM1#,4# |
1 | ||
| 72157-72020C0 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,BLACK,TRIM1#,4# |
1 | ||
| 72462 - COVER, VERTICAL ADJUSTER RH | ||||
| 72462-42010B1 |
ANA1#..(240,240F)..CBU GRAY,TRIM1# |
1 | ||
| 72462-42010E3 |
ANA1#..(240,240F)..CBU PLUM BROWN,TRIM4# |
1 | ||
| 72462-42010B0 |
ANA1#..240F..CBU DK.GRAY,TRIM1# |
1 | ||
| 72462-42010B0 |
ANA1#..240,ARIAL DK.GRAY,TRIM1#,2# |
1 | ||
| 72494 - HANDLE, VERTICAL ADJUSTING, RH | ||||
| 72494-42010B0 |
ANA1#..240F..CBU DK.GRAY,TRIM1# |
1 | ||
| 72494-42010E3 |
ANA1#..(240,240F)..CBU PLUM BROWN,TRIM4# |
1 | ||
| 72494-42010B0 |
ANA1#..240,ARIAL DK.GRAY,TRIM1#,2# |
1 | ||
| 72494-42010B1 |
ANA1#..(240,240F)..CBU GRAY,TRIM1# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-42020B1 |
ANA1#..(240,240F)..CBU GRAY,TRIM1# |
1 | ||
| 72525-42020E3 |
ANA1#..(240,240F)..CBU PLUM BROWN,TRIM4# |
1 | ||
| 72525-42020B0 |
ANA1#..240F..CBU DK.GRAY,TRIM1# |
1 | ||
| 72525-42020B0 |
ANA1#..240,ARIAL DK.GRAY,TRIM1#,2# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-12080 |
ANA1#,GGA10..CBU |
1 | ||
| Common parts | ||||
| 82711-2B660 | ||||
| 90119-10966 | ||||
| 90167-40044 | ||||
| 90168-50078 | ||||
| 90179-06178 | ||||
| 90179-08057 | ||||
| 93540-55012 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(0709- )240F,240G,350G,ARIAL
ｳﾝﾃﾝｾｷ-ｱﾘ(ﾊﾟﾜｰｼｰﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-72020B0 |
ANA1#..240F..CBU GRAY,TRIM1# |
1 | ||
| 71071-72030B1 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,GRAY,TRIM1# |
1 | ||
| 71071-72020E0 |
ANA1#..240F..CBU PLUM BROWN,TRIM4# |
1 | ||
| 71071-72020B1 |
ANA1#..240F..CBU MD.GRAY,TRIM1# |
1 | ||
| 71071-72010E0 |
ANA1#..240 PLUM BROWN,TRIM4# |
1 | ||
| 71071-72030B2 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,MD.GRAY,TRIM1# |
1 | ||
| 71071-72010B2 |
ANA1#..240 MD.GRAY,TRIM1# |
1 | ||
| 71071-72030E1 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71071-72010B1 |
ANA1#..240 GRAY,TRIM1# |
1 | ||
| 71071-72030B2 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71071-72030B2 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71071-72030E1 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71071-72030E1 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,PLUMBROWN,TRIM4# |
1 | ||
| 71071-72011B2 |
ANA1#..240 MD.GRAY,TRIM1# |
1 | ||
| 71071-72021E0 |
ANA1#..240F..CBU PLUM,TRIM4# |
1 | ||
| 71071-72031B2 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71071-72031B2 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,MD.GRAY,TRIM1# |
1 | ||
| 71071-72021B1 |
ANA1#..240F..CBU MD.GRAY,TRIM1# |
1 | ||
| 71071-72011E0 |
ANA1#..240 PLUM,TRIM4# |
1 | ||
| 71071-72031E1 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 71071-72031B2 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71071-72031E1 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 71071-72070B0 |
ANA1#..240 5人乗り,DK.GREY,TRIM1#,2# |
1 | ||
| 71071-72070B0 |
ANA1#..240 240“E−Selection” *(Z),DK.GREY,TRIM1#,2# |
1 | ||
| 71071-72031E1 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,PLUM,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-72010B2 |
ANA1#..240 GRAY,TRIM1# |
1 | ||
| 71073-72040E0 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,PLUMBROWN,TRIM4# |
1 | ||
| 71073-72010E1 |
ANA1#..240 PLUM BROWN,TRIM4# |
1 | ||
| 71073-72040B0 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,GRAY,TRIM1# |
1 | ||
| 71073-72010B3 |
ANA1#..240 MD.GRAY,TRIM1# |
1 | ||
| 71073-72020B1 |
ANA1#..240F..CBU GRAY,TRIM1# |
1 | ||
| 71073-72040B1 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71073-72020B2 |
ANA1#..240F..CBU MD.GRAY,TRIM1# |
1 | ||
| 71073-72020E1 |
ANA1#..240F..CBU PLUM BROWN,TRIM4# |
1 | ||
| 71073-72040E0 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71073-72040E0 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71073-72070B0 |
ANA1#..240 240“E−Selection” *(Z),DK.GREY,TRIM1#,2# |
1 | ||
| 71073-72040B1 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,MD.GRAY,TRIM1# |
1 | ||
| 71073-72040B1 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71073-72011E1 |
ANA1#..240 PLUM,TRIM4# |
1 | ||
| 71073-72041B1 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71073-72021E1 |
ANA1#..240F..CBU PLUM,TRIM4# |
1 | ||
| 71073-72041E0 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 71073-72011B3 |
ANA1#..240 MD.GRAY,TRIM1# |
1 | ||
| 71073-72041E0 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 71073-72041E0 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,PLUM,TRIM4# |
1 | ||
| 71073-72070B0 |
ANA1#..240 5人乗り,DK.GREY,TRIM1#,2# |
1 | ||
| 71073-72021B2 |
ANA1#..240F..CBU MD.GRAY,TRIM1# |
1 | ||
| 71073-72041B1 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,MD.GRAY,TRIM1# |
1 | ||
| 71073-72041B1 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71100S - SEAT ASSY, FRONT RH | ||||
| 71100-72020B2 |
ANA1#..240F..CBU GRAY,TRIM1# |
1 | ||
| 71100-72030E2 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,PLUMBROWN,TRIM4# |
1 | ||
| 71100-72020E2 |
ANA1#..240F..CBU PLUM BROWN,TRIM4# |
1 | ||
| 71100-72010E2 |
ANA1#..240 PLUM BROWN,TRIM4# |
1 | ||
| 71100-72010B3 |
ANA1#..240 GRAY,TRIM1# |
1 | ||
| 71100-72030B2 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,GRAY,TRIM1# |
1 | ||
| 71100-72010E3 |
ANA1#..240 PLUM BROWN,TRIM4# |
1 | ||
| 71100-72030E4 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71100-72030B7 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,MD.GRAY,TRIM1# |
1 | ||
| 71100-72020E5 |
ANA1#..240F..CBU PLUM BROWN,TRIM4# |
1 | ||
| 71100-72030B7 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71100-72030E4 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,PLUMBROWN,TRIM4# |
1 | ||
| 71100-72020B8 |
ANA1#..240F..CBU MD.GRAY,TRIM1# |
1 | ||
| 71100-72030E4 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71100-72030B7 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71100-72011B0 |
ANA1#..240 MD.GRAY,TRIM1# |
1 | ||
| 71100-72010B7 |
ANA1#..240 MD.GRAY,TRIM1# |
1 | ||
| 71100-72011E0 |
ANA1#..240 PLUM,TRIM4# |
1 | ||
| 71100-72090C0 |
ANA1#..240 240“E−Selection” *(Z),BLACK,TRIM2# |
1 | ||
| 71100-72031B0 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71100-72031E0 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,PLUM,TRIM4# |
1 | ||
| 71100-72021B0 |
ANA1#..240F..CBU MD.GRAY,TRIM1# |
1 | ||
| 71100-72021E0 |
ANA1#..240F..CBU PLUM,TRIM4# |
1 | ||
| 71100-72031E0 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 71100-72031B0 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71100-72090C0 |
ANA1#..240 5人乗り,BLACK,TRIM2# |
1 | ||
| 71100-72031E0 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 71100-72031B0 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,MD.GRAY,TRIM1# |
1 | ||
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-72020 |
ANA1#..(240F,ARIAL)..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ |
1 | ||
| 71110-72020 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ |
1 | ||
| 71110-72010 |
ANA1#..(240,240F,ARIAL)..CBU |
1 | ||
| 71110-72020 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-72010 |
ANA1#..(240,240F,ARIAL)..CBU |
1 | ||
| 71511-72020 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ |
1 | ||
| 71511-72020 |
ANA1#..(240F,ARIAL)..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ |
1 | ||
| 71511-72020 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ |
2 | ||
| 71537-26010 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ |
2 | ||
| 71537-26010 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ |
2 | ||
| 71537-26010 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ |
2 | ||
| 71537-26010 |
ANA1#..(240,240F,ARIAL)..CBU |
4 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 71643A - UNIT, ACTIVE HEADREST, UPR | ||||
| 71643-12011 |
ANA1#,GGA10..CBU |
2 | ||
| 71643-12011 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ |
1 | ||
| 71643-12011 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ |
1 | ||
| 71643-12011 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ |
1 | ||
| 71643-12011 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ |
1 | ||
| 71644 - UNIT, ACTIVE HEADREST, LWR | ||||
| 71644-12030 |
ANA1#,GGA10..CBU |
2 | ||
| 71644-12030 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ |
1 | ||
| 71644-12030 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ |
1 | ||
| 71644-12030 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ |
1 | ||
| 71644-12030 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ |
1 | ||
| 71759B - HOOK, FRONT SEAT BACK | ||||
| 71759-28050E1 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU PLUM BROWN,TRIM4# |
1 | ||
| 71759-28050B2 |
ANA1#..240 MD.GRAY,TRIM1# |
1 | ||
| 71759-28050B1 |
ANA1#,GGA10..CBU GRAY,TRIM1# |
1 | ||
| 71759-28050B2 |
ANA1#,GGA10..(240F,240G,350G)..CBU MD.GRAY,TRIM1# |
1 | ||
| 71759-28050B0 |
ANA1#..240 DK.GRAY,TRIM15,2# |
1 | ||
| 71759-28050B2 |
ANA1#..240 MD.GRAY,TRIM15 |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-28360B2 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,DK.GRAY,TRIM1# |
1 | ||
| 71811-28360B2 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71811-28360E1 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,PLUMBROWN,TRIM4# |
1 | ||
| 71811-28360B2 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71811-42090E2 |
ANA1#..(240,240F)..CBU PLUM BROWN,TRIM4# |
1 | ||
| 71811-28360B0 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,GRAY,TRIM1# |
1 | ||
| 71811-42090B0 |
ANA1#..240,ARIAL DK.GRAY,TRIM1#,2# |
1 | ||
| 71811-42090B1 |
ANA1#..(240,240F)..CBU GRAY,TRIM1# |
1 | ||
| 71811-42090B0 |
ANA1#..240F..CBU DK.GRAY,TRIM1# |
1 | ||
| 71811-28360E1 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71811-28360E1 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-26010 |
ANA1#,GGA10..CBU |
2 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-12280B1 |
ANA1#..(240,240F)..CBU GRAY,TRIM1# |
1 | ||
| 71861-12280E2 |
ANA1#..(240,240F)..CBU PLUM BROWN,TRIM4# |
1 | ||
| 71861-33070E2 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,PLUMBROWN,TRIM4# |
1 | ||
| 71861-33070B0 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71861-12280B0 |
ANA1#..240F..CBU DK.GRAY,TRIM1# |
1 | ||
| 71861-33070B1 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,GRAY,TRIM1# |
1 | ||
| 71861-12280B0 |
ANA1#..240,ARIAL DK.GRAY,TRIM1#,2# |
1 | ||
| 71861-33070B0 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,DK.GRAY,TRIM1# |
1 | ||
| 71861-33070E2 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71861-33070E2 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71861-33070B0 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-60020B2 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,DK.GRAY,TRIM1# |
1 | ||
| 71867-60020E1 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71867-60020B2 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71867-60020B3 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,GRAY,TRIM1# |
1 | ||
| 71867-60020B2 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71867-60020E1 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,PLUMBROWN,TRIM4# |
1 | ||
| 71867-60020E1 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-12040 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ |
1 | ||
| 71873-12040 |
ANA1#..(240F,ARIAL)..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ |
1 | ||
| 71873-12040 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ |
1 | ||
| 71873-42030 |
ANA1#..(240,240F,ARIAL)..CBU |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-12040 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ |
1 | ||
| 71874-42020 |
ANA1#..(240,240F,ARIAL)..CBU |
1 | ||
| 71874-12040 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ |
1 | ||
| 71874-12040 |
ANA1#..(240F,ARIAL)..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-42050B0 |
ANA1#..240F..CBU DK.GRAY,TRIM1# |
1 | ||
| 71875-42050B1 |
ANA1#..(240,240F)..CBU GRAY,TRIM1# |
1 | ||
| 71875-58030B2 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71875-58030B5 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,GRAY,TRIM1# |
1 | ||
| 71875-58030B2 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71875-58030B2 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,DK.GRAY,TRIM1# |
1 | ||
| 71875-58030E3 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,PLUMBROWN,TRIM4# |
1 | ||
| 71875-58030E3 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71875-42050E1 |
ANA1#..(240,240F)..CBU PLUM BROWN,TRIM4# |
1 | ||
| 71875-58030E3 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71875-42050B0 |
ANA1#..240,ARIAL DK.GRAY,TRIM1#,2# |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-58060 |
ANA1#..(240,240F,ARIAL)..CBU |
1 | ||
| 71875-58050 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ |
1 | ||
| 71875-58050 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ |
1 | ||
| 71875-58050 |
ANA1#..(240F,ARIAL)..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-42050B1 |
ANA1#..(240,240F)..CBU GRAY,TRIM1# |
1 | ||
| 71875-60150B5 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,GRAY,TRIM1# |
1 | ||
| 71875-60150B0 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71875-60150E5 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71875-60150B0 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,DK.GRAY,TRIM1# |
1 | ||
| 71875-60150B0 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71876-42050E1 |
ANA1#..(240,240F)..CBU PLUM BROWN,TRIM4# |
1 | ||
| 71875-60150E5 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71875-60150E5 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,PLUMBROWN,TRIM4# |
1 | ||
| 71876-42050B0 |
ANA1#..240,ARIAL DK.GRAY,TRIM1#,2# |
1 | ||
| 71876-42050B0 |
ANA1#..240F..CBU DK.GRAY,TRIM1# |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71876-58050 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ |
1 | ||
| 71876-58050 |
ANA1#..(240F,ARIAL)..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ |
1 | ||
| 71876-58060 |
ANA1#..(240,240F,ARIAL)..CBU |
1 | ||
| 71876-58050 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-72020B1 |
ANA1#,GGA10..(240F,240G,350G)..CBU GRAY,TRIM1# |
2 | ||
| 71910-72020B1 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,GRAY,TRIM1# |
1 | ||
| 71910-72020B3 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,MEDIUM GRAY,TRIM1# |
1 | ||
| 71910-72020B3 |
ANA1#,GGA10..(240F,240G,350G)..CBU MEDIUM GRAY,TRIM1# |
2 | ||
| 71910-72010B2 |
ANA1#..240 GRAY,TRIM1# |
2 | ||
| 71910-72020E1 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71910-72020E1 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71910-72020E1 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71910-72020B3 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,MEDIUM GRAY,TRIM1# |
1 | ||
| 71910-72010E1 |
ANA1#..240 PLUM BROWN,TRIM4# |
2 | ||
| 71910-72020E1 |
ANA1#,GGA10..(240F,240G,350G)..CBU PLUM BROWN,TRIM4# |
2 | ||
| 71910-72020B3 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,MEDIUM GRAY,TRIM1# |
1 | ||
| 71910-72020B3 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,MEDIUM GRAY,TRIM1# |
1 | ||
| 71910-72060B0 |
ANA1#..240 240“E−Selection” *(Z),DK.GRAY,TRIM1#,2# |
2 | ||
| 71910-72010B3 |
ANA1#..240 MEDIUM GRAY,TRIM1# |
2 | ||
| 71910-72021B3 |
ANA1#,GGA10..(240F,240G,350G)..CBU MD.GRAY,TRIM1# |
2 | ||
| 71910-72021B3 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71910-72020E1 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71910-72021B3 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71910-72021E1 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 71910-72021E1 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 71910-72021E1 |
ANA1#,GGA10..(240F,240G,350G)..CBU PLUM,TRIM4# |
2 | ||
| 71910-72021E1 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 71910-72021E1 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 71910-72021B3 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71910-72060B0 |
ANA1#..240 5人乗り,DK.GRAY,TRIM1#,2# |
2 | ||
| 71910-72021B3 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-42020B7 |
ANA1#,GGA10..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),GRAY,TRIM1# |
2 | ||
| 71930-52030B1 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,GRAY,TRIM1# |
1 | ||
| 71930-52030B1 |
ANA1#,GGA10..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1# |
2 | ||
| 71931-42020B7 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,GRAY,TRIM1# |
1 | ||
| 71931-42020E8 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),PLUM BROWN,TRIM4# |
2 | ||
| 71930-52030E2 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),PLUM,TRIM4# |
2 | ||
| 71930-52030E2 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 71930-52030E2 |
ANA10..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)父tﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 71930-52030E2 |
ANA10..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)父tﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 71930-52030B7 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71930-52030E2 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 71930-52030B7 |
ANA10..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)父tﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71931-42020E8 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71931-42020B6 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),MD.GRAY,TRIM1# |
2 | ||
| 71930-52030B7 |
ANA10..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)父tﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71930-52030B7 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),MD.GRAY,TRIM1# |
2 | ||
| 71930-52030B7 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71931-42020B6 |
ANA10..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)父tﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71930-52030B0 |
ANA1#..240 ﾛｯｸ付(ﾎﾞﾀﾝ有り),240“E−Selection” *(Z),DK.GRAY,TRIM1#,2# |
2 | ||
| 71931-42020B6 |
ANA10..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)父tﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71931-42020B6 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71931-42020B4 |
ANA1#..240 ﾛｯｸ付(ﾎﾞﾀﾝ無し),240“E−Selection” *(Z),DK.GRAY,TRIM1#,2# |
2 | ||
| 71931-42020E8 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71931-42020E8 |
ANA10..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)父tﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71931-42020B4 |
ANA1#..240 ﾛｯｸ付(ﾎﾞﾀﾝ無し),5人乗り,DK.GRAY,TRIM1#,2# |
2 | ||
| 71931-42020E8 |
ANA10..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)父tﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71930-52030B0 |
ANA1#..240 ﾛｯｸ付(ﾎﾞﾀﾝ有り),5人乗り,DK.GRAY,TRIM1#,2# |
2 | ||
| 71931-42020B6 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-42020B7 |
ANA1#,GGA10..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),GRAY,TRIM1# |
2 | ||
| 71930-52030B1 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,GRAY,TRIM1# |
1 | ||
| 71930-52030B1 |
ANA1#,GGA10..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1# |
2 | ||
| 71931-42020B7 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,GRAY,TRIM1# |
1 | ||
| 71931-42020E8 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),PLUM BROWN,TRIM4# |
2 | ||
| 71930-52030E2 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),PLUM,TRIM4# |
2 | ||
| 71930-52030E2 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 71930-52030E2 |
ANA10..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)父tﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 71930-52030E2 |
ANA10..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)父tﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 71930-52030B7 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71930-52030E2 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 71930-52030B7 |
ANA10..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)父tﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71931-42020E8 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71931-42020B6 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),MD.GRAY,TRIM1# |
2 | ||
| 71930-52030B7 |
ANA10..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)父tﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71930-52030B7 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),MD.GRAY,TRIM1# |
2 | ||
| 71930-52030B7 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71931-42020B6 |
ANA10..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)父tﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71930-52030B0 |
ANA1#..240 ﾛｯｸ付(ﾎﾞﾀﾝ有り),240“E−Selection” *(Z),DK.GRAY,TRIM1#,2# |
2 | ||
| 71931-42020B6 |
ANA10..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)父tﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71931-42020B6 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71931-42020B4 |
ANA1#..240 ﾛｯｸ付(ﾎﾞﾀﾝ無し),240“E−Selection” *(Z),DK.GRAY,TRIM1#,2# |
2 | ||
| 71931-42020E8 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71931-42020E8 |
ANA10..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)父tﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71931-42020B4 |
ANA1#..240 ﾛｯｸ付(ﾎﾞﾀﾝ無し),5人乗り,DK.GRAY,TRIM1#,2# |
2 | ||
| 71931-42020E8 |
ANA10..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)父tﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71930-52030B0 |
ANA1#..240 ﾛｯｸ付(ﾎﾞﾀﾝ有り),5人乗り,DK.GRAY,TRIM1#,2# |
2 | ||
| 71931-42020B6 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 72010 - ADJUSTER ASSY, FRONT SEAT, RH | ||||
| 72110-72020 |
ANA1#..(240F,ARIAL)..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ |
1 | ||
| 72110-72020 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ |
1 | ||
| 72110-72020 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-72010C0 |
ANA1#..240F..CBU BLACK,TRIM1#,4# |
1 | ||
| 72123-72010C0 |
ANA1#..240,ARIAL BLACK,TRIM1#,2#,4# |
1 | ||
| 72123-72020C0 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,BLACK,TRIM1#,4# |
1 | ||
| 72123-72020C0 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,BLACK,TRIM1#,4# |
1 | ||
| 72123-72020C0 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,BLACK,TRIM1#,4# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-72020C0 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,BLACK,TRIM1#,4# |
1 | ||
| 72127-72020C0 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,BLACK,TRIM1#,4# |
1 | ||
| 72127-72010C0 |
ANA1#..240,ARIAL BLACK,TRIM1#,2#,4# |
1 | ||
| 72127-72010C0 |
ANA1#..240F..CBU BLACK,TRIM1#,4# |
1 | ||
| 72127-72020C0 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,BLACK,TRIM1#,4# |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-72020C0 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,BLACK,TRIM1#,4# |
1 | ||
| 72137-72020C0 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,BLACK,TRIM1#,4# |
1 | ||
| 72137-72010C0 |
ANA1#..240,ARIAL BLACK,TRIM1#,2#,4# |
1 | ||
| 72137-72010C0 |
ANA1#..240F..CBU BLACK,TRIM1#,4# |
1 | ||
| 72137-72020C0 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,BLACK,TRIM1#,4# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-72020C0 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,BLACK,TRIM1#,4# |
1 | ||
| 72157-72010C0 |
ANA1#..240F..CBU BLACK,TRIM1#,4# |
1 | ||
| 72157-72010C0 |
ANA1#..240,ARIAL BLACK,TRIM1#,2#,4# |
1 | ||
| 72157-72020C0 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,BLACK,TRIM1#,4# |
1 | ||
| 72157-72020C0 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,BLACK,TRIM1#,4# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-12080 |
ANA1#,GGA10..CBU |
1 | ||
| 85821J - MOTOR ASSY, POWER SEAT RECLINING, RH | ||||
| 85801-28090 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ |
1 | ||
| 85801-28090 |
ANA1#..(240F,ARIAL)..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ |
1 | ||
| 85801-28090 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ |
1 | ||
| 85821K - MOTOR ASSY, POWER SEAT TILT, RH | ||||
| 85801-28120 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ |
1 | ||
| 85801-28120 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ |
1 | ||
| 85801-28120 |
ANA1#..(240F,ARIAL)..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ |
1 | ||
| 85821L - MOTOR ASSY, POWER SEAT LIFTER, RH | ||||
| 85801-28110 |
ANA1#..(240F,ARIAL)..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ |
1 | ||
| 85801-28110 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ |
1 | ||
| 85801-28110 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ |
1 | ||
| Common parts | ||||
| 82711-2B660 | ||||
| 90119-10966 | ||||
| 90167-40044 | ||||
| 90167-40048 | ||||
| 90179-06178 | ||||
| 90179-08057 | ||||
| 93530-54010 | ||||
| 93540-55012 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8121 | ||||
| 8202 | ||||
| 8401 | ||||
(0709- )240,240F,ARIAL
ｼﾞｮｼｭｾｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-72010B1 |
ANA1#..240 GRAY,TRIM1# |
1 | ||
| 71072-72030B0 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,GRAY,TRIM1# |
1 | ||
| 71072-72020E0 |
ANA1#..240F..CBU PLUM BROWN,TRIM4# |
1 | ||
| 71072-72020B0 |
ANA1#..240F..CBU GRAY,TRIM1# |
1 | ||
| 71072-72010E0 |
ANA1#..240 PLUM BROWN,TRIM4# |
1 | ||
| 71072-72010B2 |
ANA1#..240 MD.GRAY,TRIM1# |
1 | ||
| 71072-72030E0 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,PLUMBROWN,TRIM4# |
1 | ||
| 71072-72020B1 |
ANA1#..240F..CBU MD.GRAY,TRIM1# |
1 | ||
| 71072-72011E0 |
ANA1#..240 PLUM,TRIM4# |
1 | ||
| 71072-72070B0 |
ANA1#..240 240“E−Selection” *(Z),DK.GRAY,TRIM1#,2# |
1 | ||
| 71072-72030B1 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,MD.GRAY,TRIM1# |
1 | ||
| 71072-72011B2 |
ANA1#..240 MD.GRAY,TRIM1# |
1 | ||
| 71072-72031B1 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,MD.GRAY,TRIM1# |
1 | ||
| 71072-72031E0 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,PLUM,TRIM4# |
1 | ||
| 71072-72070B0 |
ANA1#..240 5人乗り,DK.GRAY,TRIM1#,2# |
1 | ||
| 71072-72021E0 |
ANA1#..240F..CBU PLUM,TRIM4# |
1 | ||
| 71072-72021B1 |
ANA1#..240F..CBU MD.GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-72010B1 |
ANA1#..240 GRAY,TRIM1# |
1 | ||
| 71074-72020B0 |
ANA1#..240F..CBU GRAY,TRIM1# |
1 | ||
| 71074-72010E0 |
ANA1#..240 PLUM BROWN,TRIM4# |
1 | ||
| 71074-72010B2 |
ANA1#..240 MD.GRAY,TRIM1# |
1 | ||
| 71074-72040B0 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,GRAY,TRIM1# |
1 | ||
| 71074-72040E0 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,PLUMBROWN,TRIM4# |
1 | ||
| 71074-72020E0 |
ANA1#..240F..CBU PLUM BROWN,TRIM4# |
1 | ||
| 71074-72040B1 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,MD.GRAY,TRIM1# |
1 | ||
| 71074-72020B1 |
ANA1#..240F..CBU MD.GRAY,TRIM1# |
1 | ||
| 71074-72021E0 |
ANA1#..240F..CBU PLUM,TRIM4# |
1 | ||
| 71074-72070B0 |
ANA1#..240 5人乗り,DK.GRAY,TRIM1#,2# |
1 | ||
| 71074-72021B1 |
ANA1#..240F..CBU MD.GRAY,TRIM1# |
1 | ||
| 71074-72011E0 |
ANA1#..240 PLUM,TRIM4# |
1 | ||
| 71074-72011B2 |
ANA1#..240 MD.GRAY,TRIM1# |
1 | ||
| 71074-72070B0 |
ANA1#..240 240“E−Selection” *(Z),DK.GRAY,TRIM1#,2# |
1 | ||
| 71074-72041E0 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,PLUM,TRIM4# |
1 | ||
| 71074-72041B1 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,MD.GRAY,TRIM1# |
1 | ||
| 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-72010 |
ANA1#..(240,240F,ARIAL)..CBU |
1 | ||
| 71120-72020 |
ANA1#..(240F,ARIAL)..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ |
1 | ||
| 71200S - SEAT ASSY, FRONT LH | ||||
| 71200-72010B4 |
ANA1#..240 GRAY,TRIM1# |
1 | ||
| 71200-72010E3 |
ANA1#..240 PLUM BROWN,TRIM4# |
1 | ||
| 71200-72020B3 |
ANA1#..240F..CBU GRAY,TRIM1# |
1 | ||
| 71200-72020B9 |
ANA1#..240F..CBU MD.GRAY,TRIM1# |
1 | ||
| 71200-72030E2 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,PLUMBROWN,TRIM4# |
1 | ||
| 71200-72010E4 |
ANA1#..240 PLUM BROWN,TRIM4# |
1 | ||
| 71200-72030B2 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,GRAY,TRIM1# |
1 | ||
| 71200-72030B7 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,MD.GRAY,TRIM1# |
1 | ||
| 71200-72020E3 |
ANA1#..240F..CBU PLUM BROWN,TRIM4# |
1 | ||
| 71200-72020E6 |
ANA1#..240F..CBU PLUM BROWN,TRIM4# |
1 | ||
| 71200-72021B0 |
ANA1#..240F..CBU MD.GRAY,TRIM1# |
1 | ||
| 71200-72100C0 |
ANA1#..240 240“E−Selection” *(Z),BLACK,TRIM2# |
1 | ||
| 71200-72010B8 |
ANA1#..240 MD.GRAY,TRIM1# |
1 | ||
| 71200-72011B0 |
ANA1#..240 MD.GRAY,TRIM1# |
1 | ||
| 71200-72031E0 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,PLUM,TRIM4# |
1 | ||
| 71200-72030E4 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,PLUMBROWN,TRIM4# |
1 | ||
| 71200-72031B0 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,MD.GRAY,TRIM1# |
1 | ||
| 71200-72021E0 |
ANA1#..240F..CBU PLUM,TRIM4# |
1 | ||
| 71200-72100C0 |
ANA1#..240 5人乗り,BLACK,TRIM2# |
1 | ||
| 71200-72011E0 |
ANA1#..240 PLUM,TRIM4# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-72010 |
ANA1#..(240,240F,ARIAL)..CBU |
1 | ||
| 71502-72020 |
ANA1#..(240F,ARIAL)..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ |
2 | ||
| 71537-26010 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ |
2 | ||
| 71537-26010 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ |
2 | ||
| 71537-26010 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ |
2 | ||
| 71537-26010 |
ANA1#..(240,240F,ARIAL)..CBU |
4 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 71643A - UNIT, ACTIVE HEADREST, UPR | ||||
| 71643-12011 |
ANA1#,GGA10..CBU |
2 | ||
| 71643-12011 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ |
1 | ||
| 71643-12011 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ |
1 | ||
| 71643-12011 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ |
1 | ||
| 71643-12011 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ |
1 | ||
| 71644 - UNIT, ACTIVE HEADREST, LWR | ||||
| 71644-12030 |
ANA1#,GGA10..CBU |
2 | ||
| 71644-12030 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ |
1 | ||
| 71644-12030 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ |
1 | ||
| 71644-12030 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ |
1 | ||
| 71644-12030 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-42090E2 |
ANA1#..(240,240F)..CBU PLUM BROWN,TRIM4# |
1 | ||
| 71812-28360B0 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,GRAY,TRIM1# |
1 | ||
| 71812-28360B2 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,DK.GRAY,TRIM1# |
1 | ||
| 71812-28360E1 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,PLUMBROWN,TRIM4# |
1 | ||
| 71812-42090B0 |
ANA1#..240F..CBU DK.GRAY,TRIM1# |
1 | ||
| 71812-42090B1 |
ANA1#..(240,240F)..CBU GRAY,TRIM1# |
1 | ||
| 71812-42090B0 |
ANA1#..240,ARIAL DK.GRAY,TRIM1#,2# |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-26010 |
ANA1#,GGA10..CBU |
2 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-12260E2 |
ANA1#..(240,240F)..CBU PLUM BROWN,TRIM4# |
1 | ||
| 71862-12260B0 |
ANA1#..240F..CBU DK.GRAY,TRIM1# |
1 | ||
| 71862-12260B1 |
ANA1#..(240,240F)..CBU GRAY,TRIM1# |
1 | ||
| 71862-33050B2 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,DK.GRAY,TRIM1# |
1 | ||
| 71862-33050B3 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,GRAY,TRIM1# |
1 | ||
| 71862-33050E2 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,PLUMBROWN,TRIM4# |
1 | ||
| 71862-12260B0 |
ANA1#..240,ARIAL DK.GRAY,TRIM1#,2# |
1 | ||
| 71862B - CLIP(FOR FRONT SEAT SHIELD, LH) | ||||
| 71769-33020 |
ANA1#..(240,240F,ARIAL)..CBU |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-12040 |
ANA1#..(240F,ARIAL)..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ |
1 | ||
| 71873-42030 |
ANA1#..(240,240F,ARIAL)..CBU |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-42020 |
ANA1#..(240,240F,ARIAL)..CBU |
1 | ||
| 71874-12040 |
ANA1#..(240F,ARIAL)..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71876-60170B6 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,GRAY,TRIM1# |
1 | ||
| 71876-60170B0 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,DK.GRAY,TRIM1# |
1 | ||
| 71875-42050E1 |
ANA1#..(240,240F)..CBU PLUM BROWN,TRIM4# |
1 | ||
| 71875-42050B0 |
ANA1#..240,ARIAL DK.GRAY,TRIM1#,2# |
1 | ||
| 71875-42050B1 |
ANA1#..(240,240F)..CBU GRAY,TRIM1# |
1 | ||
| 71876-60170E4 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,PLUMBROWN,TRIM4# |
1 | ||
| 71875-42050B0 |
ANA1#..240F..CBU DK.GRAY,TRIM1# |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-60140 |
ANA1#..(240F,ARIAL)..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ |
1 | ||
| 71875-58060 |
ANA1#..(240,240F,ARIAL)..CBU |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-60150E4 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,PLUMBROWN,TRIM4# |
1 | ||
| 71876-60150B5 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,GRAY,TRIM1# |
1 | ||
| 71876-42050E1 |
ANA1#..(240,240F)..CBU PLUM BROWN,TRIM4# |
1 | ||
| 71876-42050B0 |
ANA1#..240,ARIAL DK.GRAY,TRIM1#,2# |
1 | ||
| 71876-42050B0 |
ANA1#..240F..CBU DK.GRAY,TRIM1# |
1 | ||
| 71876-60150B0 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,DK.GRAY,TRIM1# |
1 | ||
| 71876-42050B1 |
ANA1#..(240,240F)..CBU GRAY,TRIM1# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-58060 |
ANA1#..(240,240F,ARIAL)..CBU |
1 | ||
| 71876-60140 |
ANA1#..(240F,ARIAL)..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-72020B1 |
ANA1#,GGA10..(240F,240G,350G)..CBU GRAY,TRIM1# |
2 | ||
| 71910-72020B1 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,GRAY,TRIM1# |
1 | ||
| 71910-72020B3 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,MEDIUM GRAY,TRIM1# |
1 | ||
| 71910-72020B3 |
ANA1#,GGA10..(240F,240G,350G)..CBU MEDIUM GRAY,TRIM1# |
2 | ||
| 71910-72010B2 |
ANA1#..240 GRAY,TRIM1# |
2 | ||
| 71910-72020E1 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71910-72020E1 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71910-72020E1 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71910-72020B3 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,MEDIUM GRAY,TRIM1# |
1 | ||
| 71910-72010E1 |
ANA1#..240 PLUM BROWN,TRIM4# |
2 | ||
| 71910-72020E1 |
ANA1#,GGA10..(240F,240G,350G)..CBU PLUM BROWN,TRIM4# |
2 | ||
| 71910-72020B3 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,MEDIUM GRAY,TRIM1# |
1 | ||
| 71910-72020B3 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,MEDIUM GRAY,TRIM1# |
1 | ||
| 71910-72060B0 |
ANA1#..240 240“E−Selection” *(Z),DK.GRAY,TRIM1#,2# |
2 | ||
| 71910-72010B3 |
ANA1#..240 MEDIUM GRAY,TRIM1# |
2 | ||
| 71910-72021B3 |
ANA1#,GGA10..(240F,240G,350G)..CBU MD.GRAY,TRIM1# |
2 | ||
| 71910-72021B3 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71910-72020E1 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71910-72021B3 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71910-72021E1 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 71910-72021E1 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 71910-72021E1 |
ANA1#,GGA10..(240F,240G,350G)..CBU PLUM,TRIM4# |
2 | ||
| 71910-72021E1 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 71910-72021E1 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 71910-72021B3 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71910-72060B0 |
ANA1#..240 5人乗り,DK.GRAY,TRIM1#,2# |
2 | ||
| 71910-72021B3 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-42020B7 |
ANA1#,GGA10..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),GRAY,TRIM1# |
2 | ||
| 71930-52030B1 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,GRAY,TRIM1# |
1 | ||
| 71930-52030B1 |
ANA1#,GGA10..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1# |
2 | ||
| 71931-42020B7 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,GRAY,TRIM1# |
1 | ||
| 71931-42020E8 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),PLUM BROWN,TRIM4# |
2 | ||
| 71930-52030E2 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),PLUM,TRIM4# |
2 | ||
| 71930-52030E2 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 71930-52030E2 |
ANA10..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)父tﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 71930-52030E2 |
ANA10..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)父tﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 71930-52030B7 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71930-52030E2 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 71930-52030B7 |
ANA10..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)父tﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71931-42020E8 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71931-42020B6 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),MD.GRAY,TRIM1# |
2 | ||
| 71930-52030B7 |
ANA10..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)父tﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71930-52030B7 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),MD.GRAY,TRIM1# |
2 | ||
| 71930-52030B7 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71931-42020B6 |
ANA10..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)父tﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71930-52030B0 |
ANA1#..240 ﾛｯｸ付(ﾎﾞﾀﾝ有り),240“E−Selection” *(Z),DK.GRAY,TRIM1#,2# |
2 | ||
| 71931-42020B6 |
ANA10..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)父tﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71931-42020B6 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71931-42020B4 |
ANA1#..240 ﾛｯｸ付(ﾎﾞﾀﾝ無し),240“E−Selection” *(Z),DK.GRAY,TRIM1#,2# |
2 | ||
| 71931-42020E8 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71931-42020E8 |
ANA10..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)父tﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71931-42020B4 |
ANA1#..240 ﾛｯｸ付(ﾎﾞﾀﾝ無し),5人乗り,DK.GRAY,TRIM1#,2# |
2 | ||
| 71931-42020E8 |
ANA10..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)父tﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71930-52030B0 |
ANA1#..240 ﾛｯｸ付(ﾎﾞﾀﾝ有り),5人乗り,DK.GRAY,TRIM1#,2# |
2 | ||
| 71931-42020B6 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-42020B7 |
ANA1#,GGA10..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),GRAY,TRIM1# |
2 | ||
| 71930-52030B1 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,GRAY,TRIM1# |
1 | ||
| 71930-52030B1 |
ANA1#,GGA10..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1# |
2 | ||
| 71931-42020B7 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,GRAY,TRIM1# |
1 | ||
| 71931-42020E8 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),PLUM BROWN,TRIM4# |
2 | ||
| 71930-52030E2 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),PLUM,TRIM4# |
2 | ||
| 71930-52030E2 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 71930-52030E2 |
ANA10..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)父tﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 71930-52030E2 |
ANA10..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)父tﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 71930-52030B7 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71930-52030E2 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 71930-52030B7 |
ANA10..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)父tﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71931-42020E8 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71931-42020B6 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),MD.GRAY,TRIM1# |
2 | ||
| 71930-52030B7 |
ANA10..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)父tﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71930-52030B7 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),MD.GRAY,TRIM1# |
2 | ||
| 71930-52030B7 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71931-42020B6 |
ANA10..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)父tﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71930-52030B0 |
ANA1#..240 ﾛｯｸ付(ﾎﾞﾀﾝ有り),240“E−Selection” *(Z),DK.GRAY,TRIM1#,2# |
2 | ||
| 71931-42020B6 |
ANA10..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)父tﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71931-42020B6 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71931-42020B4 |
ANA1#..240 ﾛｯｸ付(ﾎﾞﾀﾝ無し),240“E−Selection” *(Z),DK.GRAY,TRIM1#,2# |
2 | ||
| 71931-42020E8 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71931-42020E8 |
ANA10..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)父tﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71931-42020B4 |
ANA1#..240 ﾛｯｸ付(ﾎﾞﾀﾝ無し),5人乗り,DK.GRAY,TRIM1#,2# |
2 | ||
| 71931-42020E8 |
ANA10..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)父tﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71930-52030B0 |
ANA1#..240 ﾛｯｸ付(ﾎﾞﾀﾝ有り),5人乗り,DK.GRAY,TRIM1#,2# |
2 | ||
| 71931-42020B6 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-72010C0 |
ANA1#..240,ARIAL BLACK,TRIM1#,2#,4# |
1 | ||
| 72124-72020C0 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,BLACK,TRIM1#,4# |
1 | ||
| 72124-72010C0 |
ANA1#..240F..CBU BLACK,TRIM1#,4# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-72010C0 |
ANA1#..240,ARIAL BLACK,TRIM1#,2#,4# |
1 | ||
| 72128-72010C0 |
ANA1#..240F..CBU BLACK,TRIM1#,4# |
1 | ||
| 72128-72020C0 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,BLACK,TRIM1#,4# |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-72010C0 |
ANA1#..240,ARIAL BLACK,TRIM1#,2#,4# |
1 | ||
| 72138-72020C0 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,BLACK,TRIM1#,4# |
1 | ||
| 72138-72010C0 |
ANA1#..240F..CBU BLACK,TRIM1#,4# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-72010C0 |
ANA1#..240,ARIAL BLACK,TRIM1#,2#,4# |
1 | ||
| 72158-72010C0 |
ANA1#..240F..CBU BLACK,TRIM1#,4# |
1 | ||
| 72158-72020C0 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,BLACK,TRIM1#,4# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-42010E3 |
ANA1#..(240,240F)..CBU PLUM BROWN,TRIM4# |
1 | ||
| 72526-42010B0 |
ANA1#..240F..CBU DK.GRAY,TRIM1# |
1 | ||
| 72526-42010B0 |
ANA1#..240,ARIAL DK.GRAY,TRIM1#,2# |
1 | ||
| 72526-42010B1 |
ANA1#..(240,240F)..CBU GRAY,TRIM1# |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-12070 |
ANA1#,GGA10..CBU |
1 | ||
| 82666M - HOLDER, CONNECTOR | ||||
| 82666-58030 |
ANA1#,GGA10..CBU |
1 | ||
| Common parts | ||||
| 82711-2B660 | ||||
| 90119-10966 | ||||
| 90167-40044 | ||||
| 90179-06178 | ||||
| 90179-08057 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(0709- )240F,240G,350G,ARIAL
ｼﾞｮｼｭｾｷ-ｱﾘ(ﾊﾟﾜｰｼｰﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-72010B1 |
ANA1#..240 GRAY,TRIM1# |
1 | ||
| 71072-72030B0 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,GRAY,TRIM1# |
1 | ||
| 71072-72020E0 |
ANA1#..240F..CBU PLUM BROWN,TRIM4# |
1 | ||
| 71072-72020B0 |
ANA1#..240F..CBU GRAY,TRIM1# |
1 | ||
| 71072-72010E0 |
ANA1#..240 PLUM BROWN,TRIM4# |
1 | ||
| 71072-72010B2 |
ANA1#..240 MD.GRAY,TRIM1# |
1 | ||
| 71072-72030E0 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,PLUMBROWN,TRIM4# |
1 | ||
| 71072-72020B1 |
ANA1#..240F..CBU MD.GRAY,TRIM1# |
1 | ||
| 71072-72011E0 |
ANA1#..240 PLUM,TRIM4# |
1 | ||
| 71072-72070B0 |
ANA1#..240 240“E−Selection” *(Z),DK.GRAY,TRIM1#,2# |
1 | ||
| 71072-72030B1 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,MD.GRAY,TRIM1# |
1 | ||
| 71072-72011B2 |
ANA1#..240 MD.GRAY,TRIM1# |
1 | ||
| 71072-72031B1 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,MD.GRAY,TRIM1# |
1 | ||
| 71072-72031E0 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,PLUM,TRIM4# |
1 | ||
| 71072-72070B0 |
ANA1#..240 5人乗り,DK.GRAY,TRIM1#,2# |
1 | ||
| 71072-72021E0 |
ANA1#..240F..CBU PLUM,TRIM4# |
1 | ||
| 71072-72021B1 |
ANA1#..240F..CBU MD.GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-72010B1 |
ANA1#..240 GRAY,TRIM1# |
1 | ||
| 71074-72020B0 |
ANA1#..240F..CBU GRAY,TRIM1# |
1 | ||
| 71074-72010E0 |
ANA1#..240 PLUM BROWN,TRIM4# |
1 | ||
| 71074-72010B2 |
ANA1#..240 MD.GRAY,TRIM1# |
1 | ||
| 71074-72040B0 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,GRAY,TRIM1# |
1 | ||
| 71074-72040E0 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,PLUMBROWN,TRIM4# |
1 | ||
| 71074-72020E0 |
ANA1#..240F..CBU PLUM BROWN,TRIM4# |
1 | ||
| 71074-72040B1 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,MD.GRAY,TRIM1# |
1 | ||
| 71074-72020B1 |
ANA1#..240F..CBU MD.GRAY,TRIM1# |
1 | ||
| 71074-72021E0 |
ANA1#..240F..CBU PLUM,TRIM4# |
1 | ||
| 71074-72070B0 |
ANA1#..240 5人乗り,DK.GRAY,TRIM1#,2# |
1 | ||
| 71074-72021B1 |
ANA1#..240F..CBU MD.GRAY,TRIM1# |
1 | ||
| 71074-72011E0 |
ANA1#..240 PLUM,TRIM4# |
1 | ||
| 71074-72011B2 |
ANA1#..240 MD.GRAY,TRIM1# |
1 | ||
| 71074-72070B0 |
ANA1#..240 240“E−Selection” *(Z),DK.GRAY,TRIM1#,2# |
1 | ||
| 71074-72041E0 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,PLUM,TRIM4# |
1 | ||
| 71074-72041B1 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,MD.GRAY,TRIM1# |
1 | ||
| 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-72010 |
ANA1#..(240,240F,ARIAL)..CBU |
1 | ||
| 71120-72020 |
ANA1#..(240F,ARIAL)..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ |
1 | ||
| 71200S - SEAT ASSY, FRONT LH | ||||
| 71200-72010B4 |
ANA1#..240 GRAY,TRIM1# |
1 | ||
| 71200-72010E3 |
ANA1#..240 PLUM BROWN,TRIM4# |
1 | ||
| 71200-72020B3 |
ANA1#..240F..CBU GRAY,TRIM1# |
1 | ||
| 71200-72020B9 |
ANA1#..240F..CBU MD.GRAY,TRIM1# |
1 | ||
| 71200-72030E2 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,PLUMBROWN,TRIM4# |
1 | ||
| 71200-72010E4 |
ANA1#..240 PLUM BROWN,TRIM4# |
1 | ||
| 71200-72030B2 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,GRAY,TRIM1# |
1 | ||
| 71200-72030B7 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,MD.GRAY,TRIM1# |
1 | ||
| 71200-72020E3 |
ANA1#..240F..CBU PLUM BROWN,TRIM4# |
1 | ||
| 71200-72020E6 |
ANA1#..240F..CBU PLUM BROWN,TRIM4# |
1 | ||
| 71200-72021B0 |
ANA1#..240F..CBU MD.GRAY,TRIM1# |
1 | ||
| 71200-72100C0 |
ANA1#..240 240“E−Selection” *(Z),BLACK,TRIM2# |
1 | ||
| 71200-72010B8 |
ANA1#..240 MD.GRAY,TRIM1# |
1 | ||
| 71200-72011B0 |
ANA1#..240 MD.GRAY,TRIM1# |
1 | ||
| 71200-72031E0 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,PLUM,TRIM4# |
1 | ||
| 71200-72030E4 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,PLUMBROWN,TRIM4# |
1 | ||
| 71200-72031B0 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,MD.GRAY,TRIM1# |
1 | ||
| 71200-72021E0 |
ANA1#..240F..CBU PLUM,TRIM4# |
1 | ||
| 71200-72100C0 |
ANA1#..240 5人乗り,BLACK,TRIM2# |
1 | ||
| 71200-72011E0 |
ANA1#..240 PLUM,TRIM4# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-72010 |
ANA1#..(240,240F,ARIAL)..CBU |
1 | ||
| 71502-72020 |
ANA1#..(240F,ARIAL)..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ |
2 | ||
| 71537-26010 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ |
2 | ||
| 71537-26010 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ |
2 | ||
| 71537-26010 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ |
2 | ||
| 71537-26010 |
ANA1#..(240,240F,ARIAL)..CBU |
4 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 71643A - UNIT, ACTIVE HEADREST, UPR | ||||
| 71643-12011 |
ANA1#,GGA10..CBU |
2 | ||
| 71643-12011 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ |
1 | ||
| 71643-12011 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ |
1 | ||
| 71643-12011 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ |
1 | ||
| 71643-12011 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ |
1 | ||
| 71644 - UNIT, ACTIVE HEADREST, LWR | ||||
| 71644-12030 |
ANA1#,GGA10..CBU |
2 | ||
| 71644-12030 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ |
1 | ||
| 71644-12030 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ |
1 | ||
| 71644-12030 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ |
1 | ||
| 71644-12030 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-42090E2 |
ANA1#..(240,240F)..CBU PLUM BROWN,TRIM4# |
1 | ||
| 71812-28360B0 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,GRAY,TRIM1# |
1 | ||
| 71812-28360B2 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,DK.GRAY,TRIM1# |
1 | ||
| 71812-28360E1 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,PLUMBROWN,TRIM4# |
1 | ||
| 71812-42090B0 |
ANA1#..240F..CBU DK.GRAY,TRIM1# |
1 | ||
| 71812-42090B1 |
ANA1#..(240,240F)..CBU GRAY,TRIM1# |
1 | ||
| 71812-42090B0 |
ANA1#..240,ARIAL DK.GRAY,TRIM1#,2# |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-26010 |
ANA1#,GGA10..CBU |
2 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-12260E2 |
ANA1#..(240,240F)..CBU PLUM BROWN,TRIM4# |
1 | ||
| 71862-12260B0 |
ANA1#..240F..CBU DK.GRAY,TRIM1# |
1 | ||
| 71862-12260B1 |
ANA1#..(240,240F)..CBU GRAY,TRIM1# |
1 | ||
| 71862-33050B2 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,DK.GRAY,TRIM1# |
1 | ||
| 71862-33050B3 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,GRAY,TRIM1# |
1 | ||
| 71862-33050E2 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,PLUMBROWN,TRIM4# |
1 | ||
| 71862-12260B0 |
ANA1#..240,ARIAL DK.GRAY,TRIM1#,2# |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-60020B3 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,GRAY,TRIM1# |
1 | ||
| 71868-60020E1 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,PLUMBROWN,TRIM4# |
1 | ||
| 71868-60020B2 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,DK.GRAY,TRIM1# |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-12040 |
ANA1#..(240F,ARIAL)..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ |
1 | ||
| 71873-42030 |
ANA1#..(240,240F,ARIAL)..CBU |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-42020 |
ANA1#..(240,240F,ARIAL)..CBU |
1 | ||
| 71874-12040 |
ANA1#..(240F,ARIAL)..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71876-60170B6 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,GRAY,TRIM1# |
1 | ||
| 71876-60170B0 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,DK.GRAY,TRIM1# |
1 | ||
| 71875-42050E1 |
ANA1#..(240,240F)..CBU PLUM BROWN,TRIM4# |
1 | ||
| 71875-42050B0 |
ANA1#..240,ARIAL DK.GRAY,TRIM1#,2# |
1 | ||
| 71875-42050B1 |
ANA1#..(240,240F)..CBU GRAY,TRIM1# |
1 | ||
| 71876-60170E4 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,PLUMBROWN,TRIM4# |
1 | ||
| 71875-42050B0 |
ANA1#..240F..CBU DK.GRAY,TRIM1# |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-60140 |
ANA1#..(240F,ARIAL)..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ |
1 | ||
| 71875-58060 |
ANA1#..(240,240F,ARIAL)..CBU |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-60150E4 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,PLUMBROWN,TRIM4# |
1 | ||
| 71876-60150B5 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,GRAY,TRIM1# |
1 | ||
| 71876-42050E1 |
ANA1#..(240,240F)..CBU PLUM BROWN,TRIM4# |
1 | ||
| 71876-42050B0 |
ANA1#..240,ARIAL DK.GRAY,TRIM1#,2# |
1 | ||
| 71876-42050B0 |
ANA1#..240F..CBU DK.GRAY,TRIM1# |
1 | ||
| 71876-60150B0 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,DK.GRAY,TRIM1# |
1 | ||
| 71876-42050B1 |
ANA1#..(240,240F)..CBU GRAY,TRIM1# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-58060 |
ANA1#..(240,240F,ARIAL)..CBU |
1 | ||
| 71876-60140 |
ANA1#..(240F,ARIAL)..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-72020B1 |
ANA1#,GGA10..(240F,240G,350G)..CBU GRAY,TRIM1# |
2 | ||
| 71910-72020B1 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,GRAY,TRIM1# |
1 | ||
| 71910-72020B3 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,MEDIUM GRAY,TRIM1# |
1 | ||
| 71910-72020B3 |
ANA1#,GGA10..(240F,240G,350G)..CBU MEDIUM GRAY,TRIM1# |
2 | ||
| 71910-72010B2 |
ANA1#..240 GRAY,TRIM1# |
2 | ||
| 71910-72020E1 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71910-72020E1 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71910-72020E1 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71910-72020B3 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,MEDIUM GRAY,TRIM1# |
1 | ||
| 71910-72010E1 |
ANA1#..240 PLUM BROWN,TRIM4# |
2 | ||
| 71910-72020E1 |
ANA1#,GGA10..(240F,240G,350G)..CBU PLUM BROWN,TRIM4# |
2 | ||
| 71910-72020B3 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,MEDIUM GRAY,TRIM1# |
1 | ||
| 71910-72020B3 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,MEDIUM GRAY,TRIM1# |
1 | ||
| 71910-72060B0 |
ANA1#..240 240“E−Selection” *(Z),DK.GRAY,TRIM1#,2# |
2 | ||
| 71910-72010B3 |
ANA1#..240 MEDIUM GRAY,TRIM1# |
2 | ||
| 71910-72021B3 |
ANA1#,GGA10..(240F,240G,350G)..CBU MD.GRAY,TRIM1# |
2 | ||
| 71910-72021B3 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71910-72020E1 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71910-72021B3 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71910-72021E1 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 71910-72021E1 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 71910-72021E1 |
ANA1#,GGA10..(240F,240G,350G)..CBU PLUM,TRIM4# |
2 | ||
| 71910-72021E1 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 71910-72021E1 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 71910-72021B3 |
ANA10..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71910-72060B0 |
ANA1#..240 5人乗り,DK.GRAY,TRIM1#,2# |
2 | ||
| 71910-72021B3 |
ANA1#..240F..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-42020B7 |
ANA1#,GGA10..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),GRAY,TRIM1# |
2 | ||
| 71930-52030B1 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,GRAY,TRIM1# |
1 | ||
| 71930-52030B1 |
ANA1#,GGA10..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1# |
2 | ||
| 71931-42020B7 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,GRAY,TRIM1# |
1 | ||
| 71931-42020E8 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),PLUM BROWN,TRIM4# |
2 | ||
| 71930-52030E2 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),PLUM,TRIM4# |
2 | ||
| 71930-52030E2 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 71930-52030E2 |
ANA10..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)父tﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 71930-52030E2 |
ANA10..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)父tﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 71930-52030B7 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71930-52030E2 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 71930-52030B7 |
ANA10..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)父tﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71931-42020E8 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71931-42020B6 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),MD.GRAY,TRIM1# |
2 | ||
| 71930-52030B7 |
ANA10..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)父tﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71930-52030B7 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),MD.GRAY,TRIM1# |
2 | ||
| 71930-52030B7 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71931-42020B6 |
ANA10..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)父tﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71930-52030B0 |
ANA1#..240 ﾛｯｸ付(ﾎﾞﾀﾝ有り),240“E−Selection” *(Z),DK.GRAY,TRIM1#,2# |
2 | ||
| 71931-42020B6 |
ANA10..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)父tﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71931-42020B6 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71931-42020B4 |
ANA1#..240 ﾛｯｸ付(ﾎﾞﾀﾝ無し),240“E−Selection” *(Z),DK.GRAY,TRIM1#,2# |
2 | ||
| 71931-42020E8 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71931-42020E8 |
ANA10..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)父tﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71931-42020B4 |
ANA1#..240 ﾛｯｸ付(ﾎﾞﾀﾝ無し),5人乗り,DK.GRAY,TRIM1#,2# |
2 | ||
| 71931-42020E8 |
ANA10..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)父tﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71930-52030B0 |
ANA1#..240 ﾛｯｸ付(ﾎﾞﾀﾝ有り),5人乗り,DK.GRAY,TRIM1#,2# |
2 | ||
| 71931-42020B6 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-42020B7 |
ANA1#,GGA10..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),GRAY,TRIM1# |
2 | ||
| 71930-52030B1 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,GRAY,TRIM1# |
1 | ||
| 71930-52030B1 |
ANA1#,GGA10..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1# |
2 | ||
| 71931-42020B7 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,GRAY,TRIM1# |
1 | ||
| 71931-42020E8 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),PLUM BROWN,TRIM4# |
2 | ||
| 71930-52030E2 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),PLUM,TRIM4# |
2 | ||
| 71930-52030E2 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 71930-52030E2 |
ANA10..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)父tﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 71930-52030E2 |
ANA10..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)父tﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 71930-52030B7 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71930-52030E2 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 71930-52030B7 |
ANA10..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)父tﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71931-42020E8 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71931-42020B6 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),MD.GRAY,TRIM1# |
2 | ||
| 71930-52030B7 |
ANA10..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)父tﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71930-52030B7 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),MD.GRAY,TRIM1# |
2 | ||
| 71930-52030B7 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71931-42020B6 |
ANA10..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)父tﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71930-52030B0 |
ANA1#..240 ﾛｯｸ付(ﾎﾞﾀﾝ有り),240“E−Selection” *(Z),DK.GRAY,TRIM1#,2# |
2 | ||
| 71931-42020B6 |
ANA10..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)父tﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71931-42020B6 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71931-42020B4 |
ANA1#..240 ﾛｯｸ付(ﾎﾞﾀﾝ無し),240“E−Selection” *(Z),DK.GRAY,TRIM1#,2# |
2 | ||
| 71931-42020E8 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71931-42020E8 |
ANA10..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)父tﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71931-42020B4 |
ANA1#..240 ﾛｯｸ付(ﾎﾞﾀﾝ無し),5人乗り,DK.GRAY,TRIM1#,2# |
2 | ||
| 71931-42020E8 |
ANA10..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす用収納装置)父tﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:ﾏﾆｭｱﾙｼｰﾄ/助手席:ﾀﾞﾐｰｼｰﾄ,PLUM BROWN,TRIM4# |
1 | ||
| 71930-52030B0 |
ANA1#..240 ﾛｯｸ付(ﾎﾞﾀﾝ有り),5人乗り,DK.GRAY,TRIM1#,2# |
2 | ||
| 71931-42020B6 |
ANA1#..240F..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱWｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:ﾀﾞﾐｰｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-72010C0 |
ANA1#..240,ARIAL BLACK,TRIM1#,2#,4# |
1 | ||
| 72124-72020C0 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,BLACK,TRIM1#,4# |
1 | ||
| 72124-72010C0 |
ANA1#..240F..CBU BLACK,TRIM1#,4# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-72010C0 |
ANA1#..240,ARIAL BLACK,TRIM1#,2#,4# |
1 | ||
| 72128-72010C0 |
ANA1#..240F..CBU BLACK,TRIM1#,4# |
1 | ||
| 72128-72020C0 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,BLACK,TRIM1#,4# |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-72010C0 |
ANA1#..240,ARIAL BLACK,TRIM1#,2#,4# |
1 | ||
| 72138-72020C0 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,BLACK,TRIM1#,4# |
1 | ||
| 72138-72010C0 |
ANA1#..240F..CBU BLACK,TRIM1#,4# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-72010C0 |
ANA1#..240,ARIAL BLACK,TRIM1#,2#,4# |
1 | ||
| 72158-72010C0 |
ANA1#..240F..CBU BLACK,TRIM1#,4# |
1 | ||
| 72158-72020C0 |
ANA1#..240F..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ,BLACK,TRIM1#,4# |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-12070 |
ANA1#,GGA10..CBU |
1 | ||
| 82666M - HOLDER, CONNECTOR | ||||
| 82666-58030 |
ANA1#,GGA10..CBU |
1 | ||
| 85822A - MOTOR ASSY, POWER SEAT RECLINING, LH | ||||
| 85801-28050 |
ANA1#..(240F,ARIAL)..CBU ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲ ﾊﾟﾜｰ/助手席:4ｳｪｲ ﾊﾟﾜｰ |
1 | ||
| Common parts | ||||
| 82711-2B660 | ||||
| 90119-10966 | ||||
| 90167-40044 | ||||
| 90167-40048 | ||||
| 90179-06178 | ||||
| 90179-08057 | ||||
| 93530-54010 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8121 | ||||
| 8202 | ||||
| 8401 | ||||
(0709- )
ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
