GRX135-AETZH (2009)

Toyota Mark X

Production Oct 2009 - Aug 2012
Engine 4GRFSE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0910- )

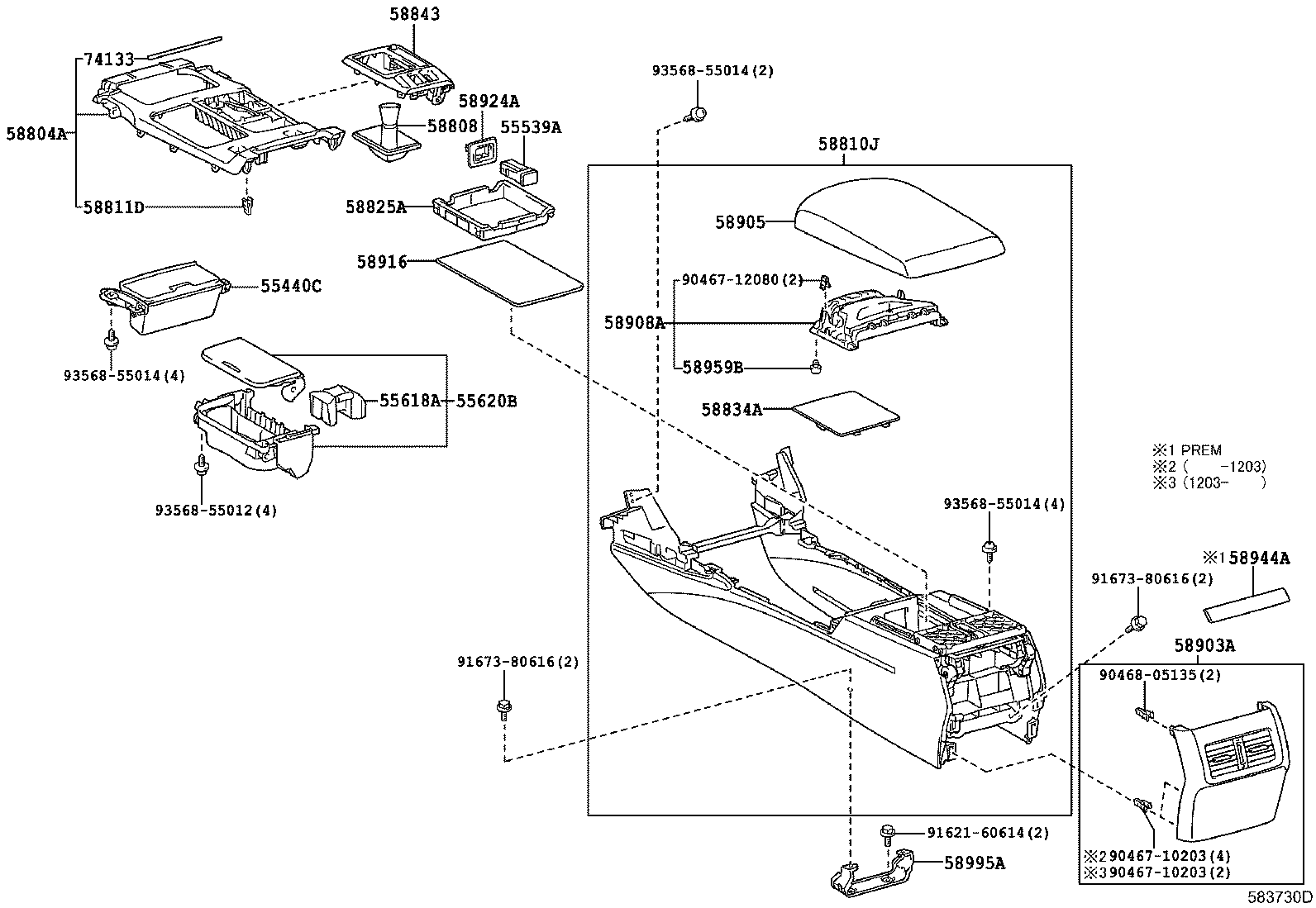

Click highlighted areas on diagram

diagram 55440C 55539A 55618A 55620B 58804A 58808 58810J 58811D 58825A 58834A 58843 58903A 58905 58908A 58916 58924A 58944A 58959B 58995A 74133 9046710203 9046710203 9046712080 9046805135 9162160614 9167380616 9167380616 9356855012 9356855014 9356855014 9356855014
Part # Description Qty Price
55440C - BOX ASSY, INSTRUMENT PANEL
55440-22060E0

GRX130,135

BROWN,TRIM0#,4#

 1
55440-22060B0

GRX13#..250G,350S

GRAY,TRIM2#

 1
55539A - COVER, SPARE SWITCH HOLE
55539-22190

GRX130,135

 1
55539-22190

GRX130,135

ｵｰﾃﾞｨｵ−AM/FM/CD 6ｽﾋﾟｰｶ AUX

 1
55618A - HOLDER, CONSOLE BOX CUP
55618-30040

GRX13#

 1
55620B - HOLDER, INSTRUMENT PANEL CUP
55620-22100E0

GRX130,135

BROWN,TRIM0#,4#

 1
55620-22100B0

GRX135

“Black Leather Limited” *(C)&ｼｰﾄ表皮−本革,GRAY,TRIM2#

 1
58804A - PANEL SUB-ASSY, CONSOLE, UPPER
58804-22410E0

GRX130,135

“Black Leather Limited” *(C)&ｼｰﾄ表皮−本革,BROWN,TRIM0#,4#

 1
58804-22420E0

GRX130,135

BROWN,TRIM0#,4#

 1
58804-22410B0

GRX130,135

“Black Leather Limited” *(C)&ｼｰﾄ表皮−本革,GRAY,TRIM2#

 1
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-22150C0

GRX130,135

Fﾊﾟｯｹｰｼﾞ,BLACK,TRIM0#,4#

 1
58808-22141C0

GRX130,135

BLACK,TRIM0#,2#,4#

 1
58808-22140C0

GRX135

BLACK,TRIM0#,4#

 1
58808-22151C0

GRX130,135

Fﾊﾟｯｹｰｼﾞ,BLACK,TRIM0#,4#

 1
58810J - BOX ASSY, CONSOLE
58810-22A70C0

GRX135

BLACK,TRIM4#

 1
58810-22A70A0

GRX130,135

SHELL,TRIM0#

 1
58810-22A80C0

GRX130,135

“Black Leather Limited” *(C)&ｼｰﾄ表皮−本革,BLACK,TRIM2#,4#

 1
58811D - CLIP(FOR CONSOLE BOX)
90467-10203

GRX13#

 4
58825A - POCKET, CONSOLE BOX
58825-22050

GRX13#

 1
58834A - COVER, CONSOLE, LOWER
58834-22040

GRX13#

 1
58843 - BEZEL, SHIFTING HOLE
58843-22080

GRX13#

 1
58903A - PANEL SUB-ASSY, CONSOLE REAR END
58903-22040C0

GRX13#..250G,350S

BLACK,TRIM2#,4#

 1
58903-22040A0

GRX130,135

SHELL,TRIM0#

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-22660A0

GRX130,135

SHELL,TRIM0#

 1
58905-22660C0

GRX135

BLACK,TRIM4#

 1
58905-22670C0

GRX130,135

“Black Leather Limited” *(C)&ｼｰﾄ表皮−本革,BLACK,TRIM2#,4#

 1
58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908-22050

GRX13#

 1
58908-22050A0

GRX13#..250G,PREM

SHELL,TRIM0#

 1
58908-22050C0

GRX135

BLACK,TRIM4#

 1
58916 - MAT, BOX BOTTOM
58916-22180

GRX13#

 1
58924A - PANEL, CONSOLE REAR END, NO.2
58924-22010

GRX13#

 1
58959B - CUSHION, CONSOLE COMPARTMENT DOOR
58959-60060

GRX13#

 2
58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1
58995-22070

GRX13#

 1
74133 - SEAL, FRONT ASH RECEPTACLE
74133-30140

GRX13#

 1
Common parts
90467-10203
90467-12080
90468-05135
91621-60614
91673-80616
93568-55012
93568-55014
