GRX135-AETZH (2009)

Toyota Mark X

Production Oct 2009 - Aug 2012
Engine 4GRFSE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0910- )

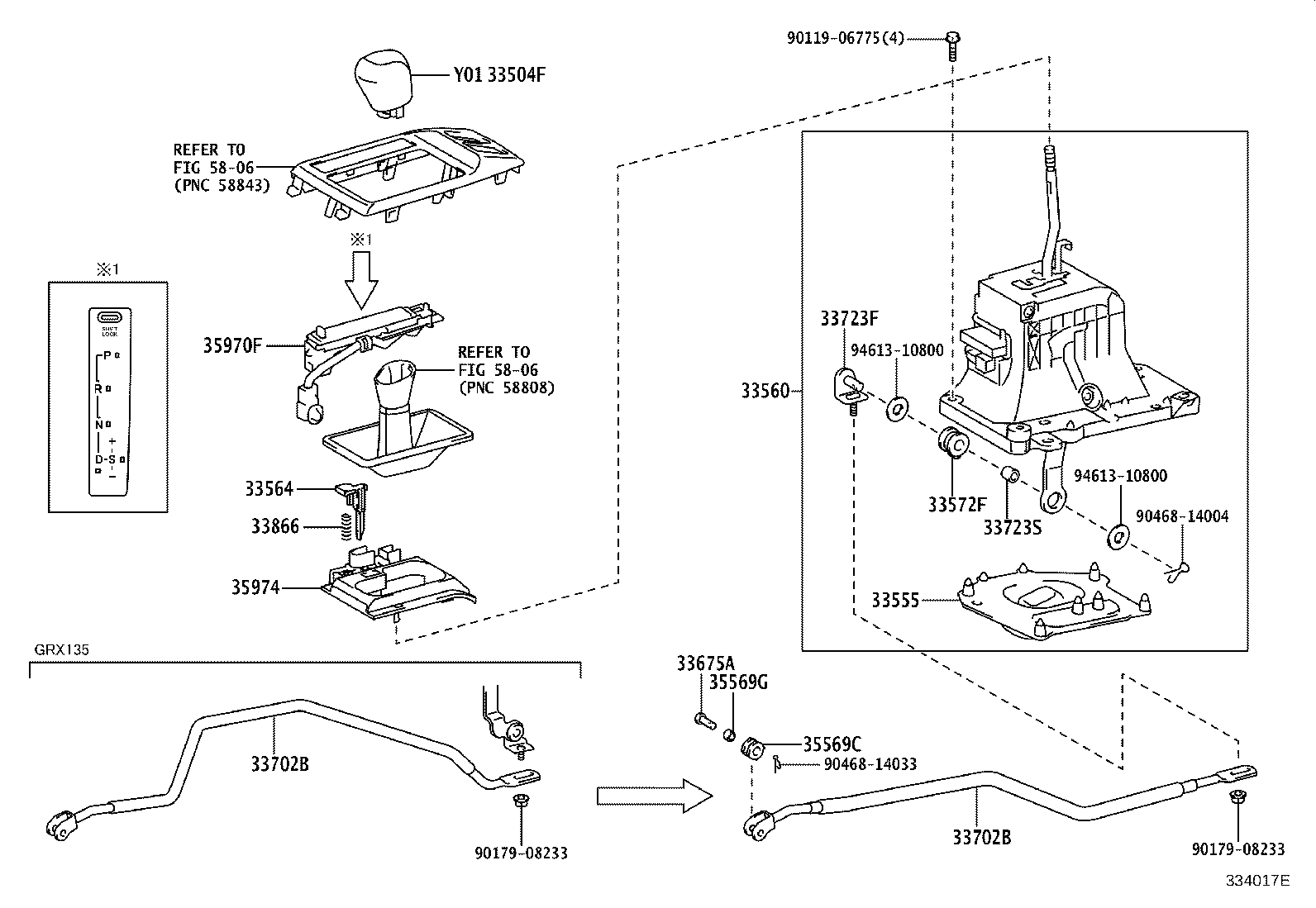

Click highlighted areas on diagram

diagram 33504F 33555 33560 33564 33572F 33675A 33702B 33702B 33723F 33723S 33866 35569C 35569G 35970F 35974 5806 5806 9011906775 9017908233 9017908233 9046814004 9046814033 9461310800 9461310800
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-22240E0

GRX130,135

“Black Limited” *(B),BROWN,TRIM4#

 1
33504-22220C0

GRX135

BLACK,TRIM0#,4#

 1
33504-22230C0

GRX130,135

Fﾊﾟｯｹｰｼﾞ,BLACK,TRIM0#,4#

 1
33504-22240E0

GRX130,135

“Black Leather Limited” *(C),BROWN,TRIM4#

 1
33555 - BOOT, SHIFT LEVER
33555-30410

GRX13#

 1
33560 - UNIT ASSY, SHIFT LOCK CONTROL
33560-22080

GRX135

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)

 1
33560-22070

GRX135

 1
33564 - LINK, SHIFT LOCK RELEASE, NO.1
33564-30180

GRX13#

 1
33572F - BUSH, CONTROL SHAFT LOWER
33572-30060

GRX13#

 1
33675A - PIN, W/HOLE (FOR TRANSMISSION CONTROL ROD)
33726-35010

GRX13#

 1
33702B - ROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)
33702-30600

GRX135

 1
33702B - ROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)
33702-30600

GRX135

 1
33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT)
33723-30100

GRX13#

 1
33723S - BUSH (FOR CONNECTING ROD SWIVEL)
33514-30090

GRX13#

 1
33866 - SPRING, SHIFT LOCK RELEASE
33866-50010

GRX13#

 1
35569C - GROMMET (FOR TRANSMISSION CONTROL ROD)
90480-17013

GRX13#

 1
35569G - BUSH (FOR TRANSMISSION CONTROL ROD)
90560-08091

GRX13#

 1
35970F - HOUSING ASSY, POSITION INDICATOR
35970-22110

GRX13#

 1
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-30190

GRX13#

 1
Common parts
90119-06775
90179-08233
90468-14004
90468-14033
94613-10800
Linked diagrams
5806
