GRX135-AETSH (2016)
Toyota Mark X
Production
Nov 2016
-
Dec 2019
Engine
4GRFSE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1611- )

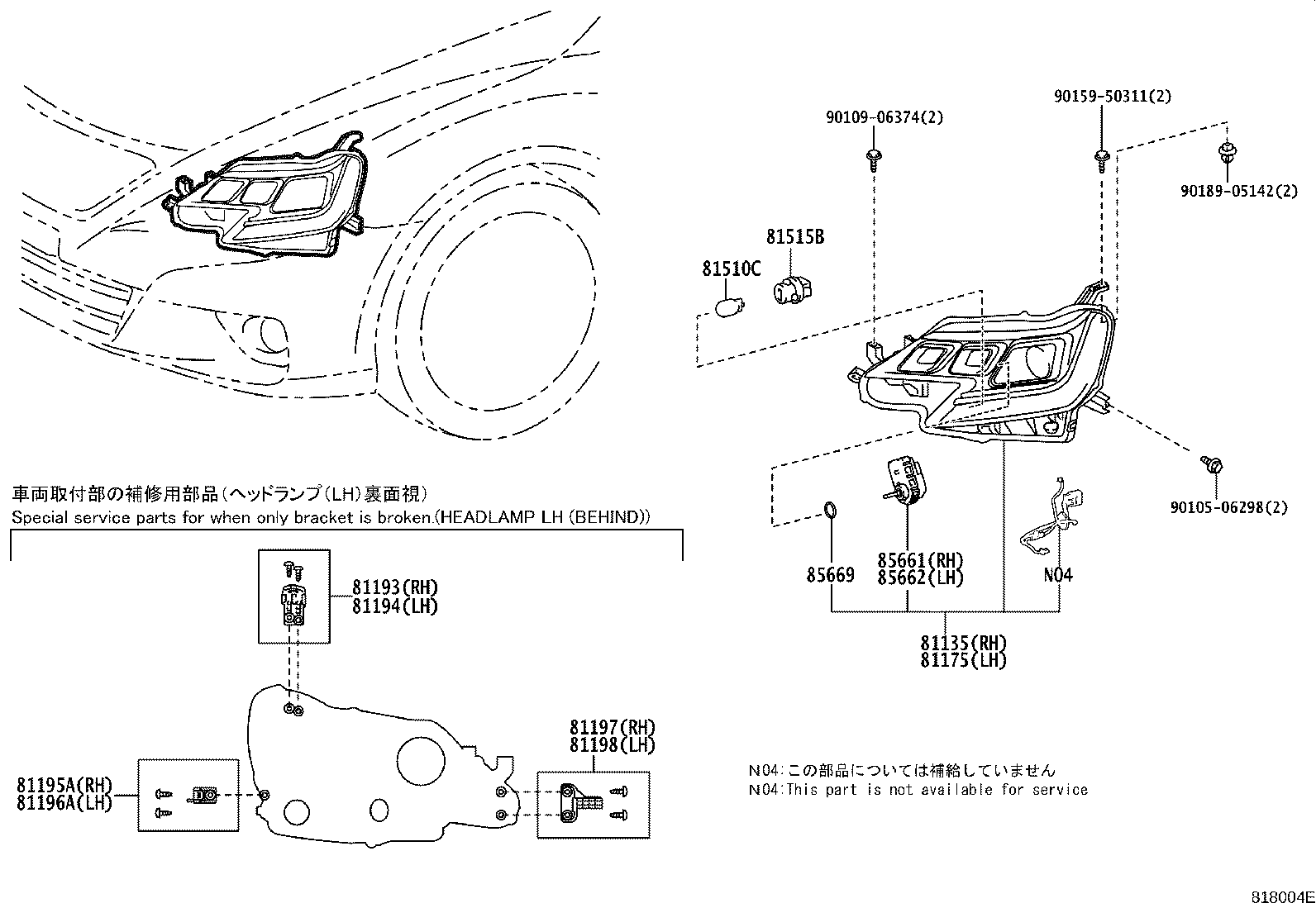

Click highlighted areas on diagram
LEDﾍｯﾄﾞﾗﾝﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-22B40 |
GRX130,135 Fﾊﾟｯｹｰｼﾞ |
1 | ||
| 81140-22C30 |
GRX13#..250S,25RDS,35RDS |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-22B40 |
GRX130,135 Fﾊﾟｯｹｰｼﾞ |
1 | ||
| 81070-22C30 |
GRX13#..250S,25RDS,35RDS |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-22040 |
GRX13# |
1 | ||
| 81193-22030 |
GRX13# |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-22030 |
GRX13# |
1 | ||
| 81194-22040 |
GRX13# |
1 | ||
| 81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH | ||||
| 81195-22030 |
GRX13# |
1 | ||
| 81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH | ||||
| 81196-22030 |
GRX13# |
1 | ||
| 81197 - BRACKET, HEADLAMP, LOWER RH | ||||
| 81197-22030 |
GRX13# |
1 | ||
| 81197-22020 |
GRX13# |
1 | ||
| 81198 - BRACKET, HEADLAMP, LWR LH | ||||
| 81198-22030 |
GRX13# |
1 | ||
| 81198-22020 |
GRX13# |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15021 |
GRX13# 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 90981-15021 |
GRX13# 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60028 |
GRX13# |
2 | ||
| 90075-60028 |
GRX13# |
2 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-12020 |
GRX13# |
1 | ||
| 85661-12010 |
GRX130,135 Fﾊﾟｯｹｰｼﾞ |
1 | ||
| 85661-12020 |
GRX13# |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85661-12020 |
GRX13# |
1 | ||
| 85661-12010 |
GRX130,135 Fﾊﾟｯｹｰｼﾞ |
1 | ||
| 85661-12020 |
GRX13# |
1 | ||
| 85669 - PACKING, HEADLAMP LEVELING MOTOR BASE | ||||
| 90075-99120 |
GRX13# |
2 | ||
| 90075-99120 |
GRX13# |
2 | ||
| Common parts | ||||
| 90105-06298 | ||||
| 90109-06374 | ||||
| 90159-50311 | ||||
| 90189-05142 | ||||
