GRX133-AETUH (2012)
Toyota Mark X
(0910-1611)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84490A - SWITCH ASSY, BACK SONAR OR CLEARANCE SONAR | ||||
| 84490-22010 |
GRX133..PREM |
1 | ||
| 84490-22010 |
GRX13# ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 84490-22011 |
GRX133..PREM |
1 | ||
| 89340A - COMPUTER ASSY, CLEARANCE WARNING | ||||
| 89340-22120 |
GRX133..PREM |
1 | ||
| 89340-22090 |
GRX13# ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 89340-22121 |
GRX133..PREM |
1 | ||
| 89341A - SENSOR, ULTRASONIC, NO.1 | ||||
| 89341-48010B2 |
GRX13# ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVER ME.,1F7 |
6 | ||
| 89341-48010A5 |
GRX133..PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き&ｻｲﾄﾞﾓﾆﾀ付き),WHITE PEARL CS.,062 |
6 | ||
| 89341-48010B2 |
GRX133..PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き&ｻｲﾄﾞﾓﾆﾀ付き),SILVER ME.,1F7 |
6 | ||
| 89341-48010B8 |
GRX133..PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き&ｻｲﾄﾞﾓﾆﾀ付き),ICE TITANIUM M.M.,1H4 |
6 | ||
| 89341-48010A5 |
GRX13# ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,062 |
6 | ||
| 89341-48010E3 |
GRX13# ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BRONZE M.M.,4T3 |
6 | ||
| 89341-48010C2 |
GRX133..PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き&ｻｲﾄﾞﾓﾆﾀ付き),BLACK,202 |
6 | ||
| 89341-48010D4 |
GRX133..PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き&ｻｲﾄﾞﾓﾆﾀ付き),GINGER RED M.M.,3R6 |
6 | ||
| 89341-48010C2 |
GRX13# ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK,202 |
6 | ||
| 89341-48010E3 |
GRX133..PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き&ｻｲﾄﾞﾓﾆﾀ付き),BRONZE M.M.,4T3 |
6 | ||
| 89341-33190A5 |
GRX133..PREM WHITE PEARL CS.,062 |
6 | ||
| 89341-48010D4 |
GRX13# ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,GINGER RED M.M.,3R6 |
6 | ||
| 89341-48010B8 |
GRX13# ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,ICE TITANIUM M.M.,1H4 |
6 | ||
| 89341-33190B0 |
GRX133..PREM SILVER ME.,1F7 |
6 | ||
| 89341-33190D1 |
GRX133..PREM DK. RED M.M.,3Q3 |
6 | ||
| 89341-33190J6 |
GRX133..PREM DK.BLUE MC.,8T5 |
6 | ||
| 89341-33190C2 |
GRX133..PREM BLACK,202 |
6 | ||
| 89341-33190P0 |
GRX133..PREM ICE TITANIUM M.M.,1H4 |
6 | ||
| 89341B - SENSOR, ULTRASONIC, NO.2 | ||||
| 89341-30060B0 |
GRX133..PREM EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(高精細ﾃﾞｨｽﾌﾟﾚｲ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き&ｻｲﾄﾞﾓﾆﾀ付き),SILVER ME.,1F7 |
2 | ||
| 89341-30060A0 |
GRX133..PREM EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(高精細ﾃﾞｨｽﾌﾟﾚｲ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き&ｻｲﾄﾞﾓﾆﾀ付き),WHITE PEARL CS.,062 |
2 | ||
| 89341-30060E0 |
GRX133..PREM EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(高精細ﾃﾞｨｽﾌﾟﾚｲ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き&ｻｲﾄﾞﾓﾆﾀ付き),BRONZE M.M.,4T3 |
2 | ||
| 89341-30060D0 |
GRX133..PREM EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(高精細ﾃﾞｨｽﾌﾟﾚｲ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き&ｻｲﾄﾞﾓﾆﾀ付き),GINGER RED M.M.,3R6 |
2 | ||
| 89341-30060J1 |
GRX133..PREM EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り,DK.BLUE MC.,8T5 |
2 | ||
| 89341-30060B0 |
GRX133..PREM EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り,SILVER ME.,1F7 |
2 | ||
| 89341-30060B1 |
GRX133..PREM EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り,ICE TITANIUM M.M.,1H4 |
2 | ||
| 89341-30060D2 |
GRX133..PREM EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り,DK. RED M.M.,3Q3 |
2 | ||
| 89341-30060B1 |
GRX133..PREM EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(高精細ﾃﾞｨｽﾌﾟﾚｲ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き&ｻｲﾄﾞﾓﾆﾀ付き),ICE TITANIUM M.M.,1H4 |
2 | ||
| 89341-30060A0 |
GRX133..PREM EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り,WHITE PEARL CS.,062 |
2 | ||
| 89341-30060C0 |
GRX133..PREM EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り,BLACK,202 |
2 | ||
| 89341-30060C0 |
GRX133..PREM EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(高精細ﾃﾞｨｽﾌﾟﾚｲ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き&ｻｲﾄﾞﾓﾆﾀ付き),BLACK,202 |
2 | ||
| 89343C - BUZZER, CLEARANCE WARNING, NO.1 | ||||
| 89343-72010 |
GRX13# ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 89343-72010 |
GRX133..PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き&ｻｲﾄﾞﾓﾆﾀ付き) |
1 | ||
| 89343-72010 |
GRX133..PREM |
1 | ||
| 89348 - RETAINER, ULTRASONIC SENSOR, NO.1 | ||||
| 89348-33060B4 |
GRX133..PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き&ｻｲﾄﾞﾓﾆﾀ付き),SILVER ME.,1F7 |
6 | ||
| 89348-33060B4 |
GRX13# ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVER ME.,1F7 |
6 | ||
| 89348-33060A6 |
GRX13# ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,062 |
6 | ||
| 89348-33060A6 |
GRX133..PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き&ｻｲﾄﾞﾓﾆﾀ付き),WHITE PEARL CS.,062 |
6 | ||
| 89348-33060C0 |
GRX13# ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK,202 |
6 | ||
| 89348-33060C0 |
GRX133..PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き&ｻｲﾄﾞﾓﾆﾀ付き),BLACK,202 |
6 | ||
| 89348-33060P6 |
GRX13# ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,ICE TITANIUM M.M.,1H4 |
6 | ||
| 89348-33100A4 |
GRX133..PREM WHITE PEARL CS.,062 |
6 | ||
| 89348-33060E2 |
GRX13# ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BRONZE M.M.,4T3 |
6 | ||
| 89348-33060D8 |
GRX13# ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,GINGER RED M.M.,3R6 |
6 | ||
| 89348-33060P6 |
GRX133..PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き&ｻｲﾄﾞﾓﾆﾀ付き),ICE TITANIUM M.M.,1H4 |
6 | ||
| 89348-33060D8 |
GRX133..PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き&ｻｲﾄﾞﾓﾆﾀ付き),GINGER RED M.M.,3R6 |
6 | ||
| 89348-33100B0 |
GRX133..PREM SILVER ME.,1F7 |
6 | ||
| 89348-33100B9 |
GRX133..PREM ICE TITANIUM M.M.,1H4 |
6 | ||
| 89348-33060E2 |
GRX133..PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き&ｻｲﾄﾞﾓﾆﾀ付き),BRONZE M.M.,4T3 |
6 | ||
| 89348-33100D2 |
GRX133..PREM DK. RED M.M.,3Q3 |
6 | ||
| 89348-33100C4 |
GRX133..PREM BLACK,202 |
6 | ||
| 89348-33100J5 |
GRX133..PREM DK.BLUE MC.,8T5 |
6 | ||
| 89348A - RETAINER, ULTRASONIC SENSOR, NO.2 | ||||
| 89348-12010A3 |
GRX133..PREM EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(高精細ﾃﾞｨｽﾌﾟﾚｲ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き&ｻｲﾄﾞﾓﾆﾀ付き),WHITE PEARL CS.,062 |
2 | ||
| 89348-12010C1 |
GRX133..PREM EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(高精細ﾃﾞｨｽﾌﾟﾚｲ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き&ｻｲﾄﾞﾓﾆﾀ付き),BLACK,202 |
2 | ||
| 89348-12010A3 |
GRX133..PREM EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り,WHITE PEARL CS.,062 |
2 | ||
| 89348-12010B0 |
GRX133..PREM EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り,SILVER ME.,1F7 |
2 | ||
| 89348-12010B0 |
GRX133..PREM EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(高精細ﾃﾞｨｽﾌﾟﾚｲ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き&ｻｲﾄﾞﾓﾆﾀ付き),SILVER ME.,1F7 |
2 | ||
| 89348-12010D3 |
GRX133..PREM EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(高精細ﾃﾞｨｽﾌﾟﾚｲ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き&ｻｲﾄﾞﾓﾆﾀ付き),GINGER RED M.M.,3R6 |
2 | ||
| 89348-12010J3 |
GRX133..PREM EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り,DK.BLUE MC.,8T5 |
2 | ||
| 89348-12010P0 |
GRX133..PREM EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(高精細ﾃﾞｨｽﾌﾟﾚｲ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き&ｻｲﾄﾞﾓﾆﾀ付き),ICE TITANIUM M.M.,1H4 |
2 | ||
| 89348-12010E5 |
GRX133..PREM EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(高精細ﾃﾞｨｽﾌﾟﾚｲ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き&ｻｲﾄﾞﾓﾆﾀ付き),BRONZE M.M.,4T3 |
2 | ||
| 89348-12010D4 |
GRX133..PREM EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り,DK. RED M.M.,3Q3 |
2 | ||
| 89348-12010P0 |
GRX133..PREM EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り,ICE TITANIUM M.M.,1H4 |
2 | ||
| 89348-12010C1 |
GRX133..PREM EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り,BLACK,202 |
2 | ||
| 89348D - CLIP, ULTRASONIC SENSOR | ||||
| 89348-33090 |
GRX133..PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き&ｻｲﾄﾞﾓﾆﾀ付き) |
6 | ||
| 89348-33090 |
GRX133..PREM |
6 | ||
| 89348-33090 |
GRX13# ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
6 | ||

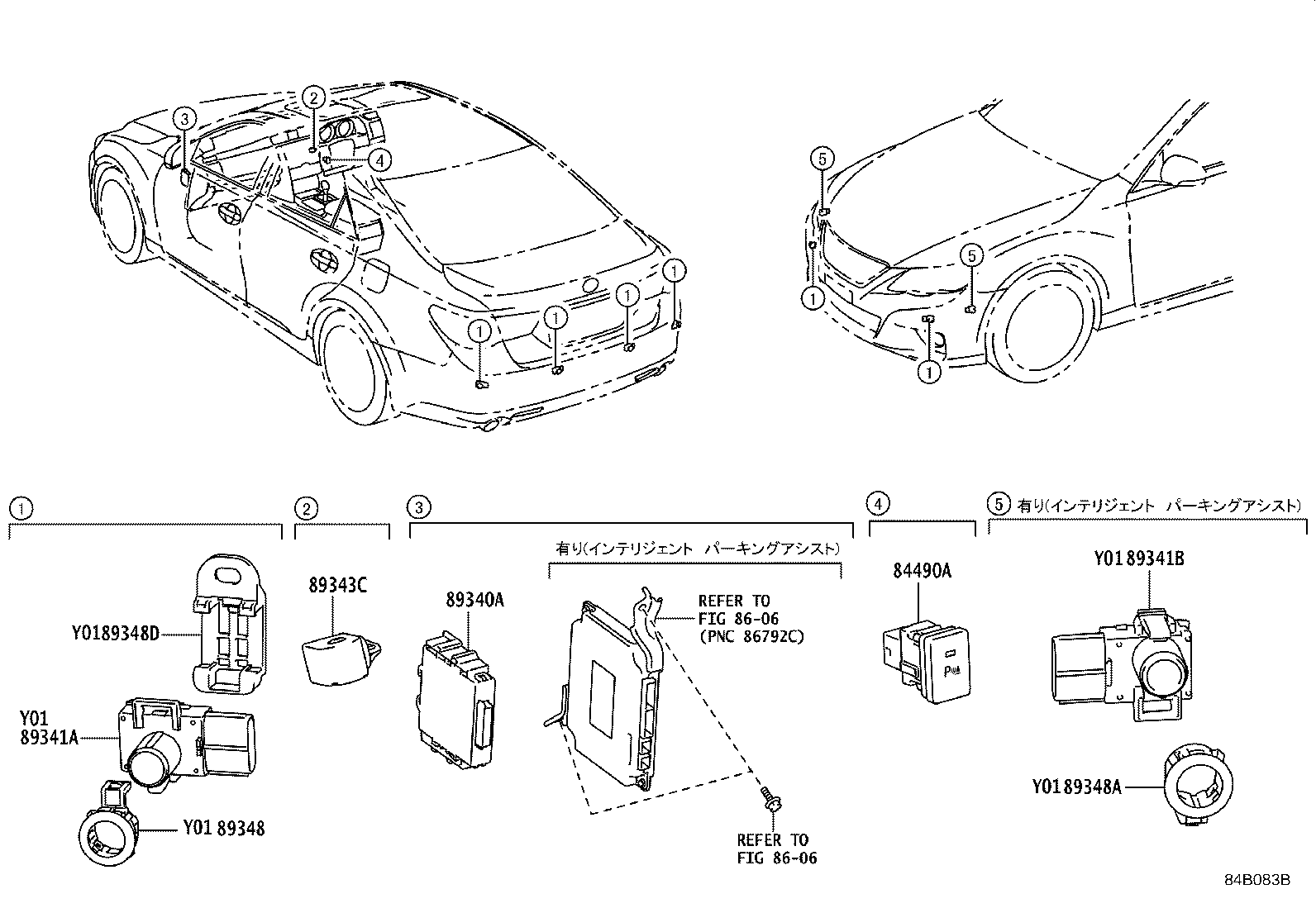

| Linked diagrams | ||||
| 8606 | ||||
