GRX133-AETSH (2009)

Toyota Mark X

Production Oct 2009 - Aug 2012
Engine 2GRFSE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0910- )GRX130,133

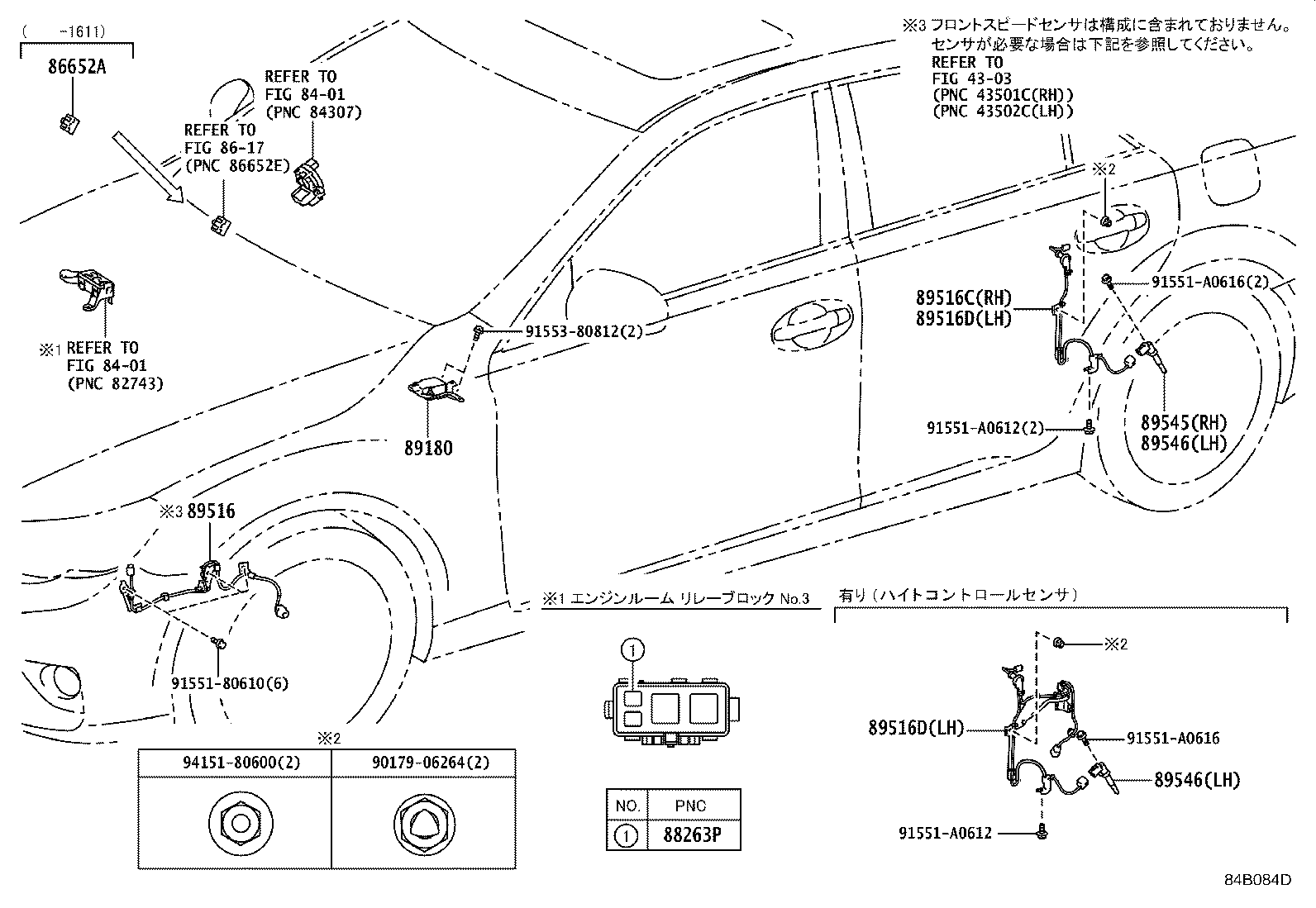

Click highlighted areas on diagram

diagram 4303 8401 8401 8617 86652A 88263P 89180 89516 89516C 89516D 89516D 89545 89546 89546 9017906264 9155180610 91551A0612 91551A0612 91551A0616 91551A0616 9155380812 9415180600
Part # Description Qty Price
86652A - BUZZER ASSY, SKID CONTROL
86652-50010

GRX133..350S

 1
88263P - RELAY, STOP LAMP CONTROL
90987-04004

GRX133..350S

 1
89180 - SENSOR ASSY, YAWRATE
89180-30090

GRX13#

 1
89516 - WIRE, SKID CONTROL SENSOR
89516-30020

GRX130,133

右側

 1
89516-30030

GRX130,133

左側

 1
89516-30150

GRX130,133

右側

 1
89516C - WIRE, SKID CONTROL SENSOR, RH
89516-22020

GRX13#

 1
89516D - WIRE, SKID CONTROL SENSOR, LH
89516-22040

GRX13#

 1
89516D - WIRE, SKID CONTROL SENSOR, LH
89516-22040

GRX13#

 1
89545 - SENSOR, SPEED, REAR RH
89545-30070

GRX13#

 1
89546 - SENSOR, SPEED, REAR LH
89546-30070

GRX13#

 1
89546 - SENSOR, SPEED, REAR LH
89546-30070

GRX13#

 1
Common parts
90179-06264
91551-80610
91551-A0612
91551-A0616
91553-80812
94151-80600
Linked diagrams
4303
8401
8617
