GRX133-AETSH (2009)

Toyota Mark X

Production Oct 2009 - Aug 2012
Engine 2GRFSE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0910- )

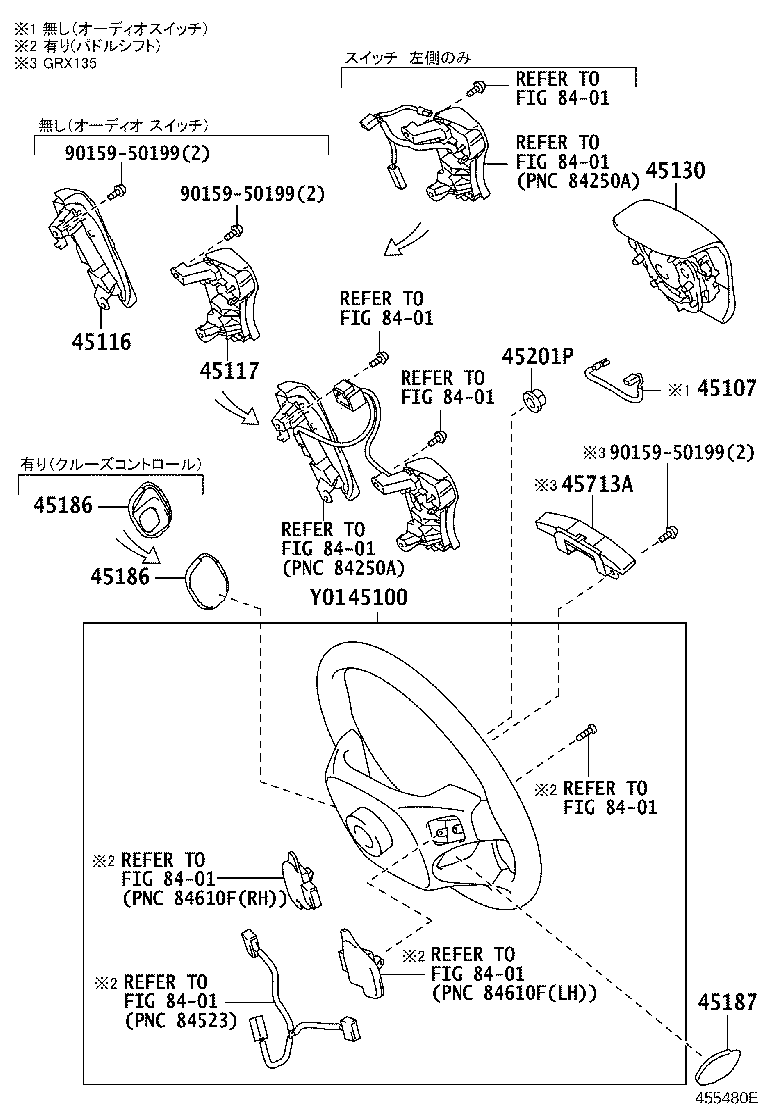

Click highlighted areas on diagram

4ﾎﾝｽﾎﾟｰｸ

diagram 45100 45107 45116 45117 45130 45186 45186 45187 45201P 45713A 8401 8401 8401 8401 8401 8401 8401 8401 8401 9015950199 9015950199 9015950199
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-22A70C0

GRX133..350S

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM2#,4#

 1
45116 - ORNAMENT, STEERING WHEEL, NO.1
45116-22090

GRX13#

 1
45130 - BUTTON ASSY, HORN
45130-22560C0

GRX133..350S

BLACK,TRIM2#,4#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-22070C0

GRX133..350S

BLACK,TRIM2#,4#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-22070C0

GRX133..350S

BLACK,TRIM2#,4#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-75010C0

GRX133..350S

BLACK,TRIM2#,4#

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

GRX13#

 1
Common parts
90159-50199
Linked diagrams
8401
