GRX133-AETSH (2009)

Toyota Mark X

Production Oct 2009 - Aug 2012
Engine 2GRFSE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0910- )GRX133

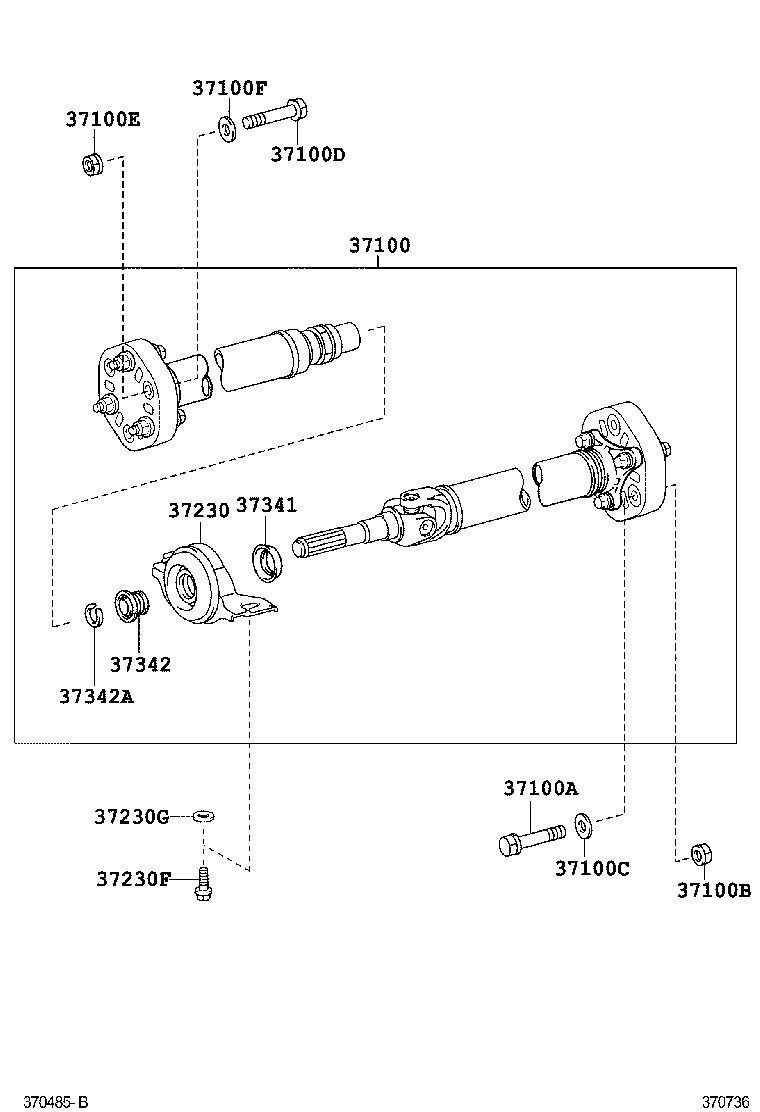

Click highlighted areas on diagram

diagram 37100 37100A 37100B 37100C 37100D 37100E 37100F 37230 37230F 37230G 37341 37342 37342A
Part # Description Qty Price
37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING
37100-30830

GRX133

 1
37100A - BOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
90105-12265

GRX133

 3
37100B - NUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
90179-12128

GRX133

 3
37100C - WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN
90560-12059

GRX133

 3
37100D - BOLT, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
90105-12265

GRX133

 3
37100E - NUT, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
90179-12128

GRX133

 3
37100F - WASHER, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN
90560-12059

GRX133

 3
37230 - BEARING ASSY, CENTER SUPPORT, NO.1
37230-30181

GRX133

 1
37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING)
90119-10902

GRX13#

長さ=33

 2
37230G - WASHER, NO.2 (FOR CENTER SUPPORT BEARING)
90201-10008

GRX13#

厚さ=4.5

 2
90201-10035

GRX13#

厚さ=13.5

 2
90201-10034

GRX13#

厚さ=11.0

 2
90201-10017

GRX13#

厚さ=9.0

 2
90201-10033

GRX13#

厚さ=6.5

 2
90201-10106

GRX13#

厚さ=2.0

 2
37341 - DEFLECTOR, PROPELLER SHAFT DUST, NO.1
37341-22010

GRX133

 1
37342 - DEFLECTOR, PROPELLER SHAFT DUST, NO.2
37342-50010

GRX133

 1
37342A - RING, SNAP (FOR PROPELLER SHAFT DUST DEFLECTOR NO.2)
90520-28009

GRX133

 1
