GRX130-AETZH (2009)

Toyota Mark X

Production Oct 2009 - Aug 2012
Engine 4GRFSE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0910- )

Click highlighted areas on diagram

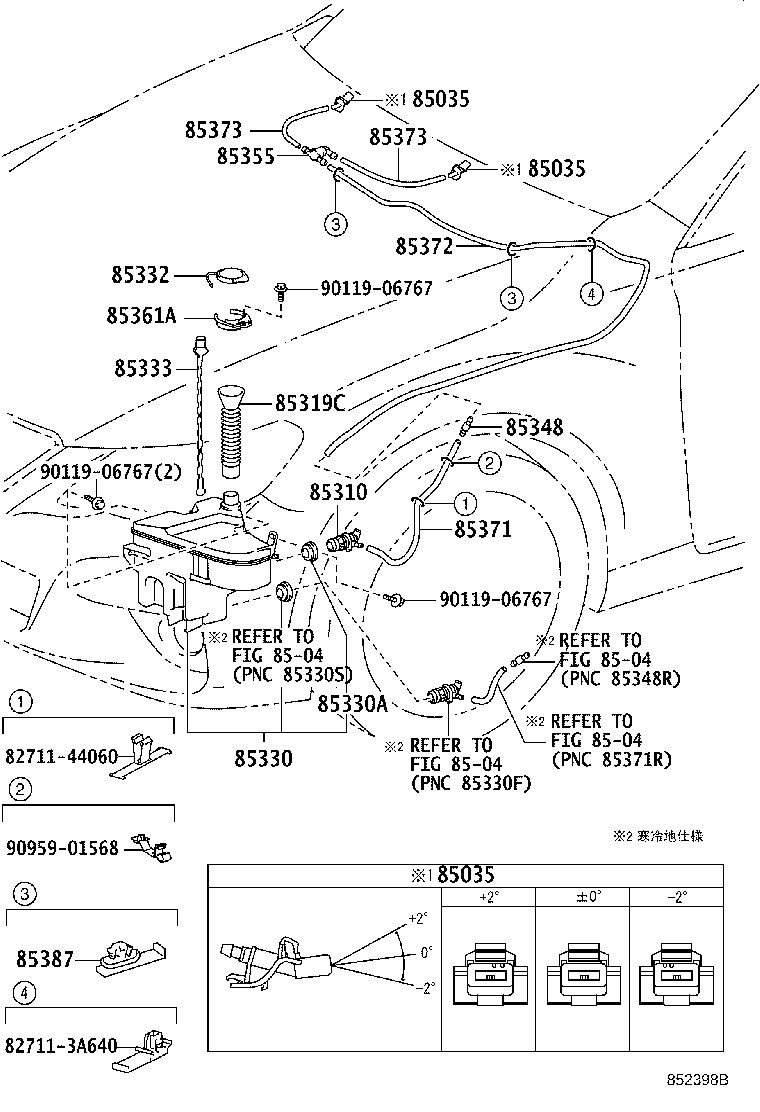

diagram 827113A640 8271144060 85035 85035 85035 8504 8504 8504 8504 85310 85319C 85330 85330A 85332 85333 85348 85355 85361A 85371 85372 85373 85373 85387 9011906767 9011906767 9011906767 9095901568
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-12320

GRX13#

角度 +2

 2
85381-12310

GRX13#

角度 −2

 2
85381-12300

GRX13#

角度 0

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-12320

GRX13#

角度 +2

 2
85381-12310

GRX13#

角度 −2

 2
85381-12300

GRX13#

角度 0

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-12320

GRX13#

角度 +2

 2
85381-12310

GRX13#

角度 −2

 2
85381-12300

GRX13#

角度 0

 2
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-21010

GRX13#

 1
85319C - HOSE, WASHER
85319-30360

GRX13#

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-30360

GRX13#

 1
85315-22270

GRX13#

寒冷地仕様

 1
85330A - BUSH, WINDSHIELD WASHER JAR
85336-60300

GRX13#

 1
85332 - CAP, WINDSHIELD WASHER JAR
85316-48060

GRX13#

 1
85333 - FILTER, WINDSHIELD WASHER JAR
85312-30080

GRX13#

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122

GRX13#

 1
85355 - VALVE, WINDSHIELD WASHER HOSE
85321-28020

GRX13#

 1
85361A - BRACKET, WINDSHIELD WASHER, NO.1
85337-48060

GRX13#

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33080

GRX13#

*H,L=500

 1
90099-33080

GRX13#

*H,L=500,寒冷地仕様

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33589

GRX13#

*H,L=1900

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

GRX13#

*H,L=370

 2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

GRX13#

*H,L=370

 2
85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER)
82711-52090

GRX13#

 2
Common parts
82711-3A640
82711-44060
90119-06767
90959-01568
Linked diagrams
8504
