GRX130-AETZH (2009)
Toyota Mark X

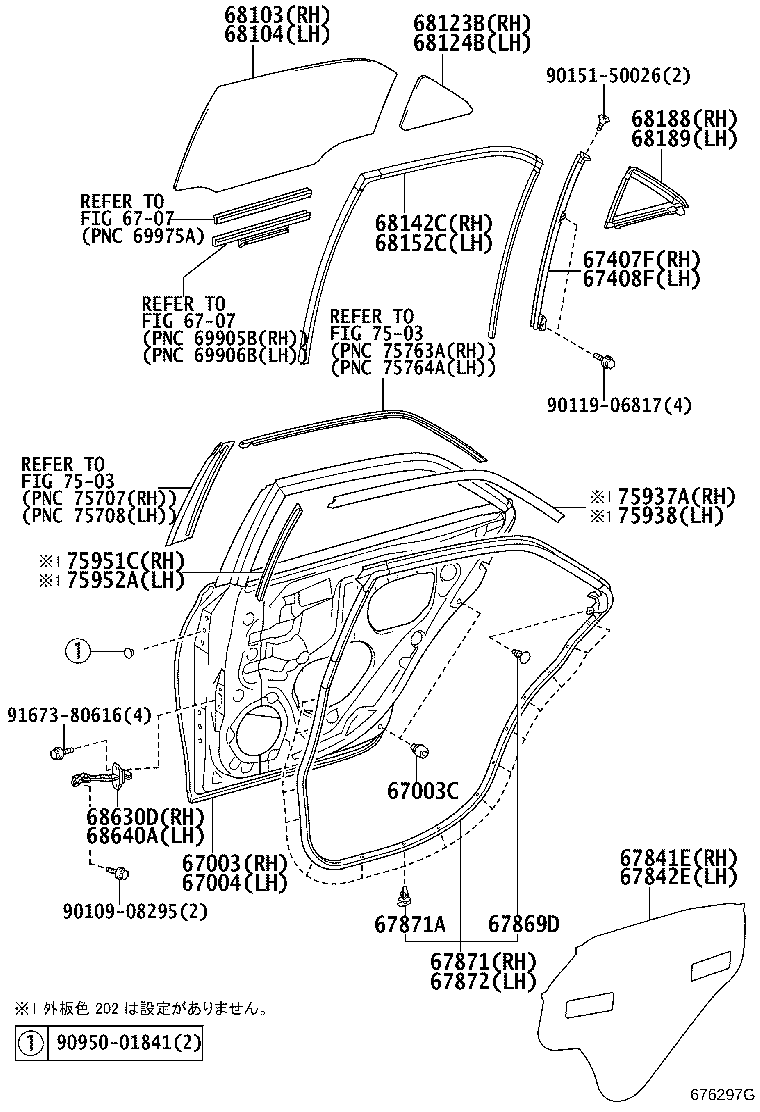

ILLUST NO. 1 OF 2(0910- )
ﾄﾞｱﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-22460 |
GRX13# |
1 | ||
| 67003C - CUSHION, REAR DOOR PANEL | ||||
| 90541-09069 |
GRX13# |
4 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-22470 |
GRX13# |
1 | ||
| 67407F - FRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH | ||||
| 67407-22200 |
GRX13# |
1 | ||
| 67407-22201 |
GRX13# |
1 | ||
| 67408F - FRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH | ||||
| 67408-22200 |
GRX13# |
1 | ||
| 67408-22201 |
GRX13# |
1 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-22310 |
GRX13# |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-22210 |
GRX13# |
1 | ||
| 67869D - CLIP, DOOR WEATHERSTRIP | ||||
| 67868-30030 |
GRX13# |
4 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-22320 |
GRX13# |
1 | ||
| 67871A - RETAINER(FOR REAR DOOR WEATHERSTRIP) | ||||
| 67867-12150 |
GRX13# |
32 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-22320 |
GRX13# |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-22480 |
GRX130,135 “Black Leather Limited” *(C) |
1 | ||
| 68113-22480 |
GRX130 Sﾊﾟｯｹｰｼﾞ |
1 | ||
| 68113-22470 |
GRX130,135 |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68114-22470 |
GRX130,135 |
1 | ||
| 68114-22480 |
GRX130,135 “Black Leather Limited” *(C) |
1 | ||
| 68114-22480 |
GRX130 Sﾊﾟｯｹｰｼﾞ |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-22310 |
GRX130 Sﾊﾟｯｹｰｼﾞ |
1 | ||
| 68123-22310 |
GRX130,135 “Black Leather Limited” *(C) |
1 | ||
| 68123-22300 |
GRX130,135 |
1 | ||
| 68124B - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-22310 |
GRX130,135 “Black Leather Limited” *(C) |
1 | ||
| 68124-22300 |
GRX130,135 |
1 | ||
| 68124-22310 |
GRX130 Sﾊﾟｯｹｰｼﾞ |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-22180 |
GRX13# |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-22140 |
GRX13# |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-22120 |
GRX13# |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-22110 |
GRX13# |
1 | ||
| 68630D - CHECK ASSY, REAR DOOR, RH | ||||
| 68630-22170 |
GRX13# |
1 | ||
| 68640A - CHECK ASSY, REAR DOOR, LH | ||||
| 68640-22070 |
GRX13# |
1 | ||
| 75937A - TAPE, BLACK OUT, INNER UPPER RH | ||||
| 75987-22190 |
GRX13# |
1 | ||
| 75938 - TAPE, BLACK OUT, INNER UPPER LH | ||||
| 75988-22150 |
GRX13# |
1 | ||
| 75951C - TAPE, BLACK OUT, INNER FRONT RH | ||||
| 75977-22040 |
GRX13# |
1 | ||
| 75952A - TAPE, BLACK OUT, INNER FRONT LH | ||||
| 75978-22040 |
GRX13# |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90119-06817 | ||||
| 90151-50026 | ||||
| 90950-01841 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 6707 | ||||
| 7503 | ||||

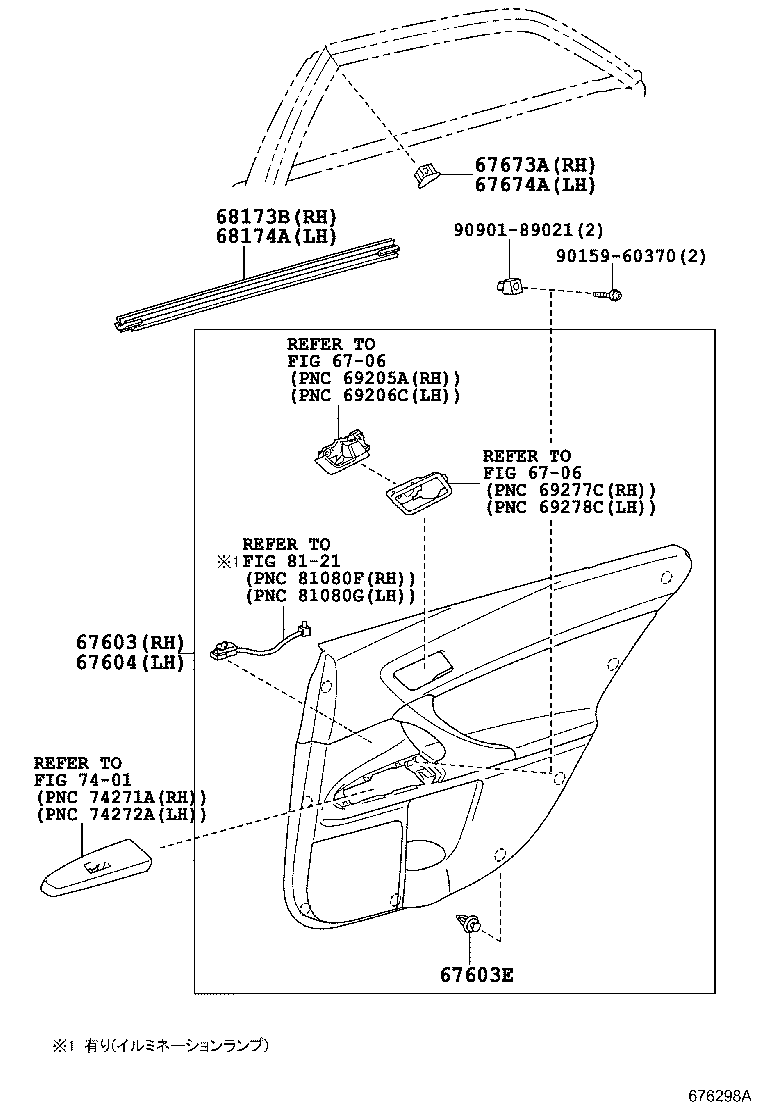

ILLUST NO. 2 OF 2(0910- )
ﾄﾞｱﾄﾘﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-22A70E1 |
GRX130,135 GREGE,TRIM4# |
1 | ||
| 67630-22A90A1 |
GRX130 Sﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革,SHELL,TRIM0# |
1 | ||
| 67630-22A80C1 |
GRX130 Sﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−ﾌｧﾌﾞﾘｯｸ(ｽﾎﾟｰﾂｸﾞﾚｰﾄﾞ),BLACK,TRIM2# |
1 | ||
| 67630-22A90C1 |
GRX130 Sﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革,GREGE,TRIM2# |
1 | ||
| 67630-22A70E1 |
GRX130,135 GREGE,TRIM40 |
1 | ||
| 67630-22A91C0 |
GRX130 Sﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革,BLACK,TRIM2# |
1 | ||
| 67630-22A70E2 |
GRX130,135 “Black Limited” *(B),ASH.BROWN,TRIM40 |
1 | ||
| 67630-22A70A1 |
GRX130,135 SHELL,TRIM0# |
1 | ||
| 67630-22A91E0 |
GRX130 Sﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革,ASH.BROWN,TRIM4# |
1 | ||
| 67630-22A91C0 |
GRX130,135 “Black Leather Limited” *(C)&ｼｰﾄ表皮−本革,BLACK,TRIM2# |
1 | ||
| 67630-22A91E0 |
GRX130,135 “Black Leather Limited” *(C)&ｼｰﾄ表皮−本革,ASH.BROWN,TRIM4# |
1 | ||
| 67630-22A70E1 |
GRX130,135 Fﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 67603E - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-09206 |
GRX13# |
16 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-22A90C1 |
GRX130 Sﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革,GREGE,TRIM2# |
1 | ||
| 67640-22A90A1 |
GRX130 Sﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革,SHELL,TRIM0# |
1 | ||
| 67640-22A70E1 |
GRX130,135 GREGE,TRIM40 |
1 | ||
| 67640-22A70A1 |
GRX130,135 SHELL,TRIM0# |
1 | ||
| 67640-22A70E1 |
GRX130,135 Fﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 67640-22A91C0 |
GRX130 Sﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革,BLACK,TRIM2# |
1 | ||
| 67640-22A70E1 |
GRX130,135 GREGE,TRIM4# |
1 | ||
| 67640-22A91C0 |
GRX130,135 “Black Leather Limited” *(C)&ｼｰﾄ表皮−本革,BLACK,TRIM2# |
1 | ||
| 67640-22A91E0 |
GRX130,135 “Black Leather Limited” *(C)&ｼｰﾄ表皮−本革,ASH.BROWN,TRIM4# |
1 | ||
| 67640-22A80C1 |
GRX130 Sﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−ﾌｧﾌﾞﾘｯｸ(ｽﾎﾟｰﾂｸﾞﾚｰﾄﾞ),BLACK,TRIM2# |
1 | ||
| 67640-22A70E2 |
GRX130,135 “Black Limited” *(B),ASH.BROWN,TRIM40 |
1 | ||
| 67640-22A91E0 |
GRX130 Sﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革,ASH.BROWN,TRIM4# |
1 | ||
| 67673A - GARNISH, REAR DOOR FRAME, RH | ||||
| 67673-33100 |
GRX13# |
1 | ||
| 67674A - GARNISH, REAR DOOR FRAME, LH | ||||
| 67674-33100 |
GRX13# |
1 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-22050 |
GRX13# |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-22040 |
GRX13# |
1 | ||
| Common parts | ||||
| 90159-60370 | ||||
| 90901-89021 | ||||
| Linked diagrams | ||||
| 6706 | ||||
| 7401 | ||||
| 8121 | ||||
